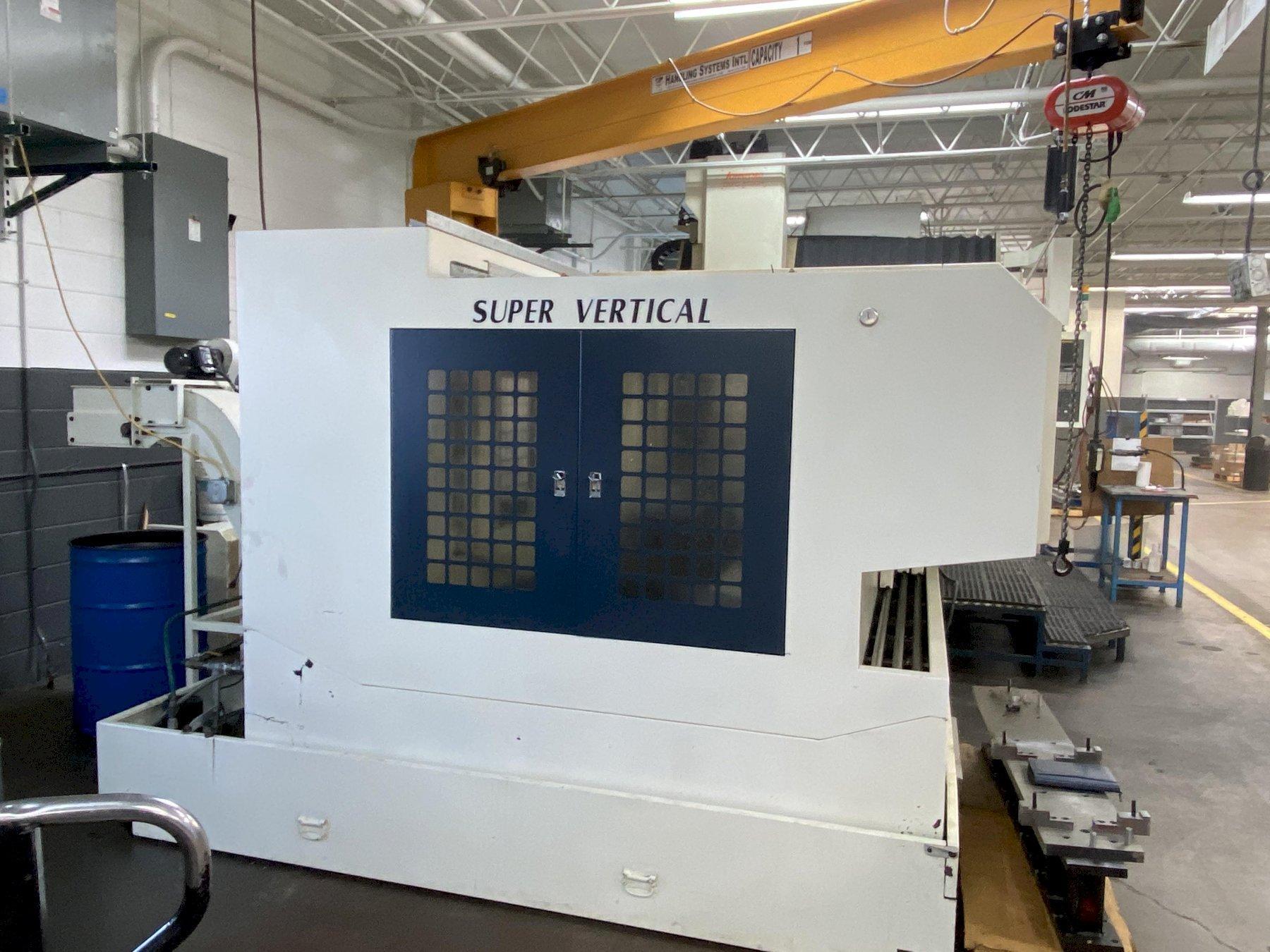

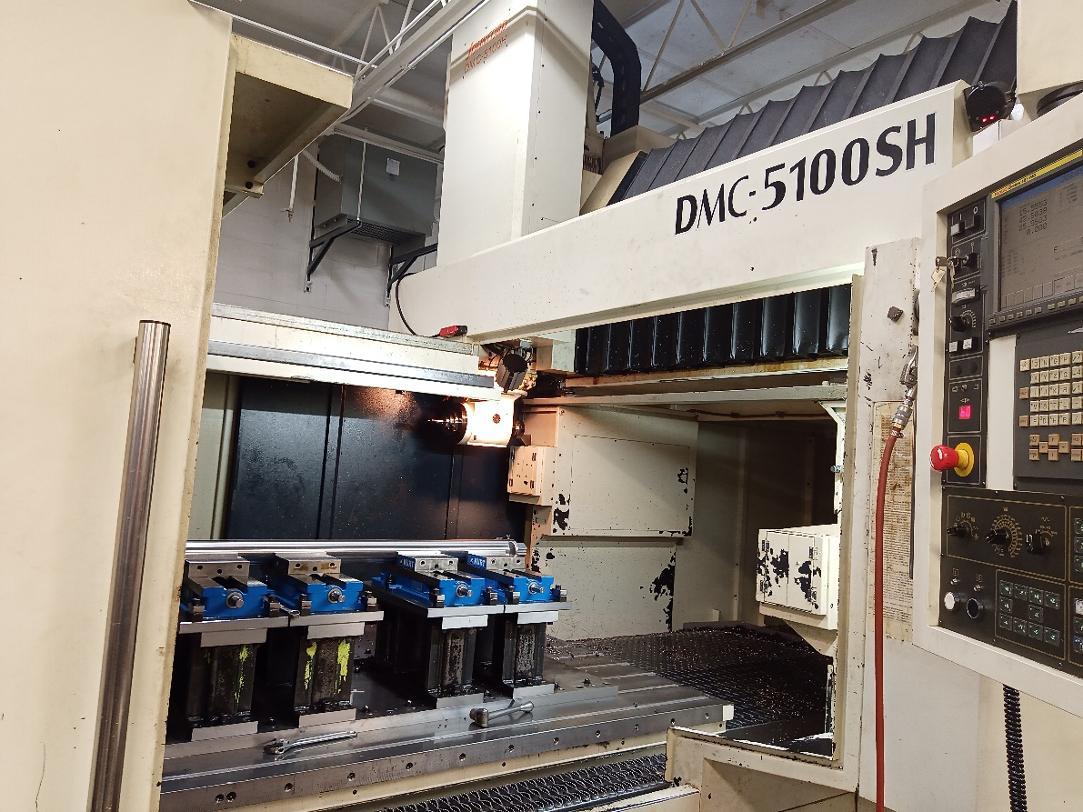

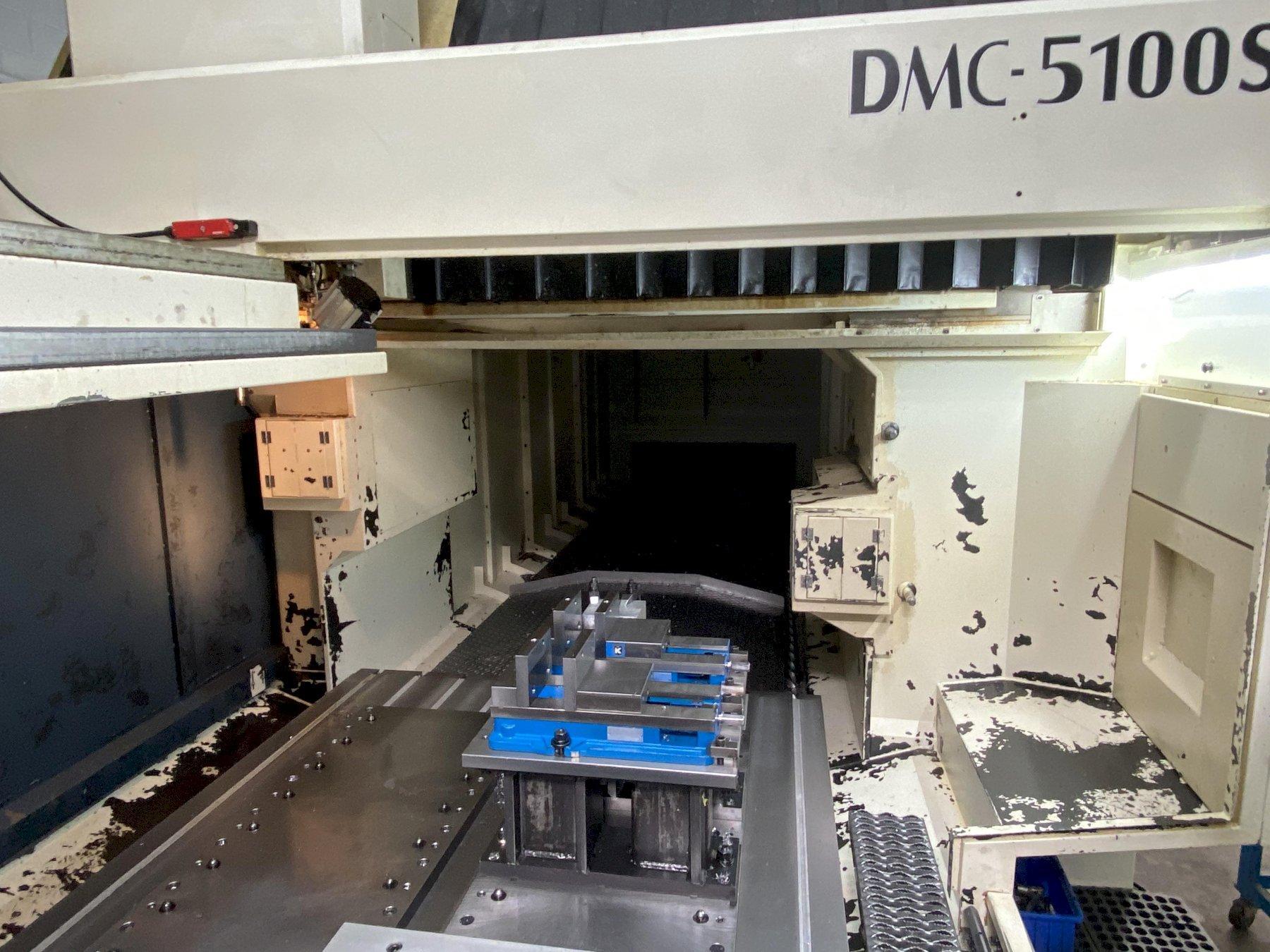

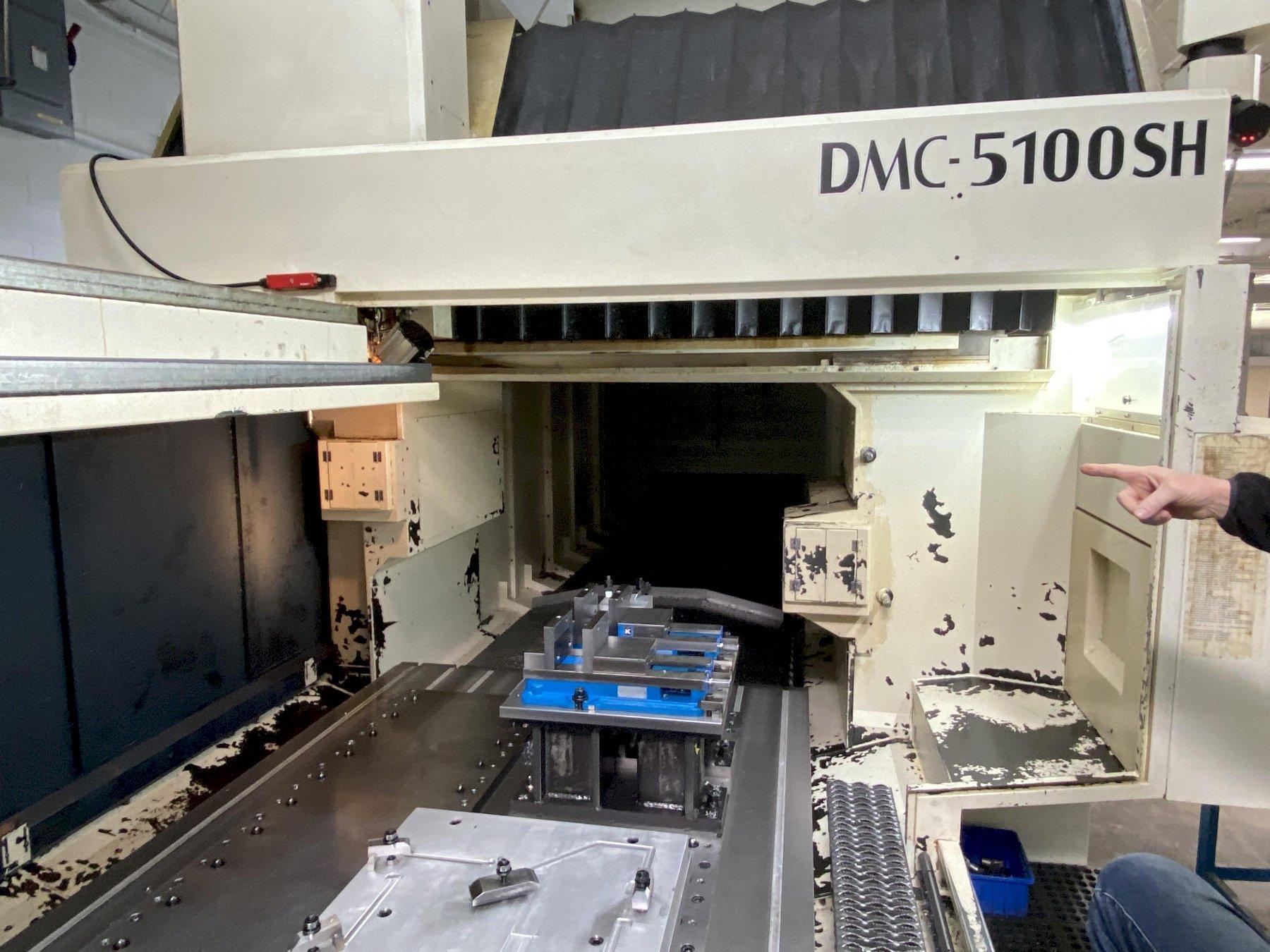

JOHNFORD DMC 5100SH+5F CNC BRIDGE TYPE VERTICAL MACHINING CENTER W/RIGHT ANGLE HEAD

Manufacturer

WELLS

Model

DMC 5100SH +5F

Year

2011

Stock #

17137

Condition

Not specified

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

JOHNFORD DMC 5100SH+5F CNC BRIDGE TYPE VERTICAL MACHINING CENTER W/RIGHT ANGLE HEAD

New 2011

Specifications:

Table Size

204.7" X 59.0"

Table Load Capacity

44,000 LBS

Distance Between Columns

70.04"

Spindle Nose To Table

11.8" ~ 53.3"

X - Axis Travel

200.7"

Y - Axis Travel

70.9"

Z - Axis Travel

31.5"

Rapid Traverse X, Y, Z

472, 472, 394 IPM

Cutting Feed Rate

394 IPM

Spindle Speed

6,000 RPM

Spindle Taper

50

Number Of Gear Ranges

2

Main Motor

35 HP

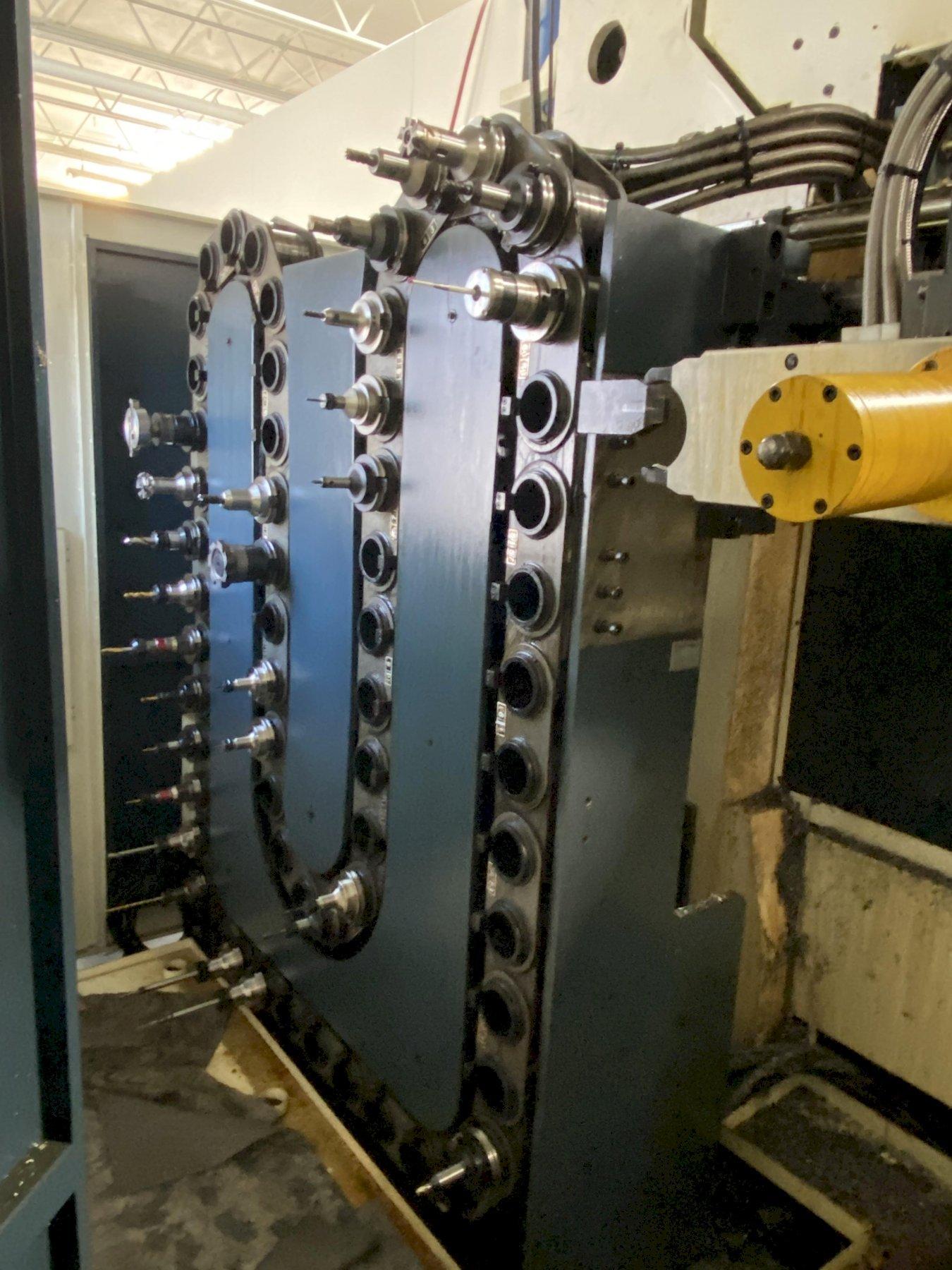

Automatic Tool Changer

60 ATC

Tool Diameter

7.87"

Tool Length

15.7"

Tool Weight

44 LBS.

Machine Weight

92,620 LBS.

Equipped with

1000 PSI COOLAT THRU SPINDLE

2000 RPM SPINDLE SPEED RIGHT ANGLE

400 TOOL OFFSETS

AUTO HEAD CHANGER W/AUTO CHANGING AND STORAGE RACK

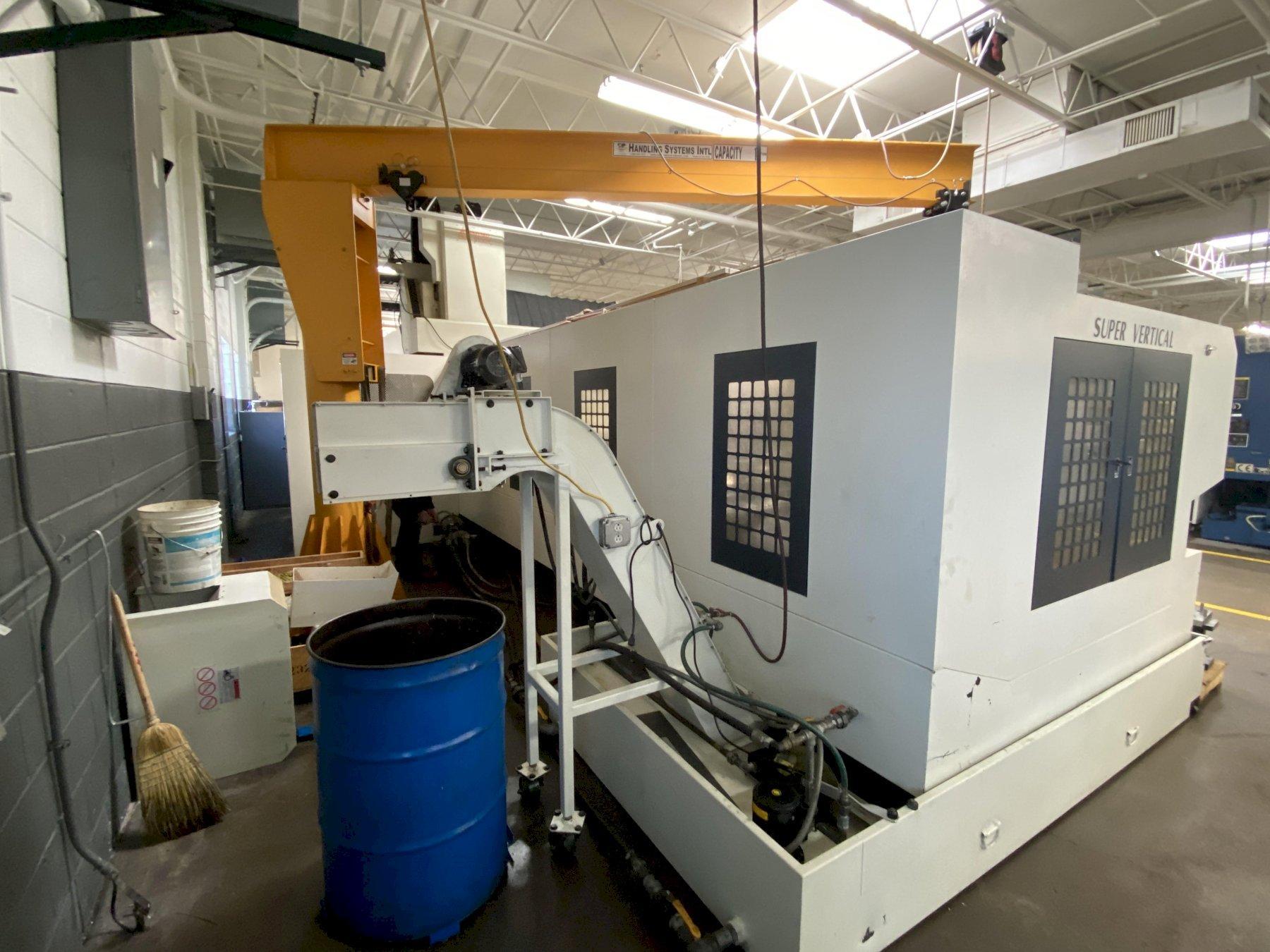

CHIP CONVEYOR

CUSTOM MACRO

FACTORY RIGHT ANGLE HEAD FOR ATC

FANUC 18I-MB CNC CONTROL

OIL SKIMMER

RENISHAW RMP60 PROBE

RIGHT ANGLE HEAD (5 DEGREE INDEXING)

RIGID TAP

SPINDLE CHILLER

WORK OFFSETS 48 PAIRS
