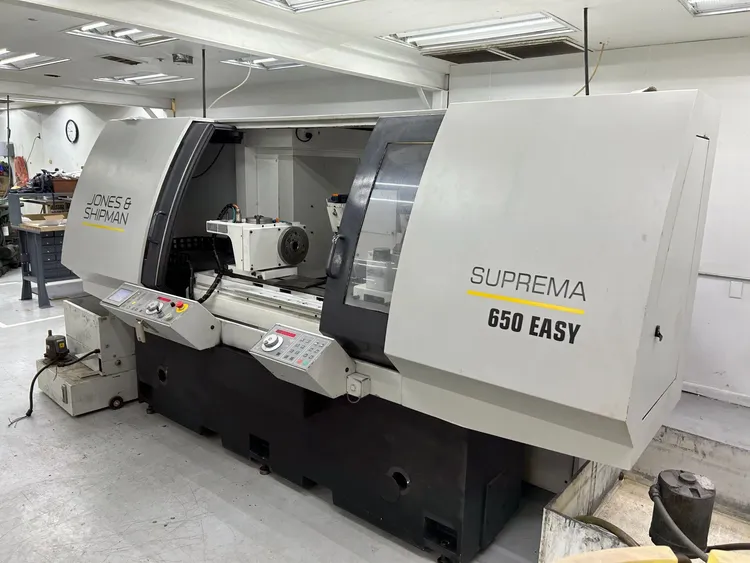

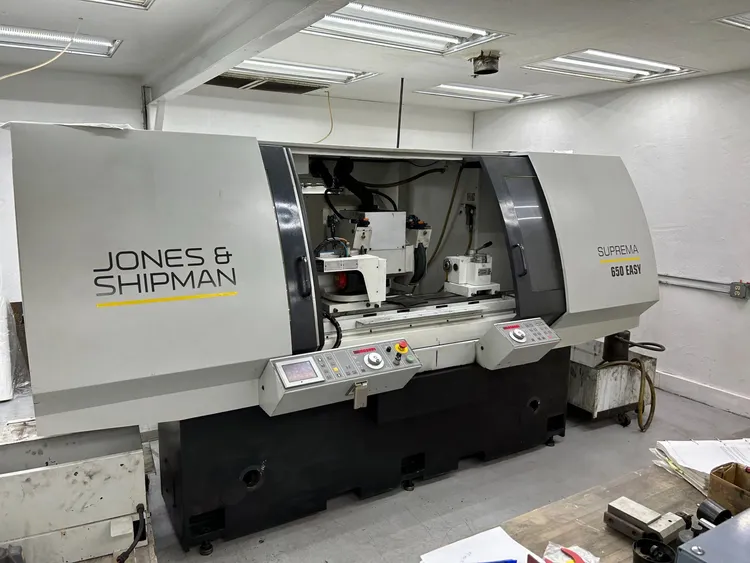

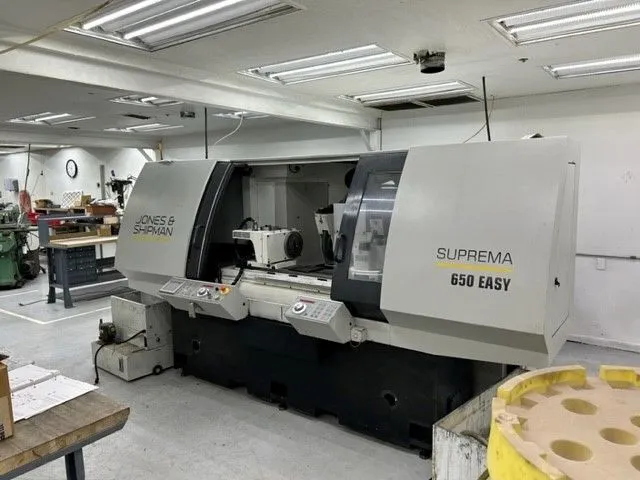

JONES & SHIPMAN SUPREMA EASY 650 UNIVERSAL ID/OD CYLINDRICAL GRINDER
Year
2010
Stock #
19961
Condition
Used
Keep Scrolling To Learn More
Specifications
Equipped With
JONES & SHIPMAN SUPREMA EASY 650 UNIVERSAL ID/OD CYLINDRICAL GRINDER
New 2010
EQUIPPED WITH
Internal grinding wheel attachment (17,000 RPM, WILL CONFIRM)
Table and wheelhead driven by AC digital servo motors,
preloaded ballscrews & rotary encoders.
"GE Fanuc Quickpanel" Microprocessor Control - Touch Control Panel
is from a unique, operator compatible, touch key panel,
that's easy to use and, because of faster set ups,
enables a higher level of grinding performance."
and Swing Around Internal Grinding, complete
with internal grinding spindle.
SPECIFICATIONS
Table:
Swing:....................................... 12.5"
Distance Between Centers:.................... 25.5"
Table Travel ................................ 29.5"
Max. Traverse Speed ......................... 472" IPM
HPG Increments .............................. 0.00005", 0.0005", or 0.005"
Table Swivel ................................ 18 Deg. CCW, 16 Deg. CW
Wheelhead:
Total Infeed Travel:......................... 10.236""
Max. Speed .................................. 236" IPM
Minimum Programmable Increment .............. 0.00005"
HPG Increments .............................. 0.00005", 0.0005", or 0.005"
Swivel Range ................................ 190 Degrees CW
45 Deg. CCW
External Grinding Wheels:
Grinding Wheel Size, L.H. Standard:.......... 14" x 2"W x 5"B
R.H Standard: .......... 12" x 1"W x 5"B
Spindle Speeds (3):.......................... 1773, 2069 & 2400 RPM
Motor Power: ................................ 5.5 H.P.
Headstock:
Swivel:...................................... 15 Degrees CW
90 Deg. CCW
Speed, Infinitely Variable:.................. 30 to 450 RPM
Centers, Standard/Reduced ................... #5 MT/#3 MT
Approximate Weight: ......................... 11,000 Lbs
Attachments
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
