KB 2100


Not provided

Stock #




Request A Quote

Keep Scrolling To Learn More


Equipped With

Working Area
Table set up area83x20 in
Table load capacity (max.)4,400 lbs
Number of T-slots4 positions
T-slots, spacing0.8 in
Travel X-axis59.1 in
Travel Y-axis26 in
Travel Z-axis0 - 26 in
Vertical Milling Head
Spindle speed (vertical)(12) 40 - 1,600 rpm
Spindle mountISO 50
Throat24 in
Vertical spindle-to-table surface distance0 - 26.38 in
Milling head swivel range360 deg
Rapid Feed
Rapid Feed X-axis137.8 in/min
Rapid Feed Y-axis137.8 in/min
Rapid Feed Z-axis68.9 in/min
Feed speed X-axis (infinitely variable)1 - 71 in/min
Feed speed Y-axis (infinitely variable)1 - 71 in/min
Drive Capacity
Motor rating main drive10.1 Hp
Motor rating feed2.7 Hp
Motor rating coolant pump0.7 Hp
Measures and Weights
Overall dimensions (length x width x height)130x94x109 in
Weight16,060 lbs
Part No. 301285

  • An extremely rigid, large-sized box-column design, made of premium cast-iron, provides a solid base for optimum work results
  • Extra wide box ways ensure maximum stability and precision at high loads
  • Extra long table travel distance and large table set-up area allow machining of large single parts or interactive machining of several parts - to give you a leading edge over your competition
  • Wide spindle speed range from 40 to 1600 rpm
  • Infinitely variable linear and cross feed
  • Control panel on a long extending arm that can be ideally positioned by the operator

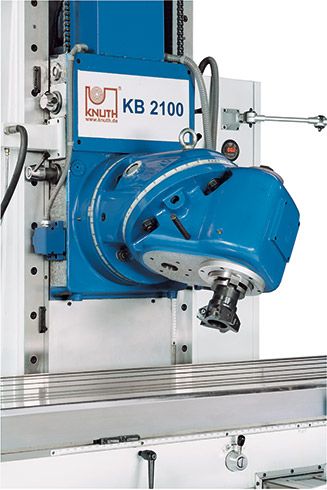

  • This universal cutter head features maximum rigidity and quiet operation. The angle can be set manually on an infinitely adjustable scale from 90¼ to 45¼. This allows an exact adjustment of the headstock in user-defined spatial angles and easy movement to a horizontal position.

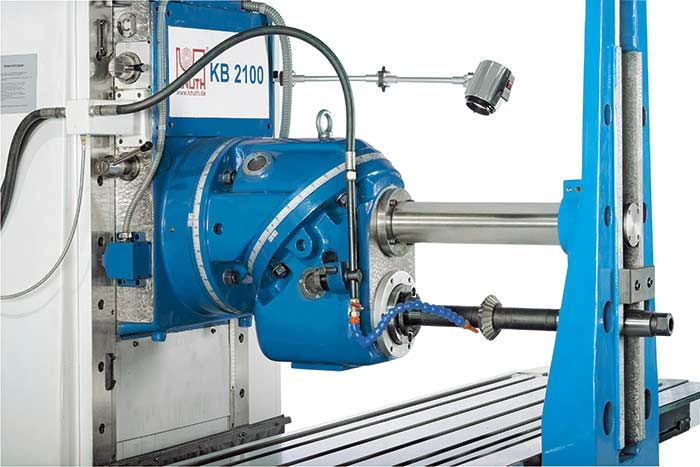

  • The KB 2100 includes a horizontal cutter arbor holder with excellent rigidity, allowing the user to fully utilize the advantages of a bed-type milling machine design for machining with long cutter arbors.

3-axis position indicator

  • More accuracy
  • Lower error rate
  • Increased productivity
  • Resulting in valuable time savings
  • For increased productivity
  • Easy to read display
  • Operator-specific features
  • Convenient keyboard layout
  • Resolution: 0.0004 / 0.0002"
  • Default coordinates
  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Calculator function
  • Storage for 10 tools
  • Radius / diameter toggle
  • Mm/inch conversion
  • Easy expansion and maintenance-free operation

  • 3-axis position indicator
  • universal swivel head
  • coolant system
  • draw bar
  • 1 milling chuck set ISO 50 (8-piece set: 0.1, 0.2, 0.3, 0.5, 0.6, 0.7, 0.9, 1 inch)
  • cutter arbor ISO 50 ¯ 1.5"
  • horizontal arbor holder
  • horizontal arbor ¯ 1.25"
  • work lamp
  • operating tools
  • foundation bolts M12 x 19.5"
  • operator manual
