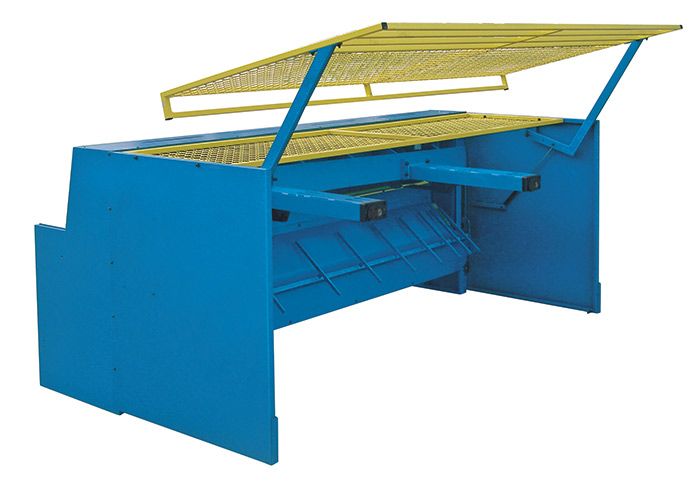

Machine Frame and Drive System

• The machine frame is made of a robust steel weldment treated with stress-relief annealing
• An automatic hold-down fixates the plate during cutting
• The double-edged upper and lower knives can be rotated and reused

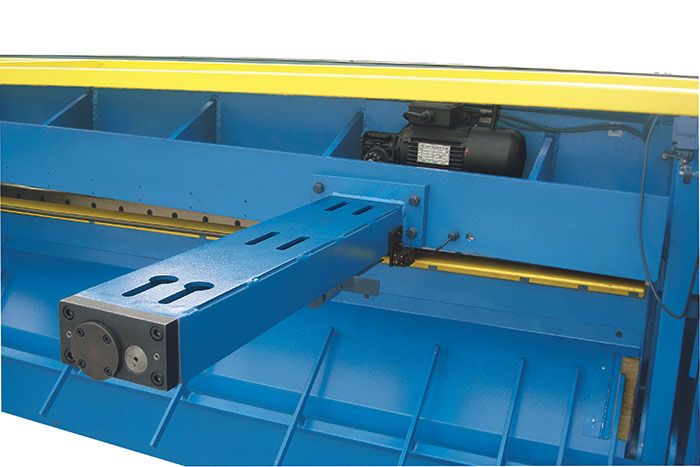

Material Support

• The rigid side angle stop simplifies alignment of the plate to the cut line

Operation and Ergonomics

• The PLC back-gauge control with 4.3" touchscreen features a user-friendly graphic interface for quick and easy programming
• The mobile control unit features a foot switch, so the operator has both hands free

Back Gauge

• The backgauge is driven by a servo motor, which significantly improves positioning and repeatability accuracy
• A plate hold-up fixture prevents any overhang of the plate in front of the back gauge to ensure maximum accuracy and quality of every cut, even in thin plates
• Support arms are positioned via an air cylinder and lowered in sync with the cutting process
