KNUTH ABS L FULLY AUTOMATIC HORIZONTAL BAND SAW
Year
Not provided
Stock #
16294
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| ABS 460 L | ABS 380 L | ABS 325 L | ABS 560 L | |
|---|---|---|---|---|
| Cutting Capacities | ||||
| Cutting capacity 90¡ - flat | 19x18 in | 17x15 in | 14x13 in | 22x22 in |
| Cutting capacity 90¡ round | 18 in | 15 in | 13 in | 22 in |
| Cutting capacity 90¡ - square | 18 in | 15 in | 13 in | 22 in |
| Cutting speed infinitely variable | 65 - 327 fpm | |||
| Stop length | 20 in | |||
| Accuracy of the feeding | 0.02 in | |||
| Drive Capacity | ||||

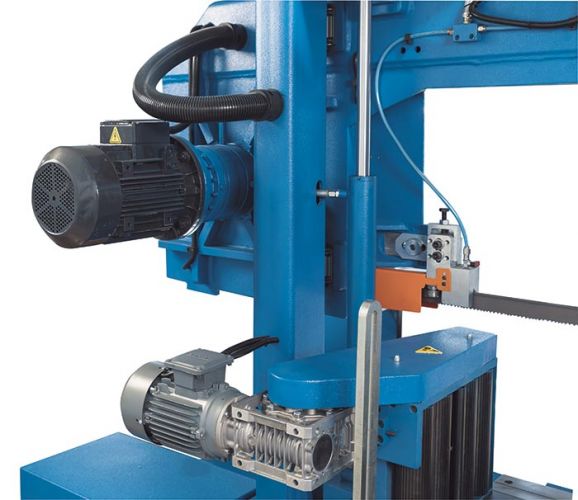

| Motor rating main drive | 5.4 Hp | 4 Hp | 3 Hp | 5.4 Hp |
| Motor rating hydraulic pump | 0.7 Hp | 0.7 Hp | 0.7 Hp | 1.5 Hp |
| Motor rating feed | 0.3 Hp | 0.3 Hp | 0.3 Hp | 0.7 Hp |
| Measures and Weights | ||||
| Overall dimensions (length x width x height) | 123x40x71 in | 115x38x66 in | 97x36x60 in | 138x42x81 in |
| Weight | 3,300 lbs | 2,750 lbs | 1,936 lbs | 4,620 lbs |
| Blade dimensions | 204.72x1.61x0.05 in | 188.98x1.34x0.04 in | 163.78x1.34x0.04 in | 236.22x1.61x0.05 in |
- Torsionally rigid machine frame made of a robust steel construction with high-quality linear guides

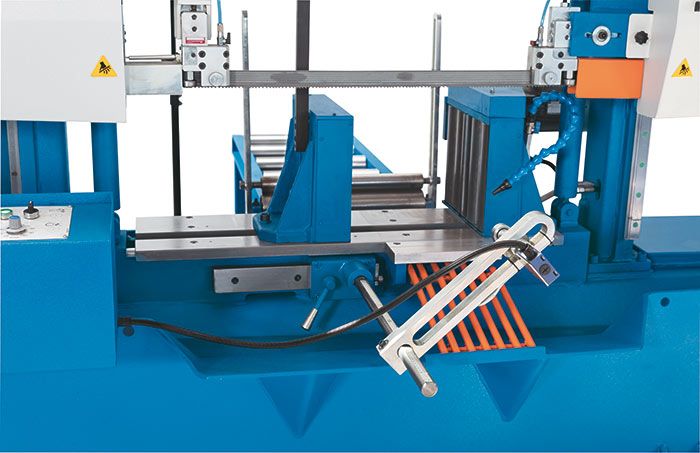

- Proven material feed system with hardened workpiece guide rollers and hydraulic workpiece clamping
- Shorter machining times are made possible by an advanced hydraulic saw frame feed design, including a new pressure control system to master any sawing tasks - infinitely variable setting of feed speed and cutting pressure
- All required settings are accessible and clearly labeled at the second control valve for easy adjustments
- Optical registration of the workpiece height allows empty runs in rapid feed mode for an optimum change-over to work feed and limiting of the vertical saw frame travel - everything is automated to reduce operator work load
- saw-band
- parts counter
- band break control
- coolant system
- hydraulic clamping
- mechanical saw blade tensioning with hydraulic pressure gauge
- feed roller table 47"
- linear stop
- operator instructions
