KNUTH PORTALO B CNC GANTRY TYPE MACHINING CENTER
Year
Not provided
Stock #
16242
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| Portalo B 1810 | Portalo B 2516 | Portalo B 3016 | Portalo B 4025 | Portalo B 6025 | Portalo B 8025 | |
|---|---|---|---|---|---|---|
| Working Area | ||||||
| Table dimensions | 75x39 in | 98x63 in | 118x63 in | 157x83 in | 236x83 in | 315x83 in |
| Table load capacity (max.) | 19,800 lbs | 33,000 lbs | 44,000 lbs | 66,000 lbs | 88,000 lbs | 132,000 lbs |
| T-slots, width | 0.7 in | 0.9 in | 0.9 in | 1.1 in | 1.1 in | 1.1 in |
| Number of T-slots | 5 positions | 7 positions | 7 positions | 9 positions | 9 positions | 9 positions |
| Spindle nose-to-table surface distance | 9 - 31 in | 8 - 39 in | 8 - 39 in | 14 - 61 in | 14 - 61 in | 14 - 61 in |
| Travels | ||||||
| Travel X-axis | 41.3 in | 63 in | 63 in | 98.4 in | 98.4 in | 98.4 in |
| Travel Y-axis | 79 in | 98 in | 126 in | 165 in | 244 in | 323 in |
| Travel Z-axis | 22 in | 31 in | 31 in | 47 in | 47 in | 47 in |
| Headstock | ||||||
| Spindle speed | 8,000 rpm | 8,000 rpm | 8,000 rpm | 6,000 rpm | 6,000 rpm | 6,000 rpm |
| Spindle mount | BT 50 | |||||
| Rapid Feed | ||||||
| Rapid feed | 1,181 in/min | 787 in/min | 787 in/min | 591 in/min | 591 in/min | 591 in/min |
| Feed | ||||||
| Work feed | 0 - 591 in/min | |||||
| Torque | 1,017.75 - 1,522.2 ft.lb. | 1,433.7 - 2,150.55 ft.lb. | 1,433.7 - 2,150.55 ft.lb. | 2,367.38 - 3,548.85 ft.lb. | 2,367.38 - 3,548.85 ft.lb. | 2,367.38 - 3,548.85 ft.lb. |
| Tool Head | ||||||
| Number of tool stations | 20 positions | |||||
| Tool size ¯ x L (max.) | 5.91x9.84 in | 5.91x9.84 in | 5.91x9.84 in | 5.91x11.02 in | 5.91x11.02 in | 5.91x11.02 in |
| Max. workpiece width x height | 51x29 in | 79x30 in | 79x37 in | 113x59 in | 113x59 in | 113x59 in |
| Tool weight max. | 33 lbs | |||||
| Tool-change time | 6 sec | |||||
| Accuracies | ||||||
| Positioning accuracy | 0.00039 in | |||||
| Repeatability | 0.0002 in | |||||
| Drive Capacity | ||||||
| Motor rating main drive | 24.1 - 24.1 Hp | 33.5 - 33.5 Hp | 33.5 - 33.5 Hp | 56.3 - 56.3 Hp | 56.3 - 56.3 Hp | 56.3 Hp |
| Main drive, continuous load | 16.09 Hp | 22.8 Hp | 22.8 Hp | 37.55 Hp | 37.55 Hp | 37.55 Hp |
| Motor rating X-axis | 2.8 Hp | 5.8 Hp | 5.8 Hp | 10.3 Hp | 10.3 Hp | 10.3 Hp |
| Motor rating Y | 2.8 Hp | 5.8 Hp | 5.8 Hp | 10.3 Hp | 10.3 Hp | 10.3 Hp |
| Motor rating Z axis (brakes) | 5.8 Hp | 7 Hp | 7 Hp | 10.3 Hp | 10.3 Hp | 10.3 Hp |
| Measures and Weights | ||||||
| Overall dimensions (length x width x height) | 189x125x111 in | 217x138x134 in | 256x138x134 in | 296x241x158 in | 375x241x158 in | 453x260x158 in |
| Weight | 44,000 lbs | 68,200 lbs | 72,600 lbs | 96,800 lbs | 121,000 lbs | 154,000 lbs |
- Cast-iron frame with high gantry design for maximum rigidity, small foot print for efficient and economical operation
- In smaller models with up to 62" wide tables the machine frame is a one-piece construction, while larger models feature separate table and column constructions
- Rigid traverses with drives on both sides - perfect synchronization of drives and dynamics
- Large linear guides in X / Y axis and 4 linear roller guides on Z axis ensure lasting precision
- A fixed table allows machining of extra-heavy workpieces
- Precision preloaded ball screws and proven Siemens servo-motors provide dynamic feed and rapid feed on all axes

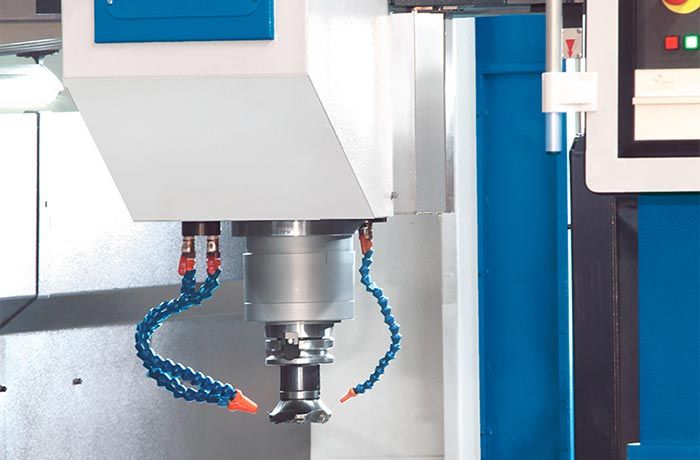

- A powerful coolant system combined with the included chip conveyor ensures excellent chip disposal and optimum machining conditions
- Optional universal and angle cutter heads allow angular or lateral machining of workpieces
- Plus free 1-day training in Wasbek
- Compact, rugged and maintenance-free operator-panel CNC with dedicated system software for turning, milling and grinding technologies
- High-quality, rugged, magnesium die-cast operator panels with degree of protection IP65
- Maintenance-free operator panel front, e.g. no fan, battery or hard disk
- Highest machining precision with 80-bit NANOFPaccuracy
- New user interface SINUMERIK Operate Ð same look and feel as SINUMERIK 840D sl
- ShopTurn/ShopMill (option): Very fast programming time in the production of individual parts and small batches
- Advanced Surface: Innovative, high-performance CNC functions provide top quality of workpiece surface with minimum machining times
- Technology package SINUMERIK MDynamics with the new function Advanced Surface: Perfect workpiece surfaces and very fast machining times in molded part production
- programGUIDE: fastest machining time and maximum flexibility for large series productions
- Unique spectrum of technology cycles Ð ranging from the machining of any turning and milling contour with residual material detection to in-process measurements
- G-Tech is a grinding package with an extensive scope of CNC functions ranging from the low-cost entry-level model up to highly productive machines
- Animated Elements: Unique operating and programming support with moving picture sequences
- modern data transfer options via USB stick, CF card and network (Ethernet)
- SINUMERIK Integrate for production Access MyMachine /Ethernet permits remote diagnostics from anywhere in the world
- Easy Message: Integrated mobile radio modem for optimum process monitoring and maximum machine availability via text messages (SMS)
- Easy Extend: Flexible handling of machine units, e.g. an A axis/parts machine
- Maintenance scheduler: Signaling of pending maintenance tasks in accordance with specified maintenance intervals
Functions
- Operator panel variants for horizontal or vertical operator panel housings
- Proximity/clearance sensor for smart display control
- Integrated QWERTY full CNC keyboard with short-stroke keys
- Additional Ethernet interface at the rear of the CNC for connection to factory network
- Additional USB interface at the rear of the CNC for machine control panel
- Integrated PLC based on the SIMATIC S7-200 command set with ladder logic programming
- I/O interface based on PROFINET for the connection of PLC I/O devices and a machine control panel
- Up to 5 axes/spindles
- 1 analog spindle
- 1 machining channel/mode group
- Integrated tool management with tool life monitoring
- Configurable user screens with SINUMERIK Integrate for engineering Run MyScreens (Easy Screen)
- SINUMERIK Integrate for engineering Run MyRobot /EasyConnect for simple interfacing of robots and handling systems
- Integrated data archiving procedure for simple data updates
- Siemens 828 D Basic control
- Electronic hand-wheel for X and Z axis
- separate control panel
- compressed air gun
- automatic central lubrication
- coolant system
- LED work lamp
- 2 spiral chip conveyors
- CE

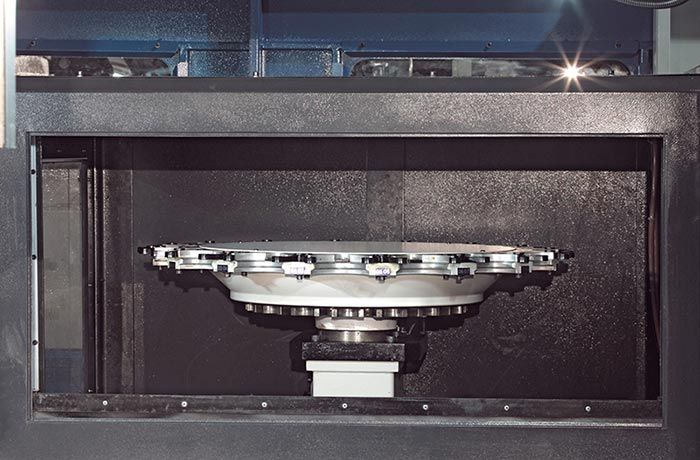

- 20-station tool changer
- operating tools
- operating manual and programming instructions
