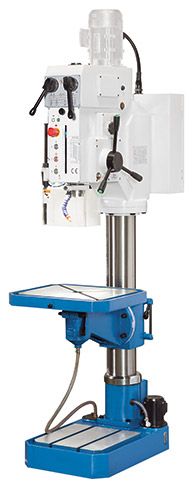

KNUTH SSB 40 Xn COLUMN DRILL PRESS

Manufacturer

KNUTH

Model

SSB 40 XN

Year

Not provided

Stock #

16261

Condition

New

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

Working Area
Drilling capacity1.57 in
Tapping capacity, steelM 24
Table set up area22x19 in
Table stroke18 in
Quill stroke7 in
Table swivel range (max.)± 45¡
Spindle nose-to-table distance (max.)24 in
Spindle nose-to-foot distance47 in
Throat14 in
Column diameter6 in
Headstock
Spindle mountMT 4
Spindle speed(12) 60 - 2,300 rpm
Feed
Quill feeds0,005; 0,01; 0,02 / 0,12 in/R in/R
Drive Capacity
Main motor rating1.6 / 2.1 Hp
Measures and Weights
Overall dimensions (length x width x height)39x23x90 in
Weight1,210 lbs
Part No. 162338

  • Heavy cast-iron construction with thick-walled column
  • Tapping feature
  • Automatic drill feeds controlled by an electromagnetic clutch
  • Includes coolant system and work lamp
  • Table rotates and swivels ±45¡

  • tapping unit
  • protective shield
  • LED work lamp
  • coolant system
  • operating tools
  • operator manual
