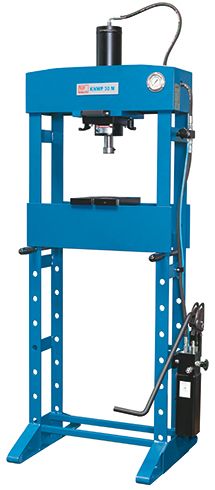

KNUTH "KNWP M" MANUAL WORKSHOP PRESS
Year
Not provided
Stock #
16159
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| KNWP 30 M | KNWP 15 M | KNWP 50 M | |
|---|---|---|---|
| Working Area | |||
| Pressure force | 33 t | 16.5 t | 55 t |
| Operating pressure (max.) | 5,431.7 psi | 5,541.9 psi | 5,792.75 psi |
| Piston travel per quick stroke | 0.15 in | 0.31 in | 0.1 in |
| Piston travel per work stroke | 0.02 in | 0.04 in | 0.01 in |
| Total piston stroke | 6.3 in | ||
| Flow rate quick stroke | 8.32 gal/min | ||
| Throat width | 22 in | 22 in | 30 in |
| Flow rate work stroke | 1 gal/min | ||
| Measures and Weights | |||
| Hydraulic tank volume | 0 gal | ||
| Oil tank capacity | 0.44 gal | 0.44 gal | 0.66 gal |
| Weight | 330 lbs | 257 lbs | 550 lbs |

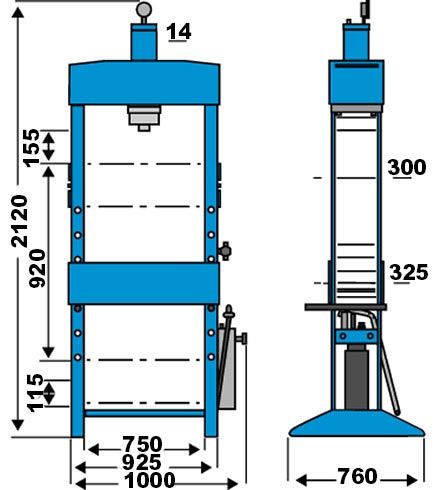

| Overall dimensions (length x width x height) | 33x26x81 in | 33x24x76 in | 44x30x84 in |
For any repair and installation work, e.g.:
- Removal and installation of press-fit bearings, bolts and bushings
- Straightening beams, shafts, axles and sections
- Pressing and crimping
- Load tests and weld sample testing
- Straightening of workpieces
- Material testing
- Rigid machine frame featuring a carefully machined weldment structure
- Hydraulic pump can be operated by hand or foot control
- 2-step hydraulics - with change-over switch for changing between quick-stroke and work stroke
- The support table features a rigid design, but is easy to handle with adjustable height
- Includes multi-function die for straightening flat material and corrugation
- Table lifting system
