KNUTH MODEL KSR 40 ADVANCE RADIAL DRILL PRESS
Year
Not provided
Stock #
16326
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| Drilling capacity | 1.57 in |
| Tapping capacity, steel | M 30 |
| Throat | 37 in |
| Spindle nose-to-table surface distance | 31 in |
| Column stroke | 15 in |
| Quill stroke | 8 in |
| Head swivel range | ± 90¡ |
| Column diameter | 9 in |
| Table set up area | 47x20 in |
| Number of T-slots | 3 positions |
| T-slots, width | 0.7 in |
| Upper beam travel | 23 in |
| Spindle mount | 4 MT |
| Spindle speed (infinitely variable) | 50 - 2,000 rpm |
| Feeds | (6) 0 - 0.02 in/R |
| Motor rating main drive | 3 Hp |
| Motor rating height adjustment | 2 Hp |
| Motor rating coolant pump | 0.5 Hp |
| Overall dimensions (length x width x height) | 68x48x89 in |
| Weight | 6,028 lbs |
| Part No. | 162363 |
- Powerful machine for drilling, tapping, countersinking and boring
- Large travel ranges and many different machining stations provide maximum setup and machining possibilities
- Extremely sturdy construction ensures high accuracy and reliability
- Quick and precise tool positioning: hydraulic clamping is released by the push of a button, head easily swivels forward, backward and horizontally
- Motorized up and down movement of drill head
- Height can be adjusted without changing the drilling position
- Provides great flexibility when machining large parts
- Drill head swivels ±90 degrees
- Automatic feed with depth stop trigger
- Thick-walled column and large dimensions of all components ensure maximum accuracy
- Digital boring depth display
- Infinitely variable spindle speed with digital display and a digital drilling depth indicator provide extra convenience for the operator
- digital speed indicator
- additional setup areas at the side and rear

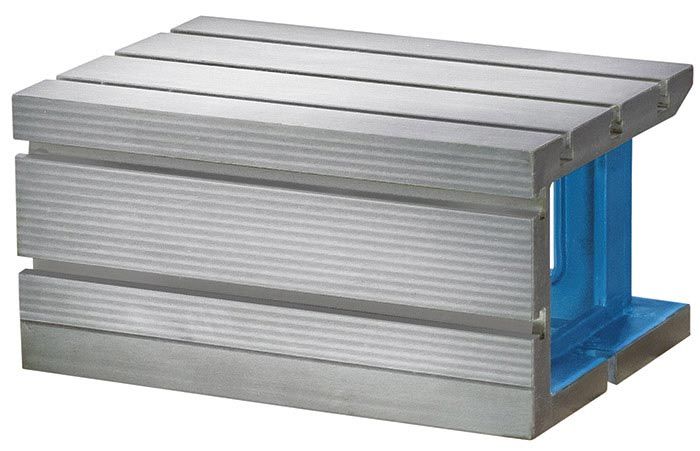

- cube table
- swiveling horizontal table
- digital boring depth indicator
- work lamp
- coolant system
- tapping unit
- drill chuck with tool-holder bits
- reducing sleeves
- operating tools
- operator manual
