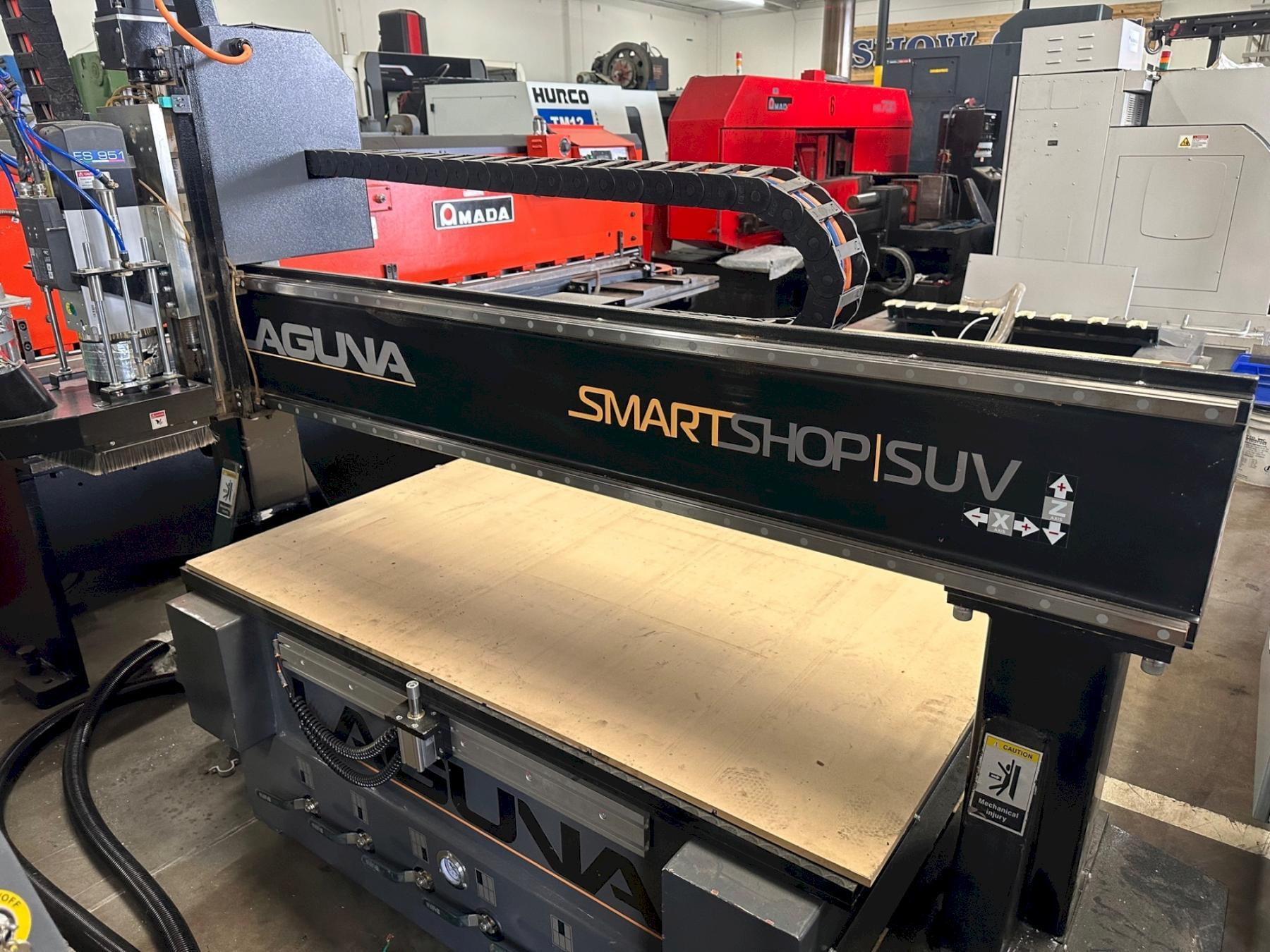

LAGUNA MODEL MCNC SS2 SUV SMARTSHOP II CNC ROUTER
Year
2021
Stock #
19929
Condition
Used
Keep Scrolling To Learn More
Specifications
Equipped With
LAGUNA MODEL MCNC SS2 SUV SMARTSHOP II CNC ROUTER
NEW 2021
Description:
Boost productivity with this used 2021 Laguna MCNC SS2 SUV 5x10 CNC Router. Features include a 12 HP HSD spindle, 8-position ATC, industrial servo control, and a universal grid-type vacuum table with six zones. Ideal for precision machining tasks
SPECIIFCATIONS:
5' X 10' LAGUNA SMARTSHOP 2 SUV

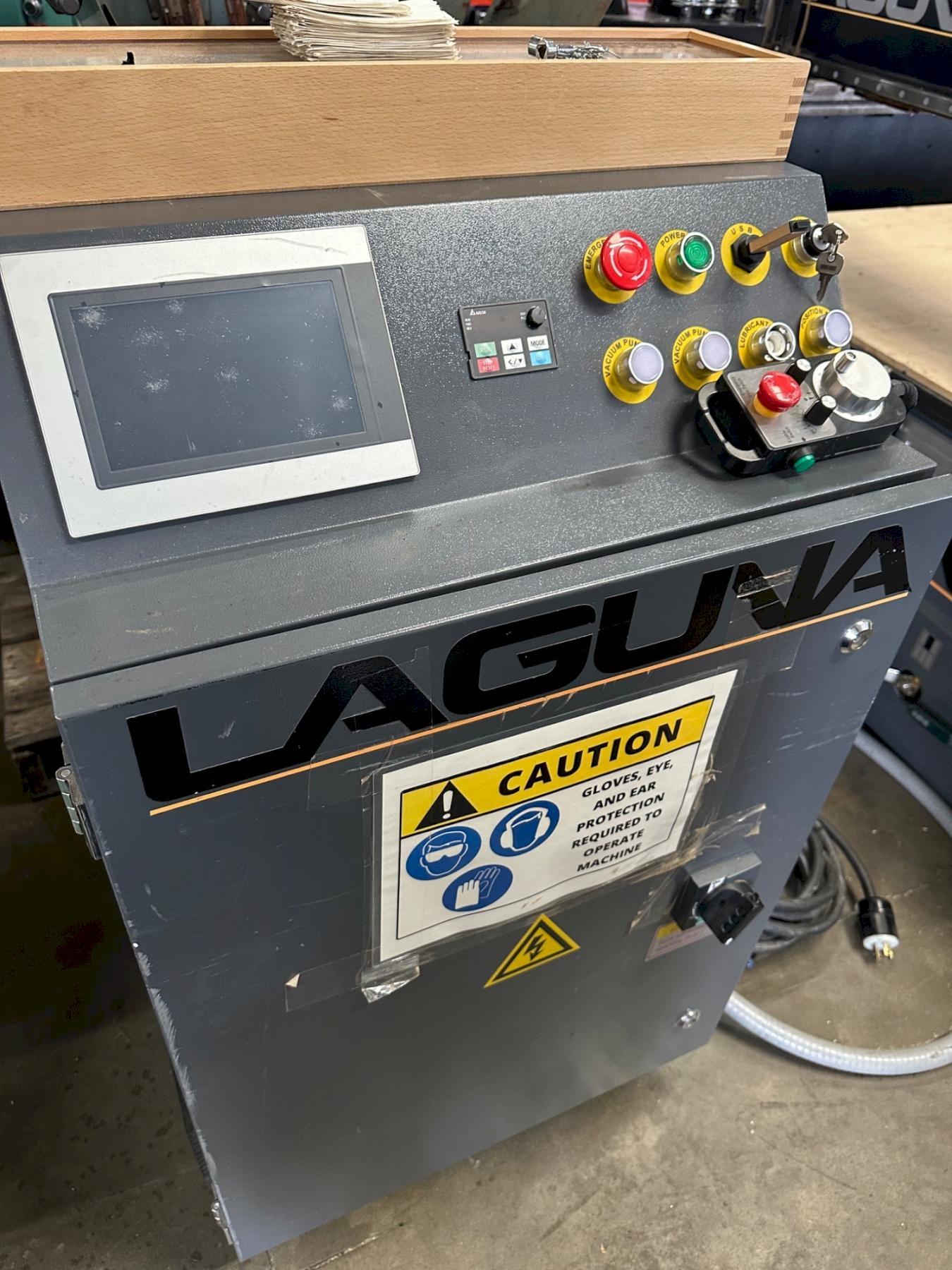

B & R INDUSTRIAL SERVO CONTROL WITH TOUCH SCREEN COMMANDS
PACKAGE WITH ABSOLUTE POSITIONING ENCODERS.
5‘ X 10’ CUTTING AREA

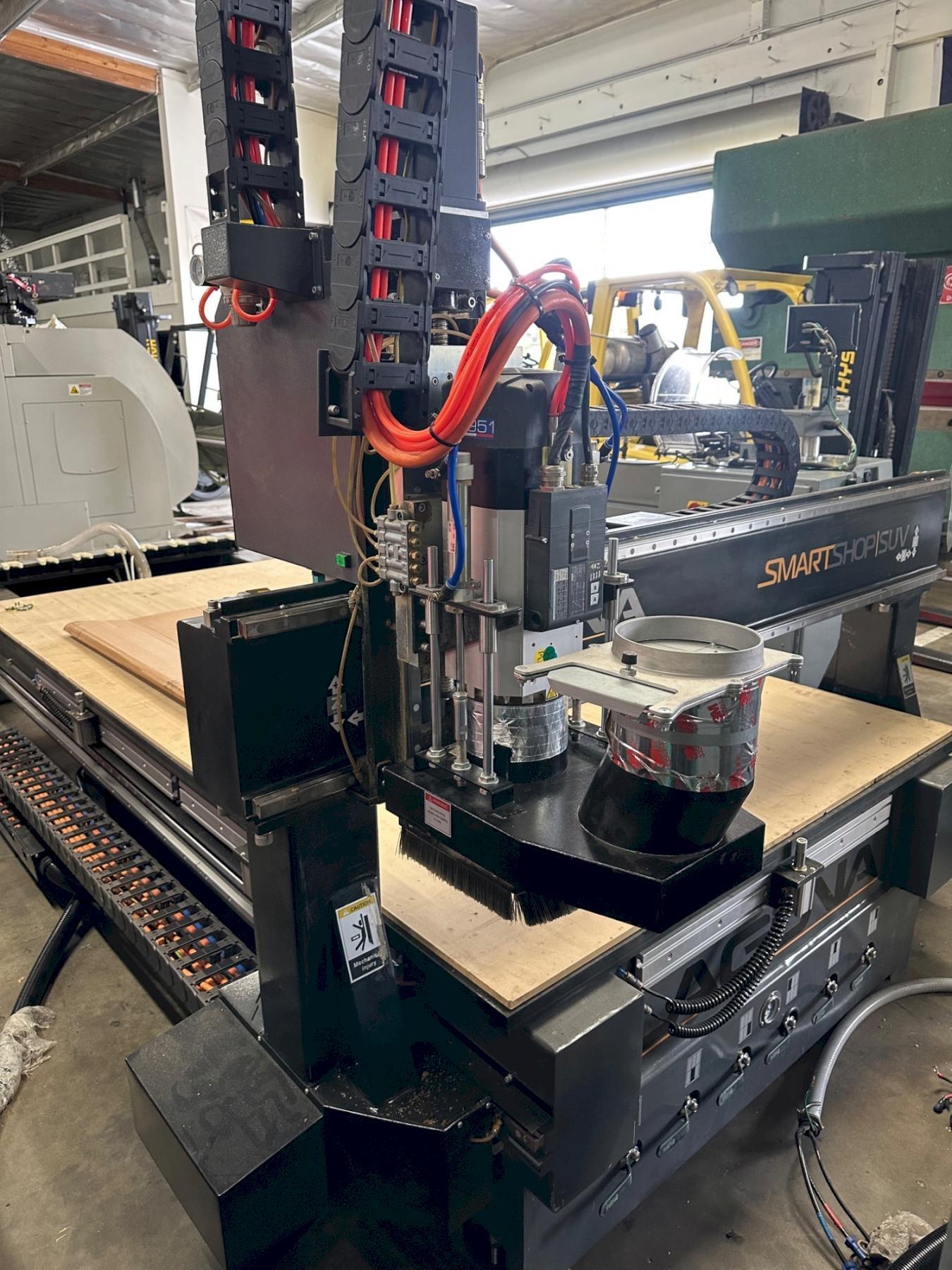

12 HP HSD ISO-30 ATC ELECTROSPINDLE (CERAMIC BEARINGS)
208-230V, 3 PHASE POWER
24,000 RPM SPINDLE

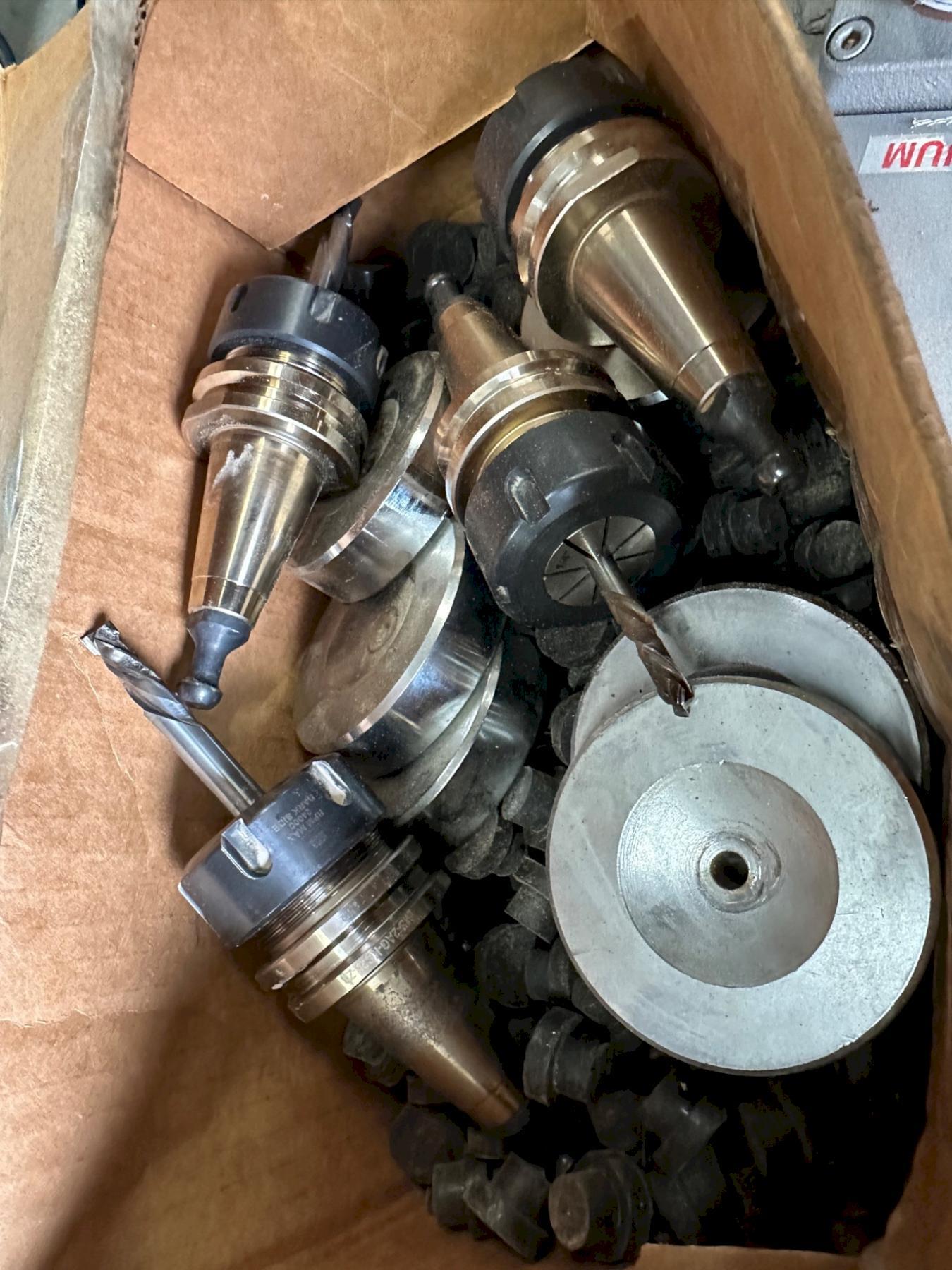

EIGHT (8) POSITION AUTOMATIC TOOL CHANGER (4
TOOL HOLDERS INCLUDED)
850 WATT B&R SERVOS WITH 8TO1 PLANETARY GEARS
MANUAL PULSE GENERATOR for CONVIENENT AND ACCURATE JOGGING
ADJUSTABLE POP-UP PINS
TOOL CONE HOLDER - FOR EASY BIT CHANGING

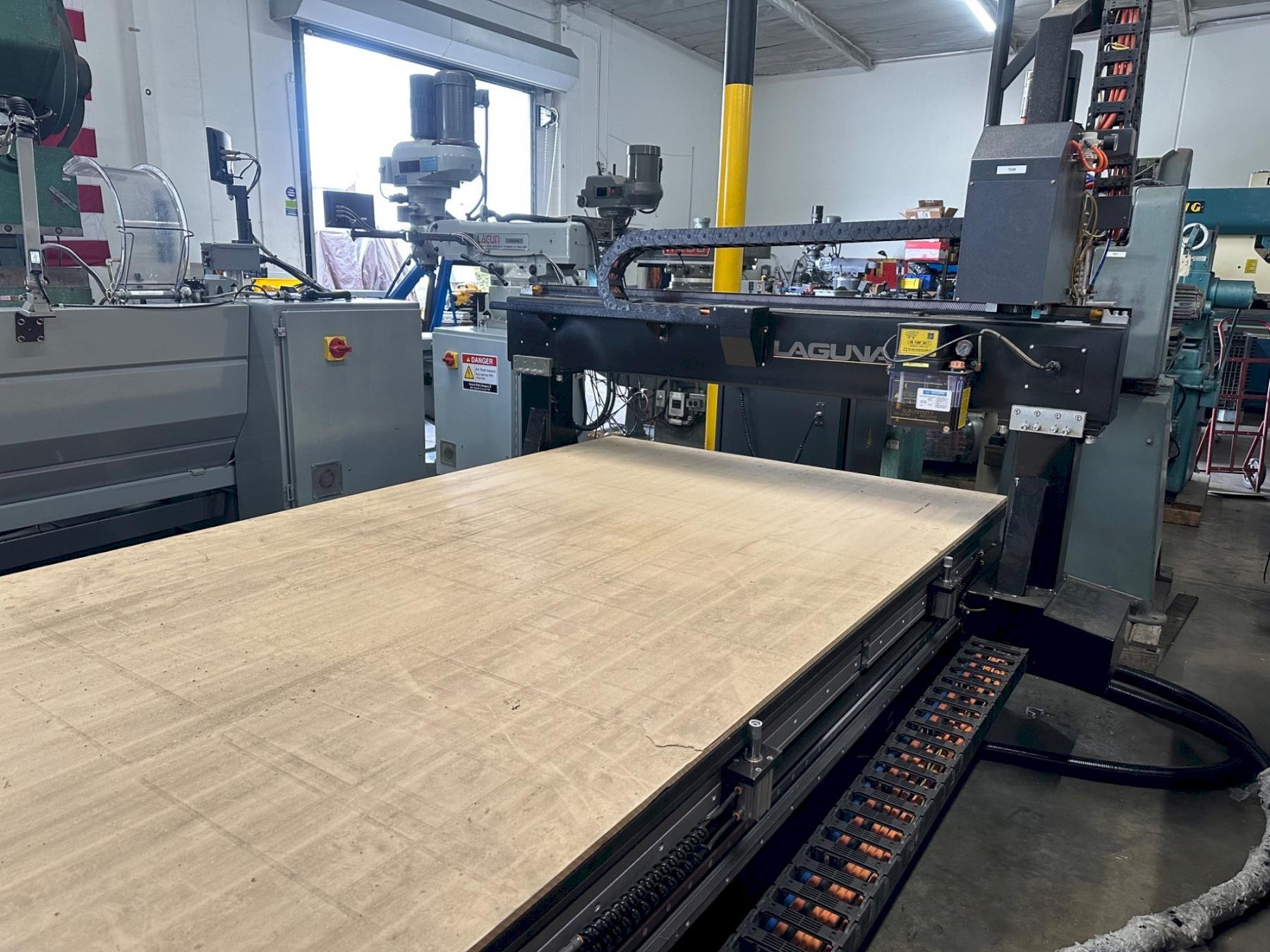

5‘ X 10’ (PHENOLIC) - UNIVERSAL GRID-TYPE VACUUMPOD READY TABLE
SIX (6) INDEPENDENTLY CONTROLLED VACUUM ZONES
- X AXIS - HELICAL RACK-AND-PINION
- Y AXIS - DUAL HELICAL RACK-AND-PINION
- Z AXIS - PRECISION GROUND BALL SCREW
PROGRAMMABLE DUST HOOD WITH M-CODE DRIVENRETRACTION
E-STOP CONTROL
LIMIT SWITCHES ON ALL AXES WITH SOFT LIMITS
RIGID, ALL-WELDED, STRUCTURE
WEIGHT - 3,500 LBS
