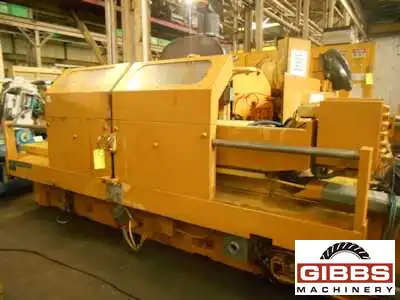

LANDIS 3SE 14" x 60" ANGLEHEAD CNC GRINDER REBUILT BY LANDIS
Year
2002
Stock #
30428
Condition
Excellent
Keep Scrolling To Learn More
Specifications
Equipped With
LANDIS 3SE 14" x 60" ANGLEHEAD CNC GRINDER REBUILT BY LANDIS
New 2002
|
2-Axis Template Tru-form Servo Step Profile
30 Degree
30" Wheel
Dead Headstock
Table Traverse
Marposs E39
Marposs Table Gauge
Lateral Locator
3-Gauge
TIR Gauge
Steady Rests
Wheel Balance
Servo Motor-Traverse Stepping Motor
Mist Collector
SPECIFICATIONS:
Swing: 14"
Center Distance: 60"
Motor: 1200 rpm
Motor Pulley Diameter: 7.031"
Spindle Pulley Diameter: 6.5"
New Wheel Diameter: 30"
Worn Wheel Diameter: 22"
Max. Wheel: 8500 sfpm
Max. Workhead: 333rpm
X-Axis Ball Screw Pitch: 5mm per rev.
X-Axis Total Stroke: 14.74"
X-Axis Motor Pully Wheel Feed Diameter: 3"
X-Axis Ball Screw Pulley Diameter: 3"
Z-Axis Ball Screw Pitch: 10mm per rev.
Z-Axis Total Stroke: 72.88"
Z-Axis Motor Pulley Diameter: 3"
Z-Axis Ball Screw Pulley Diameter: 6"
Total Stroke: +/-2mm
Total Marposs Voltage Output: =/-10vdc
Dresser One Revolution of the Stepping Motor: .045"
Diamond One Revolution of the Stepping Motor: .005"
