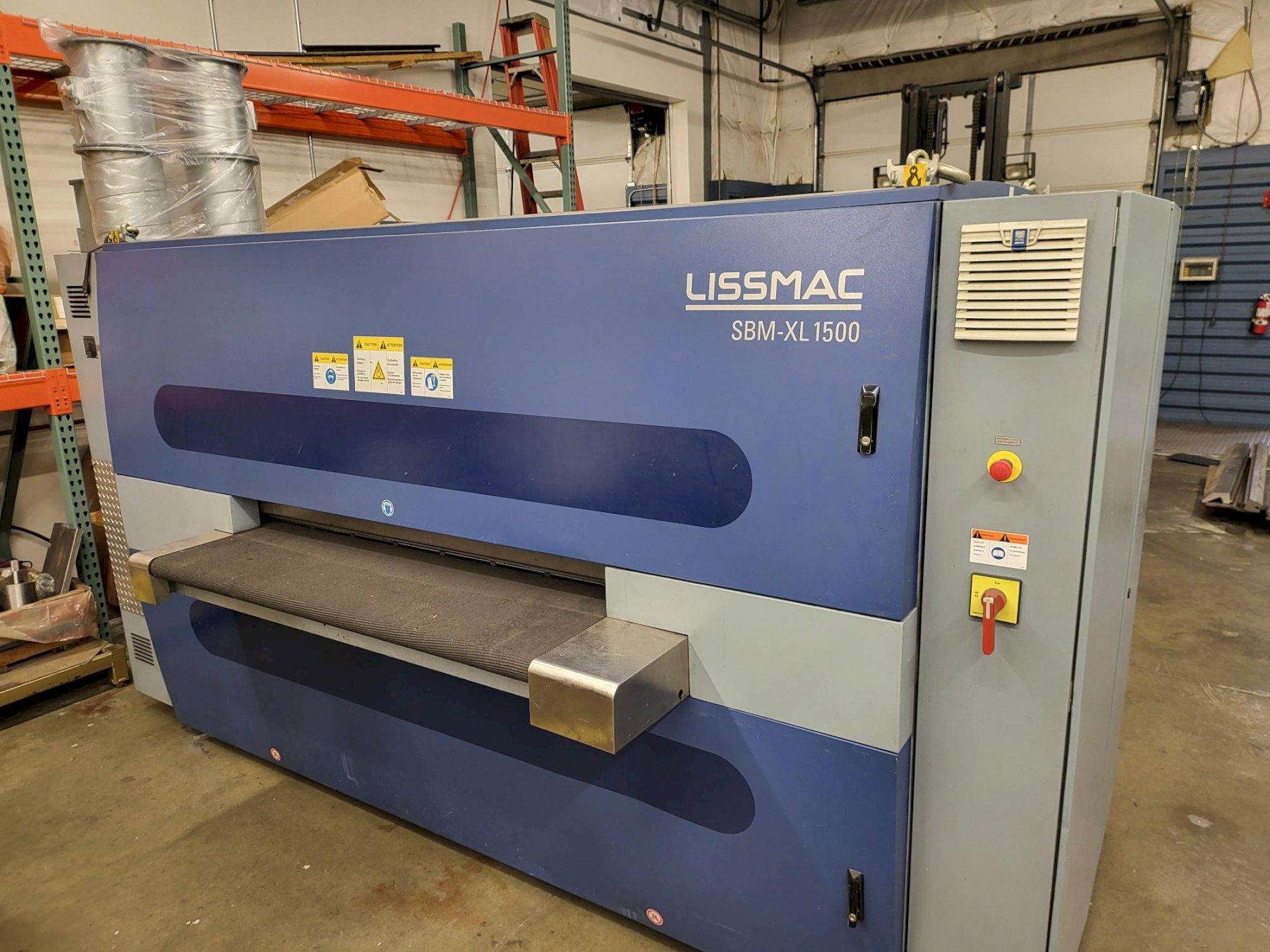

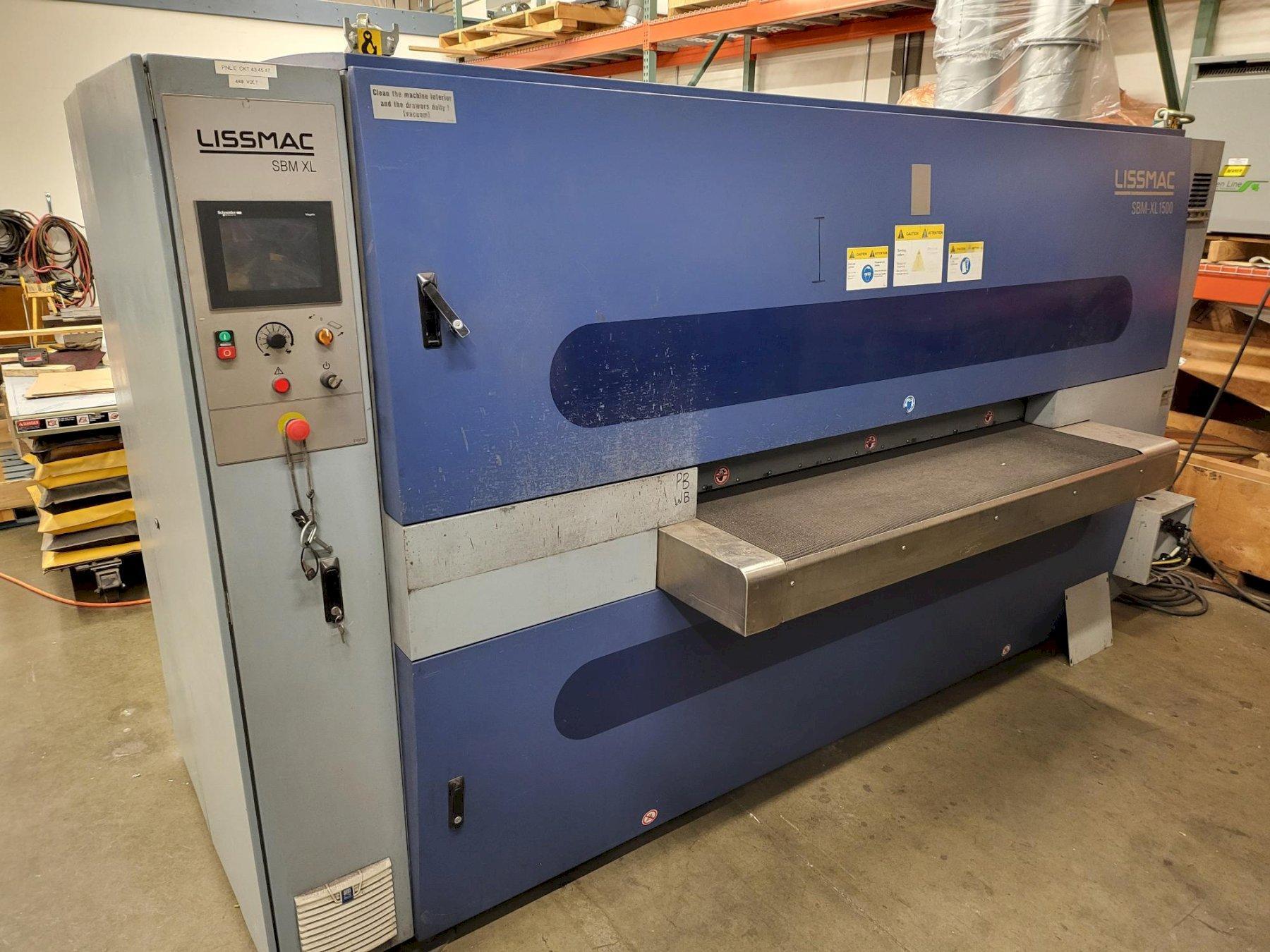

LISSMAC SBM-XL 1500 G2S2 EDGE ROUNDING AND DEBURRING MACHINE

New: 2014

Specifications:
Working Width:  2 in – 60 in
Workable Material Thickness:  0 in – 4.72 in
Load Capacity:  660 lbs
Feed Speed:  0 – 13 ft/min (Infinitely Variable)
Electric Adjustment of Material Thickness:  Yes
Electric Adjustment of Tools:  Yes
Insulation Class:  IP 42

Dimensions:
142 in × 83 in × 80 in

Weight:
9,260 lbs

Further Information:
• Deburring and edge rounding of parts up to 120 mm material thickness
• Processing both sides of the parts simultaneously eliminates the need of turning heavy parts and processing them for a second time
• Simultaneous deburring and edge rounding on interior and exterior contours
• Dry operation
• Simple, intuitive operation
• The processing units can be individually adjusted or turned on and off electrically
• Maximum productivity while maintaining machining quality
• The cross-machining principle guarantees optimum tool utilization over the entire working width
• Faster and simpler tool change within just a few minutes
• Modular and compact in modern machine design – smaller footprint
• Improved work environment – reduction of dust, dirt and noise
• Optionally available: Conveyor Technology, Handling Systems, Automation, Custom Solutions
• For repeated customer requirements, processing parameters can be called up quickly and easily through predefined programs
• Up to 60% work time savings compared to one-side processing grinding machines
