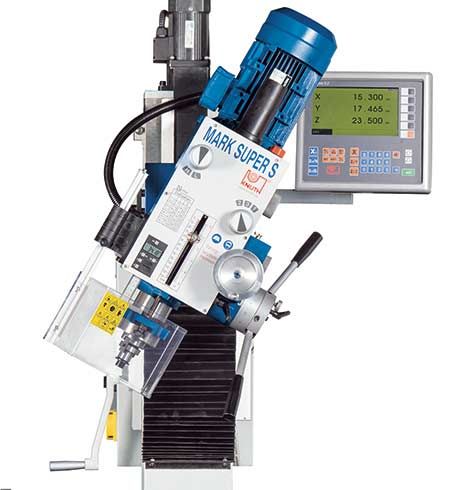

KNUTH MARK SUPER DRILLING/MILLING MACHINE

Manufacturer

KNUTH

Model

Not provided

Year

Not provided

Stock #

16312

Condition

New

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

  Mark Super SMark Super SV
Working Area
Table dimensions31x9 in
Drilling capacity in steel1 in
Guide width7 in5 in
Shaft milling1.26 in0.98 in
Head elevation14 in15 in
Number of table T-slots3 positions
T-slot table (width x spacing)0.55x3.15 in
Travels
Travel X-axis manual / autom.19 / 22 in
Travel Y-axis7 in
Vertical Milling Head
Spindle mountMT 4
Quill stroke5 in
Quill diameter3 in
Spindle nose-to-table distance18 in
Throat10 in
Head swivel range± 45¡
Speed(12) 75-3200 rpm(2) 75-438 / 438-2500 rpm
Drive Capacity
Main motor rating2 / 1.5 Hp2 Hp
Measures and Weights
Overall dimensions (length x width x height)50x38x56 in49x37x83 in
Weight836 lbs1,056 lbs

Mark Super S¥ SV

  • Motorized cutter head movement and hand-wheel for exact positioning of head

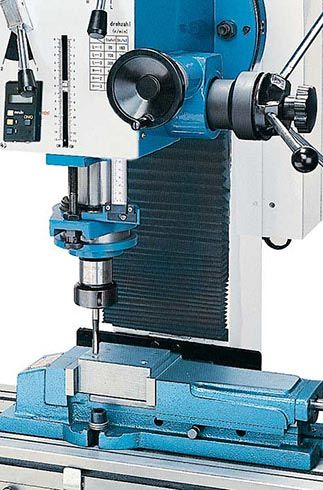

  • Hand-wheel for quill micro-feed
  • Digital depth indicator for quill travel
  • Tapping unit with adjustable rotation reversal for thread cutting
  • Hardened gear racks and shafts for quiet operation and long life
  • Rigid base with storage room is included
  • Infinitely variable feed on X-axis is included

Mark Super SV - more power and variable speed control for a wider range of applications

  • Two gear steps and premium frequency control technology ensure high torque across the entire speed range for powerful machining
  • The selected spindle speed is displayed directly on the control panel

  • 3-axis position indicator
  • automatic quill feed
  • base
  • table feed TV 1000
  • drill chuck 1/2"
  • tool-holder bits
  • operator manual
