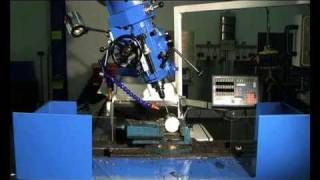

KNUTH MODEL MF 1 P MULTI-PURPOSE MILLING MACHINE
Year
Not provided
Stock #
16329
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| Table set up area | 42x9 in |
| Number of T-slots | 3 positions |
| T-slot (width x spacing) | 0.63x2.5 in |
| Travel X-axis | 26.4 in |
| Travel Y-axis | 11 in |
| Travel Z-axis | 15 in |
| Spindle speeds | (16) 80 - 4,500 rpm |
| Quill stroke | 5 in |
| Spindle mount | ISO 30 |
| Throat | 7 - 19 in |
| Feed speed X-axis | 0 in/min |
| Quill feeds | (3) 0,04; 0,08; 0,15 in/R |
| Console travel (Z-axis) | - in |
| Motor rating main drive | 3 Hp |
| Overall dimensions (length x width x height) | 79x63x83 in |
| Weight | 2,420 lbs |
| Part No. | 301219 |
- Speed is changed by shifting the 2-step drive motor transmission, or by selecting the desired gear ratio at the drive belt (4 speeds per gear)
- Automatic table feed, type TV 1000 in X and Y, can easily be retrofitted
- Head swivels on 3 axes: swivel r + l ± 90¡; tilt forward + reverse ± 45¡; rotation on the column ± 45¡
- Dovetail guides, hardened, adjustable
- 3 automatic drill feeds
- Manual coarse feed for quill, with change-over for manual fine feed
- Quill with automatic micrometer depth stop
- Spindle mount ISO 30
- Reversing switch for forward reverse rotation

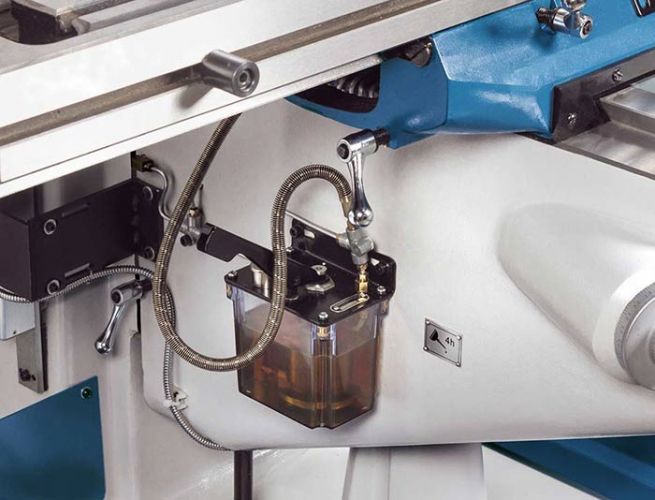

- Central lubrication for spindle, nut and guides
- Manual spindle brakes
- Pneumatic tool clamping
- 3-axis position indicator, coolant system, and LED work lamp (included in standard equipment)
3-axis position indicator
- More accuracy
- Lower error rate
- Increased productivity
- Resulting in valuable time savings
- For increased productivity
- Easy to read display
- Operator-specific features
- Convenient keyboard layout
- Resolution: 0.0004 / 0.0002"
- Default coordinates
- Axis position is maintained when display is turned off
- Hole circle pattern calculation
- Calculator function
- Storage for 10 tools
- Radius / diameter toggle
- Mm/inch conversion
- Easy expansion and maintenance-free operation
- 3-axis position indicator
- pneumatic tool clamping
- coolant system
- central lubrication
- vertical guide way cover
- LED work lamp
- operating tools
- operator manual
