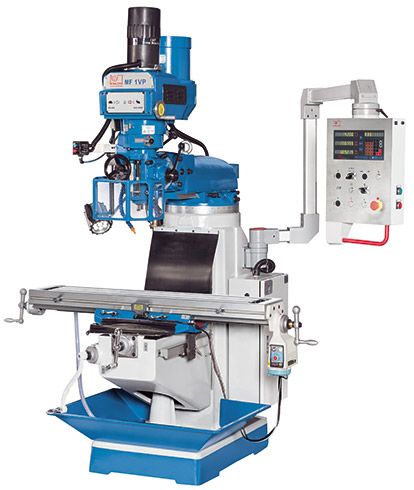

KNUTH "MF 1 VP" MULTI-PURPOSE MILLING MACHINE

Manufacturer

KNUTH

Model

MF 1 VP

Year

Not provided

Stock #

16177

Condition

New

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

  MF 1 PMF 1 VP
Working Area
Table set up area42x9 in49x9 in
Number of T-slots3 positions
T-slot (width x spacing)0.63x2.5 in
Travels
Travel X-axis26.4 in29.9 in
Travel Y-axis11 in
Travel Z-axis15 in
Vertical Milling Head
Spindle speeds(16) 80 - 4,500 rpm(2) 60 - 4,200 rpm
Quill stroke5 in
Spindle mountISO 30
Throat7 - 19 in
Feed
Feed speed X-axis0 in/min1 - 35 in/min
Quill feeds(3) 0,04; 0,08; 0,15 in/R(3) 0.0016, 0.0031, 0.0051 in/R
Console travel (Z-axis)- in15 in
Drive Capacity
Motor rating main drive3 Hp
Measures and Weights
Overall dimensions (length x width x height)79x63x83 in81x65x82 in
Weight2,420 lbs2,090 lbs

  • The most widely used milling machine type in the world - with standard pneumatic tool clamping
  • Infinitely variable spindle speed via hand wheel adjustment
  • Larger table with larger travel on X-axis
  • TV 1000 automatic table advance on X-axis is included, retrofitting of Y-axis available
  • Head swivels on 3 axes: swivel r + l ± 90¡; tilt forward + reverse ± 45¡; rotation on the column ± 45¡
  • Dovetail guides, hardened, adjustable
  • 3 automatic drill feeds
  • Manual coarse feed for quill, with change-over for manual fine feed
  • Quill with automatic micrometer depth stop
  • Spindle mount ISO 30
  • Reversing switch for forward reverse rotation

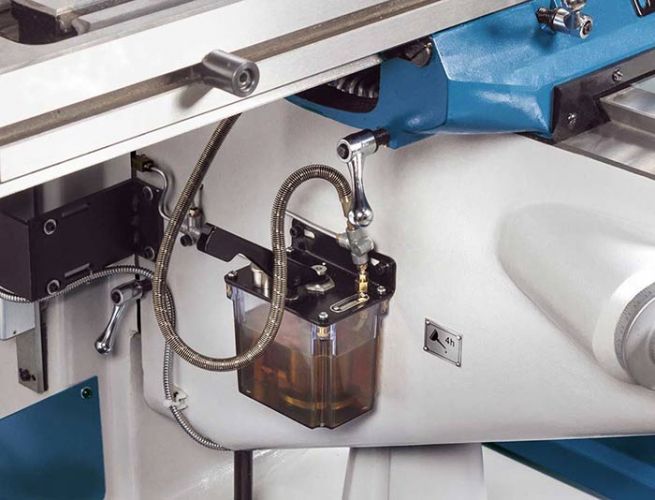

  • Central lubrication for spindle, nut and guides
  • Manual spindle brakes
  • Pneumatic tool clamping
  • 3-axis position indicator, coolant system, and LED work lamp (included in standard equipment)

3-axis position indicator

  • More accuracy
  • Lower error rate
  • Increased productivity
  • Resulting in valuable time savings
  • For increased productivity
  • Easy to read display
  • Operator-specific features
  • Convenient keyboard layout
  • Resolution: 0.0004 / 0.0002"
  • Default coordinates
  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Calculator function
  • Storage for 10 tools
  • Radius / diameter toggle
  • Mm/inch conversion
  • Easy expansion and maintenance-free operation

  • 3-axis position indicator
  • automatic table feed in X direction (TV 1000)
  • pneumatic tool clamping
  • coolant system
  • central lubrication
  • vertical guide way cover
  • LED work lamp
  • operating tools
  • operator manual
