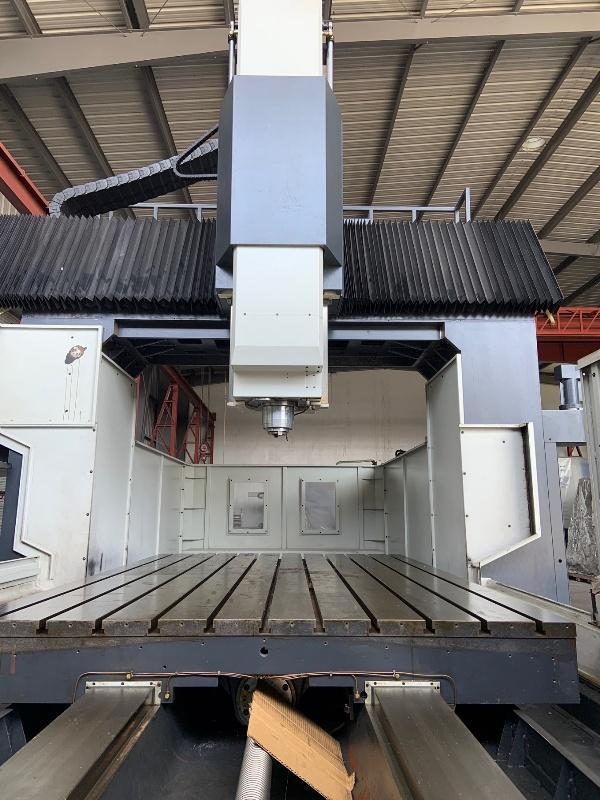

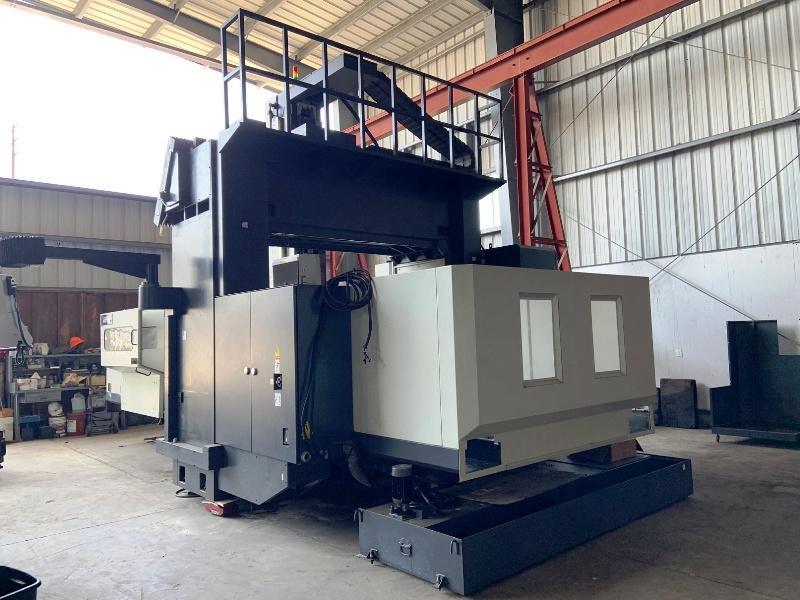

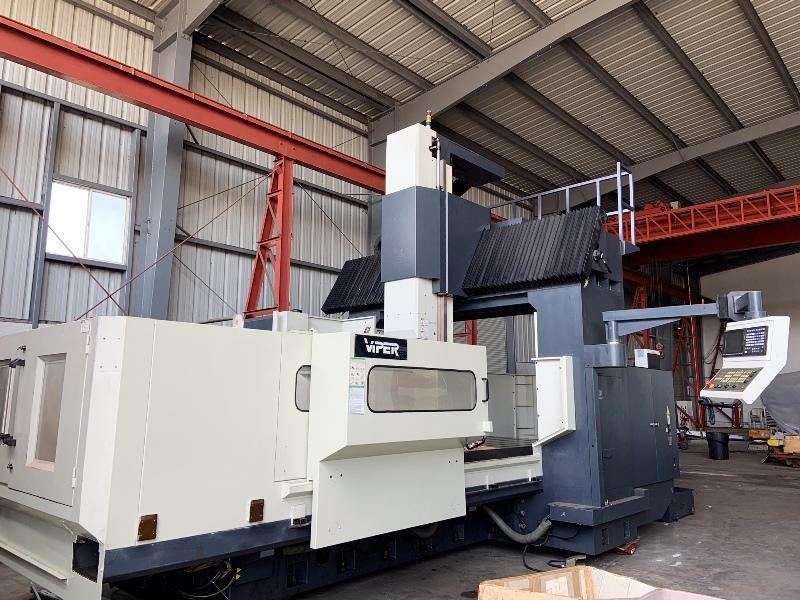

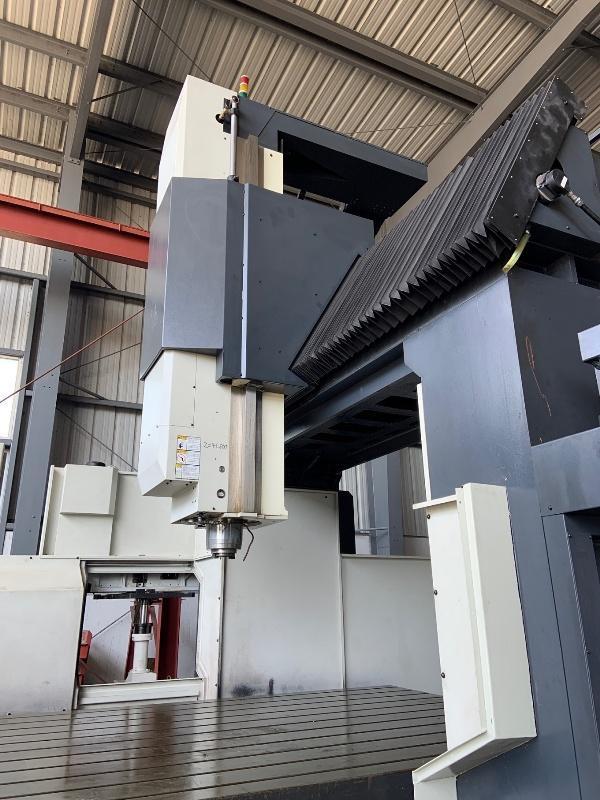

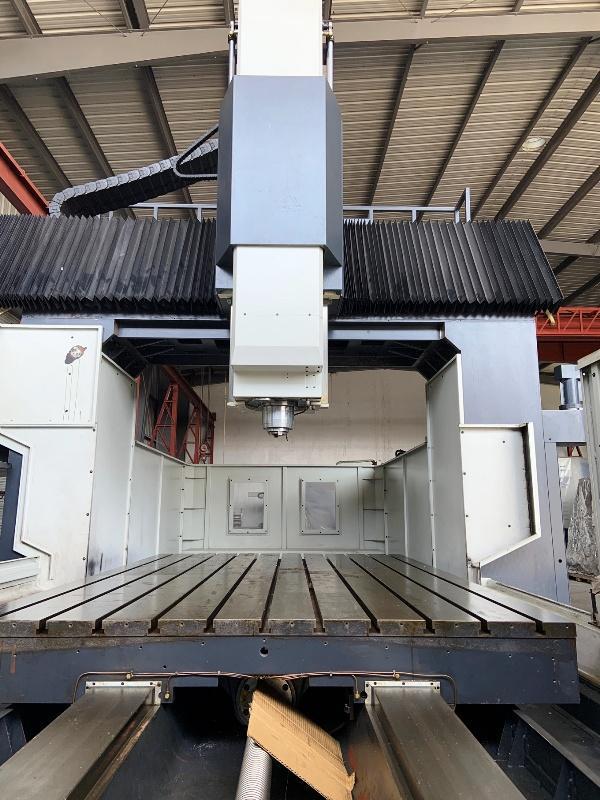

MIGHTY VIPER 3240AG CNC BRIDGE TYPE CNC MACHINING CENTER

New 2008

SPECIFICATIONS:

  Working Surface of Table          125.98" x 80.31"

  Travel:                                 X-Axis                    120.08"

          Y-Axis                    94.49"

          Z-Axis                    42.13"

  Maximum Table Load                24,250 Lbs.

  Dist, Spindle Center to Column    16.22"

  Width Between Column              98.82"

  Dist, Spindle End to Table        15.35" - 57.48"

  Spindle Type                      Gear

  Spindle Speeds                    Up to 6,000 Rpm

  Spindle Nose Taper                Iso #50

  Cutting Feed Rate                 0.34 - 196.8 Ipm

  Rapid Travers Rate X,Y,Z          393 Ipm

  Tool Changer                      40 Tool

  Maximum Tool Weight               44 lbs.

  Maximum Tool Size                 5.11" x 13.78"

  Tool SHank                        Cat #50

  Spindle Drive Motor               30 Hp

  Equipped With:

  Mitsubishi M730 Cnc Control

  Automatic Lubrication System

  40 Tool Tool Changer

  Leveling Bolts & Blocks

  Rs232 Serial Interface

  Coolant System

  Spindle Oil Cooler

  Link Type Chip Conveyor

  Convection Heat Exchanger in Control Cabinet

  Operation Manual & Electrical Drawing

  Remote Manual Pulse Generator
