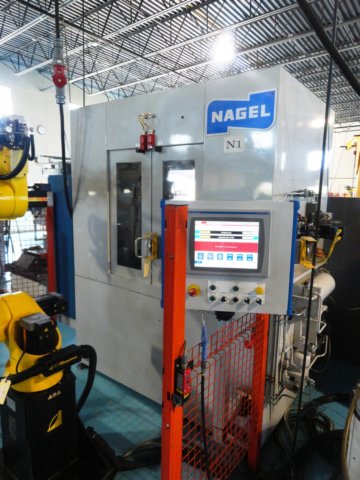

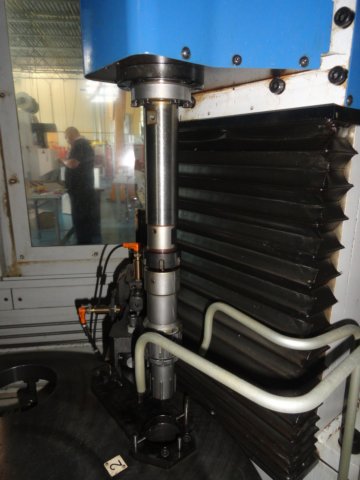

NAGEL MODEL ECO 40-2 CNC TWIN SPINDLE VERTICAL HONING MACHINE
Year
2012
Stock #
11749
Condition
Used
Keep Scrolling To Learn More
Specifications
Equipped With
NAGEL MODEL ECO 40-2 CNC TWIN SPINDLE VERTICAL HONING MACHINE
New 2012
EQUIPPED WITH

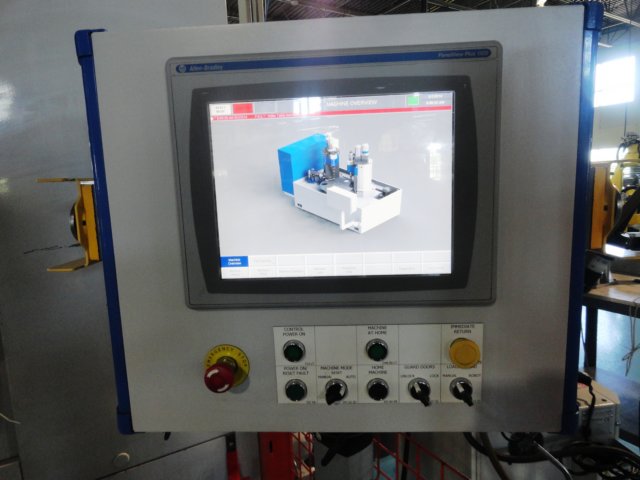

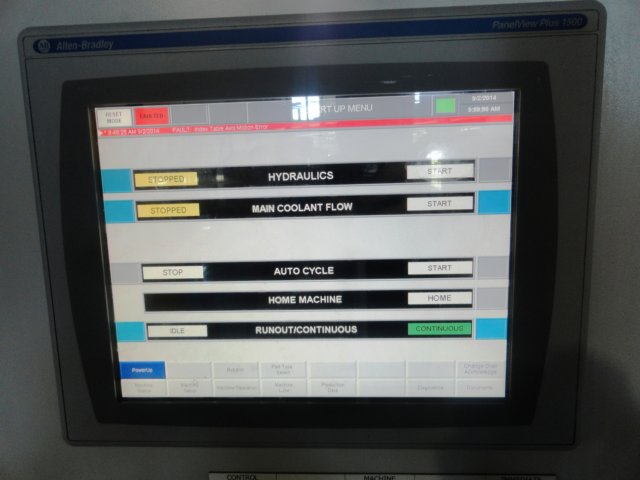

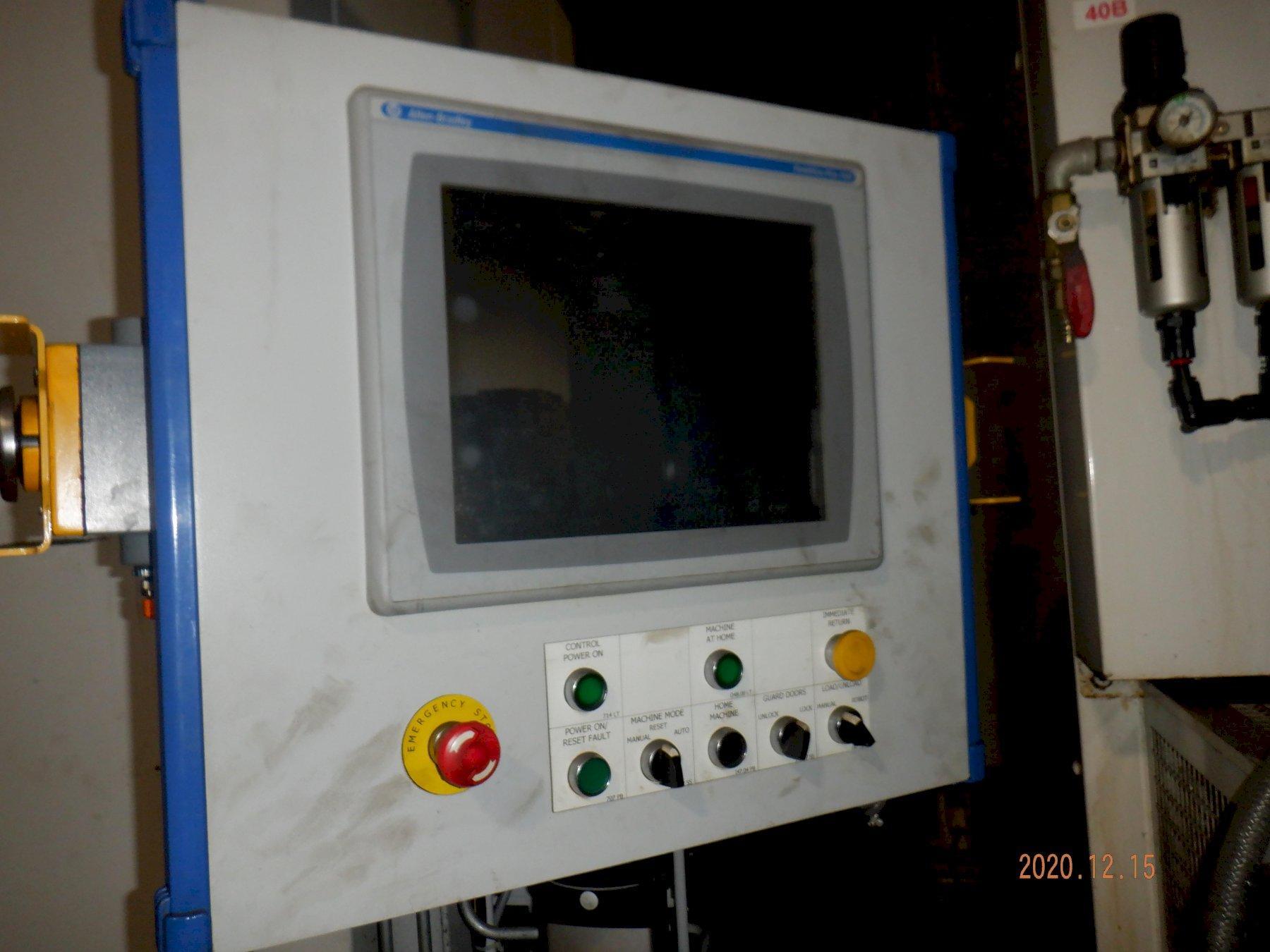

Allen Bradley Panel View Plus 1500 CNC Controls

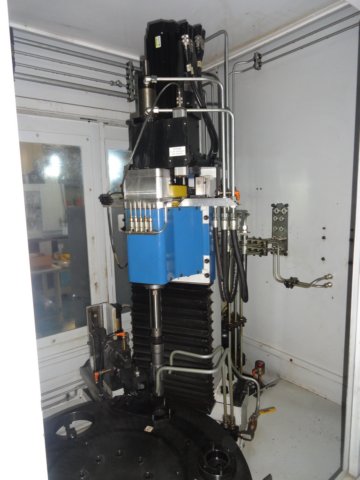

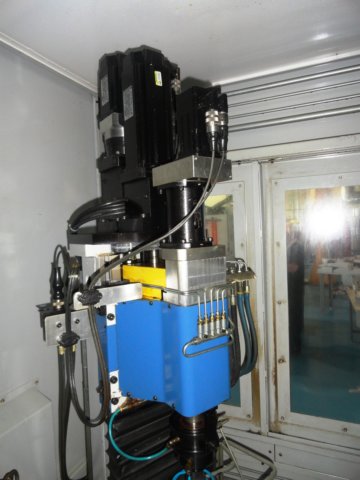

AB Servo Motor Controlled Stroking System
In Process Gauging
Post Process Gauging

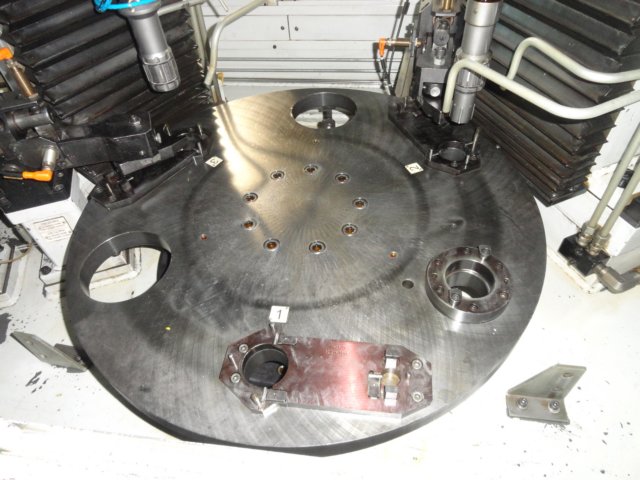

Rotary Index Table
Auto Load/Unload

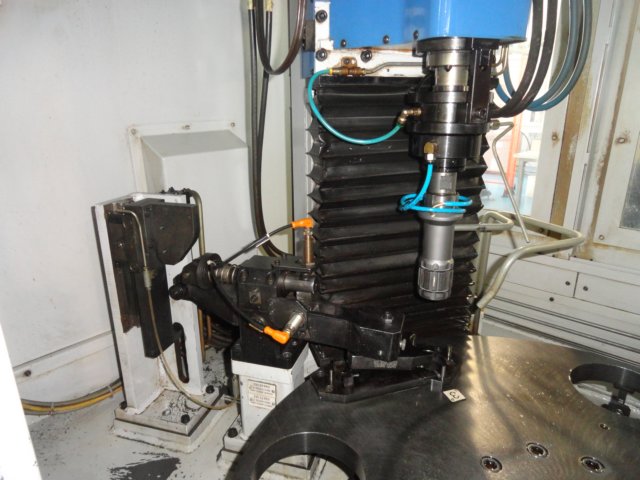

Servo Controlled Tool Expansion System
Integrated With Gauging System For Auto Tool Wear Compensation
Torque Monitoring

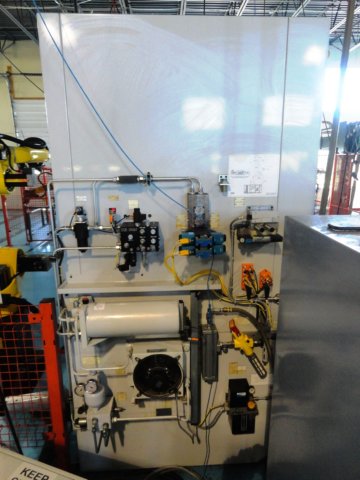

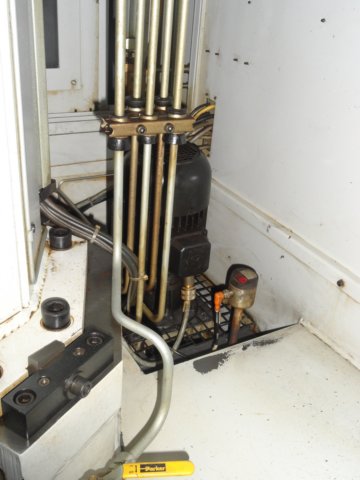

Coolant System
SPC Capability
SPECIFICATIONS:
| Bore Size | 3 to 40 mm |
| Max. Bore Depth | 200 mm |
| Max. Part Height | 1000 mm |
| Spindle Speeds | 100 - 1700 RPM |

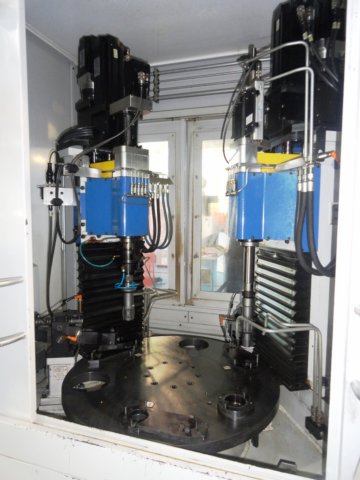

| Number of Spindles | 2 |
| Spindle Stroke | 400mm |
| Spindle Speed | 30 m/min. |
| Spindle Drive (Servo) | 2.7 HP |
| Approx. Overall Dimensions | 109" x 52" x 50" |
