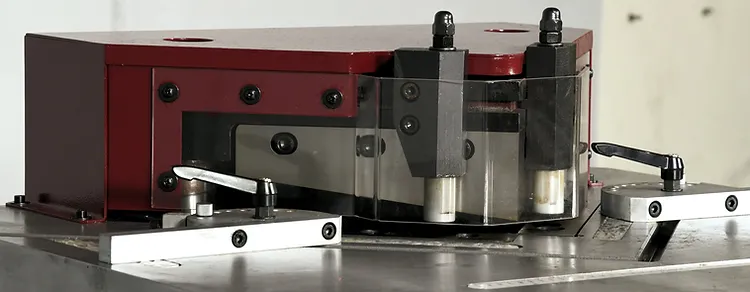

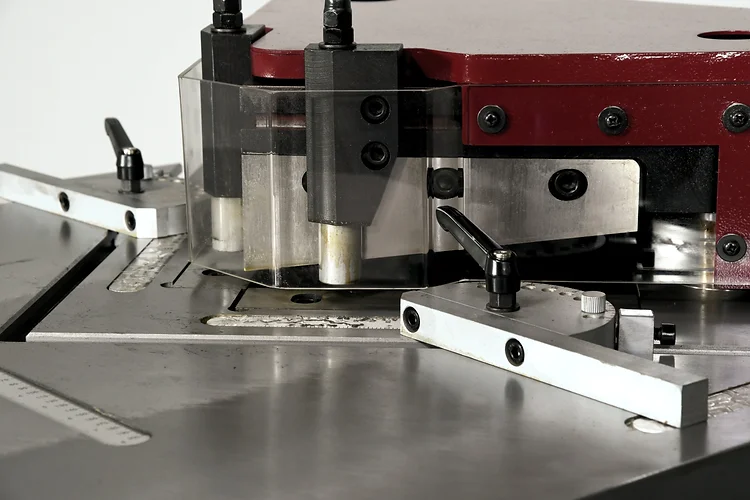

NEW 1/4" x 10" GMC MODEL HN-25HA HYDRAULIC SHEET METAL NOTCHER WITH FIXED ANGLE
Year
Not provided
Stock #
19105
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 1/4" x 10" GMC MODEL HN-25HA HYDRAULIC SHEET METAL NOTCHER WITH FIXED ANGLE
STANDARD FEATURES
- ISO 9001 certified
- Super large table
- Milled table surface with engraved scales on left and right side of the table top
- 12” combination hold down and stop bars
- All steel construction
- Safety finger guards
- (2) quick change gauges
- Foot pedal control
- Quiet hydraulic system
- One year warranty
SPECIFICATIONS
|
Max. capacity: Mild Steel (C.R.S.) Max. capacity: Stainless Steel Min. notching thickness Notching angle, fixed angle |
1/4" 3/16" 22 Ga. 90 degree |
| Max. cutting lenth | 10" |
| Stroke per minute | 27 |
| Table dimensions, L x W | 33" x 27" |
| Hydraulic oil tank capacity | 9 Gal. Shell #68HD |
| Main Motor |
7 1/2 HP, 3 Phase, 25A Prewired: 220VAC Optional: 440VAC 220V 15A |
| Machine Weight | 2650 LBS |
|
Machine Dimensions, (LxWxH): Shipping Dimensions, (LxWxH): |
39" x 38" x 49" 47" x 41" x 56" |
