NEW 10' X 1/4" GMC MODEL HS-1025E HYDRAULIC SHEAR
Year
Not provided
Stock #
19133
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 10' X 1/4" GMC MODEL HS-1025E HYDRAULIC SHEAR
- ISO 9001 certified
- Taiwan machines
- comes with go-to NC power back gauge with touch screen
- Quick Change Blade Gap Adjustment (BGA), with gap dial
- CE standard “OMERO” electric control system
- Meet OSHA safety standard code
- Shadow line for accurate straight cutting
- Adjustable cutting length and stroke

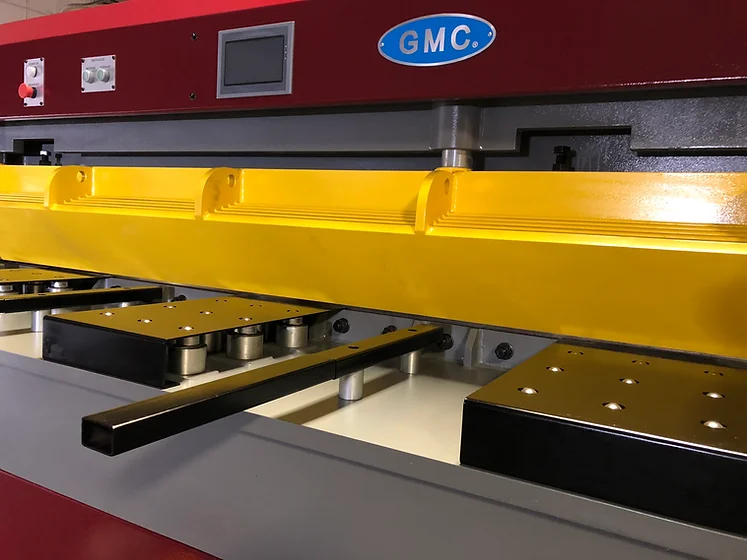

- Ball transfer plates on worktable for easy loading workpiece
- Well balanced and sturdy all steel machine frame
- German made Hydraulic logic system centrally located and quiet
- Hydraulic hold-downs with anti-mar neoprene
- Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length viewable safety finger guard to protect operator from cutting hazard
- Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
- Hydraulic, electrical overload protection
- Compact operator control panel
- All motors are overload protected & low voltage control system
- Jog or continuous auto cycle cutting operation modes
- One year industrial warranty for parts
STANDARD EQUIPMENT

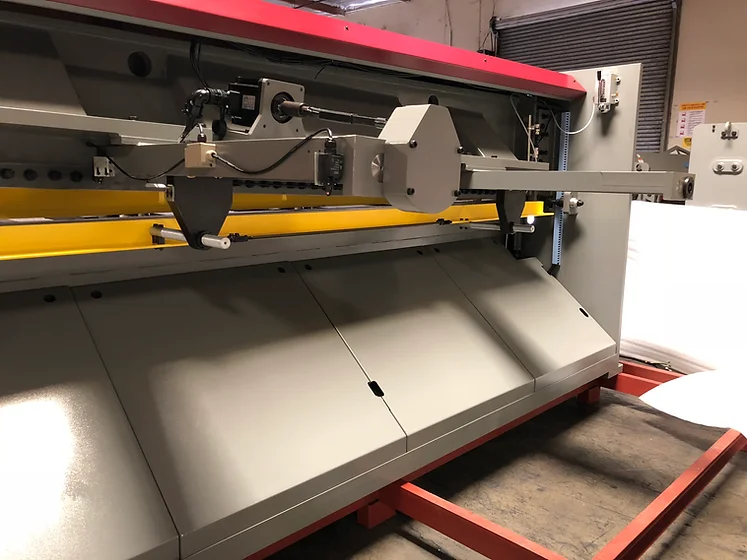

- 36” go to NC back gauge w/ touch screen

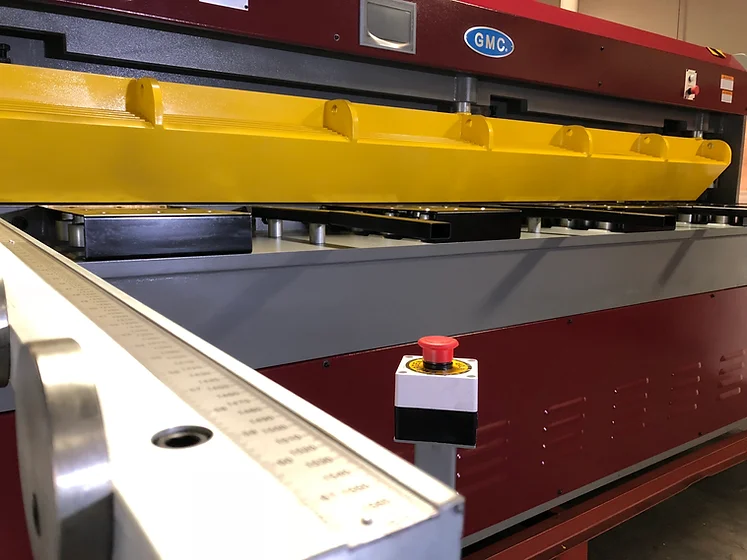

- 1 each 60” squaring arm with inlaid inch/metric dual scale
- Quick change blade gap adjustment (BGA) with gap dial
- Shadow line for accurate straight cutting
- Material support and drop back chuter
- Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
- 4 each 24” front support arms
- Hydraulic hold-downs with anti-mar neoprene
- Full length viewable finger guard
- Removable safety foot pedal
- Tool box
OPTIONAL EQUIPMENT
- 440V 3-Phase is optional
- Safety fence for enclosure of the back side of the machine - $1,950.00
|
Cutting capacity: Mild steel Stainless steel |
10’ x ¼” 10’ x 10 Ga. |
| Blade length | 10'2" = 122" |
| Strokes per minute | 10-12 |
| Throat depth | 18" |
| Worktable height | 34 1/2" |
| Front support arm | 24" |
|
NC Back Gauge |
36" go to NC powered back gauge with touch screen |
| Blade rake angle | 2 degree |
| Oil tank cap. | 53 Gal. |
|
Main Motor
NC Back Gauge |
20 HP, 220V/70A, 3 Phase 440V/35A, 3 Phase (OPTIONAL)
1 HP, 220V, 3 Phase |
| Machine weight | 13,850 LBS |
| Machine dimmensions | 181" x 117" x 65" (with back gauge and squaring arm) |
