Equipped With

NEW 10' X 10 GAUGE GMC MODEL HBB-1010 HYDRAULIC BOX AND PAN BRAKE

• Taiwan Machines
• ISO 9001 certified
• Hydraulic adjustment for opening
• Hydraulic power clamping for workpiece
• 26” manual back gauge with handwheel
• 1” manual beam adjustment ( front and back )
• Min. reverse bend is ¾” (20mm)
• Heavy welded all steel construction for maximum rigidity
• Germany Rexroth Hydraulic logic system centrally located and quiet
• A wide guidebody ensures strong, stable, smooth & accurate movement
• Total pieces fingers assortment:
  1. HBB-0410 & 0412: 3”/ 3pcs, 4”/2pcs, 5”/5pcs and 6”/1pc
  2. HBB-0610 & 0612: 3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs
  3. HBB-0810 & 0812: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/2pcs
  4. HBB-1010 & 1014: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/6pcs
  5. HBB-10316: 4”/3pcs, 5”/5pcs, 6”/5pcs, 7”/3pcs, 8”/ 4pcs
  6. HBB-1214: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/10pcs

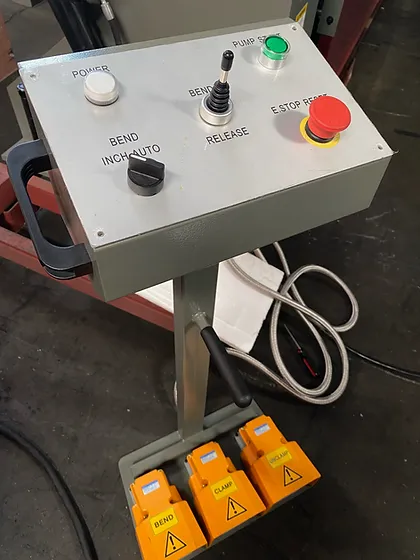

• Central control panels on each side for convenient operation
• Jog and auto operation modes
• Overload protection and disconnect switch
• One year warranty for parts

• Assorted fingers
• 26” manual back gauge with one side handwheel operation

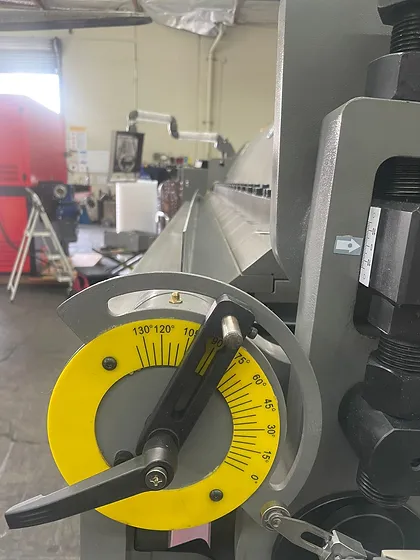

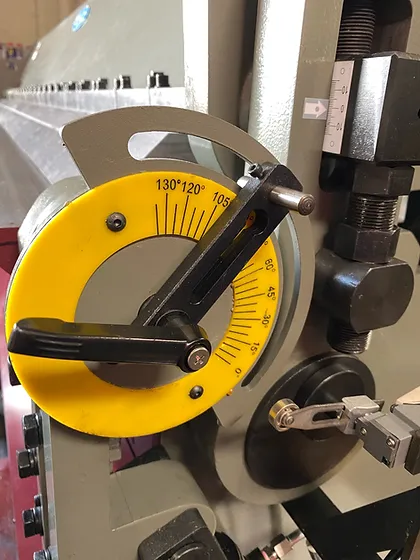

• Angle set up dial
• Hydraulic clamping system
• Foot pedal control for hydraulic clamping & auto mode

1. One-piece straight finger instead of assorted fingers , extra - $2,995.00
2. Safety fence for enclosure of the front side of the machine - $1,150.00
3. Safety light curtain - $5,950.00
