NEW 10' X 10 GAUGE GMC MODEL HBB-1010NC HYDRAULIC BOX AND PAN BRAKE WITH NC CONTROLLER
Year
Not provided
Stock #
19139
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 10' X 10 GAUGE GMC MODEL HBB-1010NC HYDRAULIC BOX AND PAN BRAKE WITH NC CONTROLLER
- ISO 9001 certified
- Meet OSHA and CE safety standard
- 48” NC table back gauge with fingers

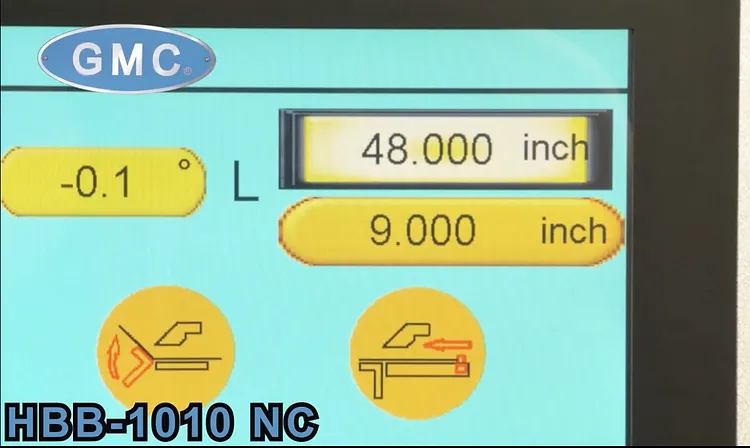

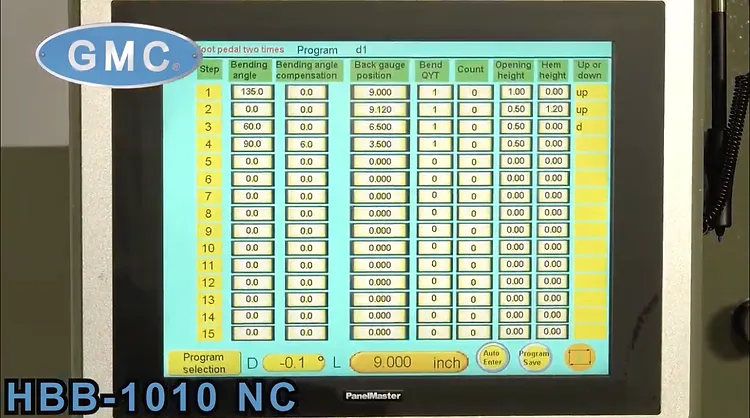

- Max. 16 bends per program
- Upto 100 Program Storage
- Programmable Angle/ Angle Correct
- NC ram height control for open hemming

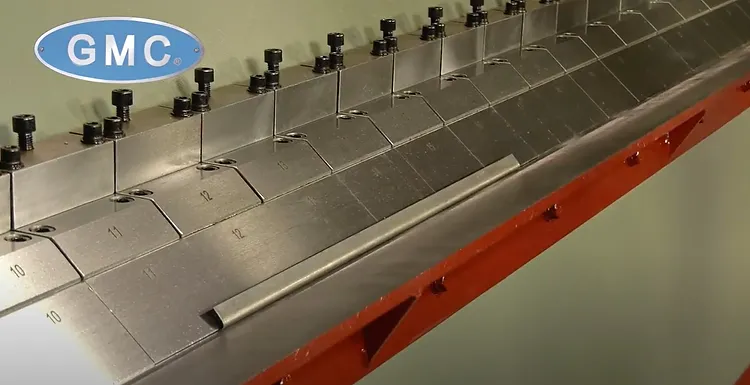

- Hardened fingers and table
- Germany Rexroth hydraulic system
- Yaskawa Servo motors and Drives

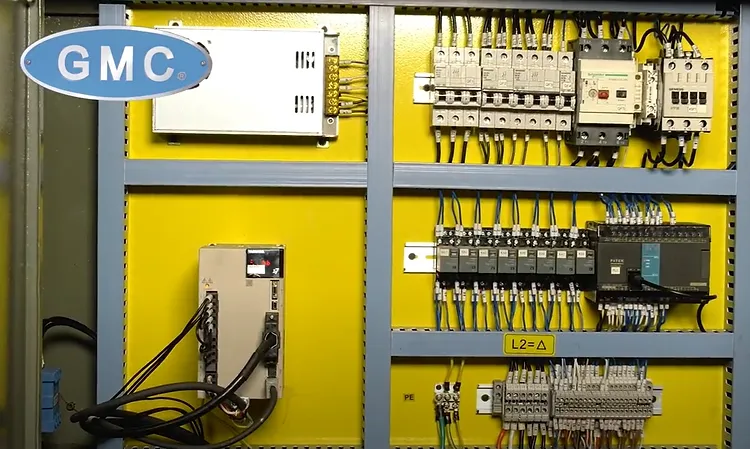

- Schneider electrical components
- All steel construction for maximum rigidity
- Hydraulic logic system centrally located and quiet
- Safety type foot pedal with handle and E-stop switch
- Safety 24V low voltage & overload protection
- One year industrial warranty for parts
OPTIONAL EQUIPMENT
- One piece 10’ straight finger - $2,995.00
- One day on-site training - $4,995.00
|
Capacity: Mild Steel Stainless Steel Hemming max thickness: |
10 Ga. 14 Ga. 22 Ga. |
| Bending length capacity | 10' |
| Bend Angel Degree, programmable | 135 degree |
| Max. Box Depth | 6" |
| Large Beam Opening/Clamping Opening | 3" |
| Beam front/back adjustment | 1" |
| Min. Reverse Bend | 1" |
|
Max. Table Back Gauge Distance Min. Table Back Gauge Distance |
48-3/8" 1/4" |
| Back Gauge Repeatability | 0.0039" |
| Back Gauge Table Height | 35-3/4" |
| Assorted fingers |
3" 4" 5" 6" |
|
Main Motor Servo Motor for back gauge |
10 HP 3 Phase Prewired: 220VAC 35A 1 HP |
|
Hydraulic Oil Tank Capacity: Recommended hydraulic oil: |
32 Gal. Shell #68 or equivalent |
|
Machine Weight: Shipping weight: Machine Dimensions: Shipping Dimensions: |
11,550 lbs. 11,850 lbs. 175" x 93" x 76" 163" x 85" x 78" |
