NEW 10' X 10GA GMC MODEL PBR-1010E PLATE BENDING ROLL

Manufacturer

GMC

Model

PBR-1010E

Year

Not provided

Stock #

19156

Condition

New

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

NEW 10' X 10GA GMC MODEL PBR-1010E PLATE BENDING ROLL


  • SO 9001 certified
  • Taiwan machines
  • All (3) rolls are hardened rolls, up to 50-52 HRC
  • 3-rollers are driven to perform high accuracy
  • Adjustable cone attachment included

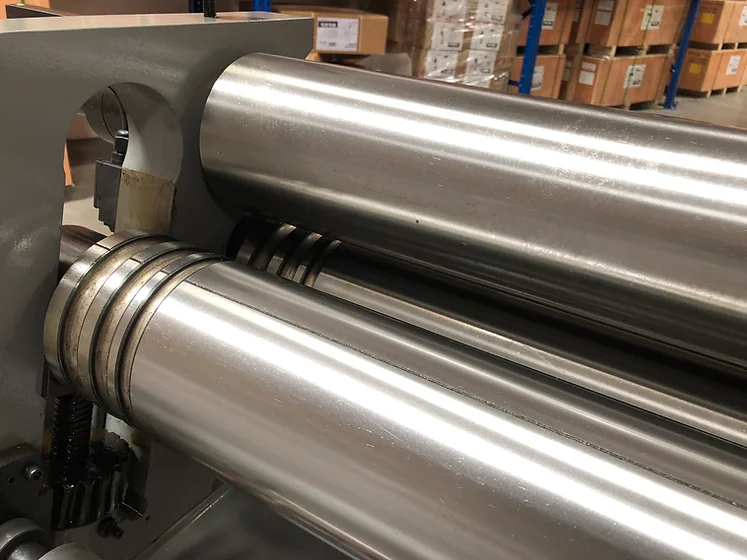

  • 3/8”, ½” and 5/8” grooves on rollers
  • One wheel one-side operated for bending roll
  • One wheel one-site operated for pinch roll (E model is powered)
  • Heavy duty casting frame
  • Heavy duty all steel welded construction
  • 1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
  • Quiet running operation
  • Easy swing-out top roller
  • Safety line all around the machine for emergency stop
  • All rolls run forward and reverse
  • Safety type forward/reverse foot pedal
  • Power source 220V, (option: 440V, 3 phase)
  • One year industrial warranty for parts


STANDARD EQUIPMENT
  • Adjustable cone attachment
  • 3/8”, ½” and 5/8” grooves on rollers
  • All (3) hardened rolls
  • Removable safety foot pedal
  • Operation & parts manual
  • Orange color front cover is optional.
  • E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs


OPTIONAL EQUIPMENT
Safety fence for enclosure of the back side of the machine - $1,150.00


Capacity:

Mild Steel



10' x 10Ga.

Capacity:

Stainless Steel



10’ x 14Ga.

Roll Dia.  6.70"
Min. Bending Dia. Inch 9"
Pre-bend inch 0.12"
Rolls Speed ft/min 17
Rolls Opening  1/2"
Main Motor 7 1/2HP 3PH
Weight 5,150 lbs.
Overal Dimensions  152" x 35" x 56"

Attachments
