NEW 10' X 14 GAUGE GMC MODEL EPS-1014M HYDRAULIC SHEAR
Year
Not provided
Stock #
19138
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 10' X 14 GAUGE GMC MODEL EPS-1014M HYDRAULIC SHEAR
- ISO 9001 certified
- American design and Taiwan quality machine
- HD all steel construction for maximum rigidity
- Precision driven gearbox
- Full length 26 strokes per minute
- 60” long squaring arm with inch / mm scale
- Spring hold-downs
- High grade carbon/chrome alloy steel blades and hardened to 62 hrc,
- 2-edge indexable upper blade and 4-edge indexable bottom blade
- Full length with full view finger guard
- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes
- One year warranty for parts
STANDARD EQUIPMENT

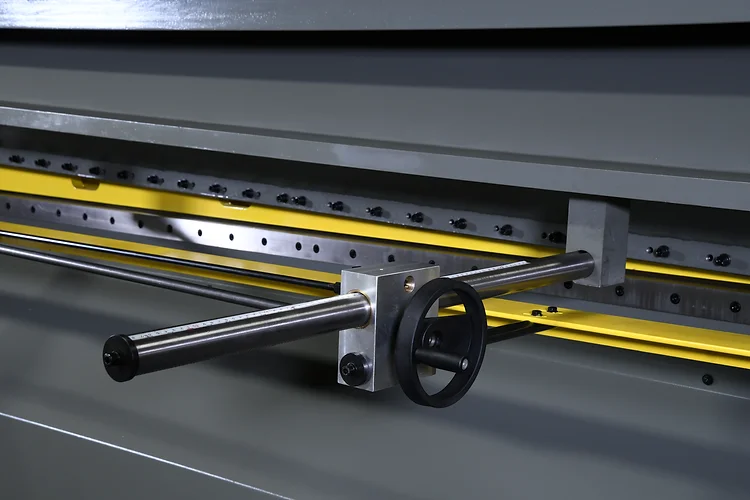

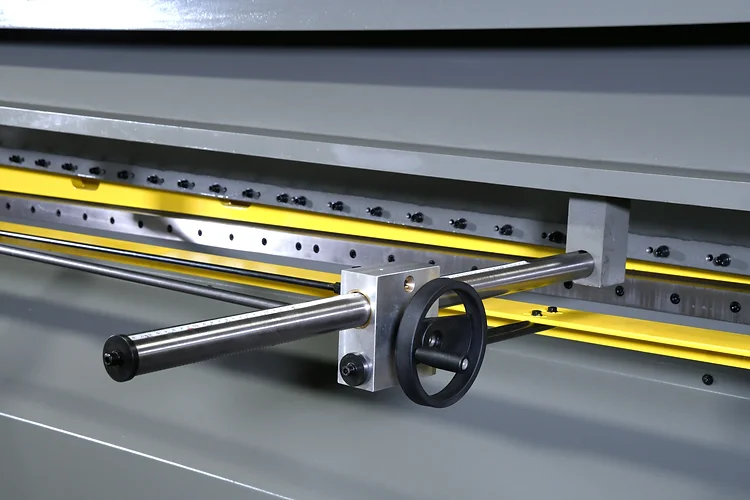

- 26” manual back gauge with one side operated handwheel.
- 60” long squaring arm with inch / mm scale, mounted on right side of the table
- 2 each 24” front support arms
- full length finger guard
- Removable safety foot pedal control
- One set of upper & lower blades
OPTIONAL EQUIPMENT
- Safety fence for enclosure of the back side of the machine - $1,150
|
Cutting Capacity Mild Steel Stainless Steel |
10' x 14Ga. 10' x 18Ga. |
| Blade Lenght | 10'1" |
| Strokes per minute | 26 |
| Worktable height | 30-1/2" |
| Front support arm | 24" |
|
Back gauge |
26" Manual Back gauge |
| Blade Rake Angle | 2.0 Degree |
|
Main Motor |
7 1/2 HP, 220V/25A - 440V/15A, 3 Phase |
| Machine weight | 7,280 LBS |
| Machine dimensions | 147" x 57" x 53" |
