NEW 10' X 14GA GMC MODEL BB-1014-6HD BOX AND PAN BRAKE
Year
Not provided
Stock #
19295
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 10' X 14GA GMC MODEL BB-1014-6HD BOX AND PAN BRAKE

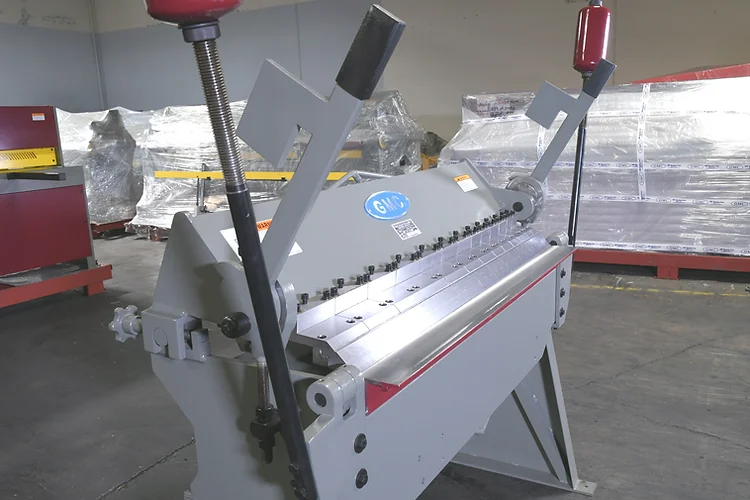

Pan & Box Brakes are hand operated machines with removable fingers and a large beam opening. With this Brake, you can fabricate pans, boxes, channels, angles, and other metal working shapes.
- One Year Parts Only Warranty
- ISO 9002 certified
- 1-9/16” adjustable beam opening
- 1” beam adjustment (front and back)
- Capable of hemming light gauge material of 26 gauge or thinner
- Capable of straight bending material fully across
- Oilable bearings to maintain precision overtime

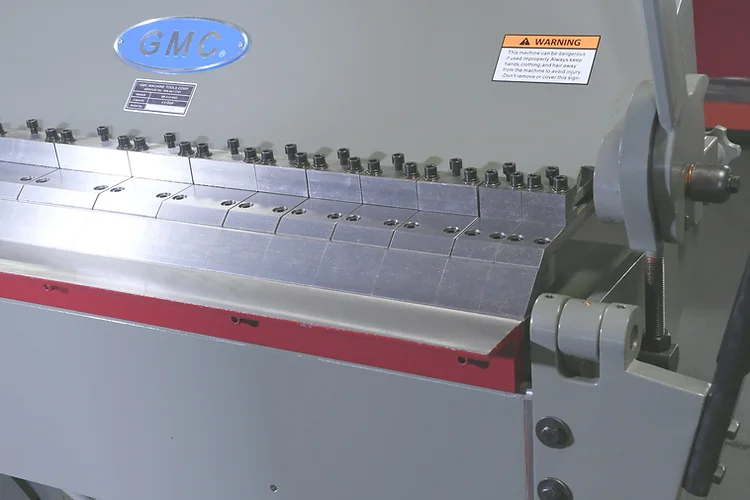

- 16 Total fingers assortment:
- 3”/3pcs
- 5”/3pcs
- 6”/3pcs
- 10”/3pcs
- 12”/4pcs

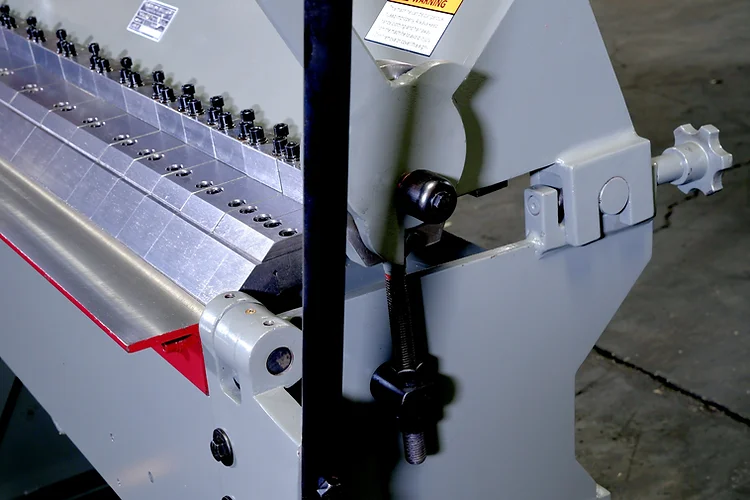

- Adjustable stop gauge is included to allow the operator to perform repeat bends
- 2 - Adjustable counterweights to assist you at max capacity bends
- All steel heavy body construction with extra heavy tie rod for minimum deflection
- Some assembly is required
|
Bending capacity in Mild Steel: |
14 Ga. |
|
Bending capacity in Stainless Steel: |
18 Ga. |
|
Max. hemming thickness for mild steel: |
26 Ga. |
|
Max. box depth |
6" |
|
Bending length capacity |
10’ |
|
Bending angle, degree |
0-135 |
|
Beam adjustment, front and back |
1" |
|
Minimum reserve bend |
1/2" |
|
Manual clamping |
Standard |
|
Beam opening |
1-9/16" |
|
Net weight |
3,250 lbs. |
|
Shipping weight: |
3,350 lbs. |
|
Machine Dimensions: |
159" x 32" x 77" |
|
Shipping Dimensions: |
142” x 30” x 41” |
OPTIONAL EQUIPMENT
- One piece straight finger to convert to straight brake - $1,995.00
- 2" or 2.5" replacement finger - $115.00
- 3" or 3.5" replacement finger - $115.00
- 5" or 6" replacement finger - $175.00
- 10" replacement finger - $175.00
- 12" replacement finger - $235.00
