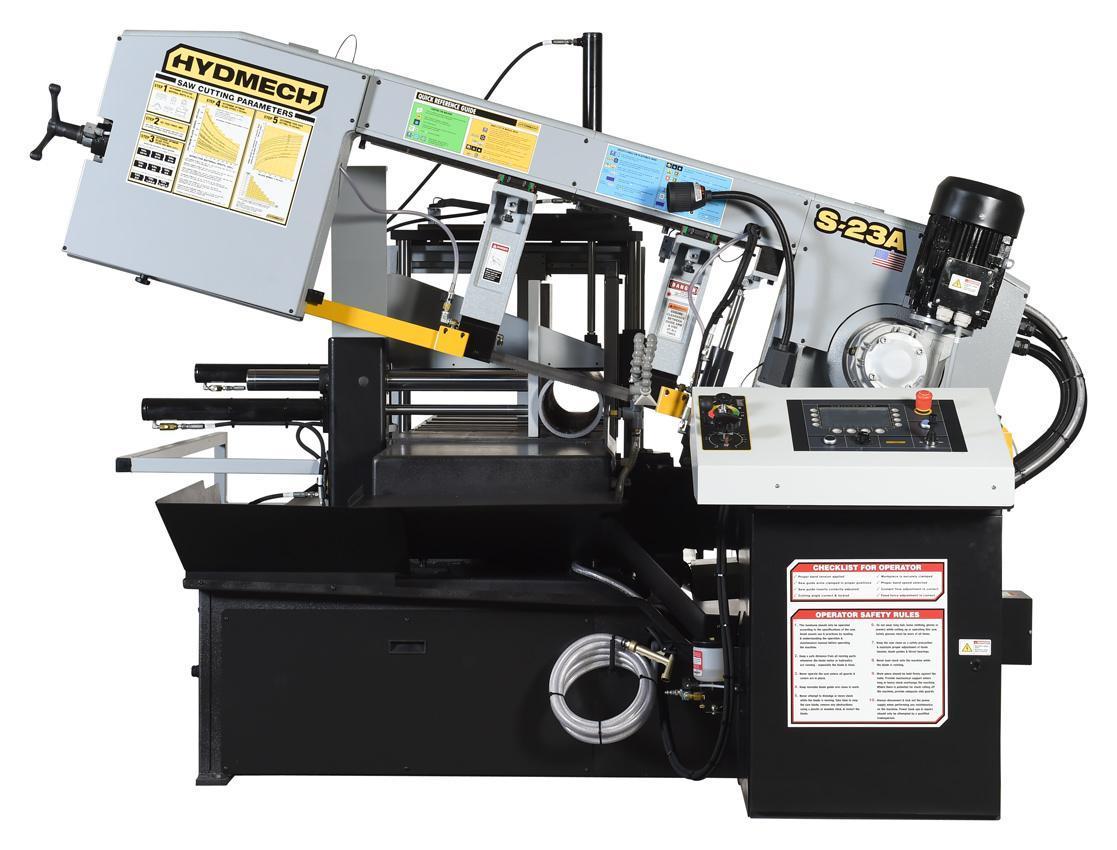

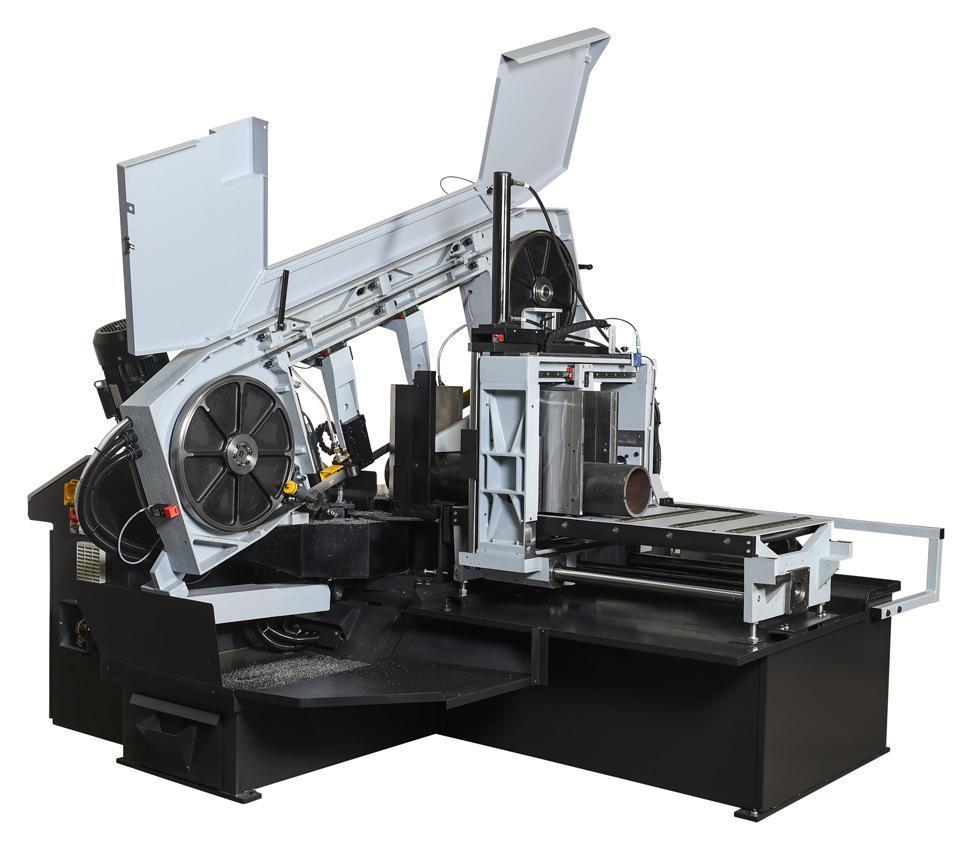

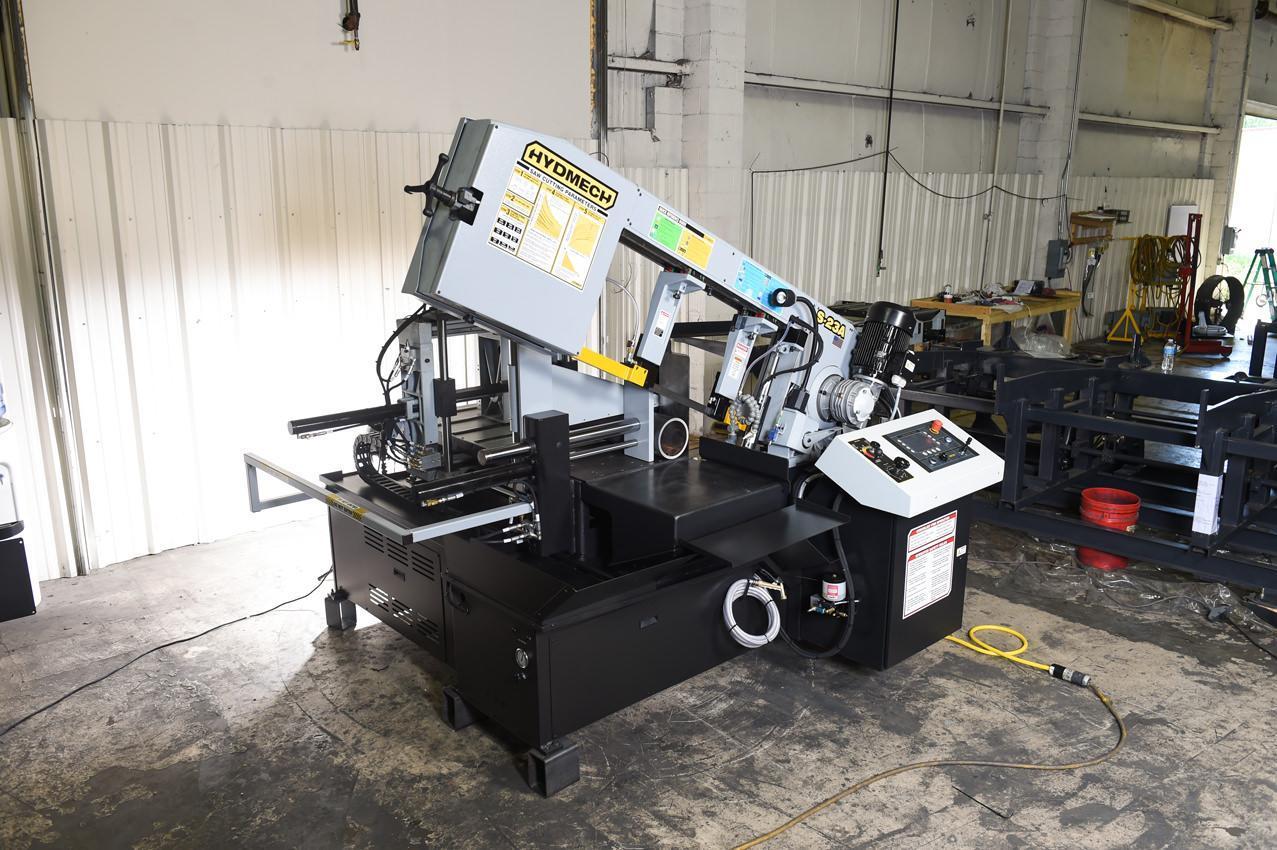

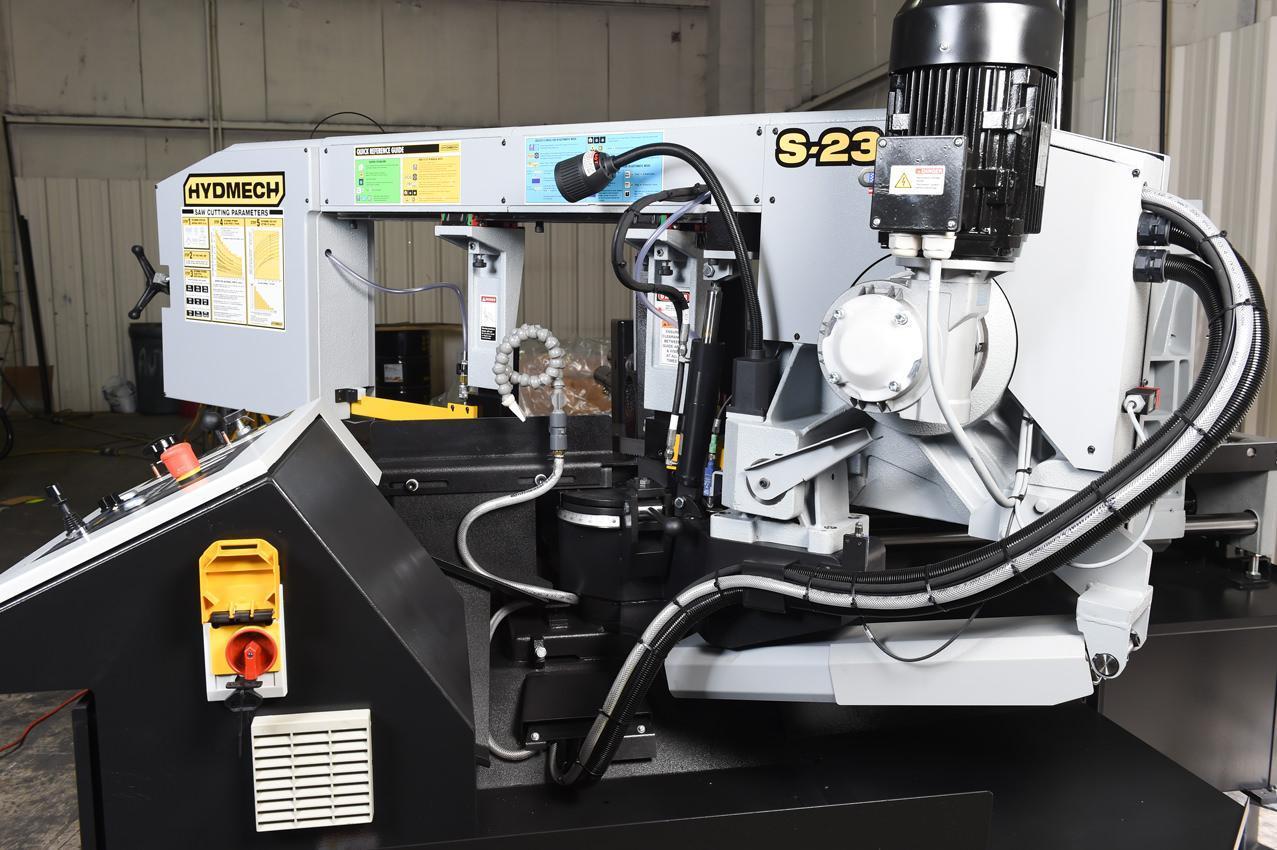

NEW 16"H x 20"W HYD-MECH MODEL S-23A AUTOMATIC HORIZONTAL PIVOT BAND SAW

The S-23A is an automatic scissor style band sawproviding exceptional miter cutting capability for medium duty applications.

Featuring an automatic mode control with an LED readout for blade tension, blade speed, blade height position, run time of the cut, blade drive motor amperage draw, part length, quantity required, piece count, job run time, total blade run time. All offered in several language choices.

The S-23A miters from 90° to 60°. Featuring a 16″H x 20″W capacity at 90°, 8.8 HP motor, and 1 1/4″ blade, the S-23A automatic scissor style band saw is built solidly to give you maximum productivity.

STANDARD FEATURES

• Easy swing, heavy duty cast iron saw head

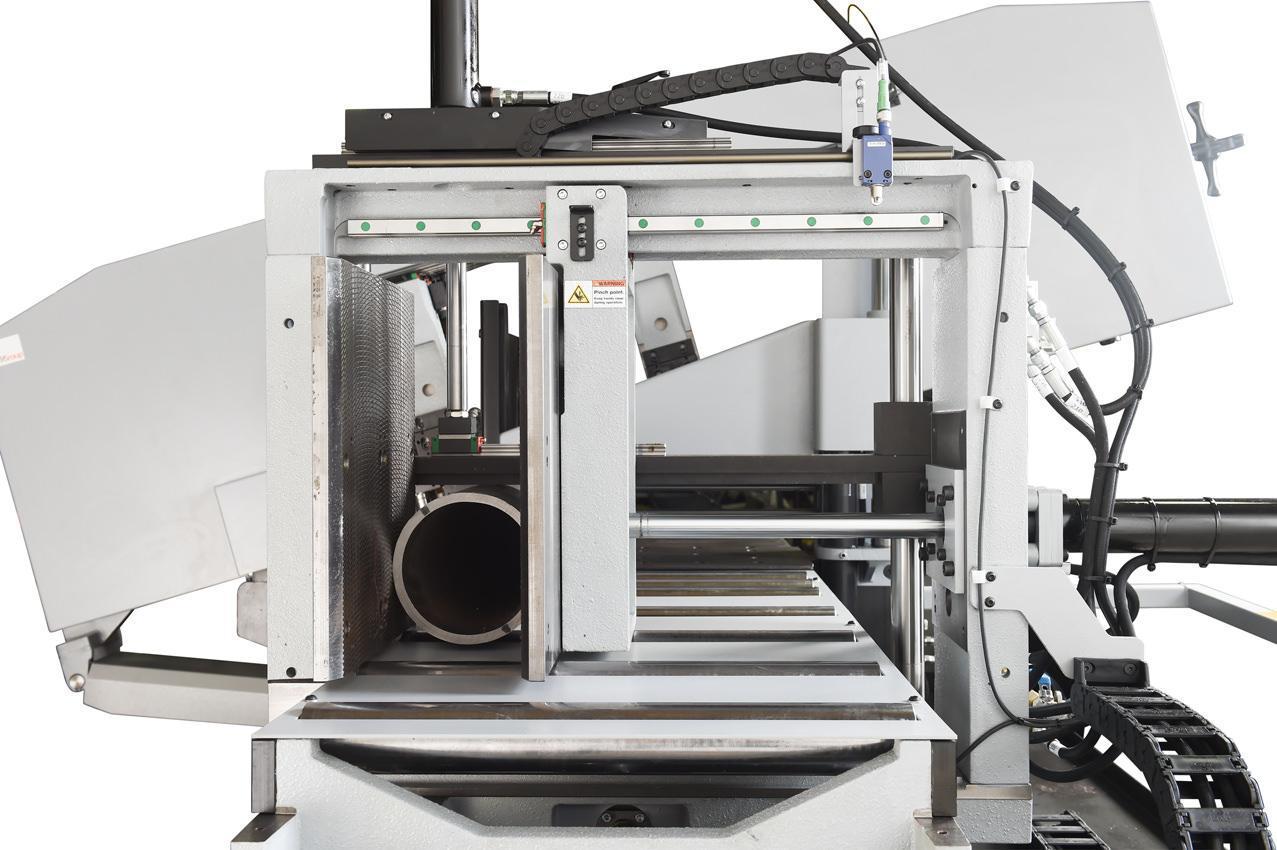

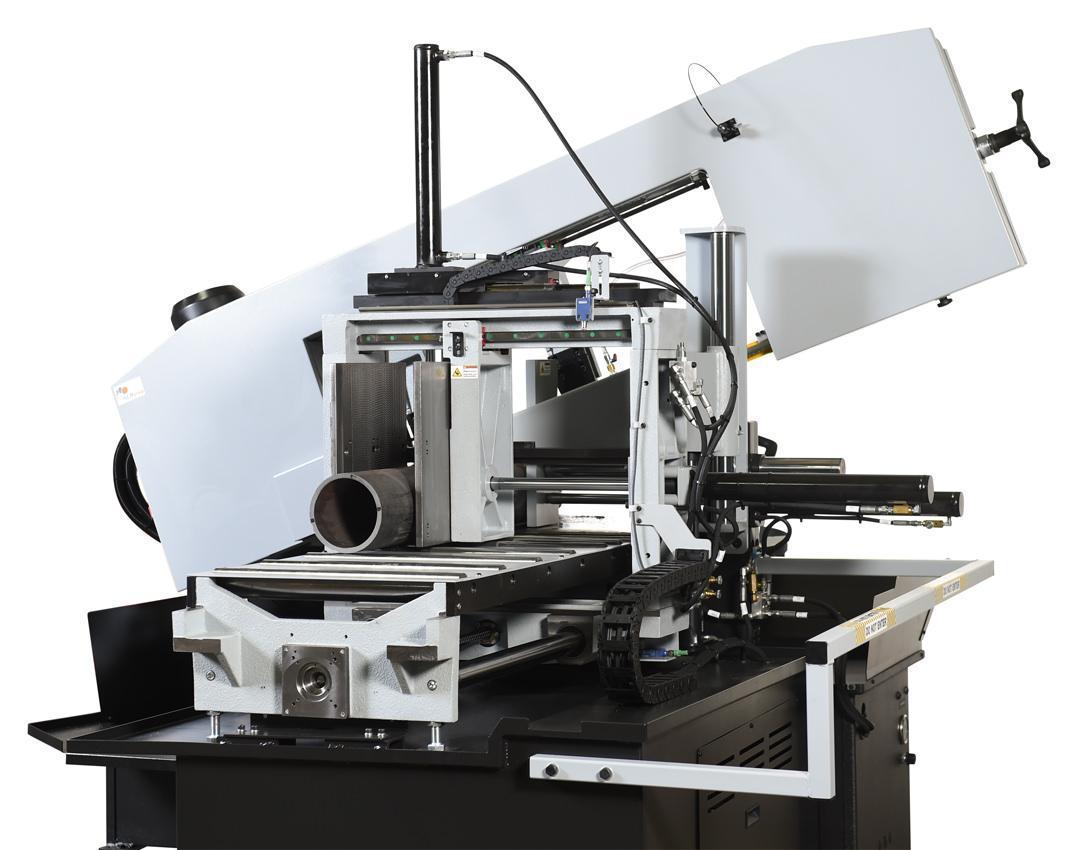

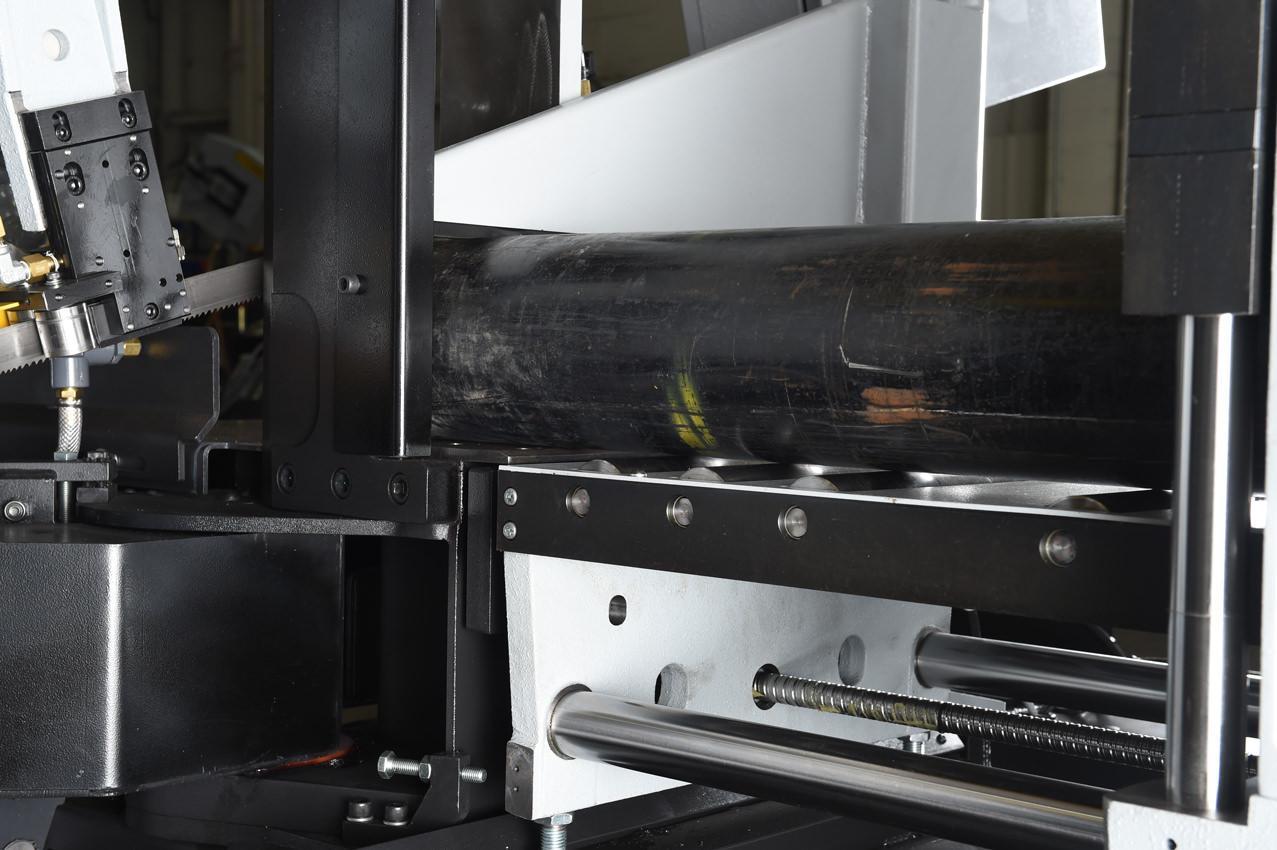

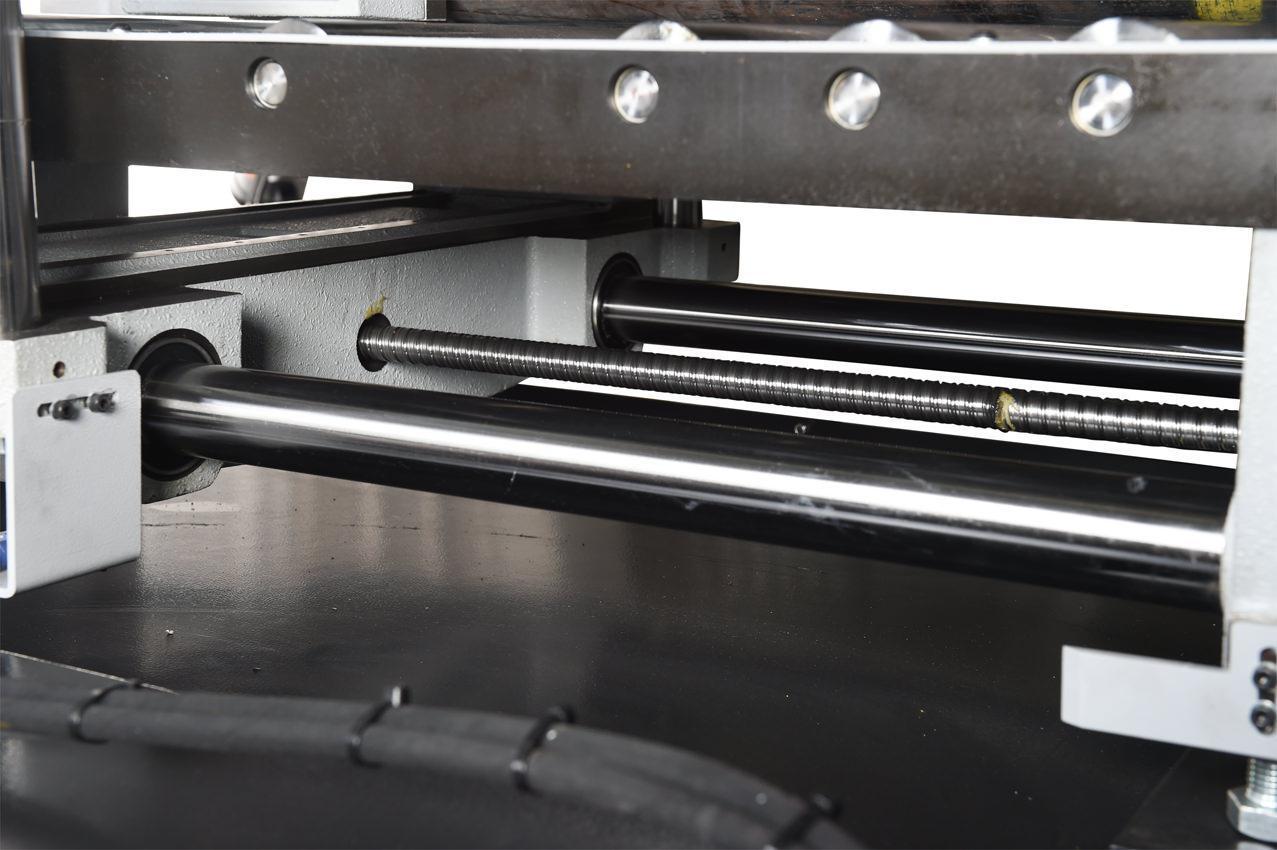

• Cast iron shuttle features automatic multi-indexing up to 28.5” in a single stroke. Powered by ball screw and stepper motor.

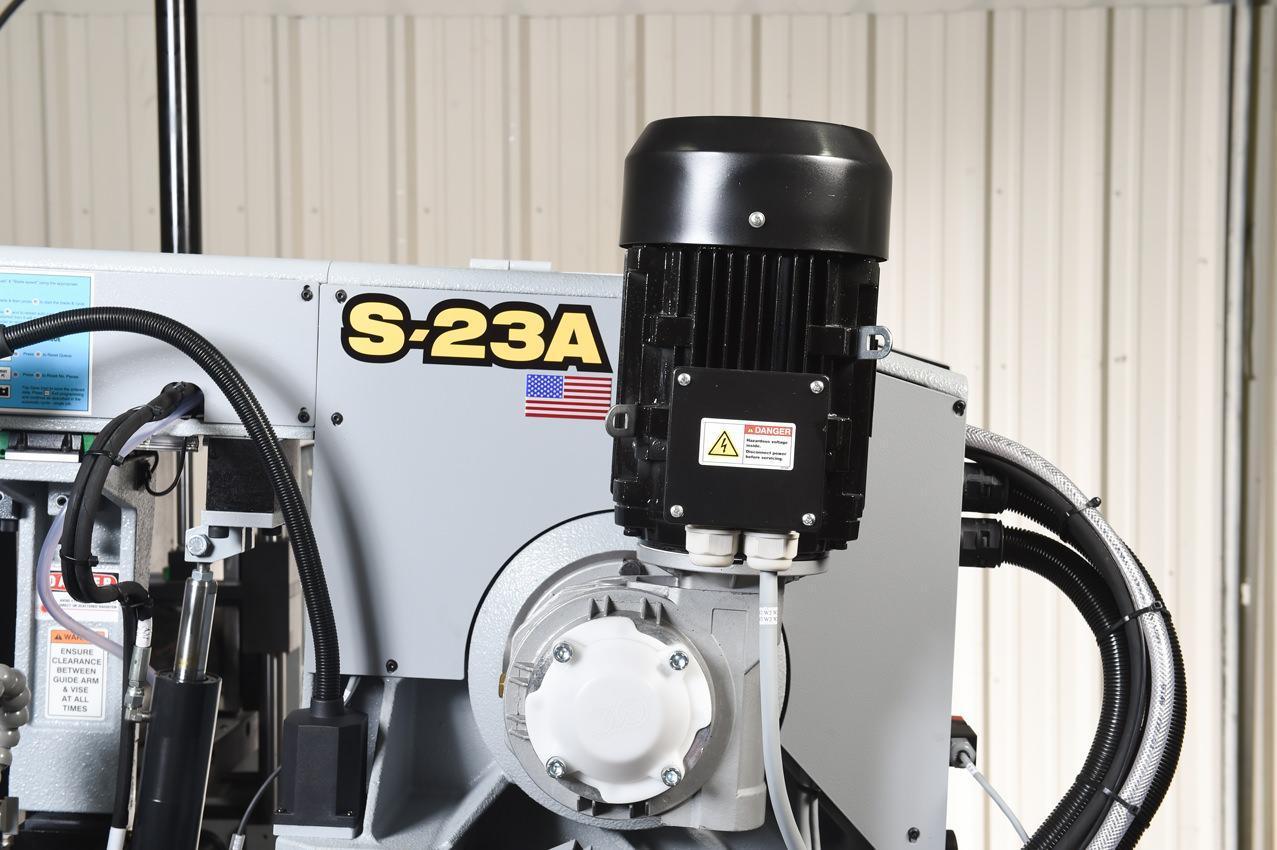

• 8 HP VFD. True direct blade drive – no belts/pulleys

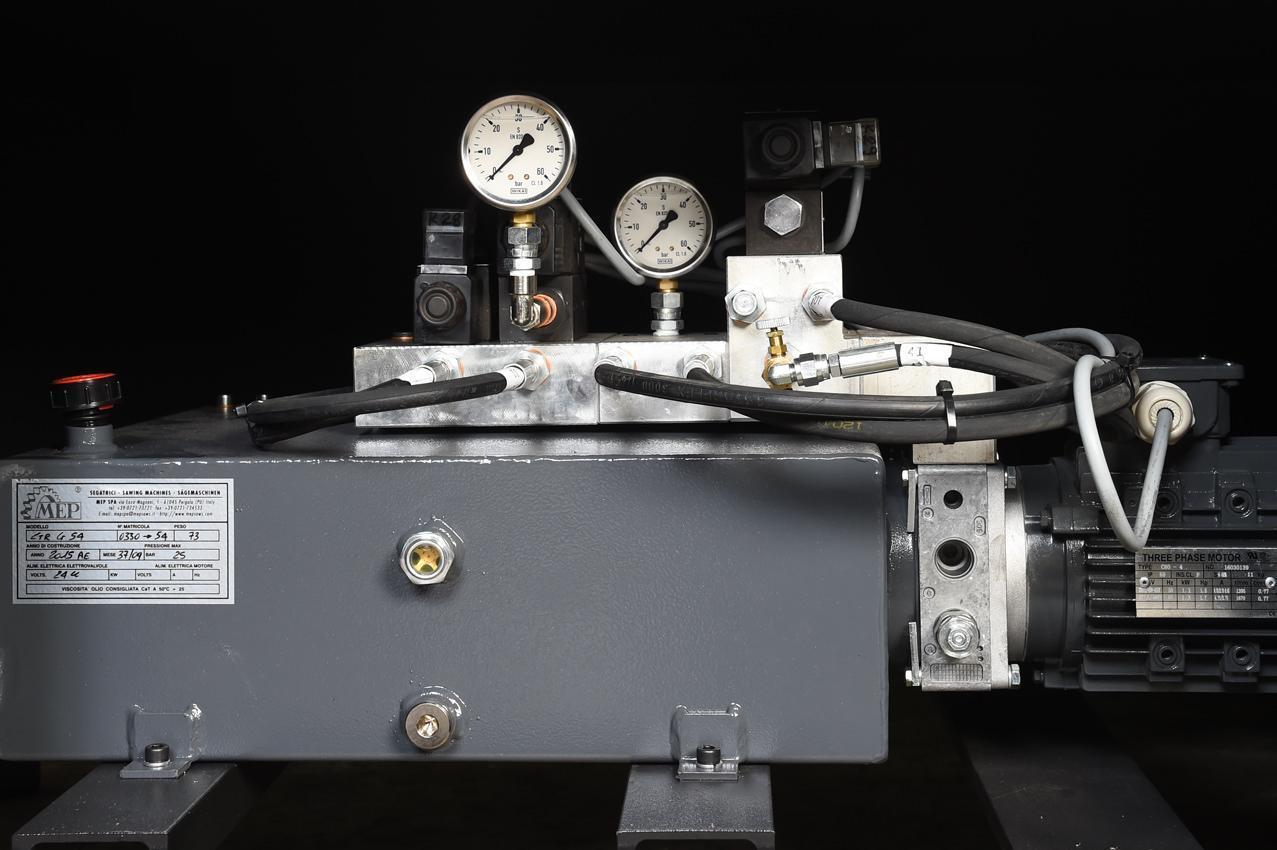

• On-demand hydraulics save energy
• Blade chamber separates material from cut part
• Cast iron band wheels
• Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue

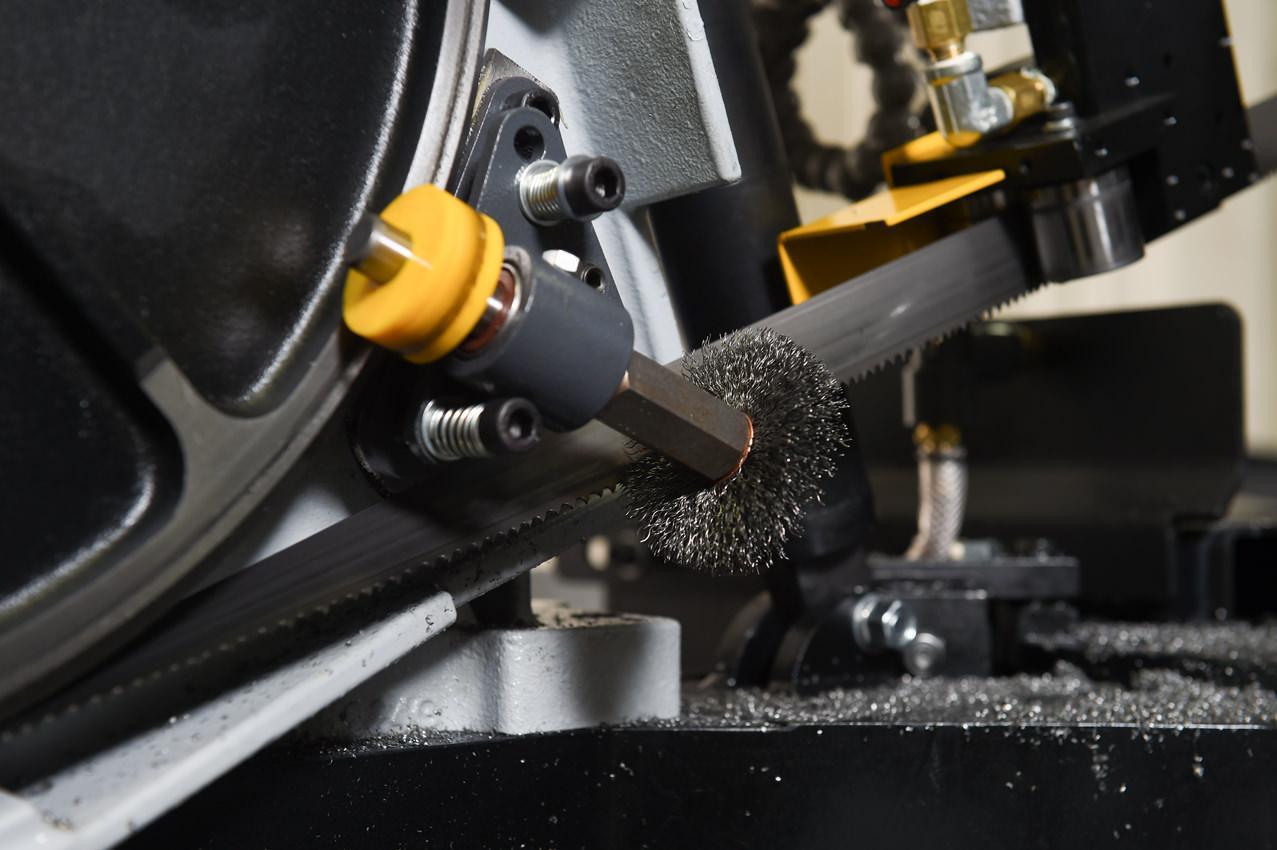

• Replaceable blade brush
• Robust steel base

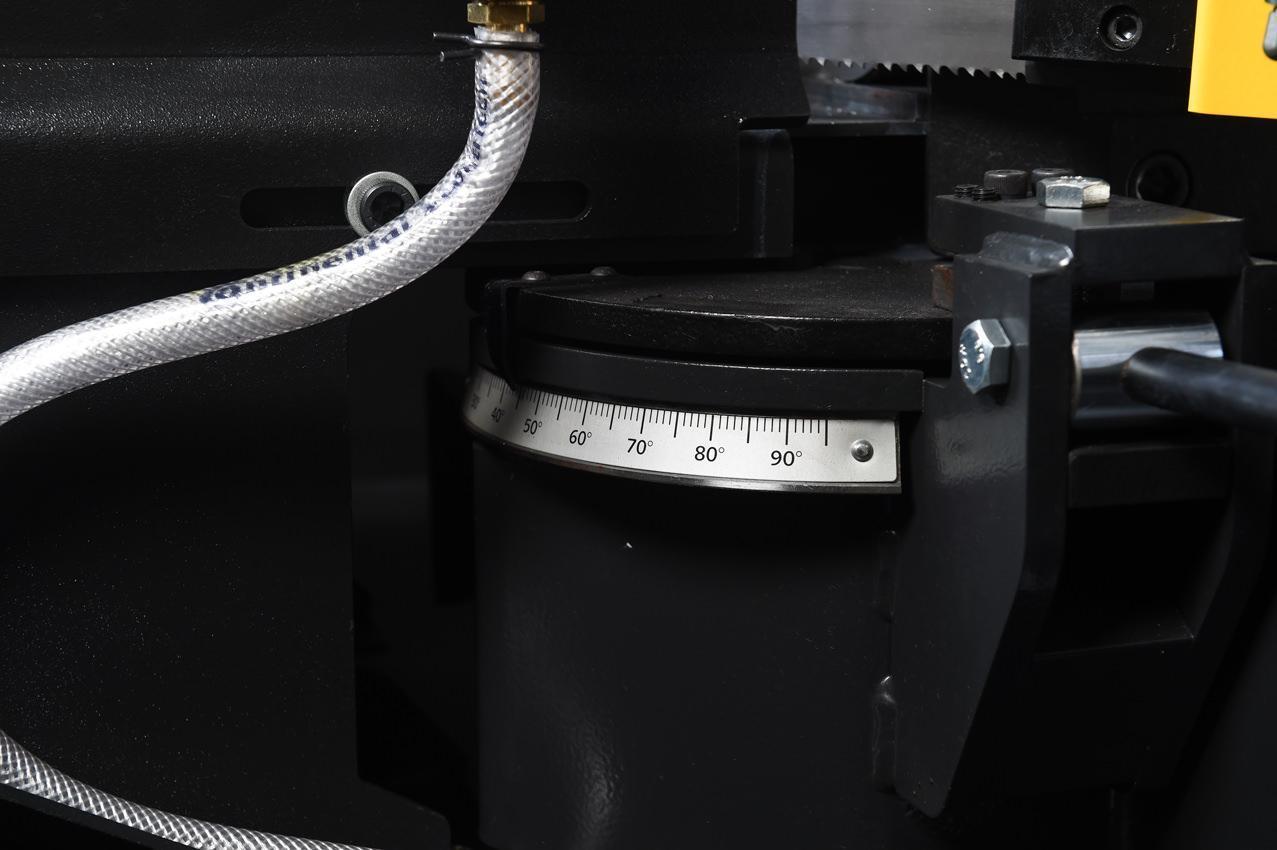

• Easy to read angle scale with angle locking mechanism

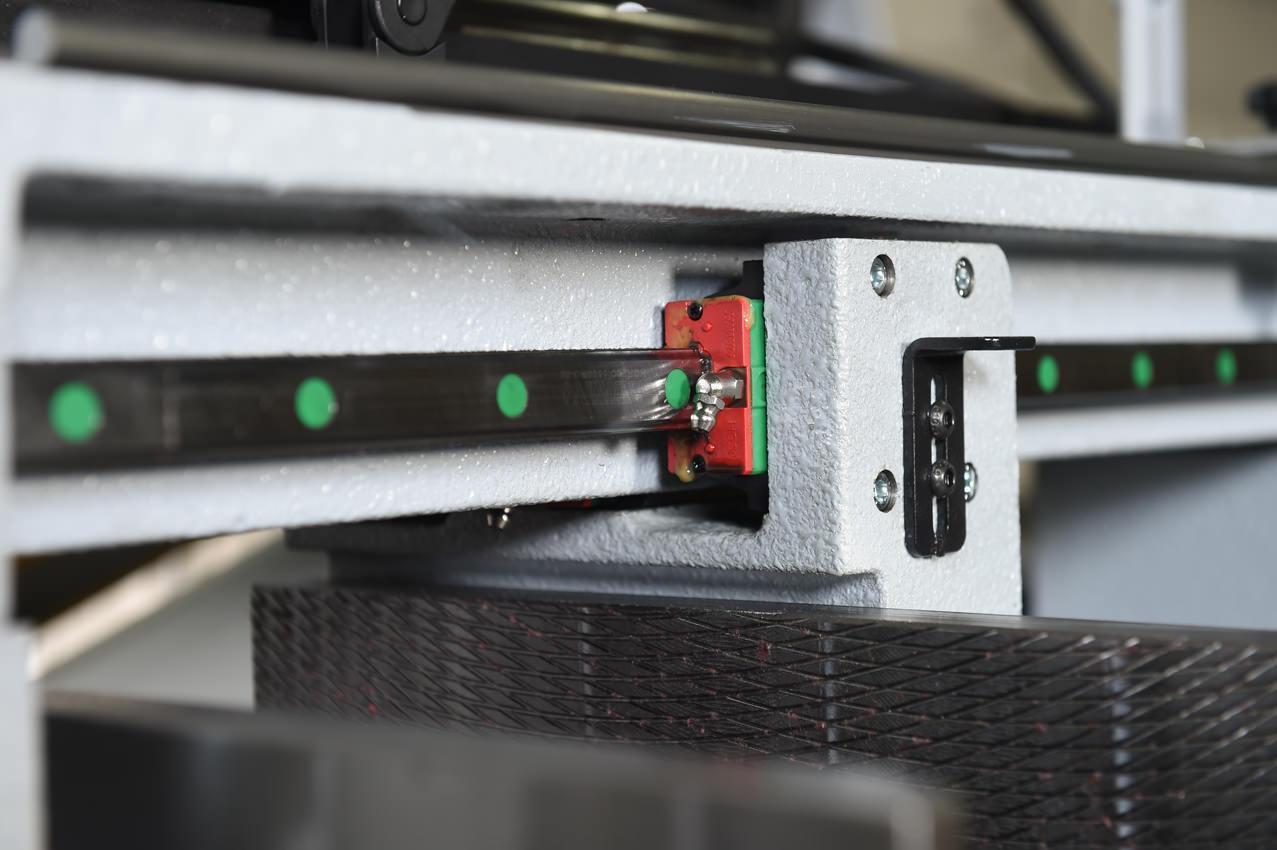

• Cast iron guide arms mounted on linear rails is adjustable for proper spacing.

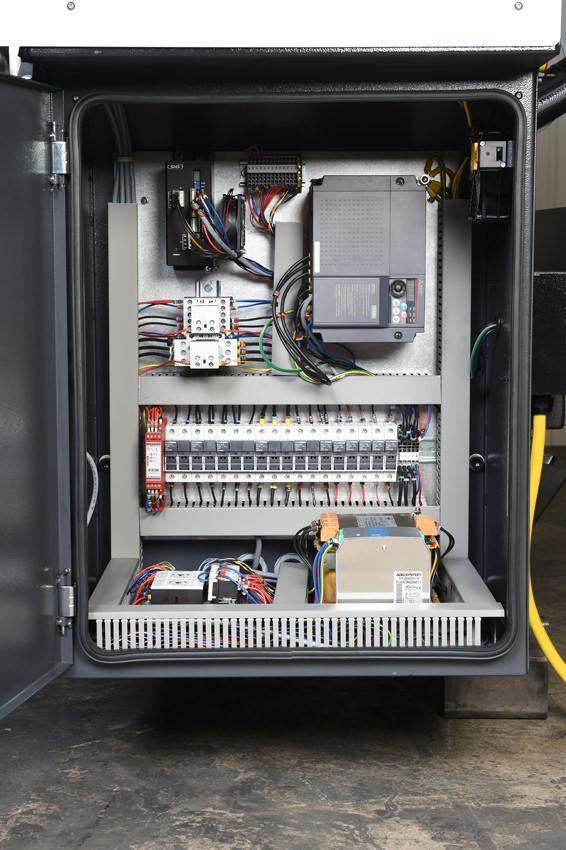

• Easy access electrical panel
• Out of stock switch
• Mechanical band tensioning with digital readout
• Hydraulic positive down feed

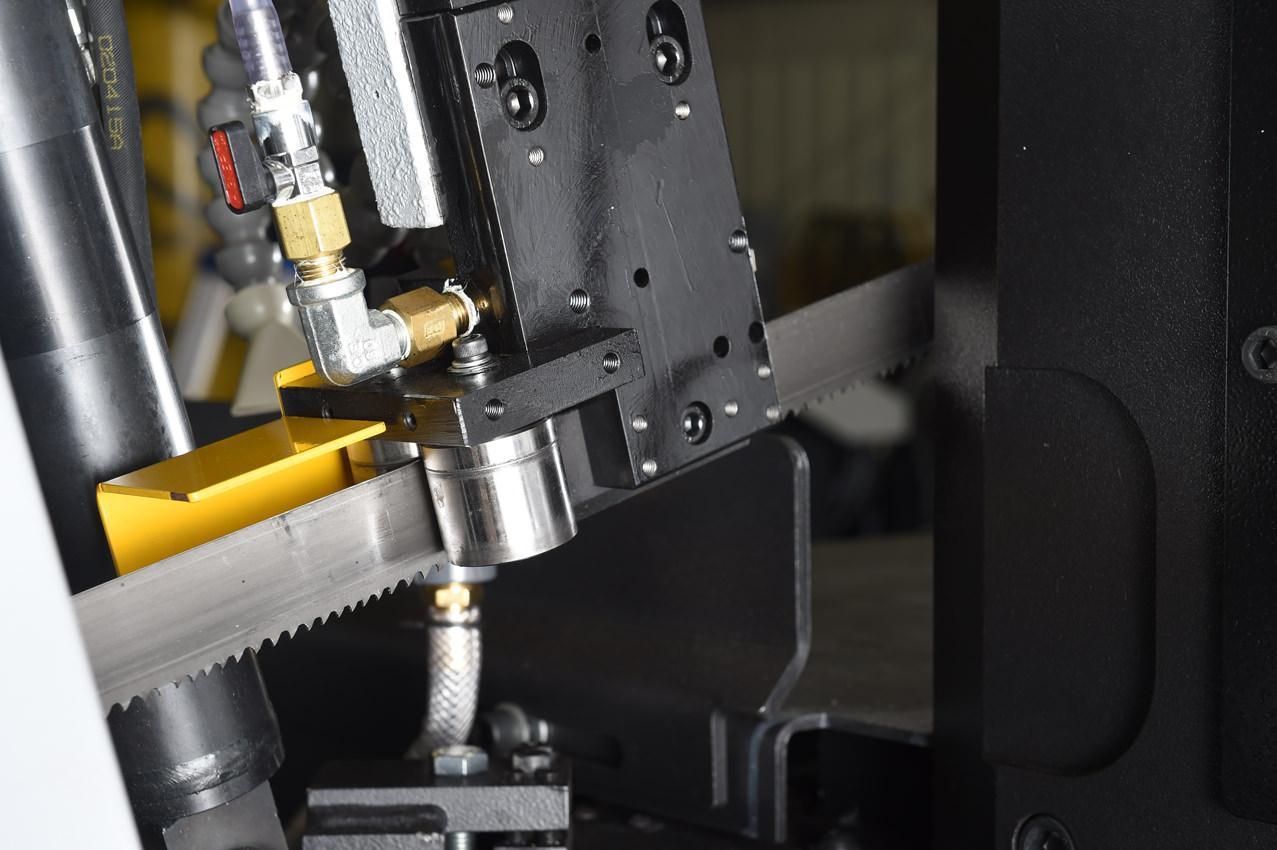

• Replaceable carbide guide inserts
• Safety door interlocks

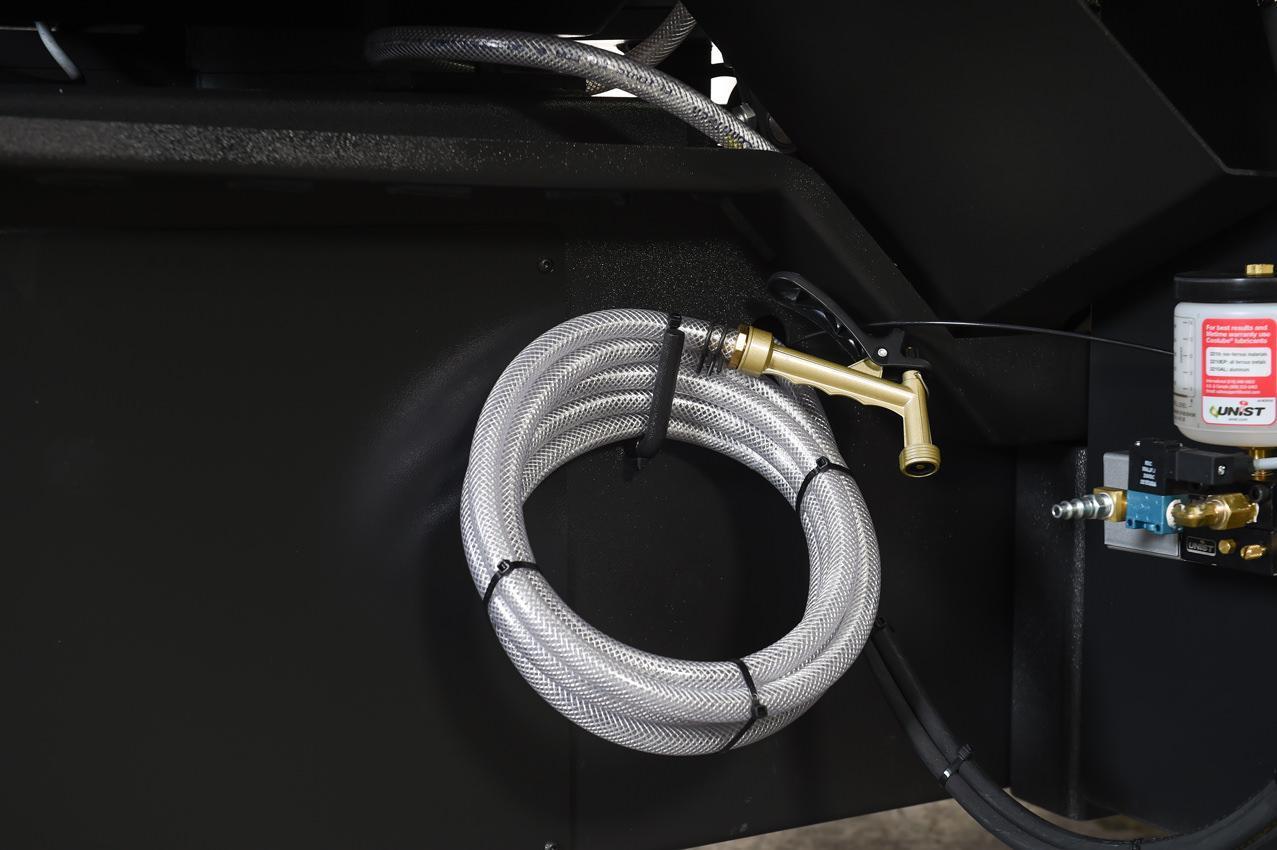

• Flood coolant with wash down hose
• Laser light
• Work light

• ​
• ​ OPTIONS
• • Full capacity hydraulic overhead bundling

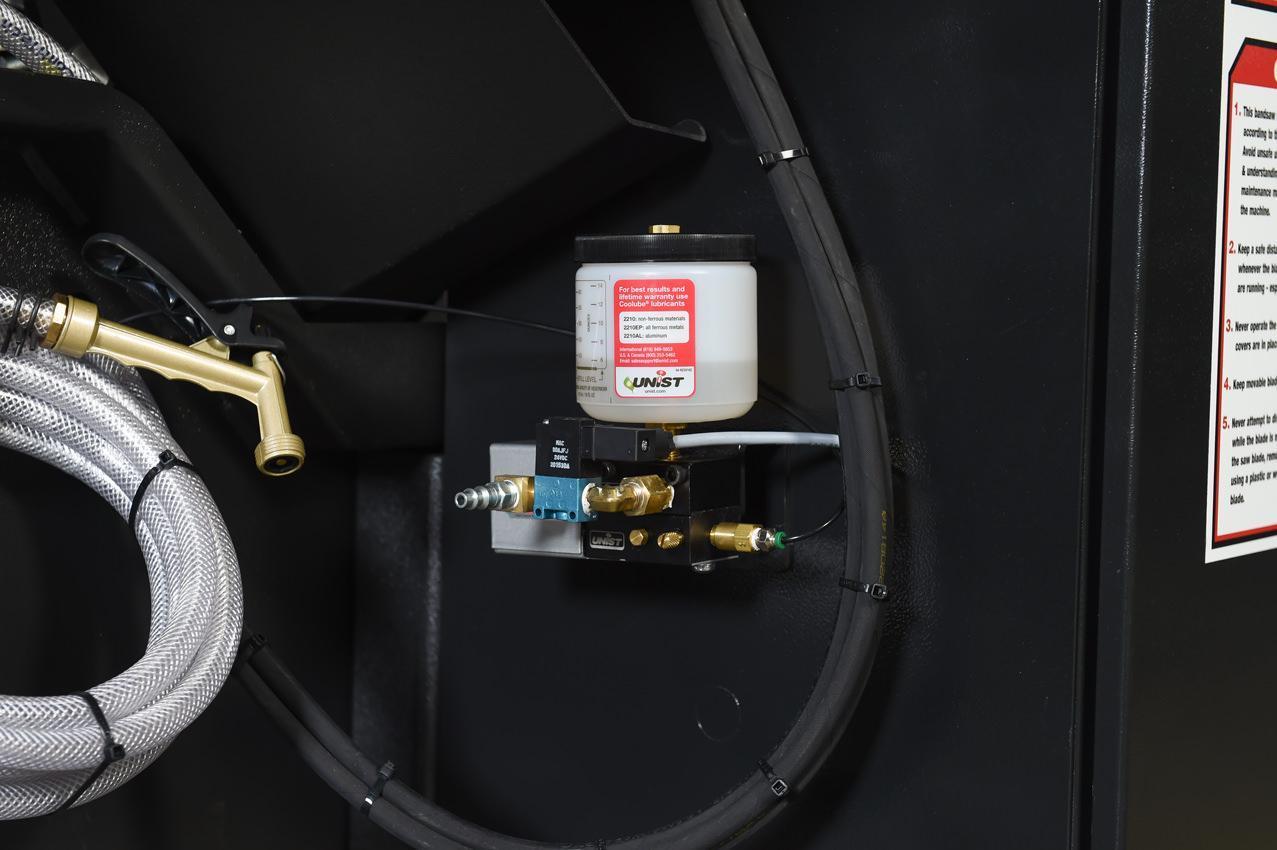

  • Mist lubrication

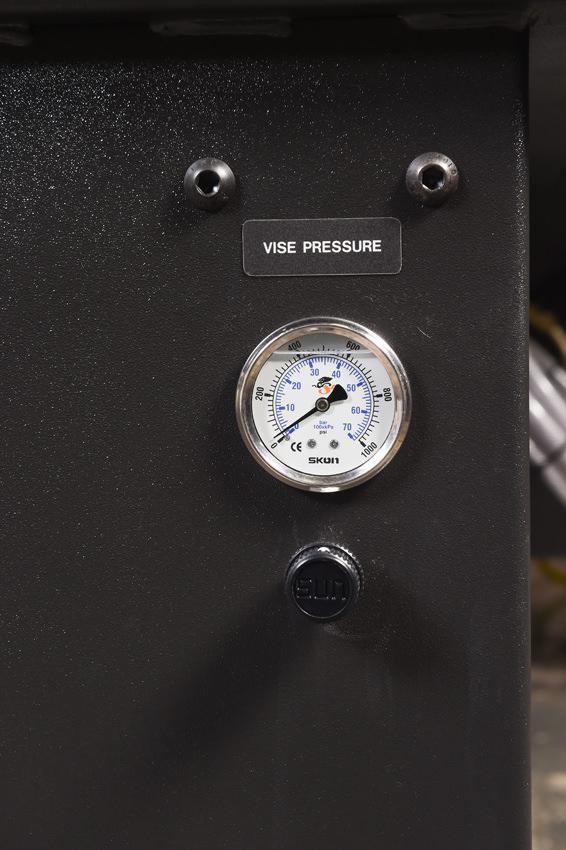

  • Variable vise pressure
  • Remote Console
  • Powered Conveyors
  • Idler conveyors
