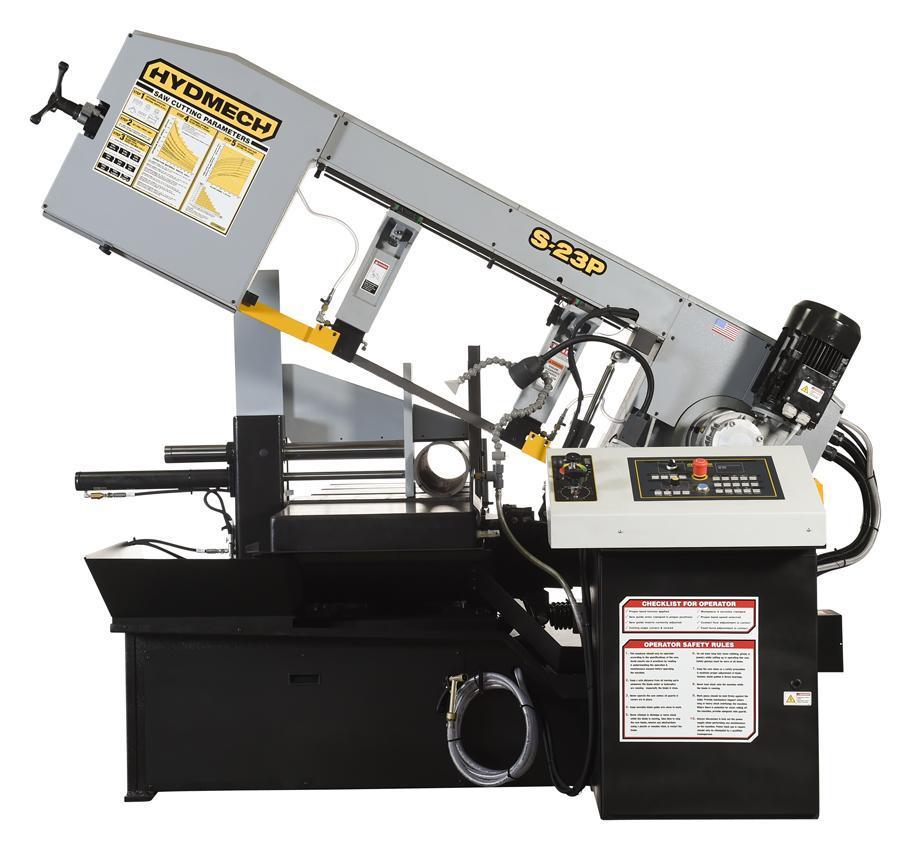

NEW 16"H x 20"W HYD-MECH MODEL S-23P SEMI-AUTOMATIC HORIZONTAL PIVOT BAND SAW

Manufacturer

HYD-MECH

Model

S-23P

Year

Not provided

Stock #

13114

Condition

New

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

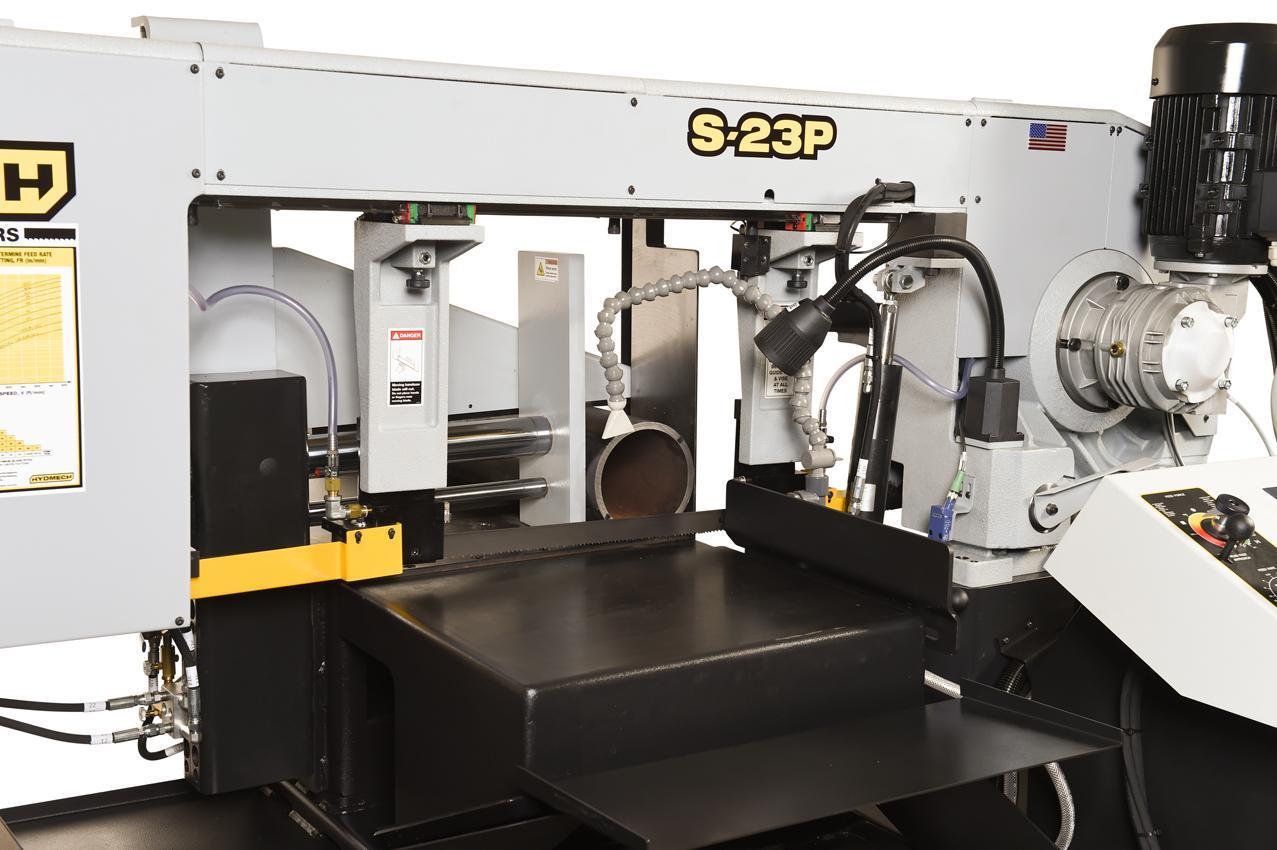

NEW 16"H x 20"W HYD-MECH MODEL S-23P SEMI-AUTOMATIC HORIZONTAL PIVOT BAND SAW





The S-23P is a semi-automatic horizontal pivot band sawproviding exceptional miter cutting capability for light to medium duty applications.

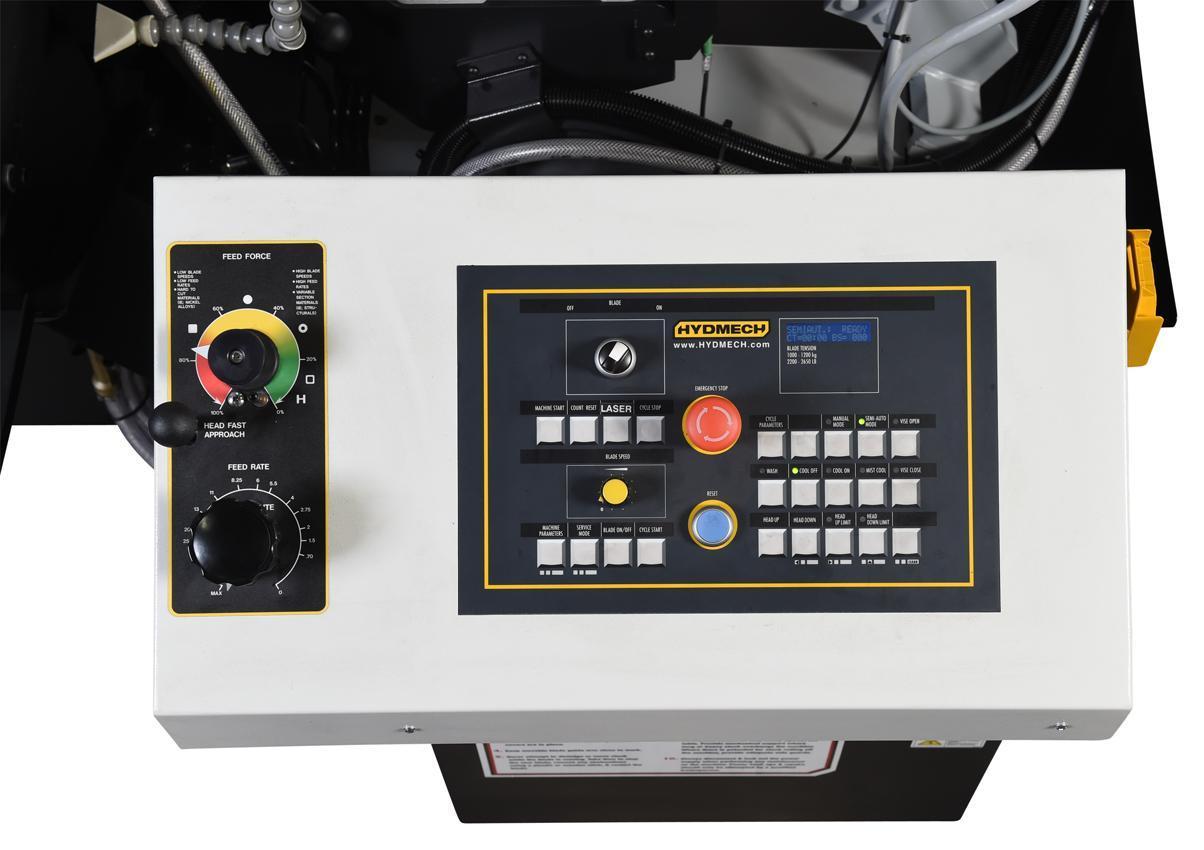

Featuring a semi-automatic mode control with an LED readout for blade speed, blade tension, parts counter, head height adjustment, laser light, amperage draw of blade motor, cut duration, head position, and  overall machine run time. All offered in several language choices.

An attractive option offered on this machine is the direct down feed option which provides easy adjustment of both head feed rate and cutting pressure.

The S-23P miters from 90° to 60°. Featuring a 16″H x 20″W capacity at 90°, 5.5 HP motor, and 1 1/4″ blade, the S-23P semi-automatic horizontal pivot band saw is built solidly to give you maximum productivity.






STANDARD FEATURES

  • Semi-automatic PLC control
  • Easy swing, heavy duty cast iron saw head

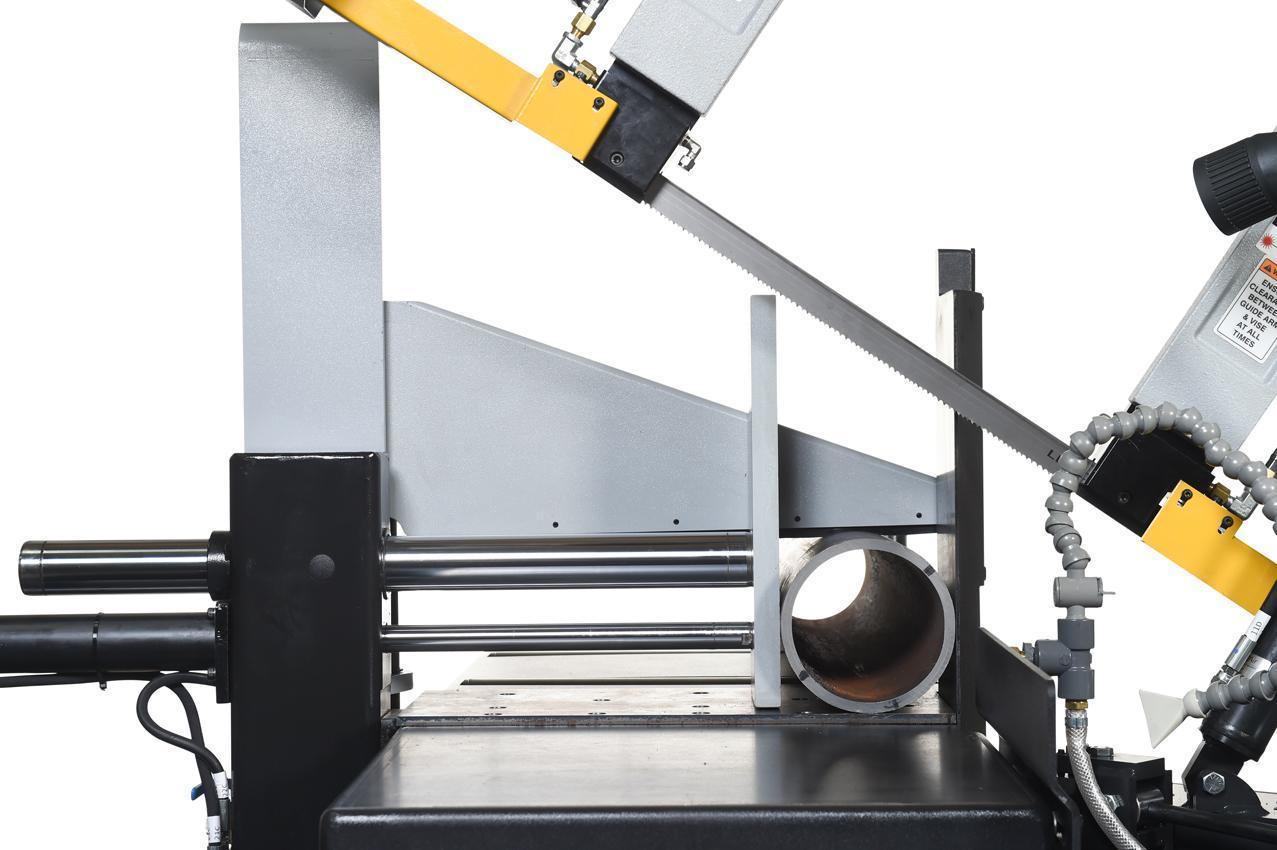

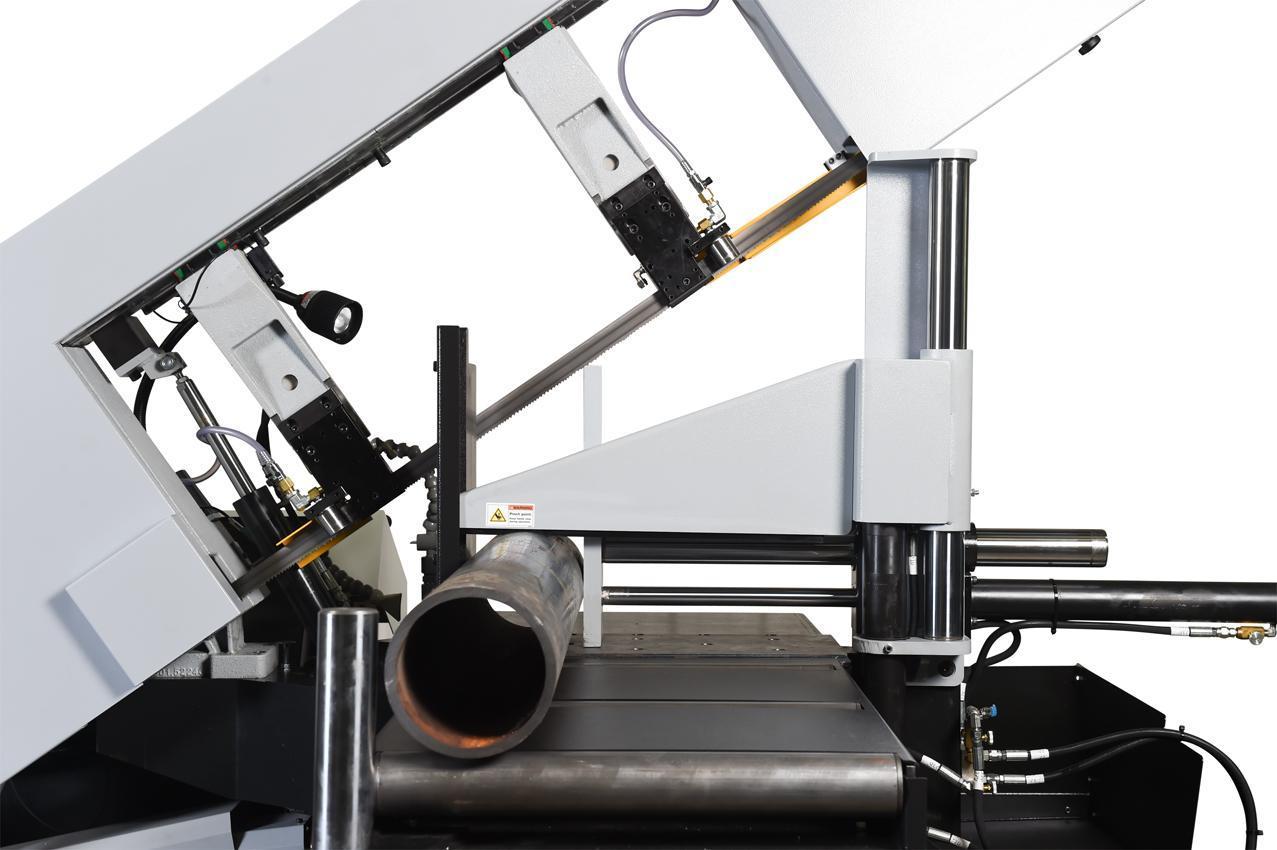

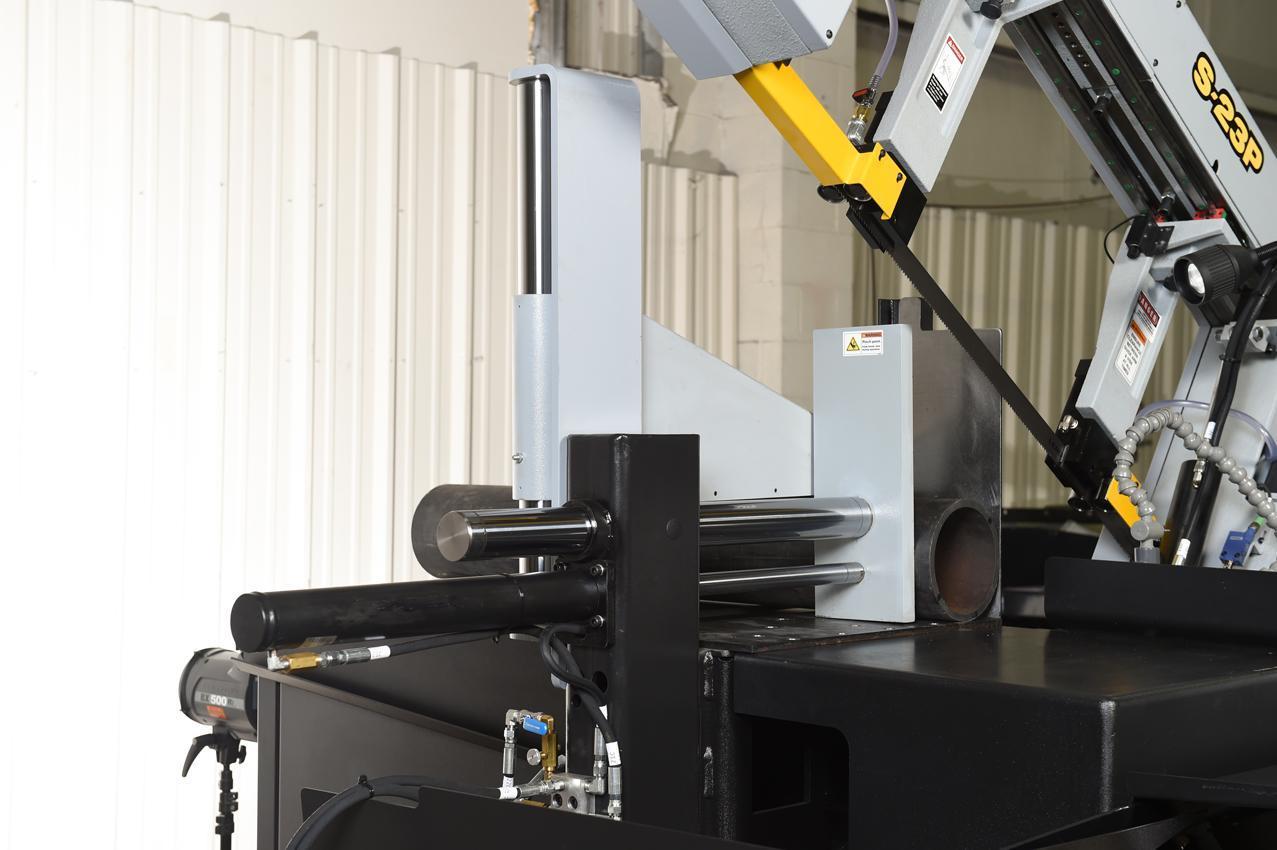

  • Full capacity, full stroking hydraulic vise

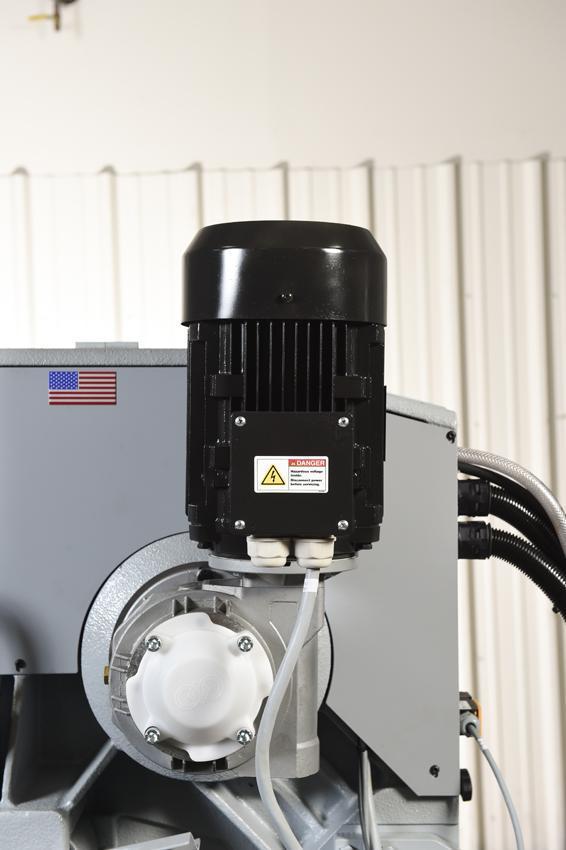

  • 8 HP VFD True direct blade drive – no belts/pulleys

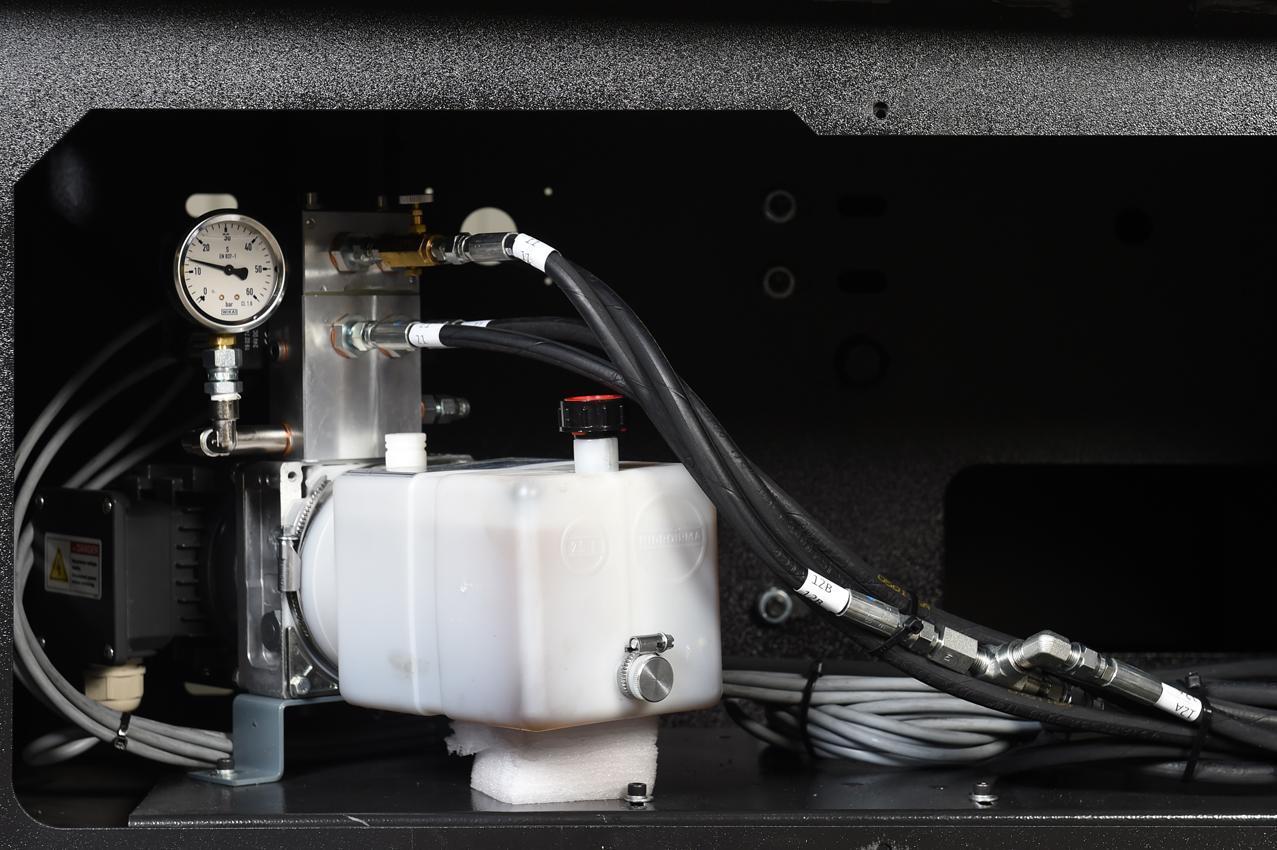

  • On-demand hydraulics save energy
  • 20” out feed table
  • Blade breakage switch

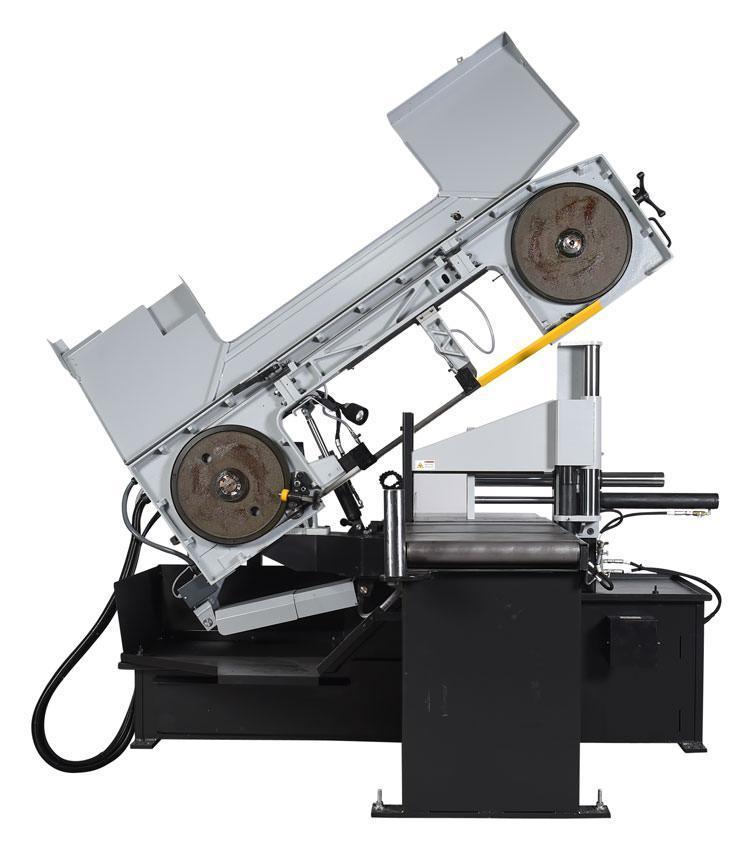

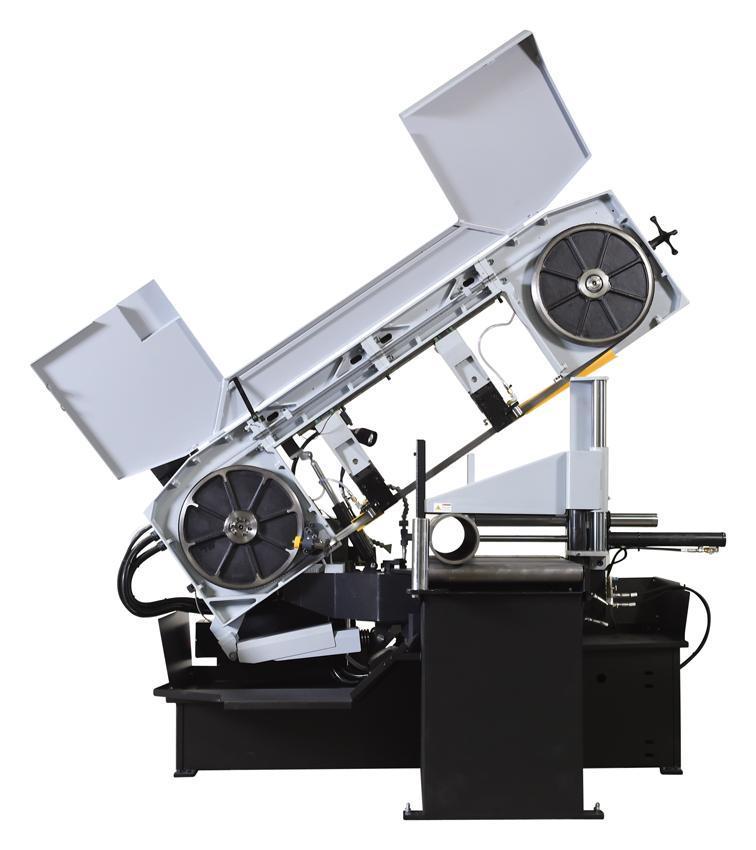

  • Cast iron band wheels

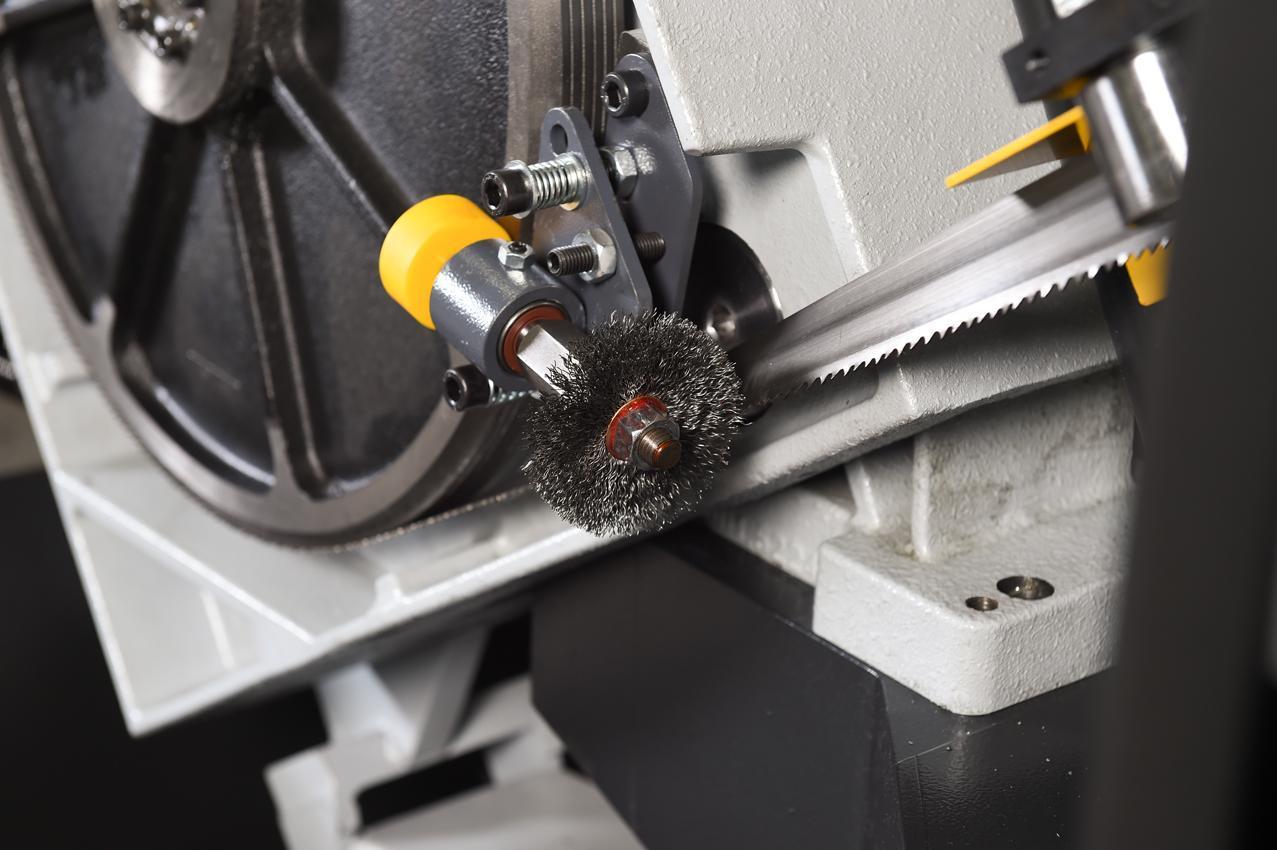

  • Replaceable blade brush

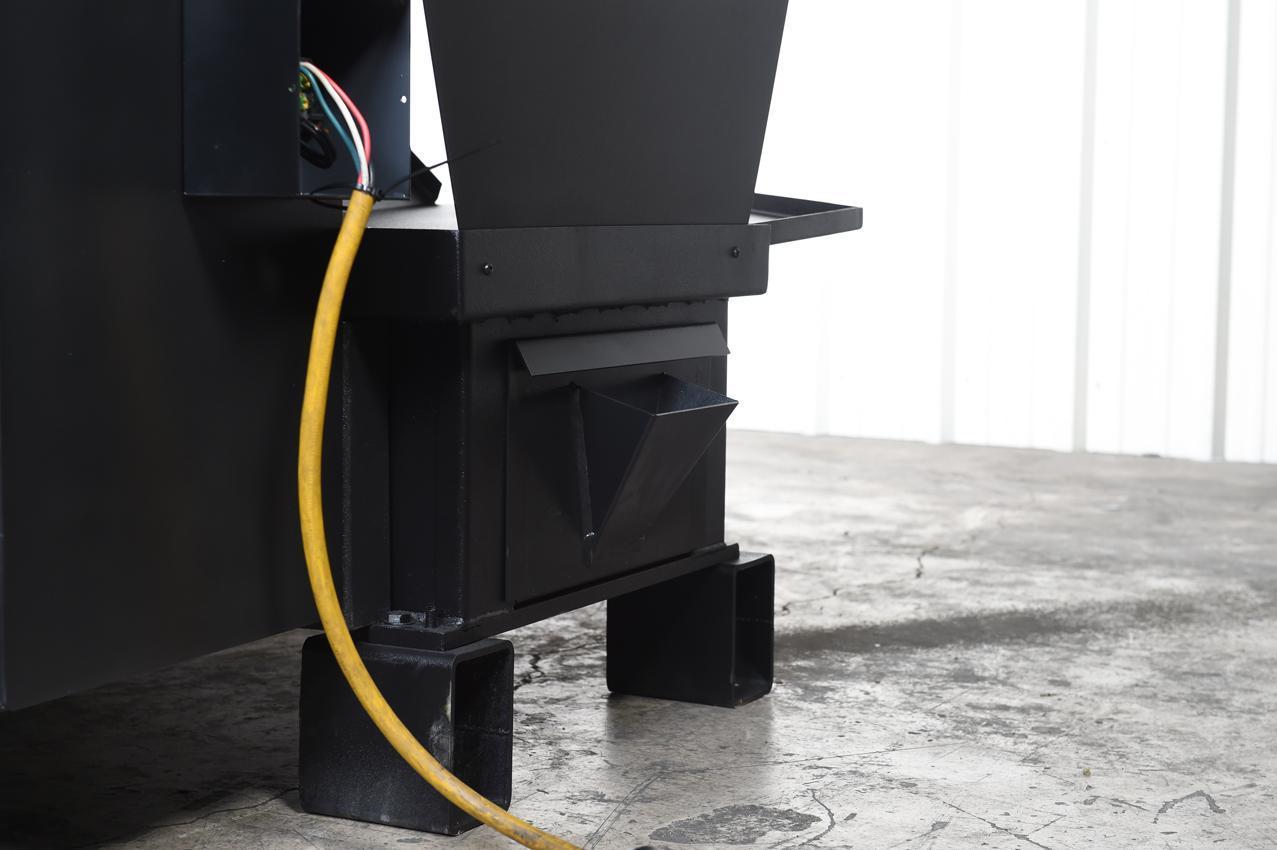

  • Robust steel base

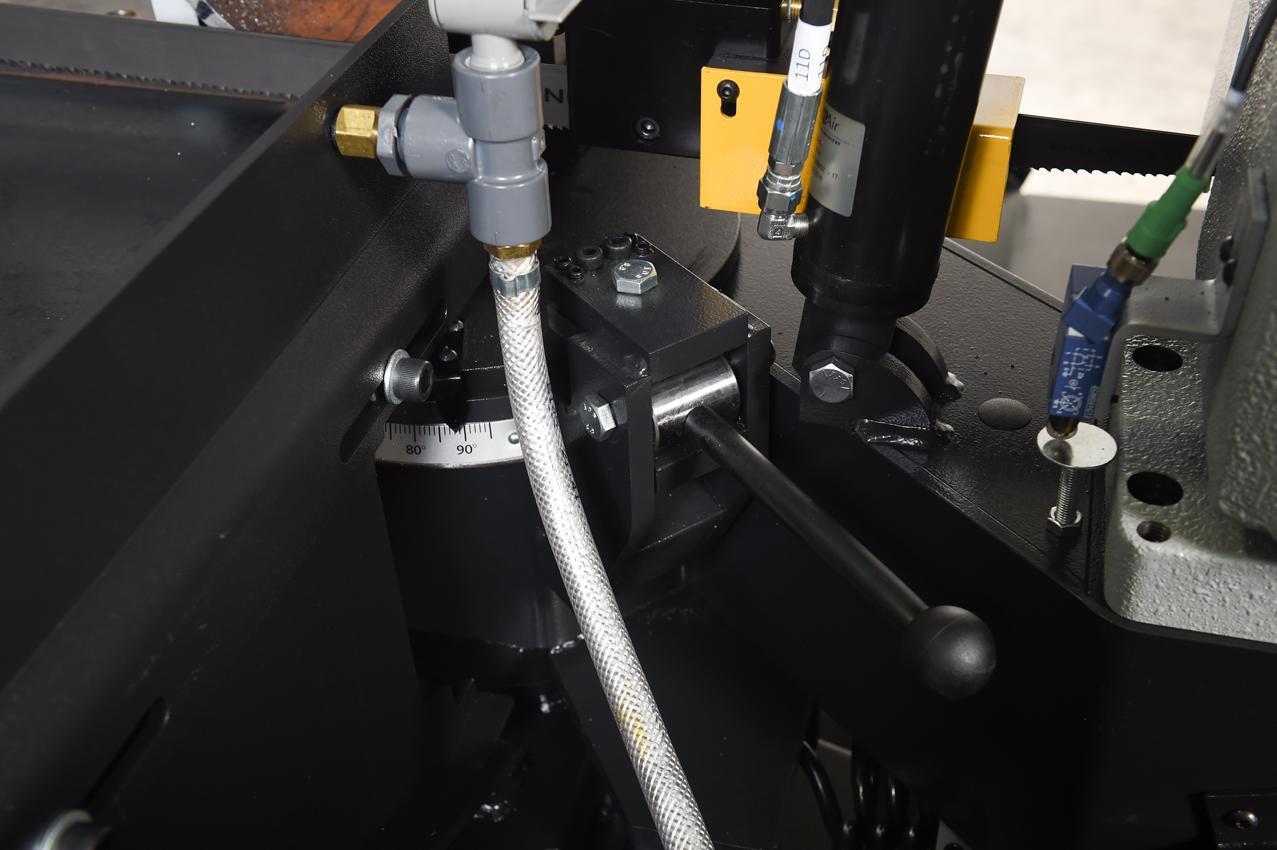

  • Easy to read angle scale with angle locking mechanism

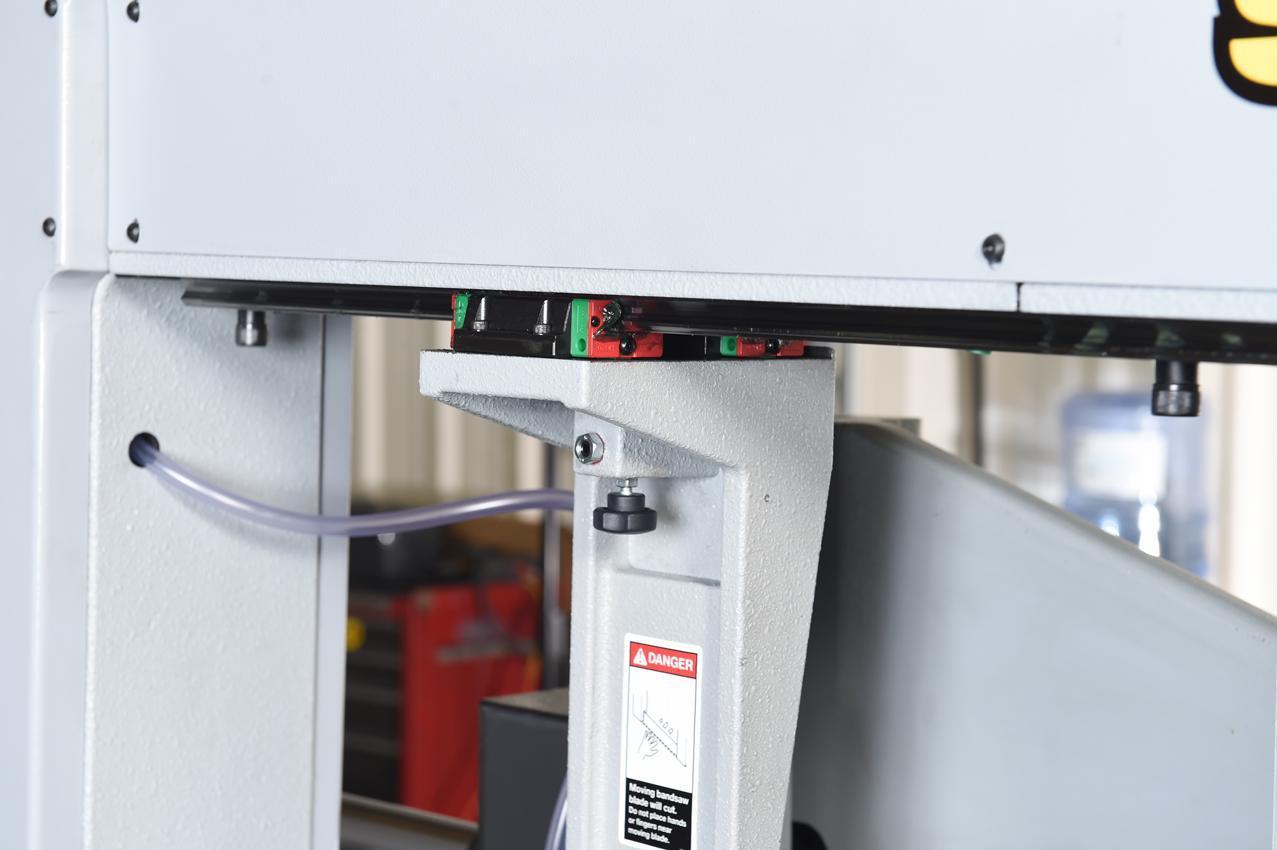

  • Cast iron guide arms. Idler side guide arm is adjustable and supported by linear rail.

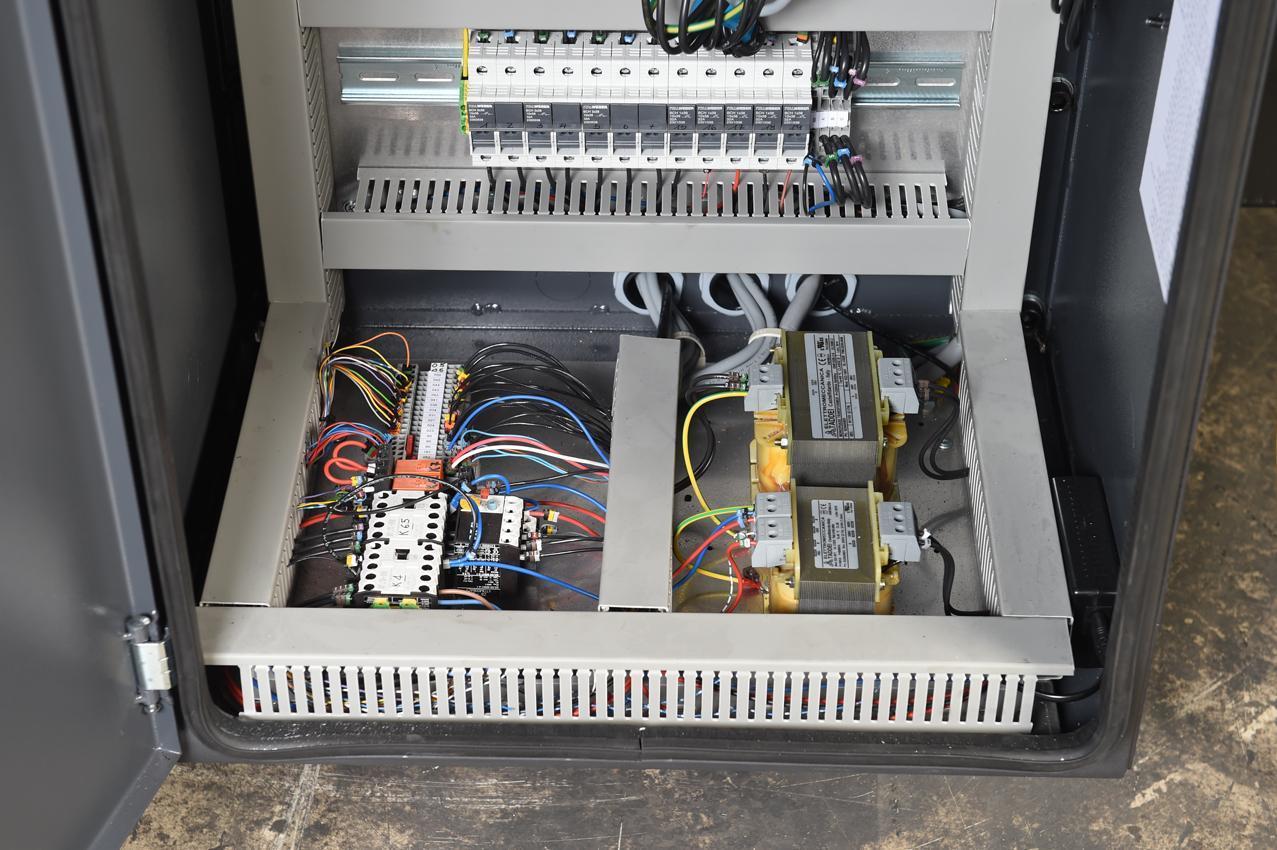

  • Easy access electrical panel
  • Hydraulic positive down feed
  • Mechanical band tensioning with digital readout

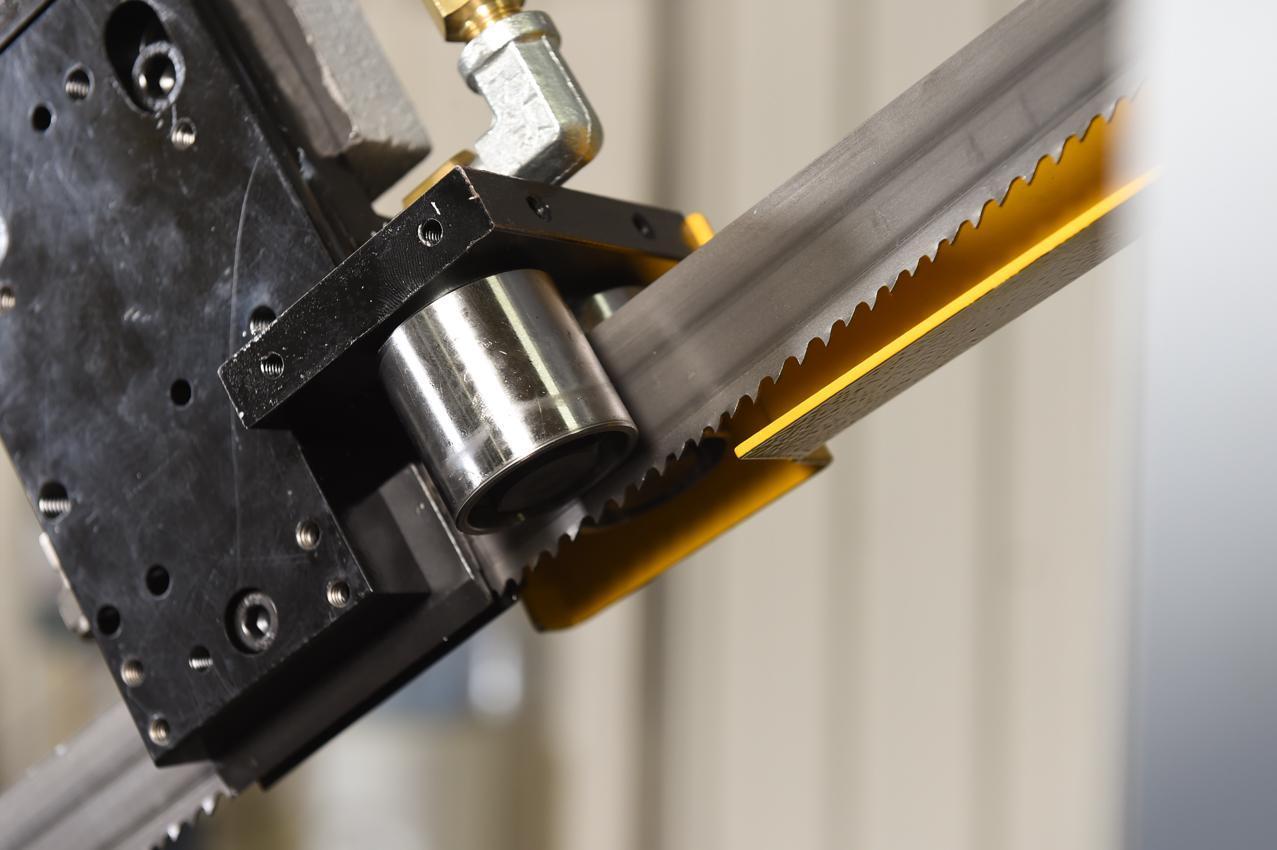

  • Replaceable carbide guide inserts
  • Safety door interlocks

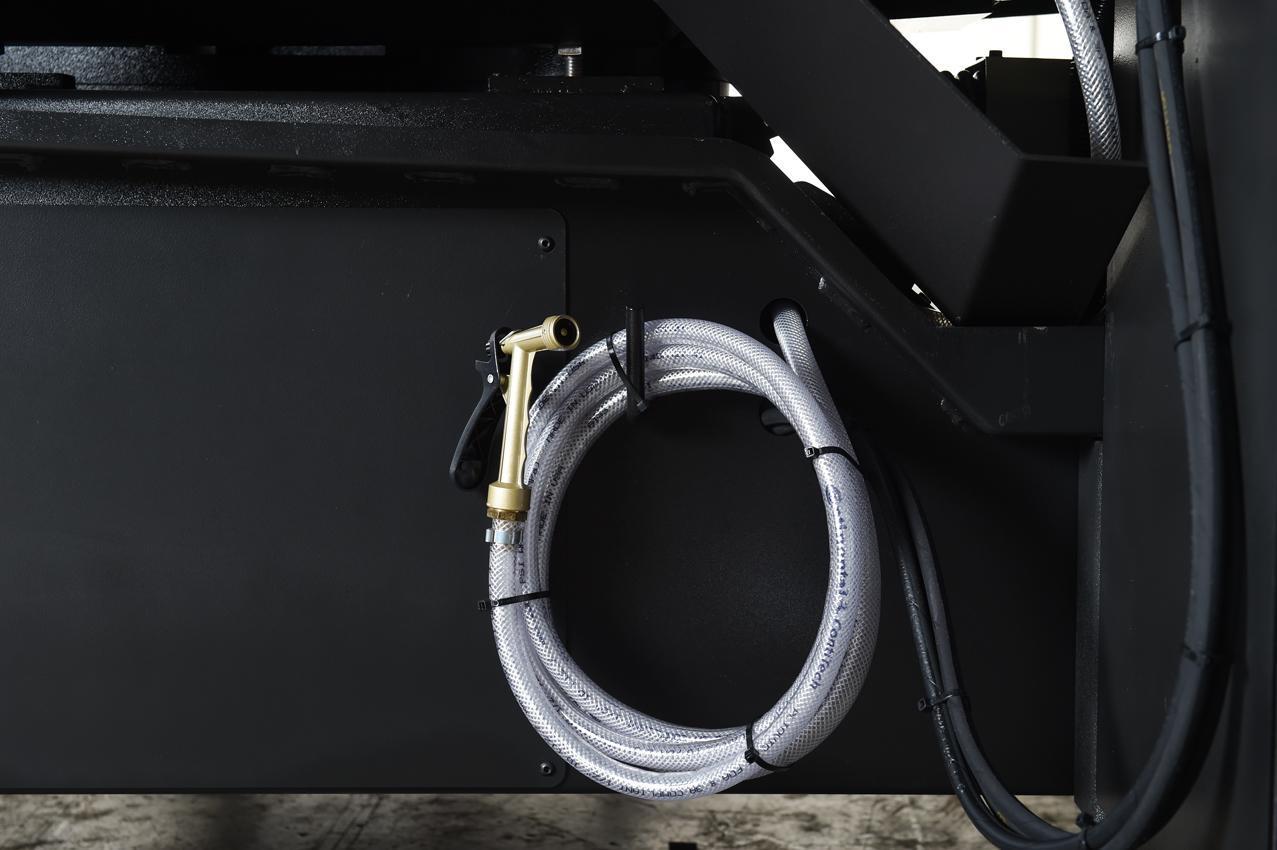

  • Flood coolant with wash down hose
  • Laser light
  • Work light

  • OPTIONS
    • Full capacity hydraulic overhead bundling
    • Mist lubrication
    • Variable vise pressure
    • Work stop
    • Idler conveyors
SPECIFICATIONS
Rectangular Capacity at 90º                  16"H x 20"W
Round Capacity at 90º 16"
Blade Dimensions 1-1/4" x 16' 10"
Blade Drive 8.8HP VFD
Blade Speed 75-350 SFM
Coolant Tank Capacity 9 GAL
Machine Weight 2900 Lbs
Machine Dimensions 96"W x 56"L x 56"H
