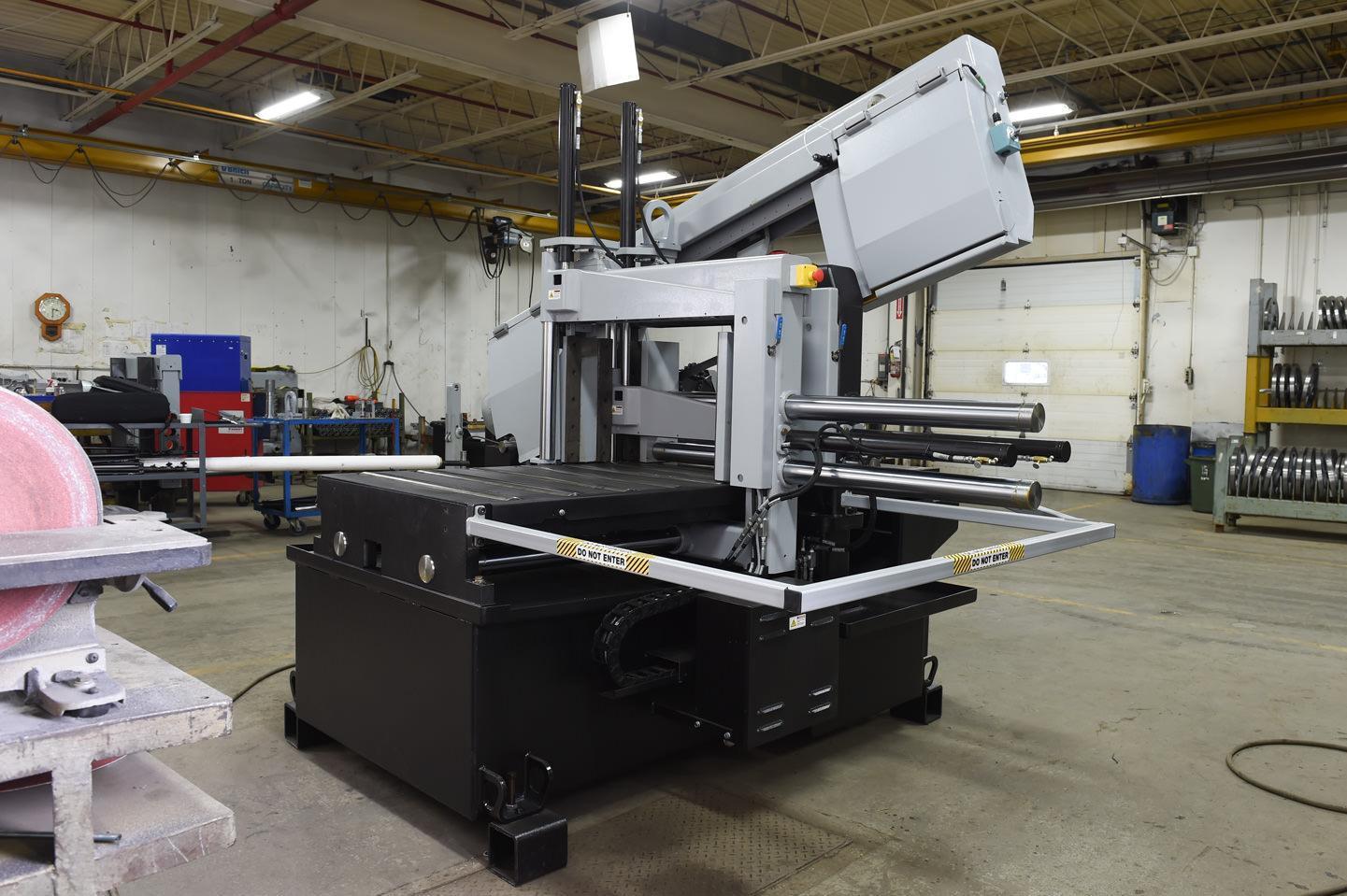

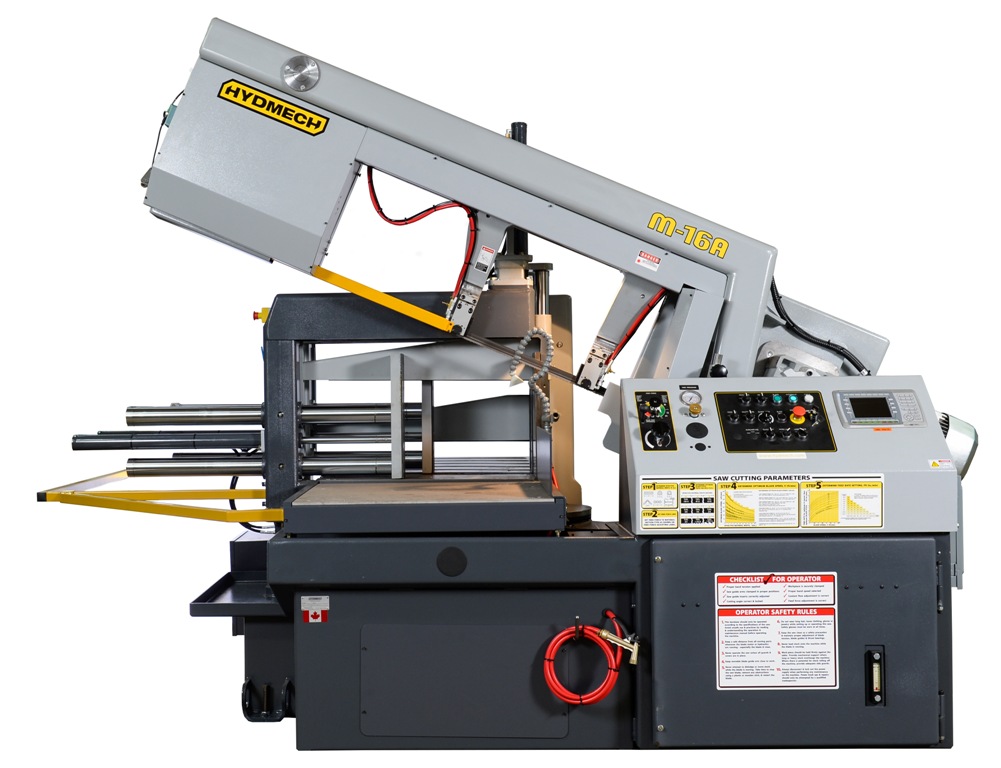

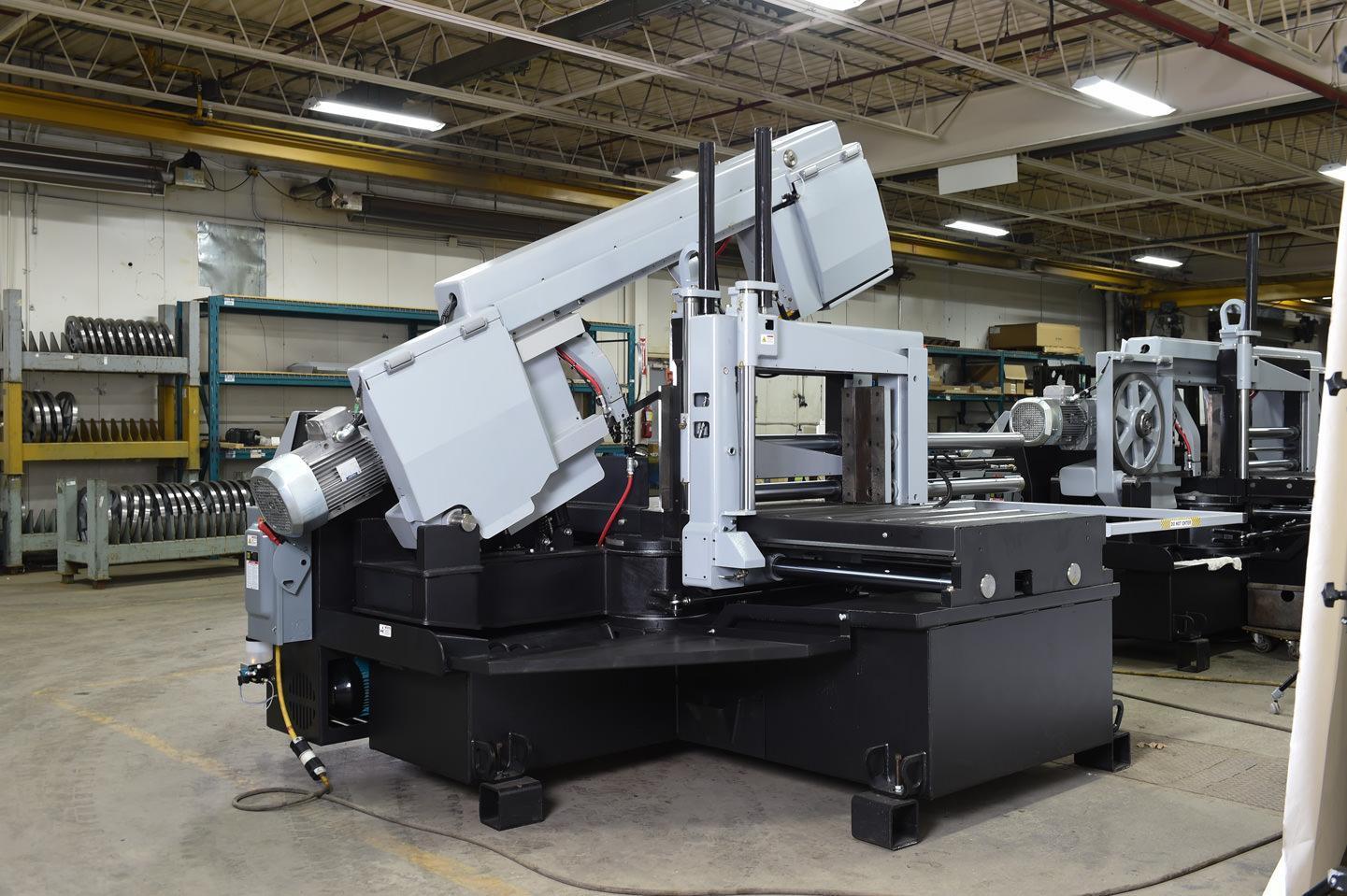

NEW 16"H x 25"W HYD-MECH MODEL M-16A AUTOMATIC HORIZONTAL PIVOT BAND SAW

The M-16A is an automatic scissor style band sawproviding exceptional miter cutting capability for heavy-duty applications.

It features a powerful motor and gearbox with variable frequency drive to provide exceptional cutting performance on a wide range of material. The M-16A miters from 90° to 60°.

Featuring a 16″H x 25″W capacity at 90°, 7.5 HP motor, and 1 1/4″ blade, the M-16A is a reliable choice for your heavy-duty metal cutting applications.

STANDARD FEATURES

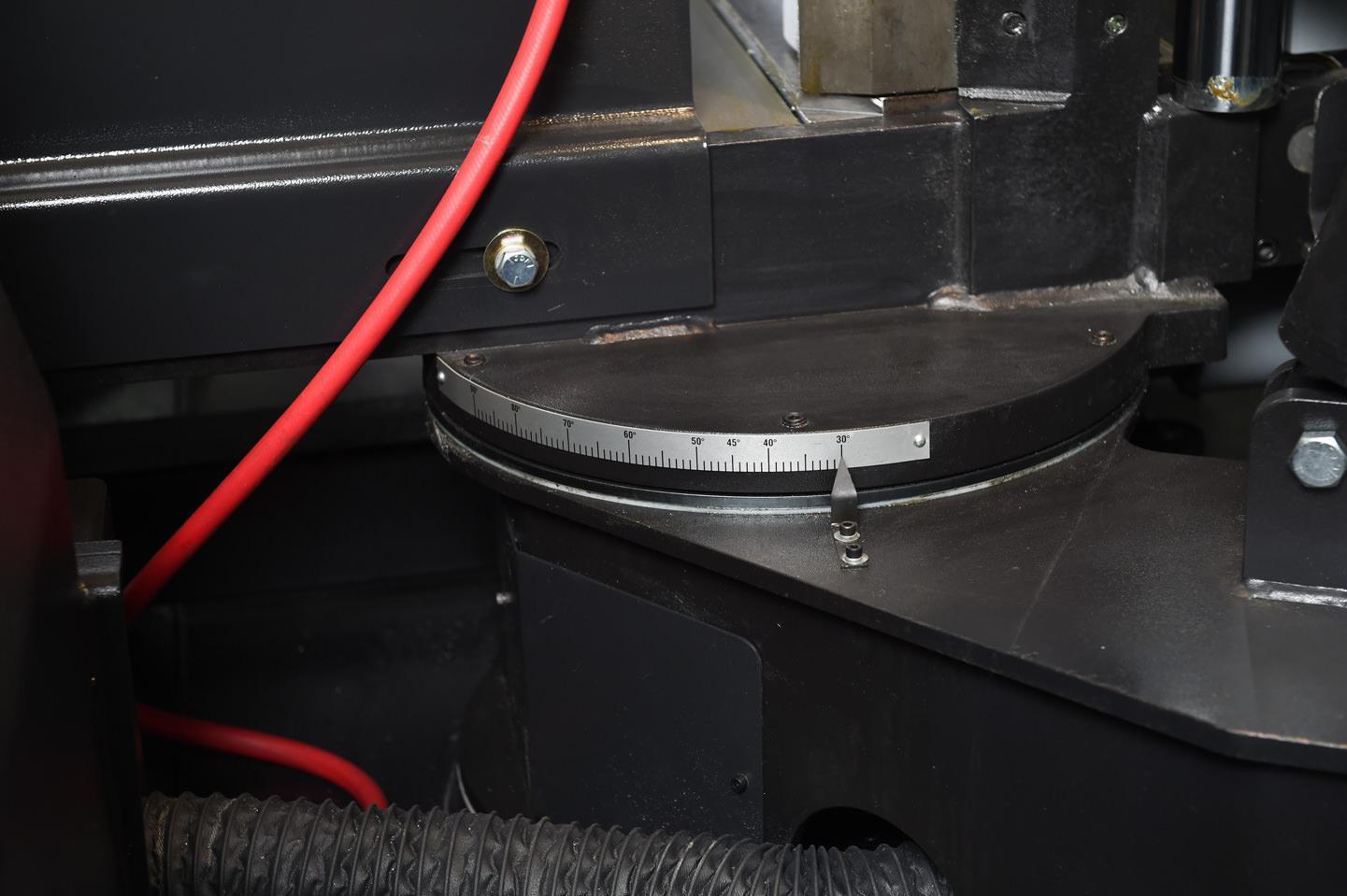

• Automatic programmable mitering with “go to” angle functionality
• Automatic multi-indexing up to 33” in a single stroke

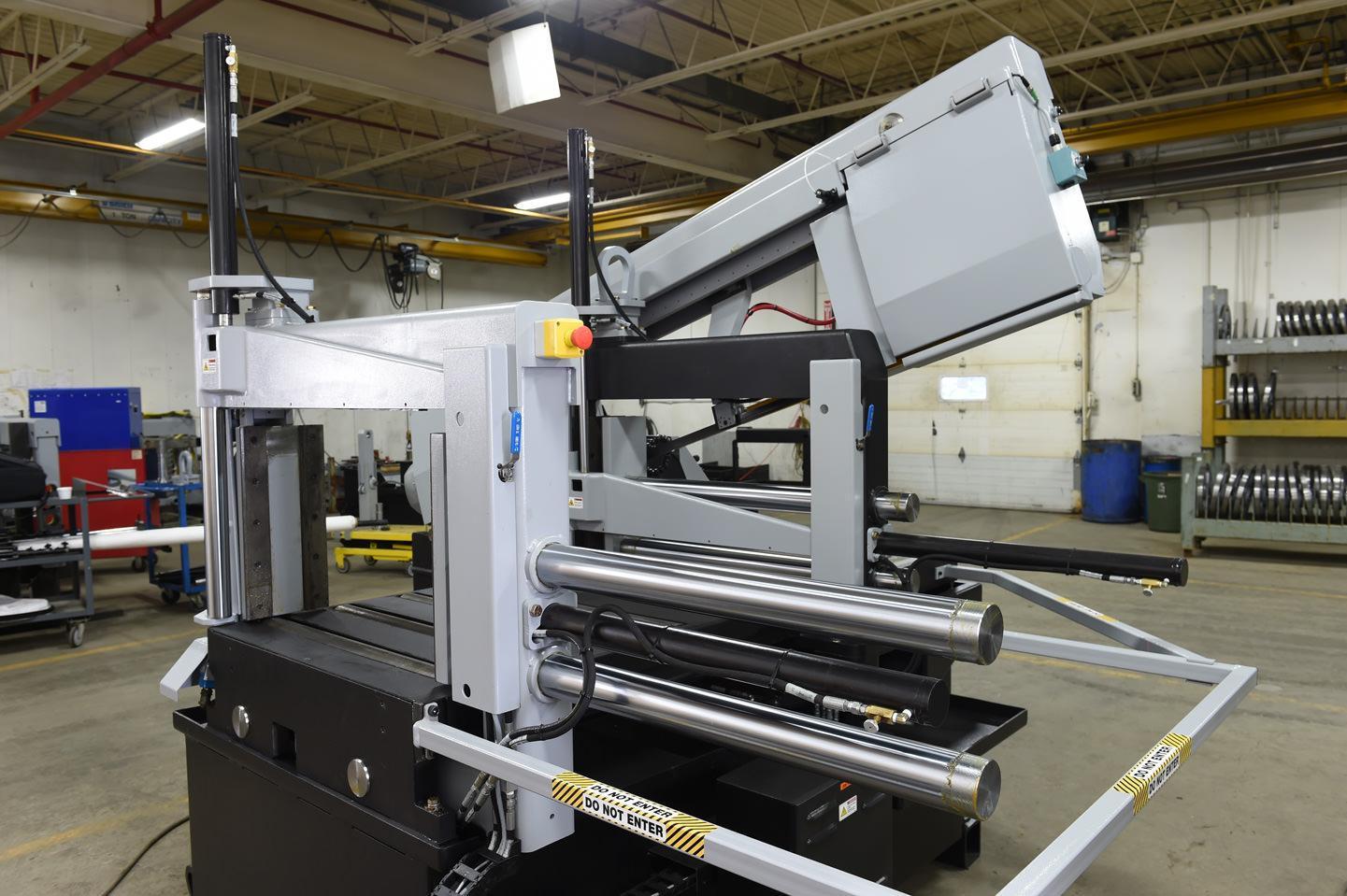

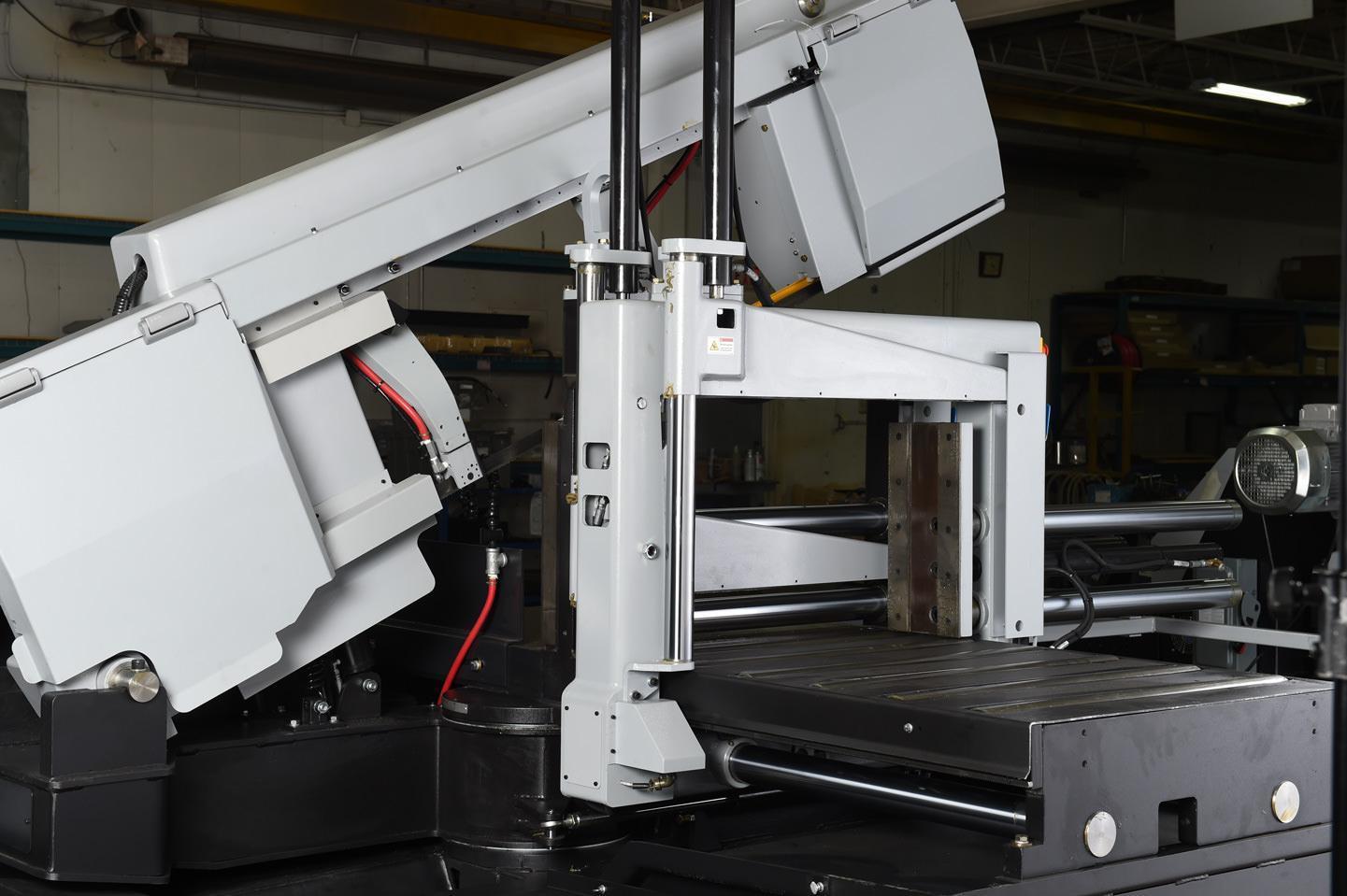

• Full capacity, full stroking hydraulic vises

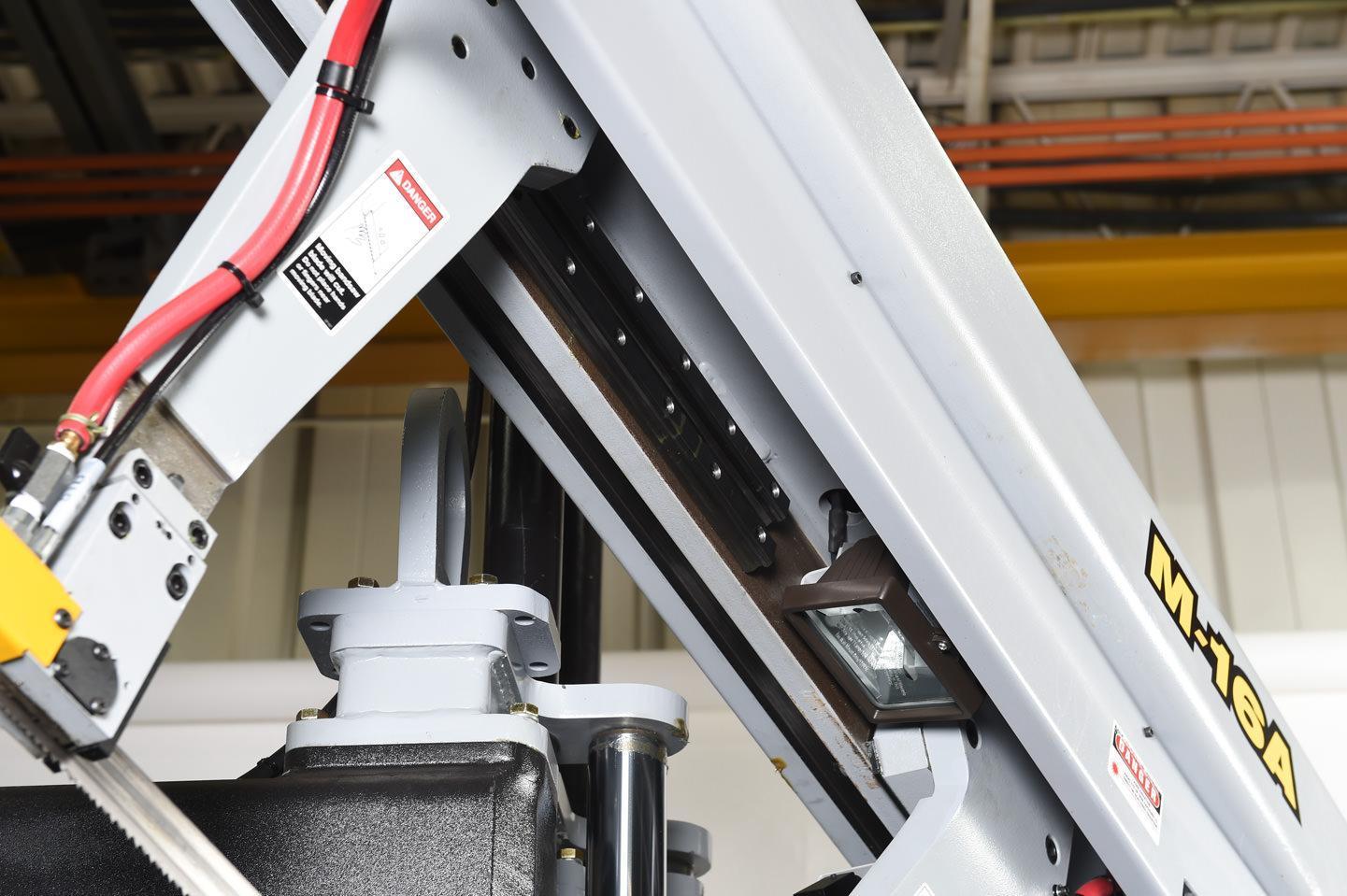

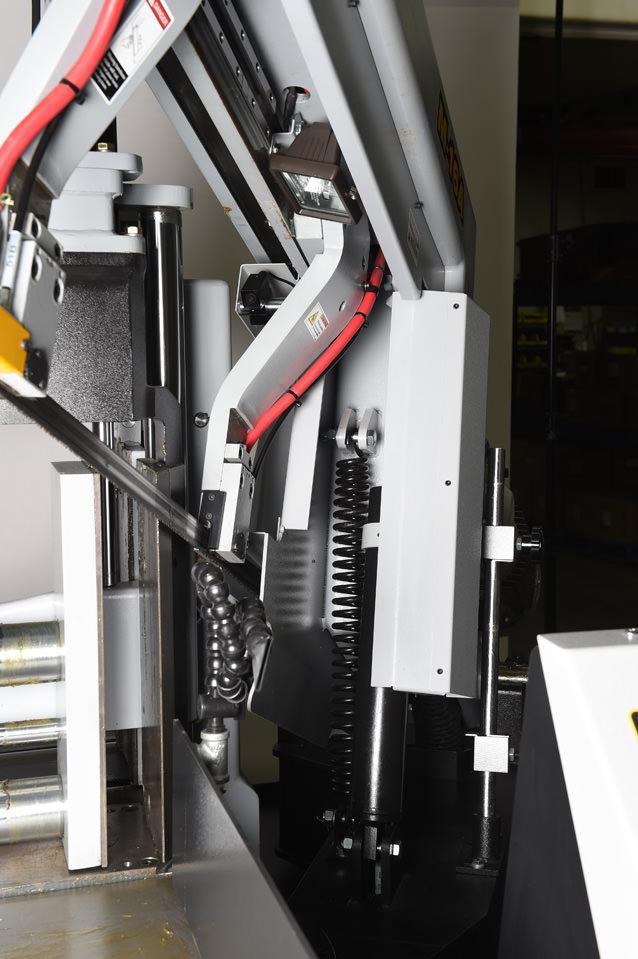

• Steel guide arms mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing.

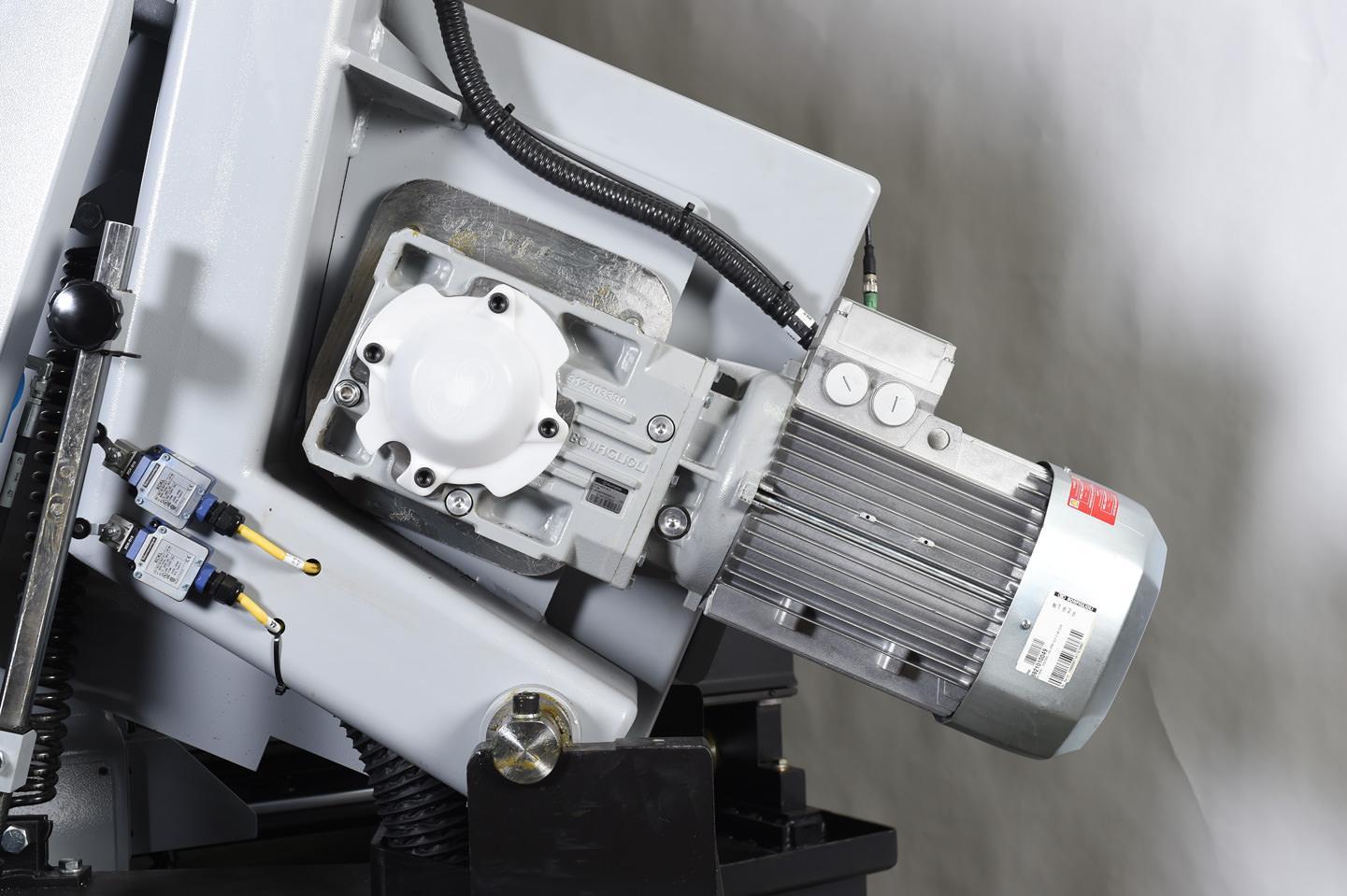

• 7.5 HP VFD. True direct blade drive – no belts/pulleys
• Hydraulic positive down feed
• Blade chamber separates material from cut part

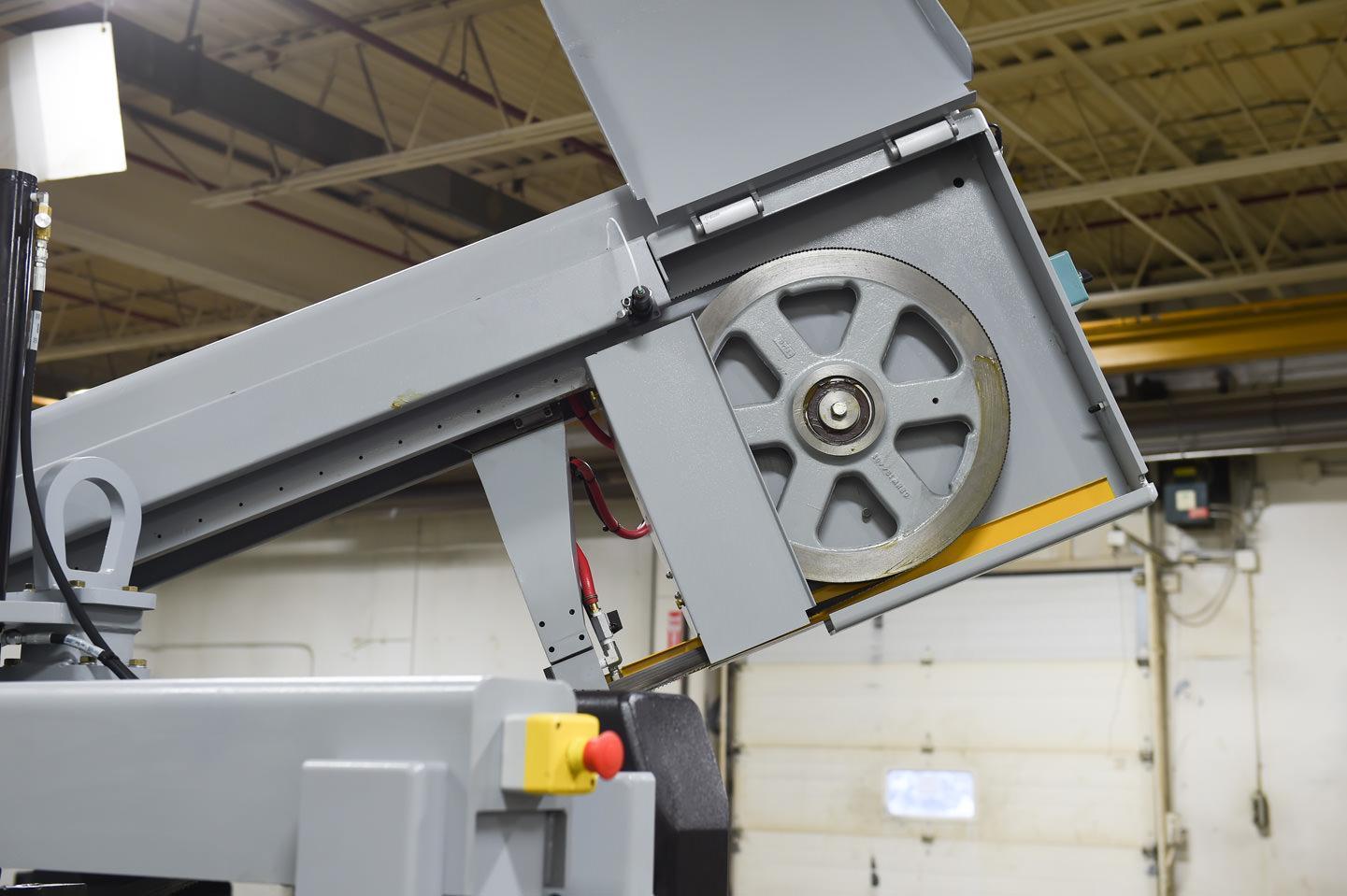

• Cast iron band wheels

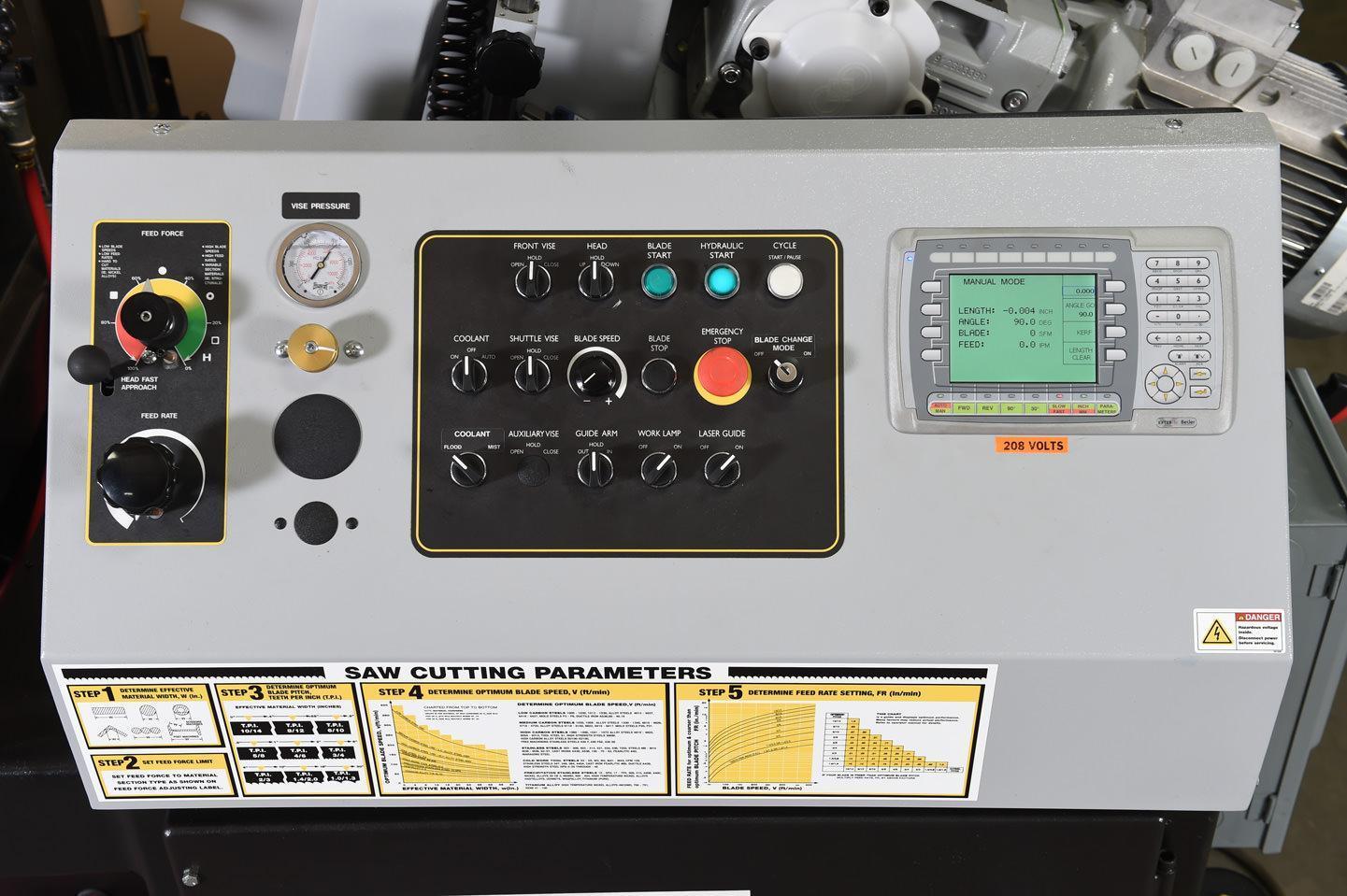

• Automatic PLC control programmable up to 99 jobs with 5 in queue.

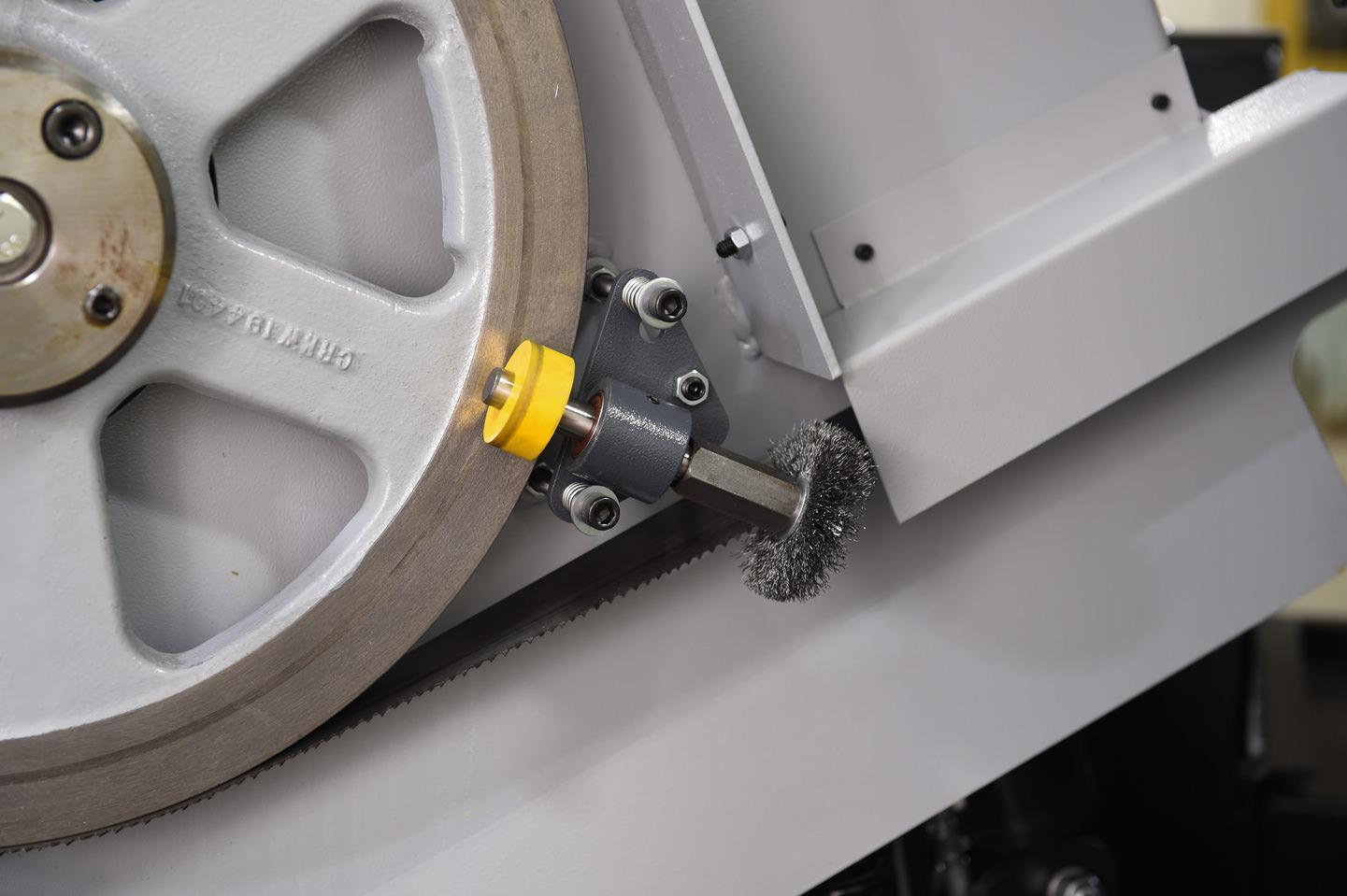

• Replaceable blade brush
• Robust steel base

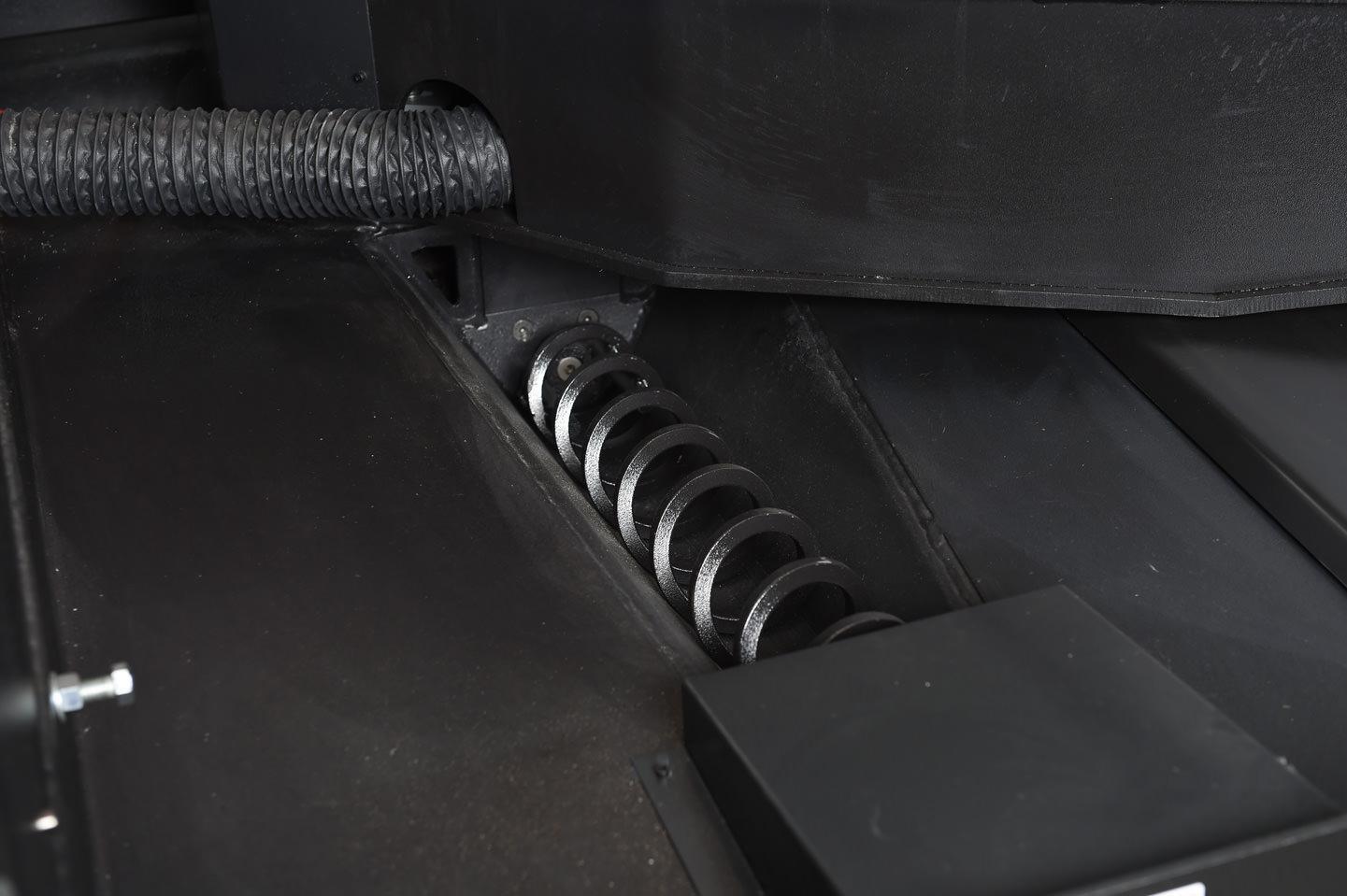

• Automatic chip removal auger

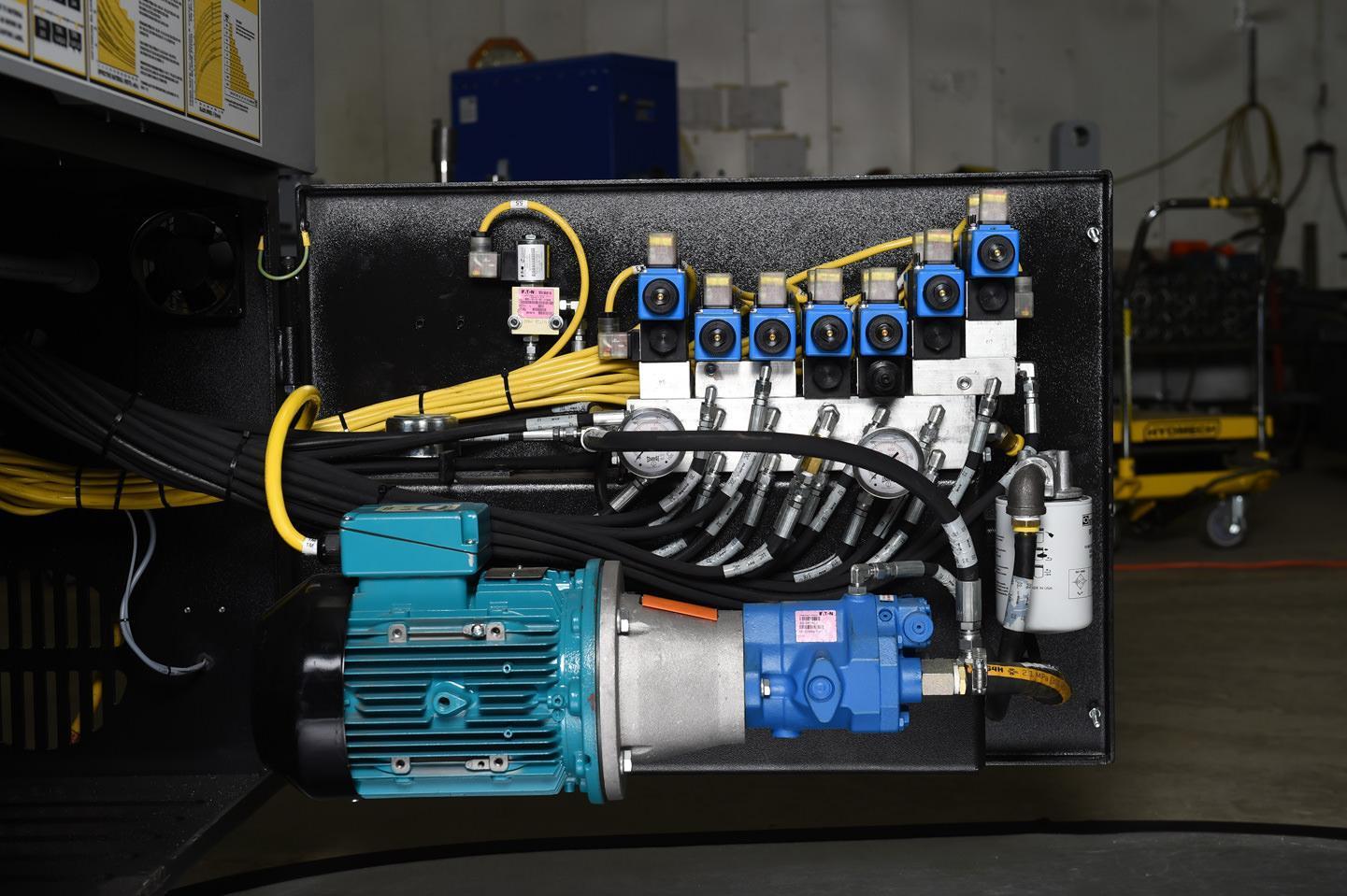

• Easy access electrical panel and hydraulics
• Blade breakage switch
• Hardened replaceable wear plates on material vises
• Hydraulic band tensioning
• Hydraulic carbide guide tensioning
• Safety door interlocks
• Flood coolant with wash down hose
• Laser light
• Work light

• ​
• ​ OPTIONS
  • Blade deviation
  • Full capacity hydraulic overhead bundling
  • Remote console
  • Chip bucket

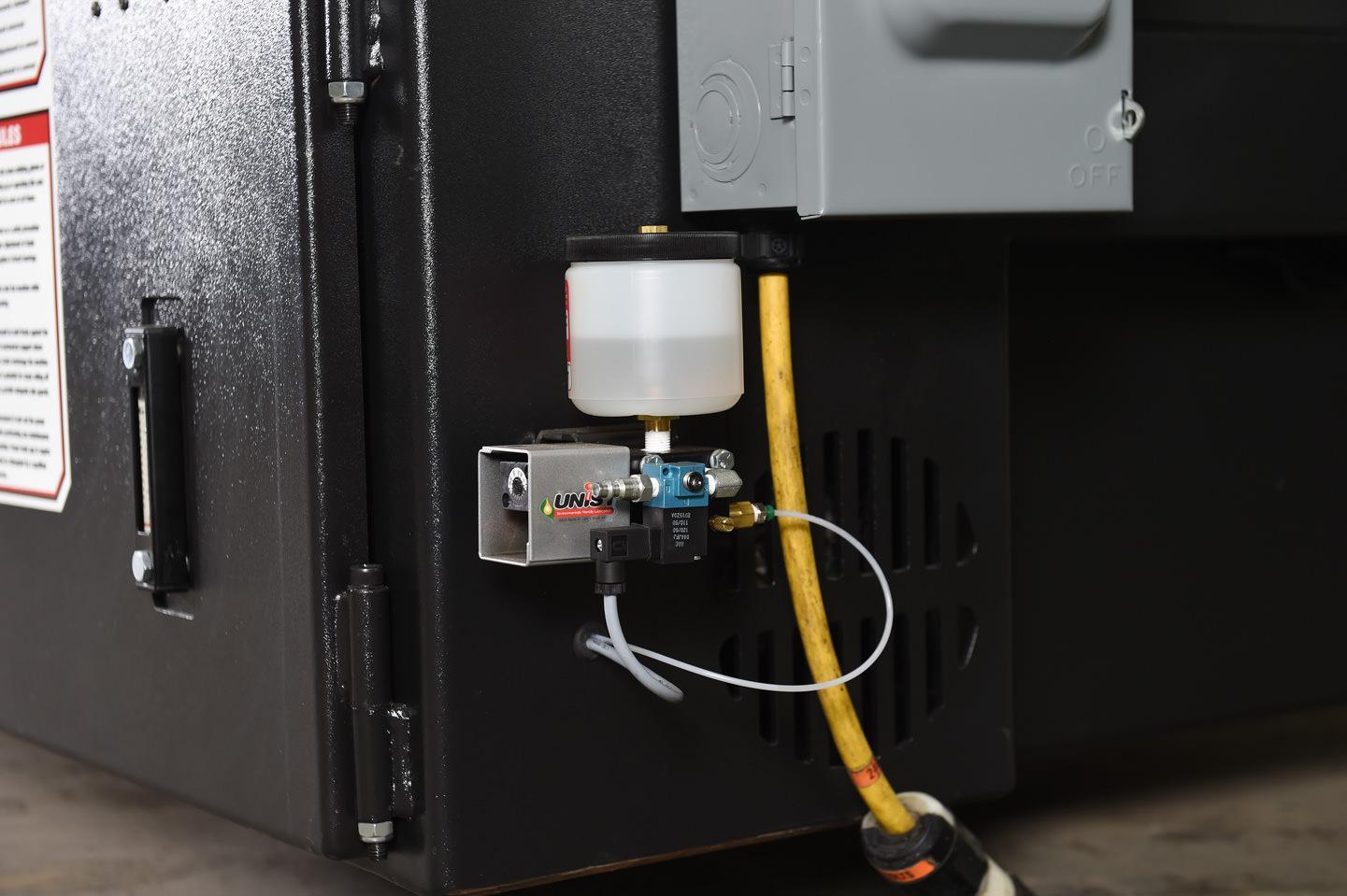

  • Mist lubrication
  • Out of stock switch
  • Variable vise pressure
  • Vertical rollers
  • Idler conveyors
  • Powered conveyors
