NEW 21" x 60" GMC MODEL GML-2160T PRECISION ENGINE LATHE
Year
Not provided
Stock #
30269
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 21" x 60" GMC MODEL GML-2160T PRECISION ENGINE LATHE
- Made in Taiwan-100% made in Taiwan, by top manufacturer with very high level of quality
- 1 year industrial warranty for parts for all Taiwan lathes
- One piece solid casting base, Meehanite high performance cast iron
- Machine bed is made of Meehanite casting – high performance cast iron
- ISO 9001 certified
- Large spindle bore 3-1/8”
- Heavy Duty spindle D1-8
- Heavy Duty guideway width 12”

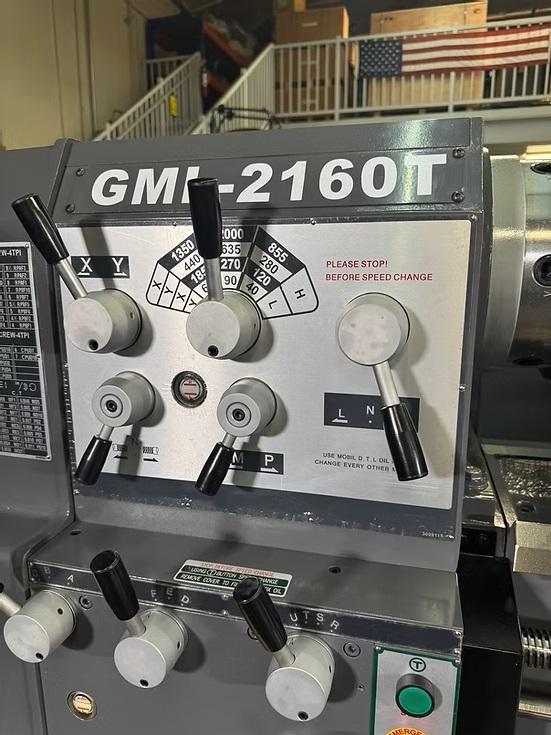

- Spindle speeds from 40-2,000 rpm, 12 speeds
- Threading and feeding rate change without changing gears
- Spindle is balanced, hardened and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box

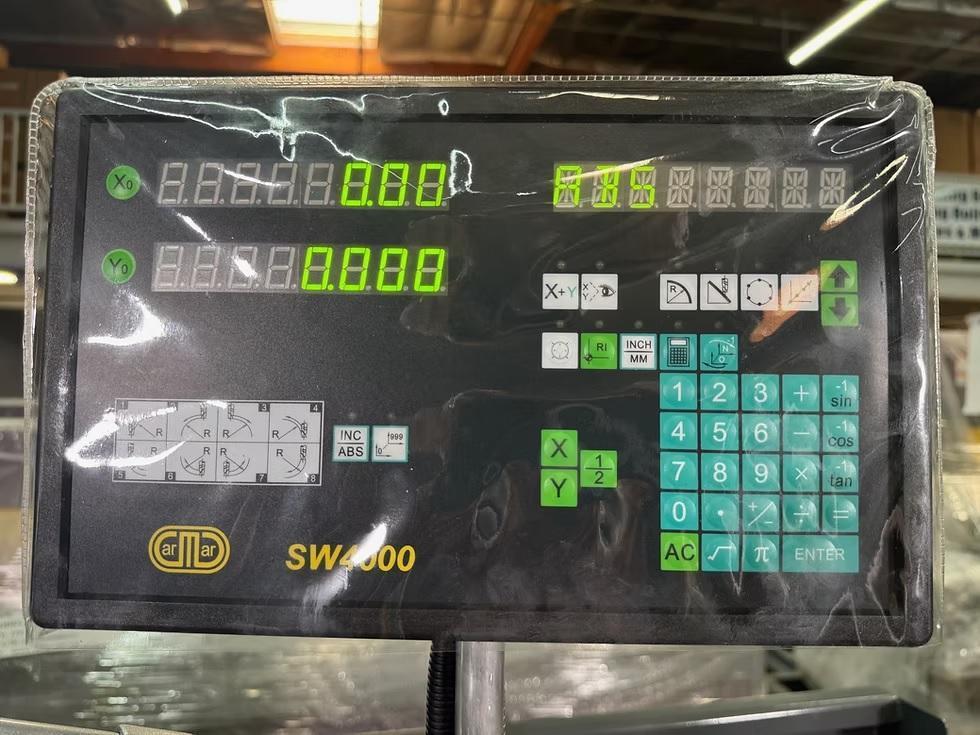

- Free CARMAR DRO, installed

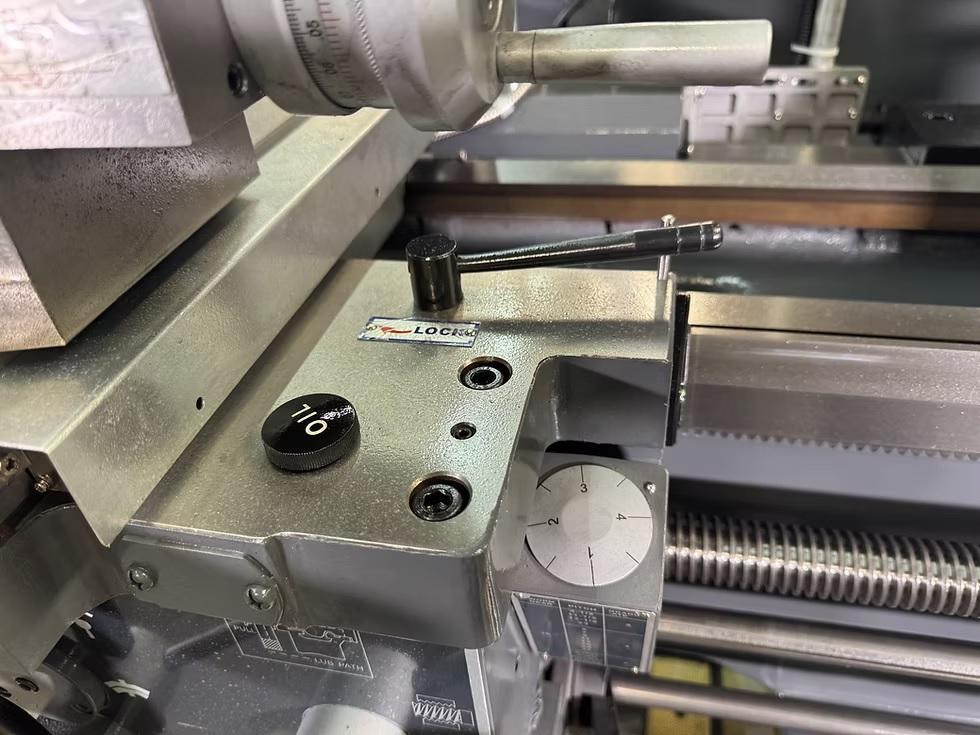

- Automatic kick-out longitudinal carriage stop system
- 10” 3-jaw chuck with top reversible jaws, direct mount
- 16” Face plate

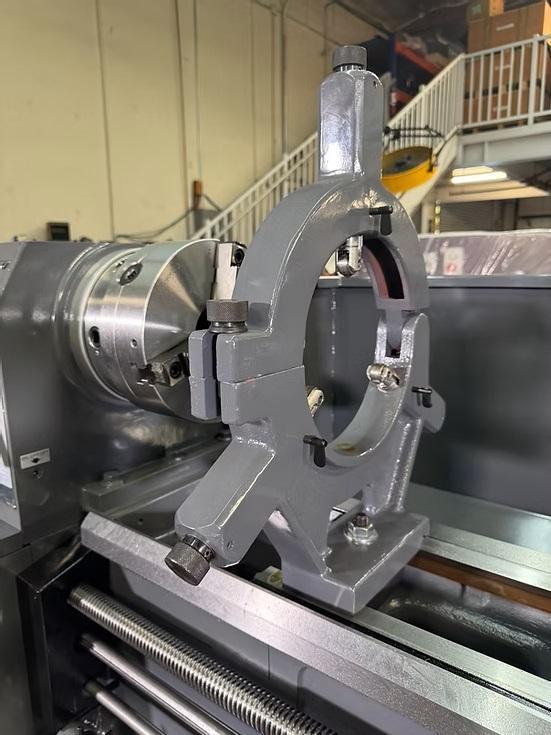

- 9” steady rest with roller jaws
- 4” follow rest with roller jaws
- Removeable gap
- 4-way tools post
- Foot brake
- LED Work light
- coolant system

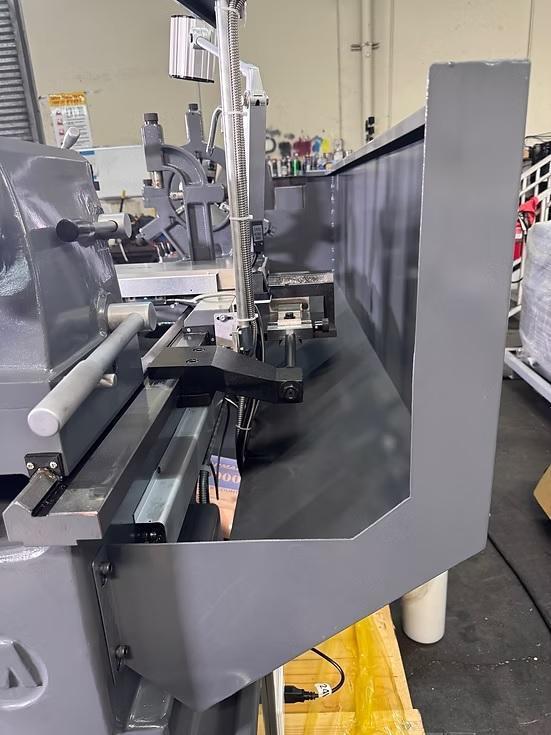

- full length rear splash guard
- Dead centers
- Thread chasing dial
- Reducing sleeve MT6/MT5 for spindle
- Tool box and leveling pads
|
Max. swing over bed |
20-1/2” 20-1/2” |
|
|
Max. length of workpiece |
60" | |
|
Max. swing over cross slide |
13” 13” |
|
|
Max. Swing in gap |
29-1/8” 29-1/8” |
|
|
Width of Bed |
12” |
|
|
Effective length in gap to spindle |
6” |
|
|
Effective length in gap to chuck jaws |
3-1/2” |
|
|
Spindle bore |
3-1/8” , D1-8 |
|
|
Taper of spindle center |
M.T.# 6 w/ reducing sleeve MT6/MT5 |
|
|
Spindle speeds |
40-2,000 rpm / 12 steps |
|
|
Longitudinal feeds |
0.002-0.03 IPR, 35 kinds |
|
|
Cross feeds |
0.0008-0.011 IPR, 35 kinds |
|
|
Inch threads |
4-56 TPI, 36 kinds |
|
|
Metric threads |
0.5-7.0 mm ,17 kinds |
|
|
|
||
|
Max. travel of top slide |
5” |
|
|
Max. travel of cross slide |
11” |
|
|
Spindle length w/o chuck |
17” |
|
|
Leadscrew length X TPI |
1-1/4” x 4 TPI |
|
|

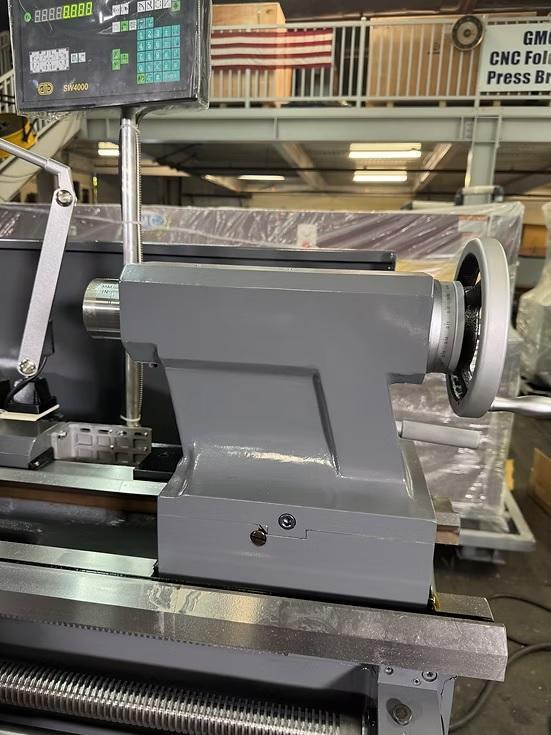

Diameter of tailstock quill |
2-3/4” |
|
|
Max. travel of tailstock quill |
5-7/8” |
|
|
Taper of tailstock quill center |
M.T. #4 |
|
|
Main motor |
7-1/2HP, 220V or 440V, 3 phase |
|
|
Amperage Draw |
220V/ 35A , 440V/20A |
|
|
Coolant pump motor |
1/8 HP, 220V, or 440V, 3 phase, 2Gal coolant |
|
|
Machine Oil |
# 30 weight Machine oil, 5 Gallons |
|
|
Machine weight, approx. LBS |
4,150 LBS |
|
|
Overall dimensions, LxWxH Shipping dimensions: LxWxH |
105” x 41” x 59” 110” x 38” x 66” |
