NEW 25" x 60" GMC MODEL FP-2560 WIDE BELT SANDING MACHINE
Year
Not provided
Stock #
19163
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 25" x 60" GMC MODEL FP-2560 WIDE BELT SANDING MACHINE
- Motorized Table Lift, with digital readout
- Variable Speed Conveyor
- Conveyor Forward & Reverse

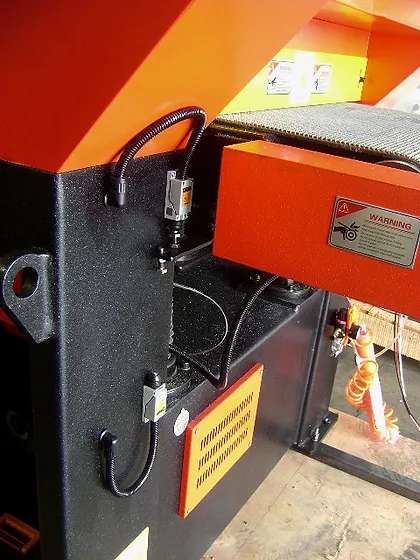

- Belt Safety Overtravel Switches

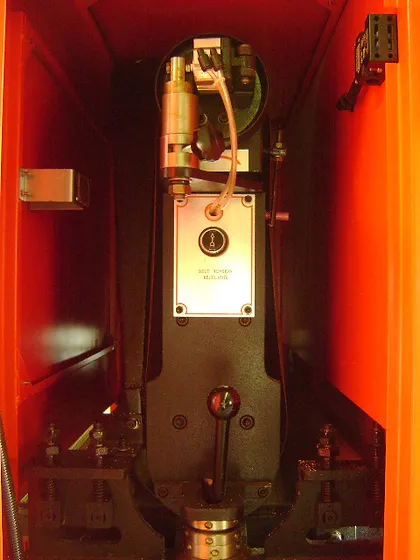

- Electronic Eye Belt Tracking. Belt tracking adjusting lever (Belt Trimmer) to Re-adjust the tracking system when running extremely out of parallel belts
- 4-Jackscrew Table Support
- Double Infeed & Outfeed Pinch Rolls with protective guards
- Conveyor Belt Tracking System
- Safety System with Disc Brake. Air operated disc brakes to stop sanding head in
- 3-5 seconds in the even of loss of air pressure or activation of any emergency stop device

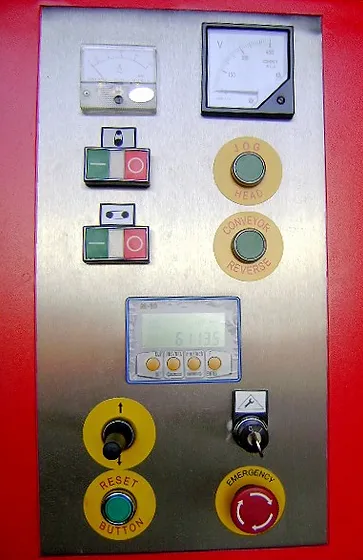

- Table Height Digital Readout
- Load Meter indicates percentage of full motor loads
- Belt change door electrically interlocked for safety purpose
- Air tensioning of belt for accurate tensioning & compensation of belt stretch
- Quick release sanding head support for fast belt change
- Dust collection hood with 4” outlet is located adjacent to abrasive head in sanding area
- Emergency stops from almost any point
- Noise level bellows 80 dba
- Operation manual, control tags, danger signs, and warning labels in English on machine
- 208/230, 3-Phase
- One year Industrial Warranty for parts
- We strongly recommend to use good dust collector for our Finish Pro, otherwise, the warranty will be void
- Prices are for 208-230 VOLTS
- Total amps 45 @ 230/3/60
- COMPRESSED AIR REQUIRED: 2 CFM @ 90 PSI
CAUTION: If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used.
OPTIONAL EQUIPMENT
| Wet Dust Collector #WDC-2100, 5 HP, 2,100CFM (it is demo wet collector, all stainless steel) | $8,900.00 |
| Heavy Duty Ducting Package # HDDP-2560 | $950.00 |
| Service Engineer for Start-Up and On-site Training for # ST (plus travel expenses) | CALL US |
| Shipping + Delivery | FREE |
| Max. Part Width | 24" |
| Abrasive Belt Size | 25" x 60" |

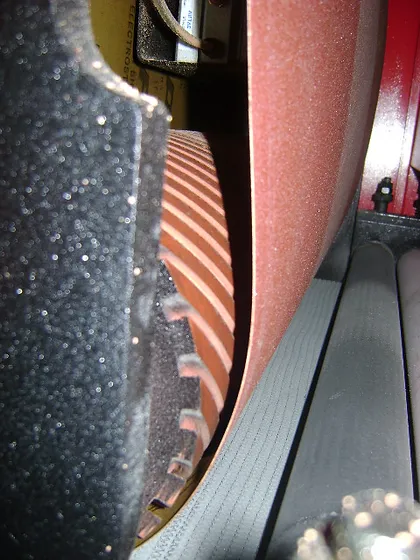

| Contact Roller Size | 8" Dia. |
| Passline Height | 31" - 37" |
|
Max. Thickness Capacity Min. workpiece length Max. workpiece weight |
6 1/8" Min 8”, need a fixture for smaller parts 375LBS |
| Conveyor Drive Speeds | 8 - 40 FPM |
| Infeed Conveyor Length | 20" |
| Dust Colector Capacity | 1,100 CFM |
| Main Motor |
10 HP 3 Phase 45A Prewired: 230VAC Optional: 440VAC (25A) |

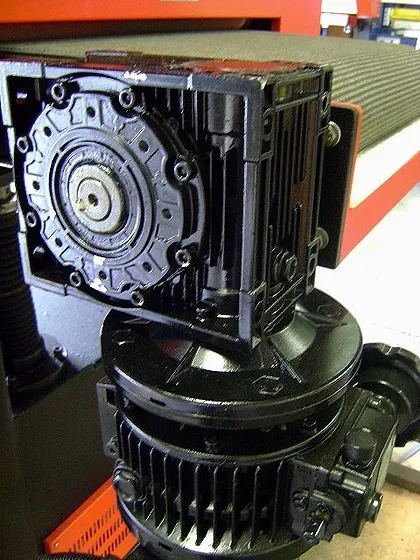

| Conveyor Motor | 1HP, 230V, 3PH |
| Table Lifting Motor | 1HP, 230V, 3PH |
| Net Weight, Approx. | 2,950 LBS |
|
Machine Dimensions LxWxH Shipping Dimensions: |
55" x 63" x 69" 68" x 52" x 78" |
