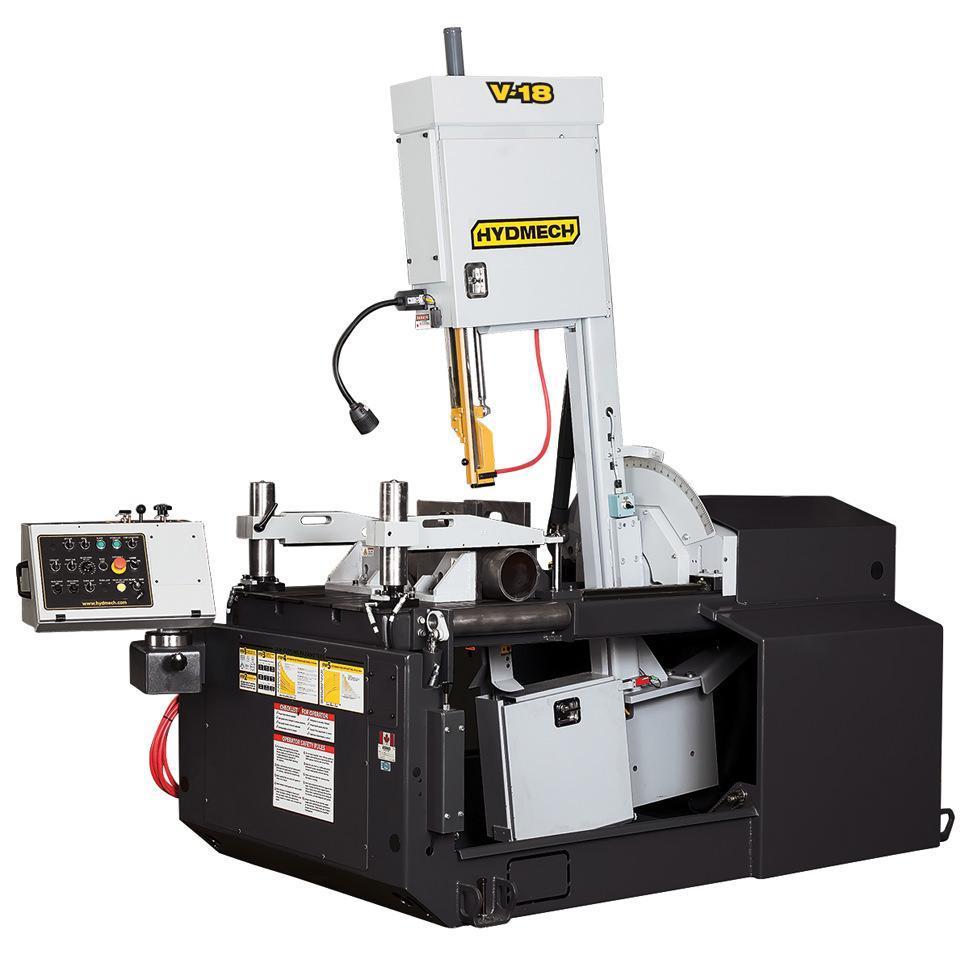

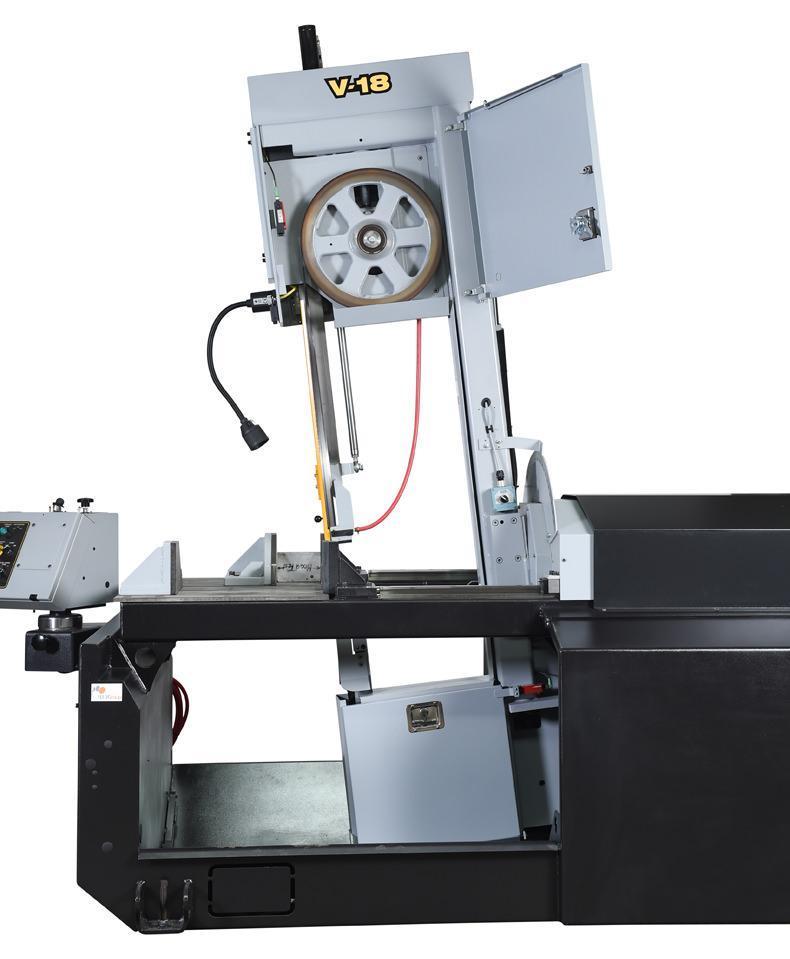

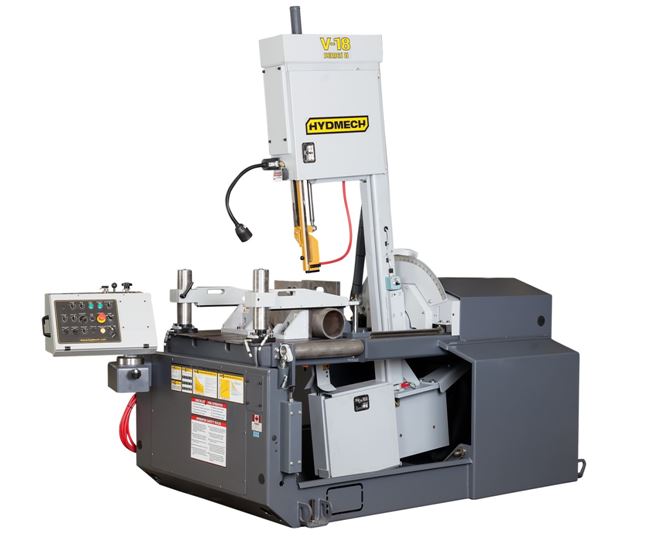

NEW - 31"H x 18"W HYD-MECH V-18 VERTICAL TILT FRAME BAND SAW

Type

Saws, Band, Vertical

Manufacturer

HYD-MECH

Model

V-18

Year

Not provided

Stock #

14446

Condition

New

Request A Quote

Keep Scrolling To Learn More

NEW - 31"H x 18"W HYD-MECH V-18 VERTICAL TILT FRAME BAND SAW

Specifications

Equipped With

NEW - 31"H x 18"W HYD-MECH V-18 VERTICAL TILT FRAME BAND SAW

STANDARD FEATURES

Two full stroking hydraulic vises

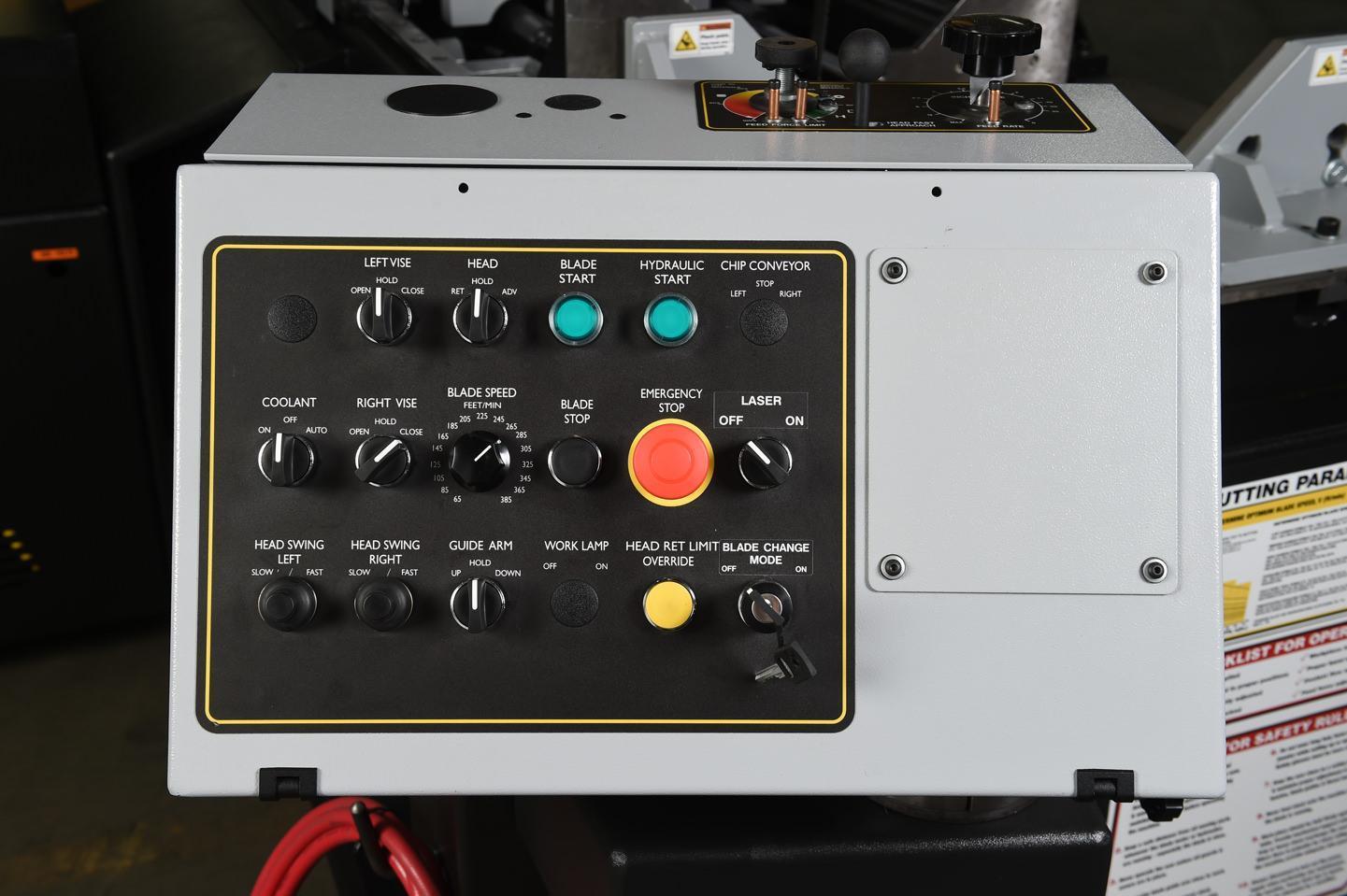

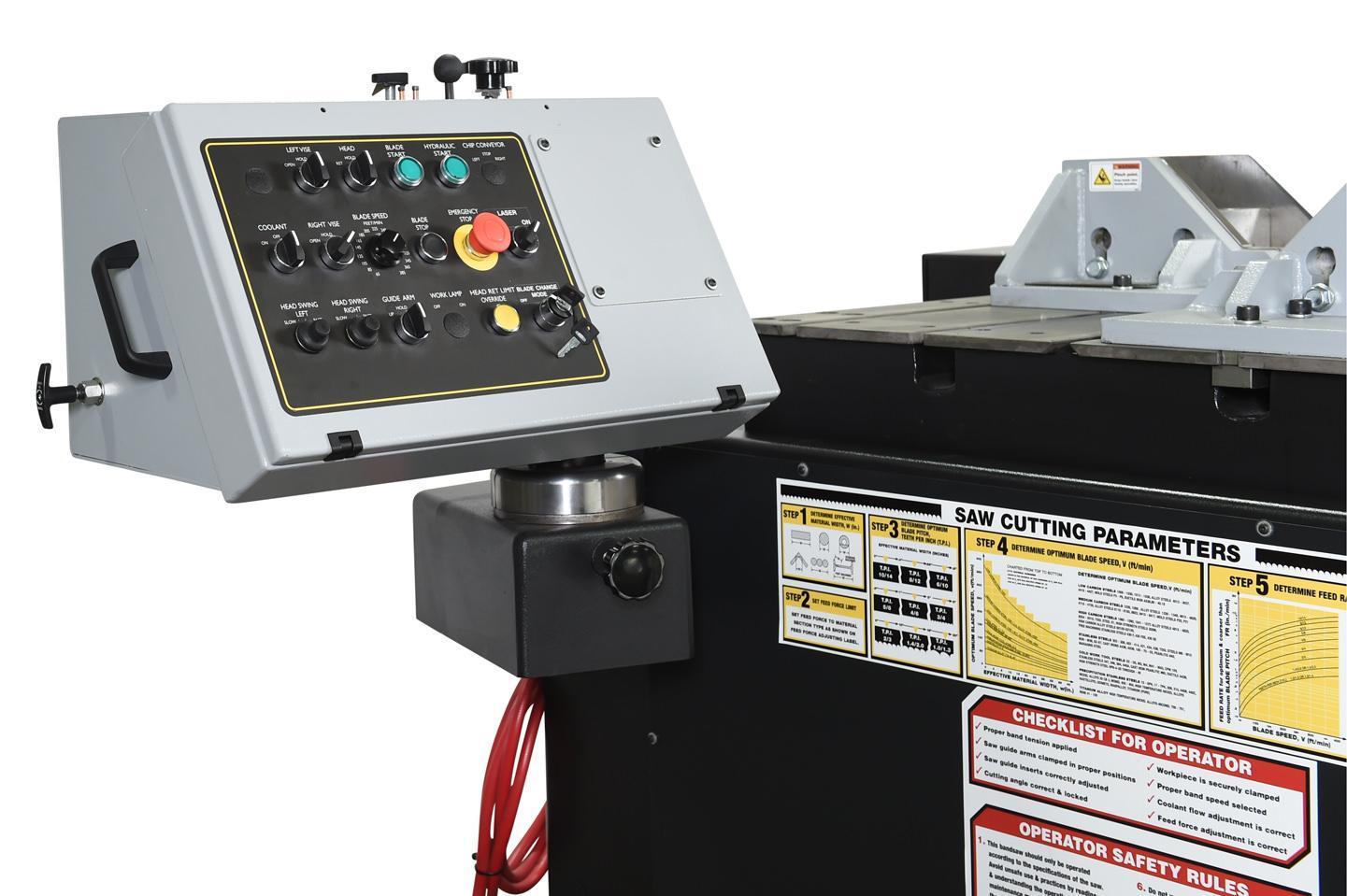

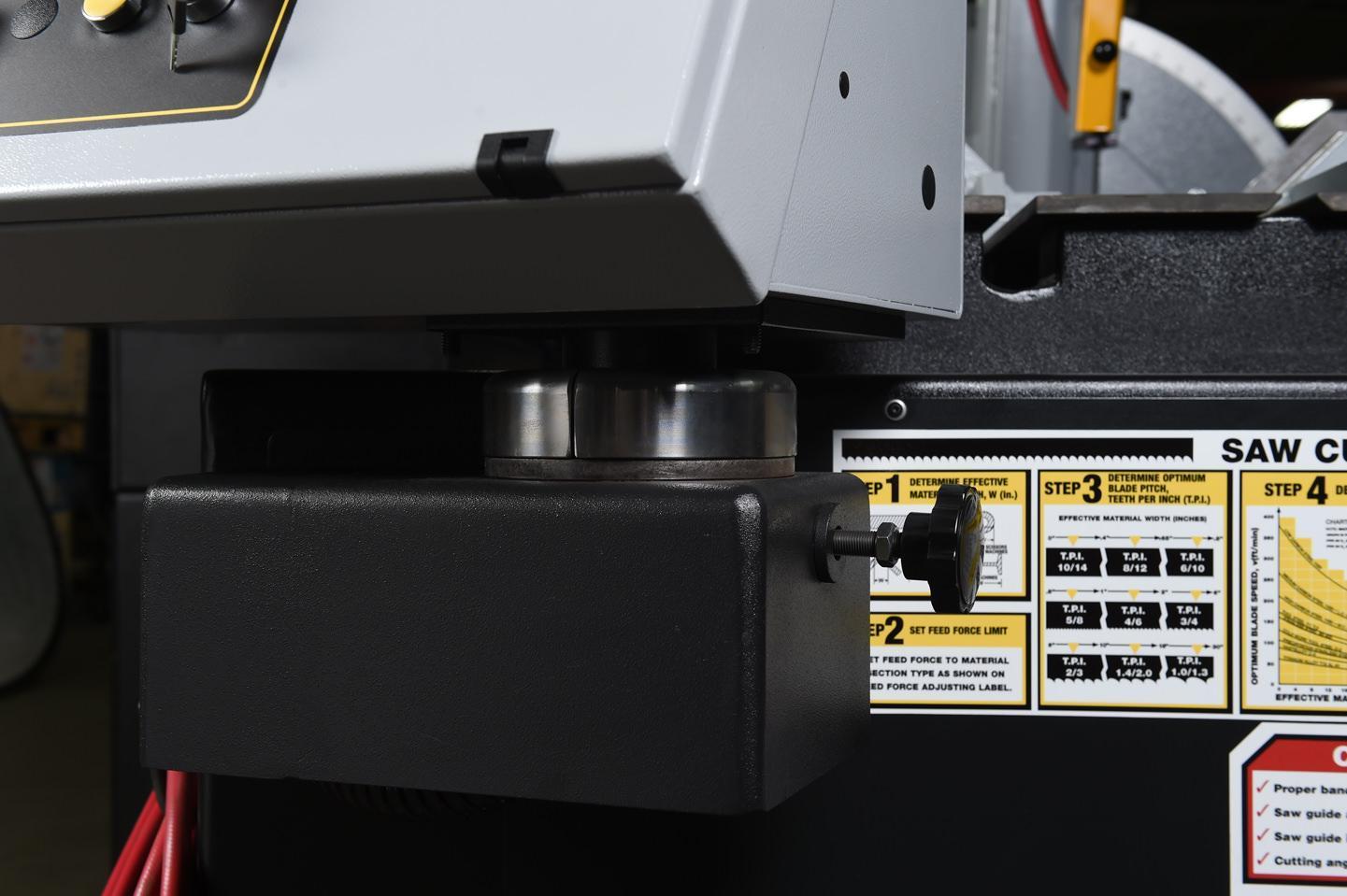

Select Left Or Right Control Panel

Powered Movable Guide Arm

Automatic PLC control programmable up to 99 jobs with 5 in queue.

7.5 HP VFD. True direct blade drive – no belts/pulleys

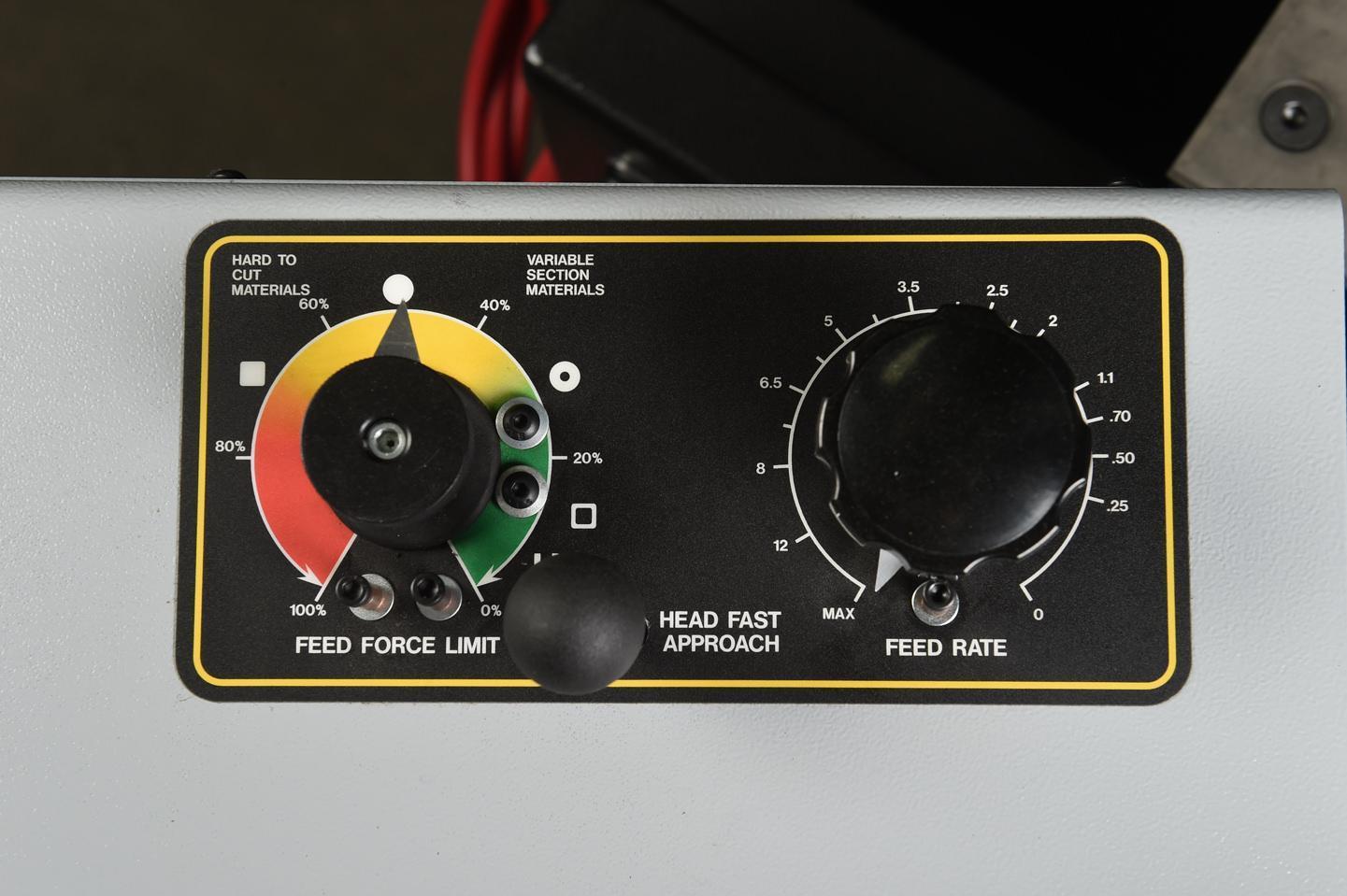

Hydraulic positive down feed

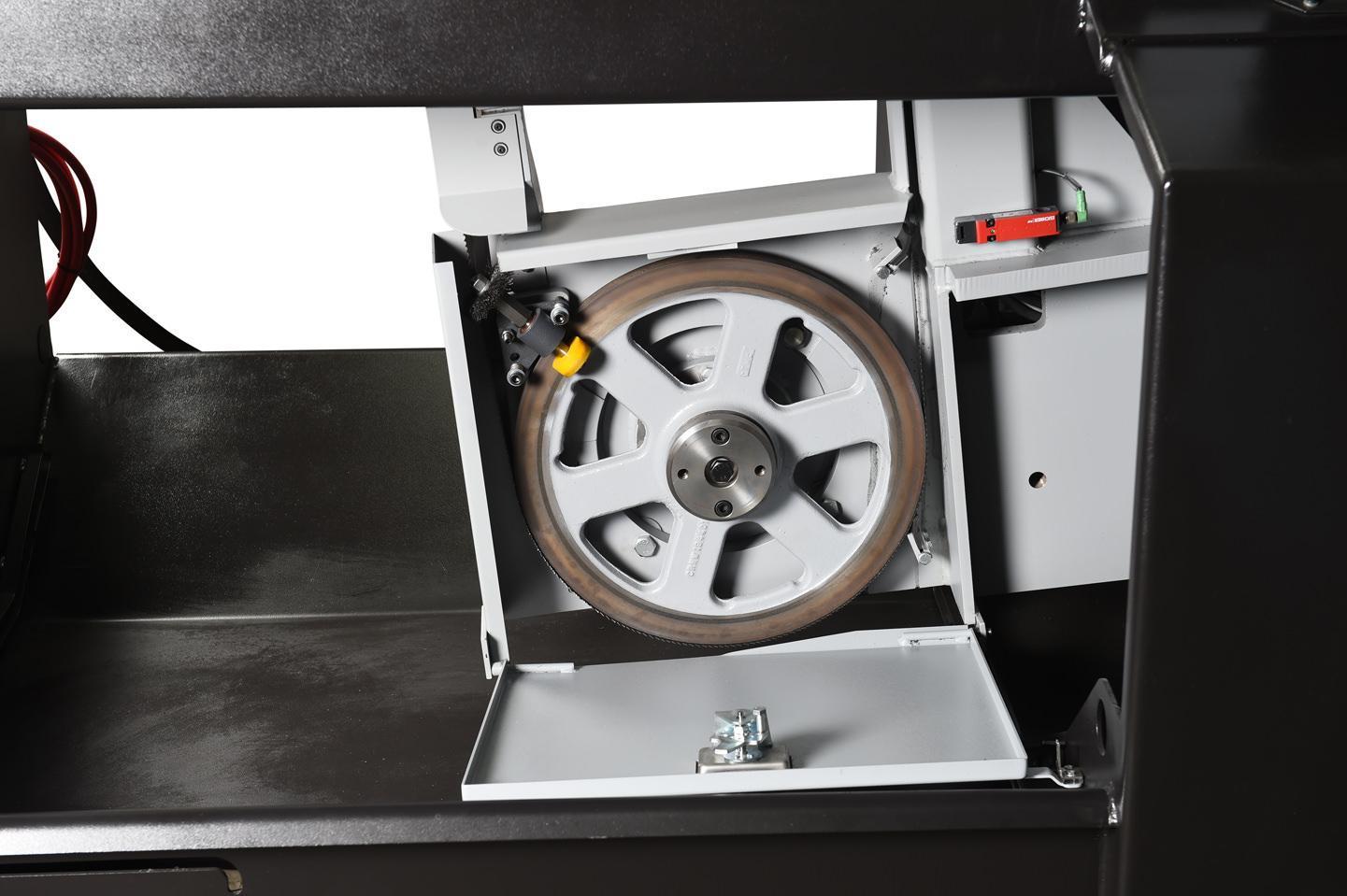

Cast iron band wheels

Replaceable blade brush

Robust steel base

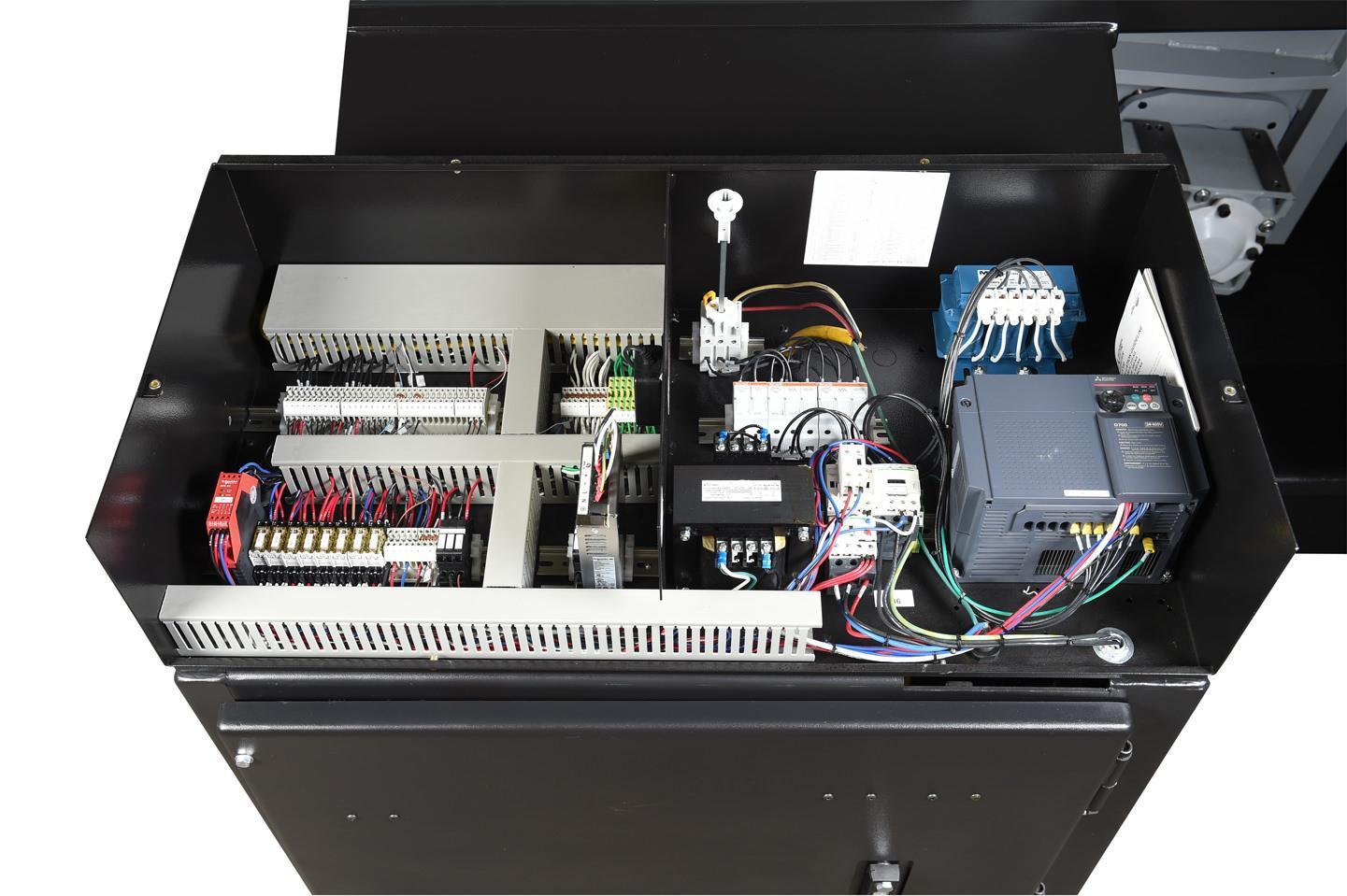

Easy access electrical panel and hydraulics

Blade breakage switch

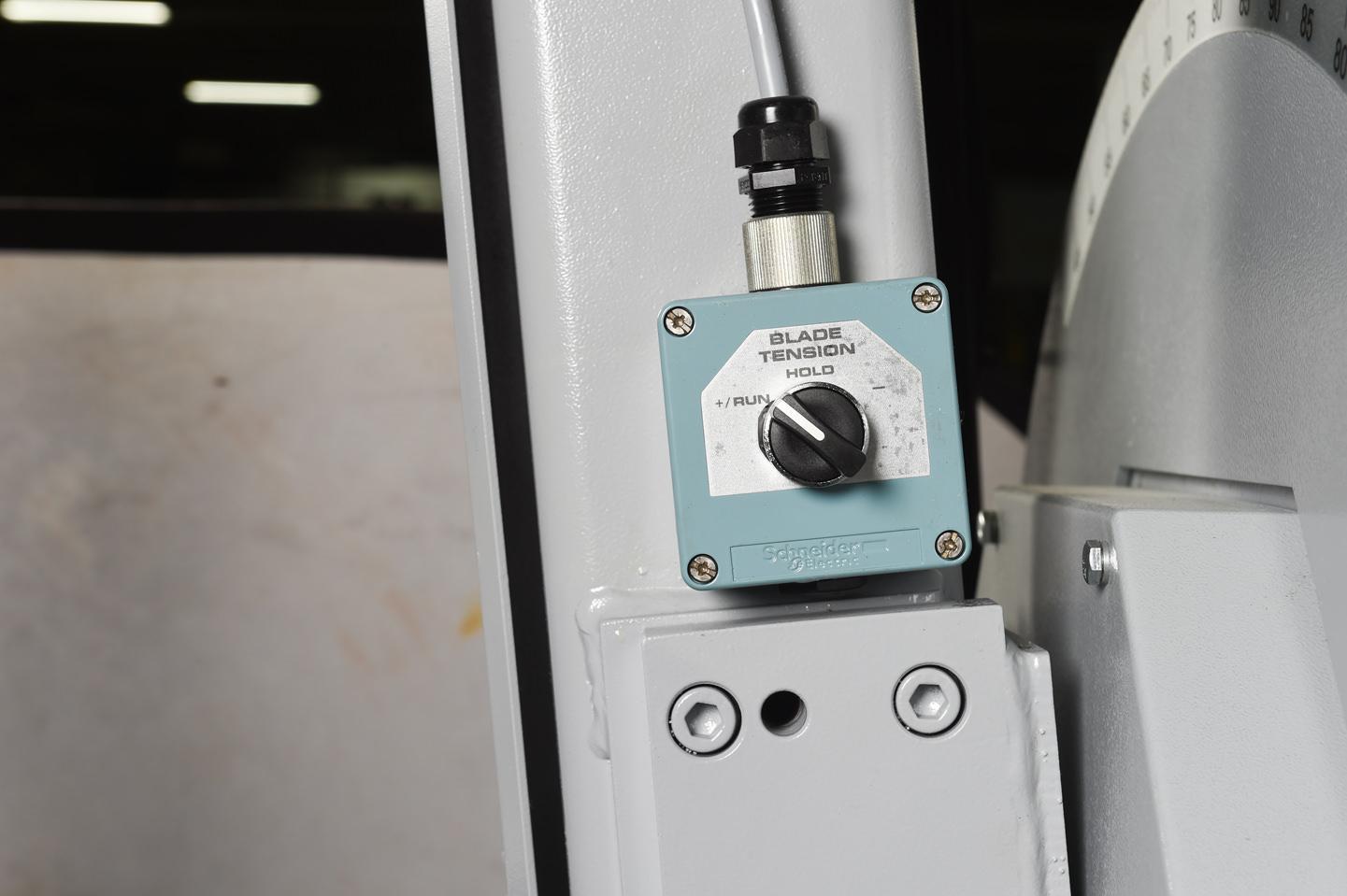

Hydraulic band tensioning with digital readout

Replaceable carbide guide inserts

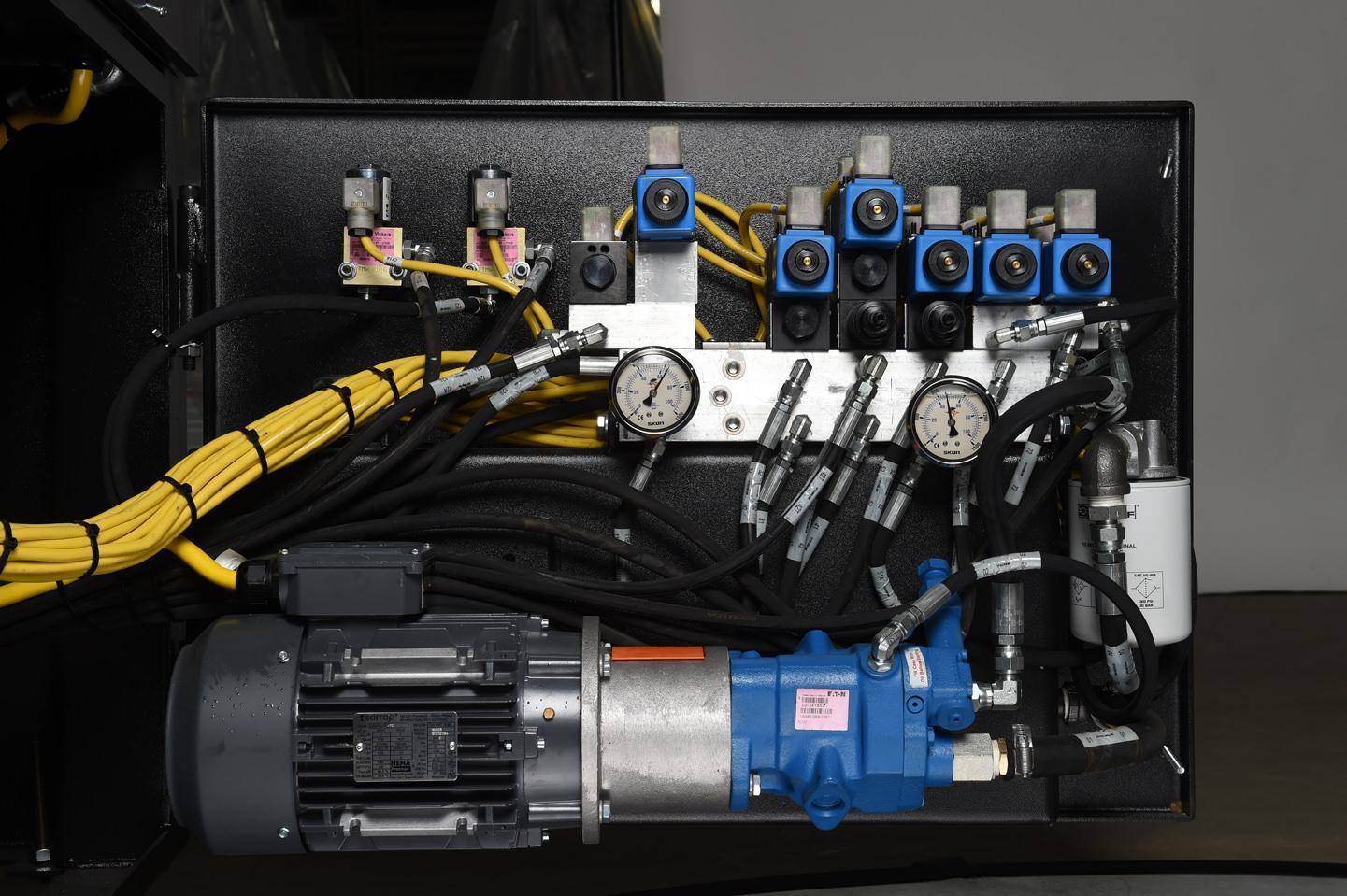

2 HP hydraulic pump provides system pressure

Safety door interlocks

Laser light

Work light

OPTIONS

Chip bucket

Fixed 6 Degree Canted Head

Hydraulic overhead bundling

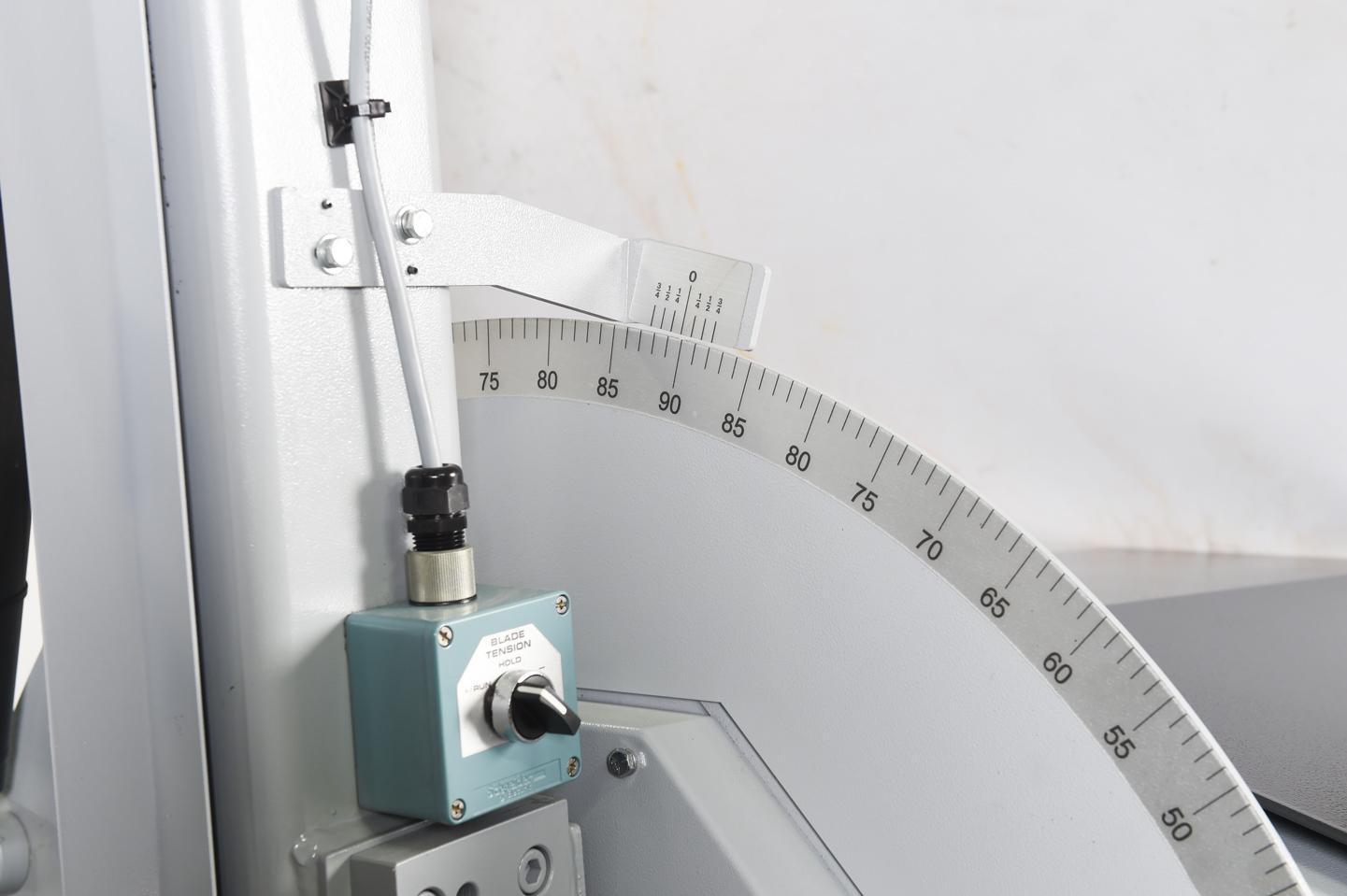

Digital Angle Display

Mist lubrication

Pop Up Lift Roller

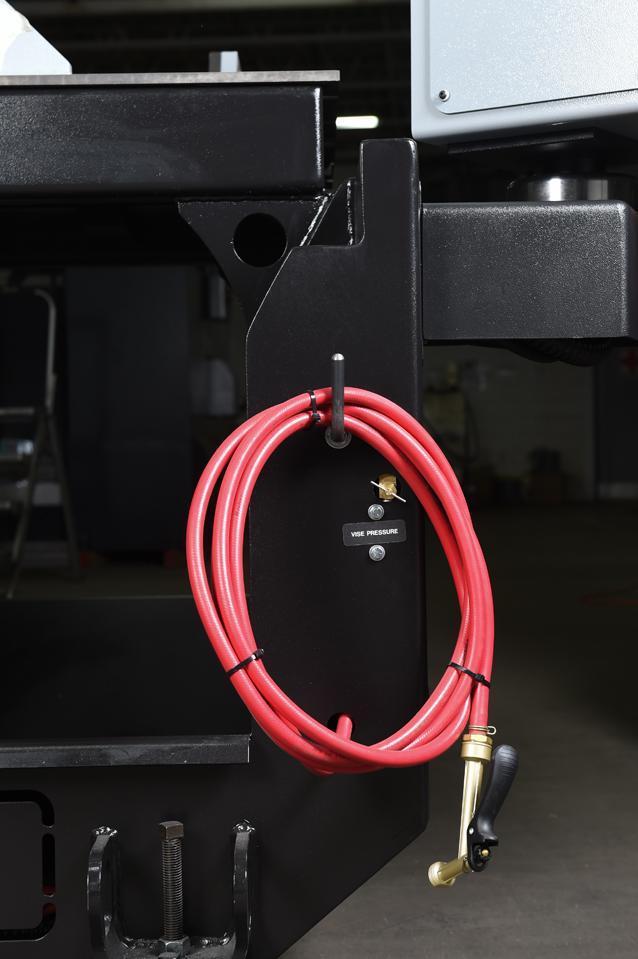

Variable Vise Pressure

Tall Vise Inserts

Pop-up lift roller

Hydraulic chip conveyor

Drag Chain Chip Conveyor

Idler conveyors

Powered conveyors

SPECIFICATIONS

Rectangular Capacity At 90º	31"H x 18"W
Round Capacity at 90º	17.5"
Blade Drive	7.5HP VFD
Blade Speed	65-385 SFM
Coolant Tank Capacity	20 Gal
Machine Weight	4500 Lbs
Machine Dimensions	120"W x 80"L x 97"H
Blade Dimensions	1-1/4" x 16'11"

Attachments

There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
