NEW 37" x 60" GMC MODEL FP-3760T WIDE BELT SANDING MACHINE
Year
Not provided
Stock #
19164
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 37" x 60" GMC MODEL FP-3760T WIDE BELT SANDING MACHINE
-
- Made in Taiwan
- Computerized programmable material thickness control
- Abrasive belt size: 37” x 60”
- Motorized Table Lift with computer display
- Variable Speed Conveyor
- Conveyor Forward & Reverse
- Belt Safety Overtravel Switches

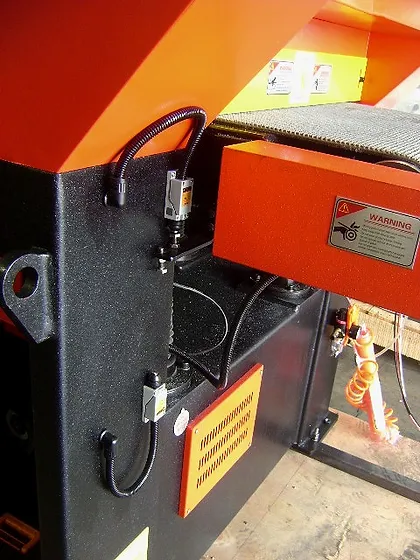

- Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to
Re-adjust the tracking system when running extremely out of parallel belts

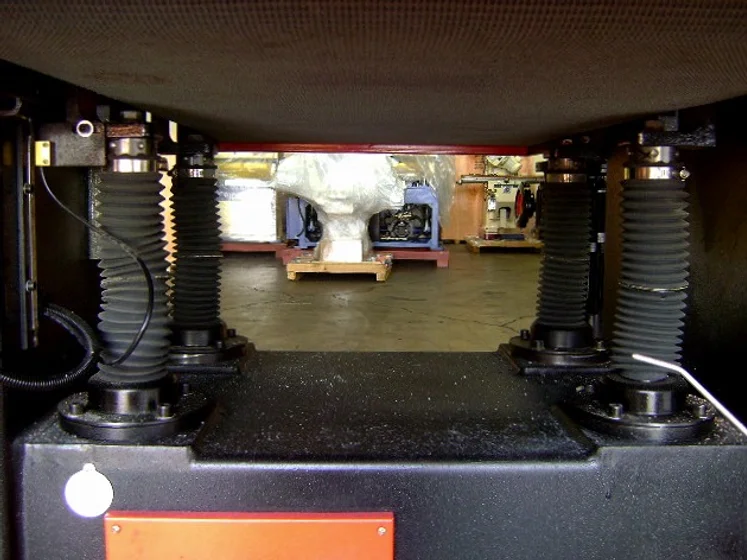

- 4-Jackscrew Table Support
- Double Infeed & Outfeed Pinch Rolls with protective guards
- Conveyor Belt Tracking System
- Safety System with Disc Brake. Air operated disc brakes to stop sanding head in
3-5 seconds in the even of loss of air pressure or activation of any emergency stop device

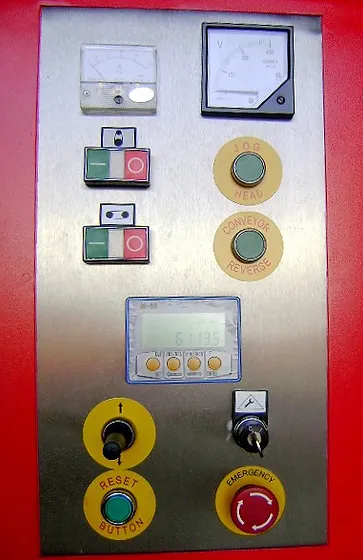

- Load Meter indicates percentage of full motor loads
- Belt change door electrically interlocked for safety purpose

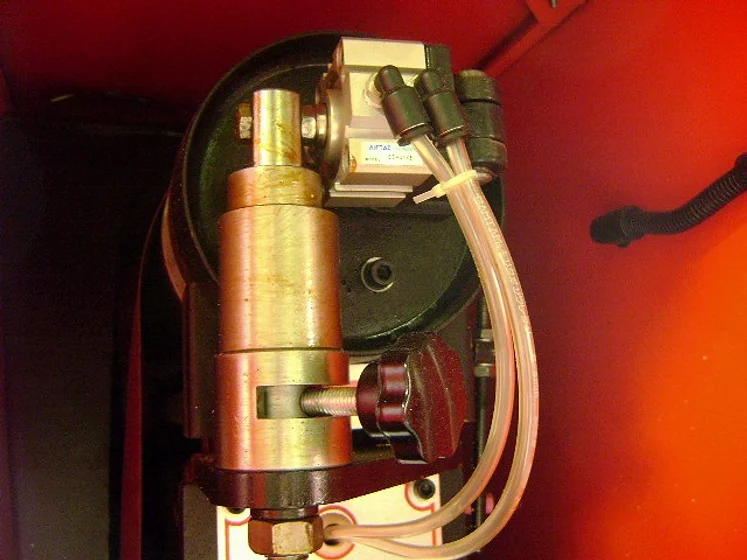

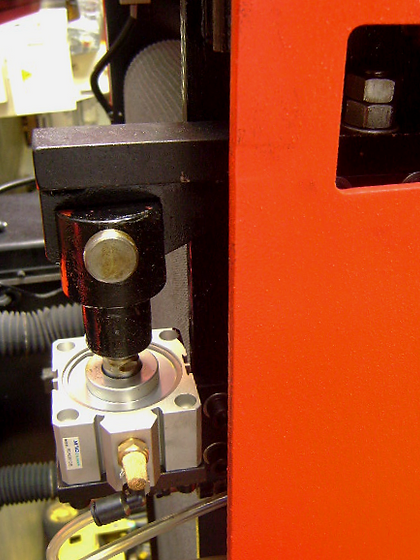

- Air tensioning of belt for accurate tensioning & compensation of belt stretch
- Quick release sanding head support for fast belt change
- Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area
- Emergency stops from almost any point
- Noise level bellows 82 dba
- Operation manual, control tags, danger signs, and warning labels in English on machine
- 208/230V, 3-Phase , 440V/480V/3phase is optional
- One year Industrial Warranty for parts
- Prices are for 208-230 VOLTS
- Total amps 75 @ 230/3/60
- COMPRESSED AIR REQUIRED: 2 CFM @ 90 PSI
CAUTION: If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used.
OPTIONAL EQUIPMENT
| Wet Dust Collector #WDC-2100, 5 HP, 2,100CFM (it is demo wet collector, all stainless steel) | $7,900.00 |
| Heavy Duty Ducting Package # HDDP-2560 | $750.00 |
| Service Engineer for Start-Up and On-site Training for # ST (plus travel expenses) | CALL US |
| Rotary Phase Converter with Smart Booster #PL-30 | $5,550.00 |
| Max. Part Width | 37" |
| Abrasive Belt Size | 37" x 60" |
| Contact Roller Size | 8" Dia. |
| Passline Height | 31" - 37" |
|
Max. Thickness Capacity Min. workpiece length Max. workpiece weight |
5-1/8" Min 12”, need a fixture for smaller parts 275 LBS |
| Conveyor Drive Speeds | 16 - 66 FPM |
| Infeed Conveyor Length | 20" |
| Dust Colector Capacity | 1,800 CFM |
| Main Motor |
20 HP 3 Phase Prewired: 230VAC Optional: 460VAC |

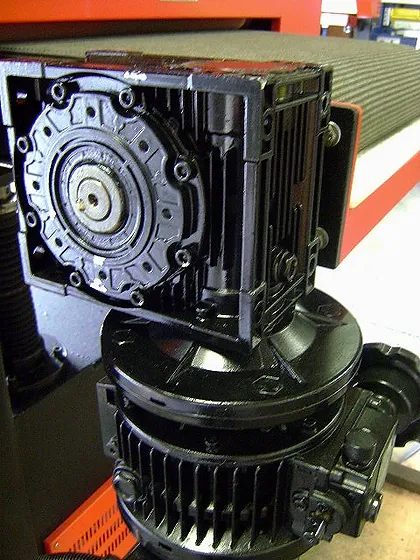

| Conveyor Motor |
2 HP 3 Phase Prewired: 230VAC Optional: 460VAC |
| Table Lifting Motor |
1/4 HP 3 Phase Prewired: 230VAC Optional: 460VAC |
|
Net Weight, Approx. Shipping Weight: |
2,650 LBS 2,950 LBS |
|
Machine Dimensions: (LxWxH) Shipping Dimensions: 65" x 65" 72" |
63" x 63" 70" |
