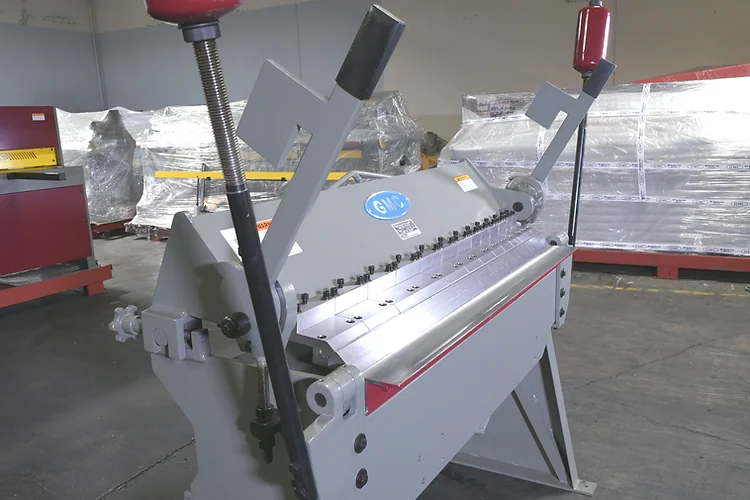

NEW 48" GMC MODEL BB-412-6HD BOX AND PAN BRAKE

Manufacturer

GMC

Model

BB-412-6HD

Year

Not provided

Stock #

19330

Condition

New

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

NEW 48" GMC MODEL BB-412-6HD BOX AND PAN BRAKE


Pan & Box Brakes are hand operated machines with removable fingers and a large beam opening. With this Brake, you can fabricate pans, boxes, channels, angles, and other metal working shapes.



  • ISO 9002 certified
  • 1-year parts only warranty
  • Bend up to 12 gauge mild steel x 48" in length (compact)
  • Large 1-9/16” beam opening, adjustable

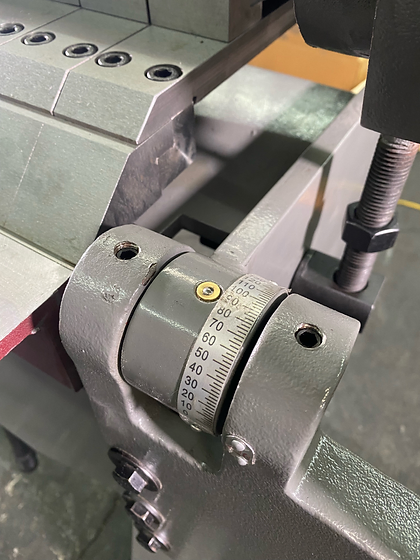

  • 135 degree bend angle capacity with built in scale
  • 2 - handwheels on the rear to ajust the gap
  • 1” beam adjustment (front and back)
  • Hem light gauge material 26 Ga. or thinner
  • 2 - 30 lbs. adjustable counterweights

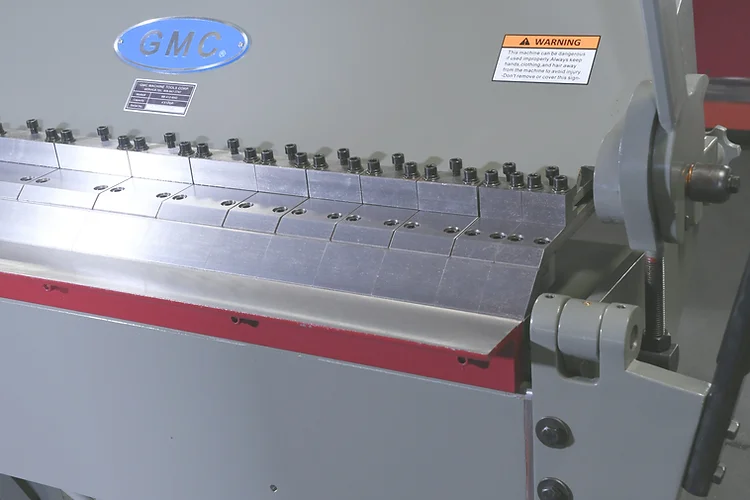

  • Includes 9 fingers total: (measures 49")
    • 2 - 2"
    • 4 - 3"
    • 2 - 4"
    • 1 - 25"

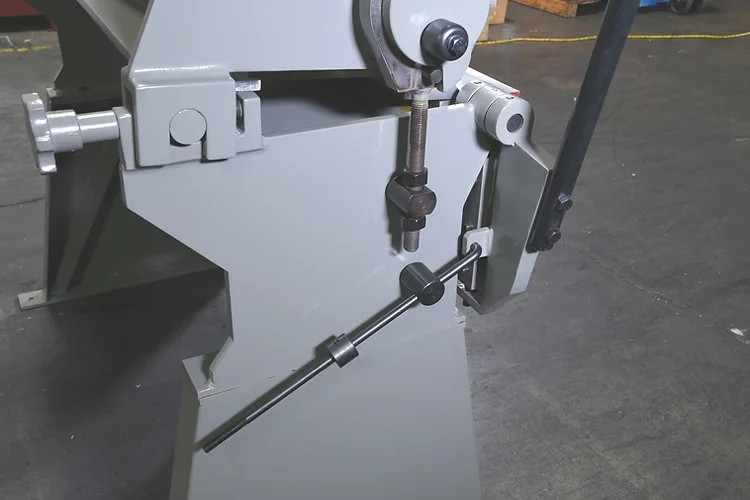

  • 1 - Simple stop rod is included to make repeat bends
  • All steel heavy body construction with extra heavy tie rod for minimum deflection


Bending capacity in Mild Steel:

12 Ga.

Bending capacity in Stainless Steel:

16 Ga.

Max. hemming thickness for mild steel:

26 Ga.

Max. box depth

6"

Bending length capacity

4’

Bending angle, degree

0-135

Beam adjustment, front and back

1"

Minimum reserve bend

1/2"

Manual clamping

Standard

Beam opening

1-9/16"

Net weight

1,150 lbs.

Shipping weight:

1,265 lbs.

Machine Dimensions:

82" x 32" x 69"

Shipping Dimensions:

67” x 30” x 38”



OPTIONAL EQUIPMENT

  • 2"  replacement finger - $115.00
  • 3" replacement finger - $115.00
  • 4"replacement finger - $135.00
  • 25" replacement finger - $275.00
