Equipped With

NEW 5' X 10GA GMC MODEL PBR-0510E PLATE BENDING ROLL

• SO 9001 certified
• Taiwan machines
• All (3) rolls are hardened rolls, up to 50-52 HRC
• 3-rollers are driven to perform high accuracy
• Adjustable cone attachment included

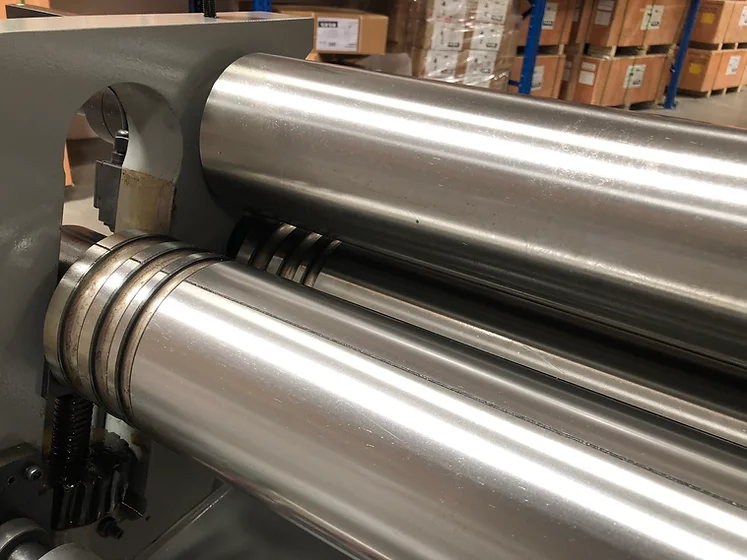

• 3/8”, ½” and 5/8” grooves on rollers

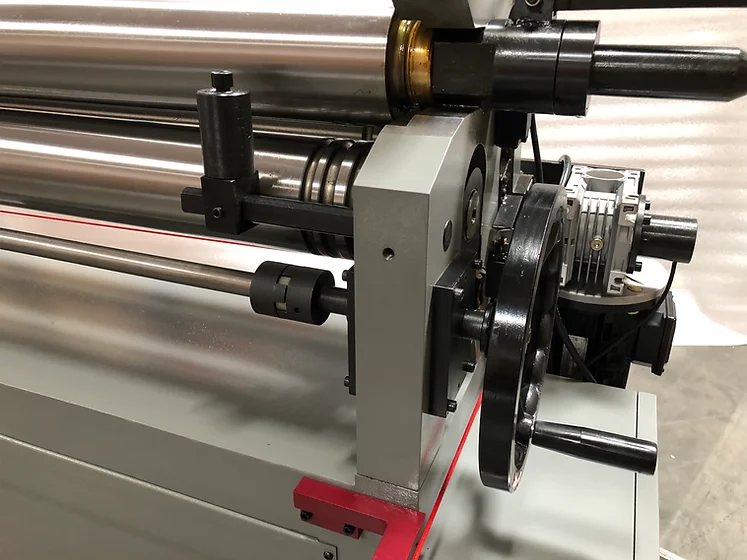

• One wheel one-side operated for bending roll
• One wheel one-site operated for pinch roll (E model is powered)
• Heavy duty casting frame
• Heavy duty all steel welded construction
• 1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
• Quiet running operation
• Easy swing-out top roller
• Safety line all around the machine for emergency stop
• All rolls run forward and reverse
• Safety type forward/reverse foot pedal
• Power source 220V, (option: 440V, 3 phase)
• One year industrial warranty for parts

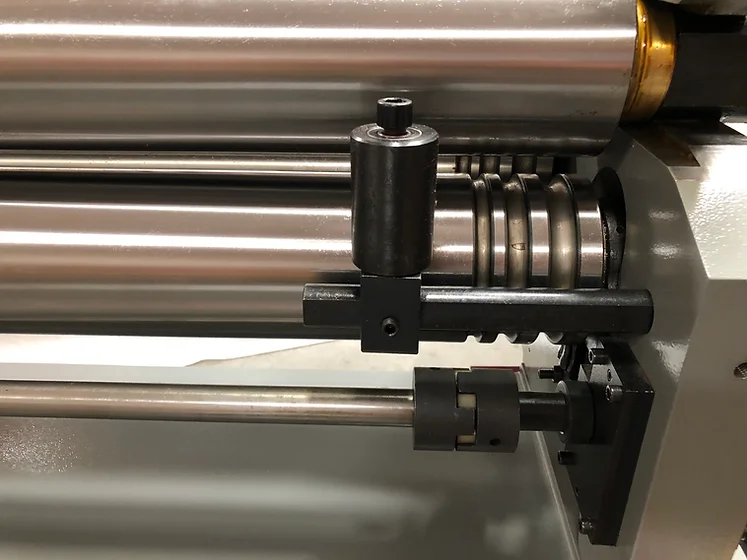

• Adjustable cone attachment
• 3/8”, ½” and 5/8” grooves on rollers
• All (3) hardened rolls
• Removable safety foot pedal
• Operation & parts manual
• Orange color front cover is optional.

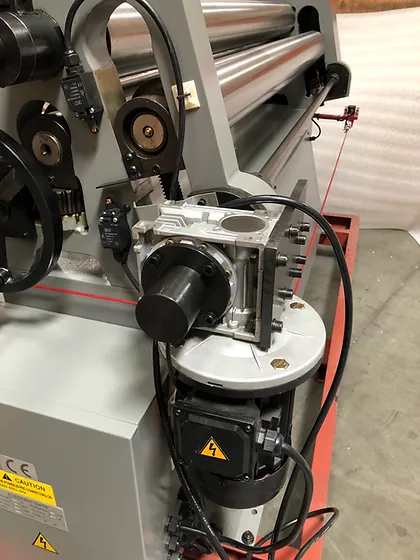

• E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs
