NEW 52" x 87" GMC MODEL FP-5160T WIDE BELT SANDING MACHINE
Year
Not provided
Stock #
19165
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 52" x 87" GMC MODEL FP-5160T WIDE BELT SANDING MACHINE
- Computerized programmable thickness control
- Abrasive belt size: 51” x 60”
- 10” diameter heavy duty drum for perfect graining
- 5-1/8” wide opening for max. workpiece thickness 5”
- Motorized Table Lift with LED display

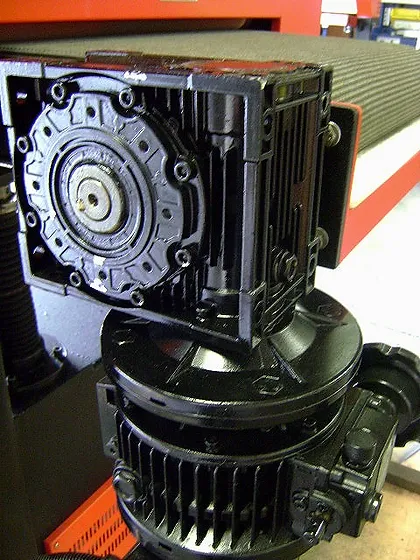

- Variable Speed Conveyor
- Conveyor Forward & Reverse

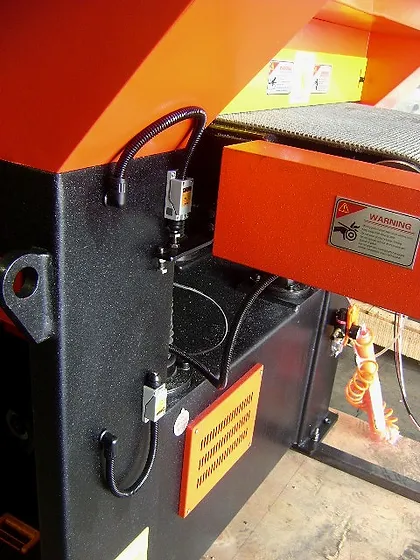

- Belt Safety Overtravel Switches

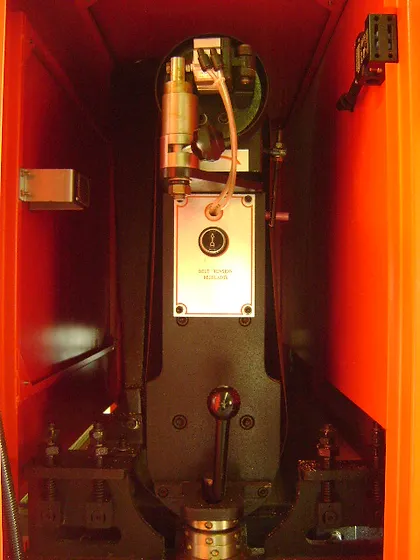

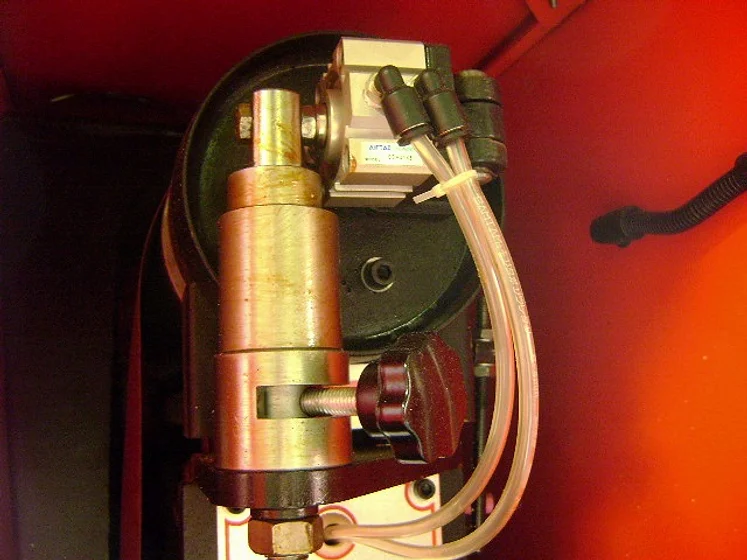

- Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to
Re-adjust the tracking system when running extremely out of parallel belts

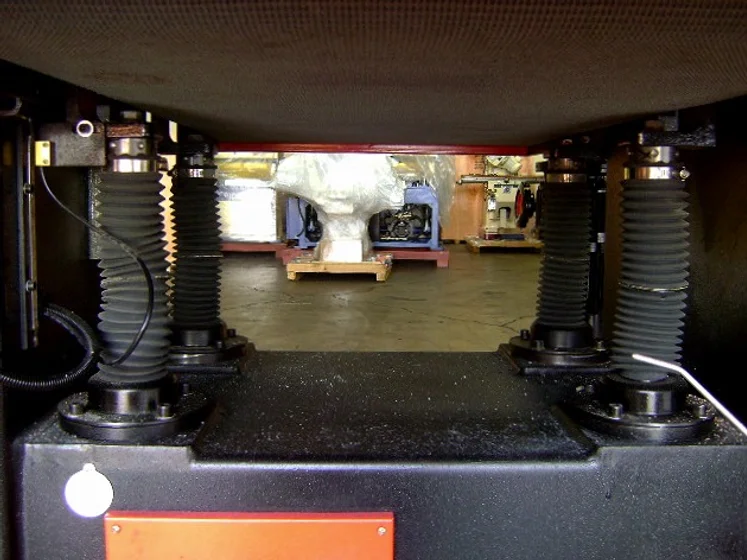

- 4-Jackscrew Table Support
- Double Infeed & Outfeed Pinch Rolls with protective guards
- Conveyor Belt Tracking System
- Safety System with Disc Brake. Air operated disc brakes to stop sanding head in
3-5 seconds in the even of loss of air pressure or activation of any emergency stop device

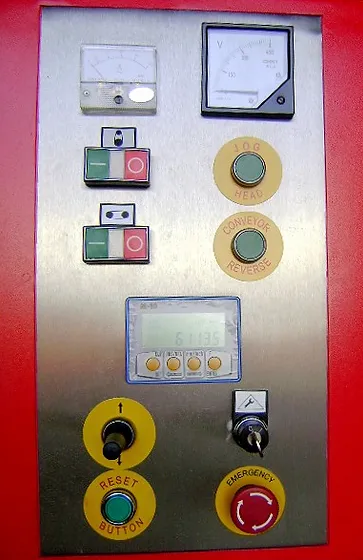

- Table Height Digital Readout
- Load Meter indicates percentage of full motor loads
- Belt change door electrically interlocked for safety purpose

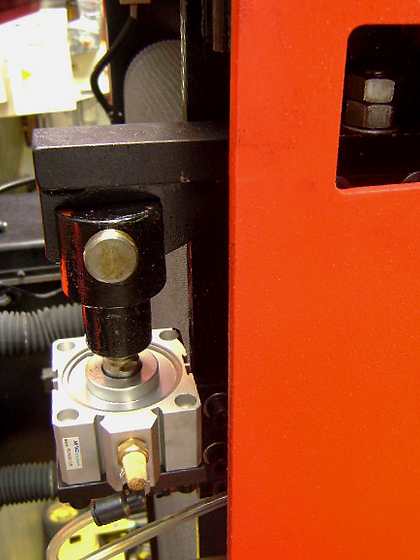

- Air tensioning of belt for accurate tensioning & compensation of belt stretch
- Quick release sanding head support for fast belt change
- Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area
- Emergency stops from almost any point
- Noise level bellows 82 dba
- Operation manual, control tags, danger signs, and warning labels in English on machine
- 208/230V, 3-Phase ( 440/460V is available )
- One year Industrial Warranty for parts.
NOTE
- Prices are for 208-230 VOLTS
- Total amps 120 @ 230/3/60
- COMPRESSED AIR REQUIRED: 2 CFM @ 90 PSI
CAUTION: If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used.
OPTIONAL EQUIPMENT
| Wet Dust Collector #WDC-2100, 5HP, 2,100CFM | $8,900.00 |
| Heavy Duty Ducting Package # HDDP-5285 | $950.00 |
| Service Engineer for Start-Up and On-site Training for # ST (plus travel expenses) | CALL US |
| Shipping | FREE |
| Max. Part Width | 51" |
| Abrasive Belt Size | 51" x 60" |
| Contact Roller Size | 8" Dia. |
| Passline Height | 31" - 37" |
| Max. Thickness Capacity | 20 Ga. to Max. 5-1/8" |
| Conveyor Drive Speeds | 15 - 56 FPM |
| Infeed Conveyor Length | 20" |
| Dust Colector Capacity | 2,800 CFM |
| Main Motor |
30 HP 3 Phase Prewired: 230VAC / 120A Optional: 460VAC / 60A |
| Conveyor Motor |
2 HP 3 Phase Optional: 460VAC |
| Table Lifting Motor |
2 HP 3 Phase Prewired: 230VAC Optional: 460VAC |
| Net Weight, Approx. | 4,190 LBS |
| Machine Dimensions LxWxH | 82" x 68" x 73" |
