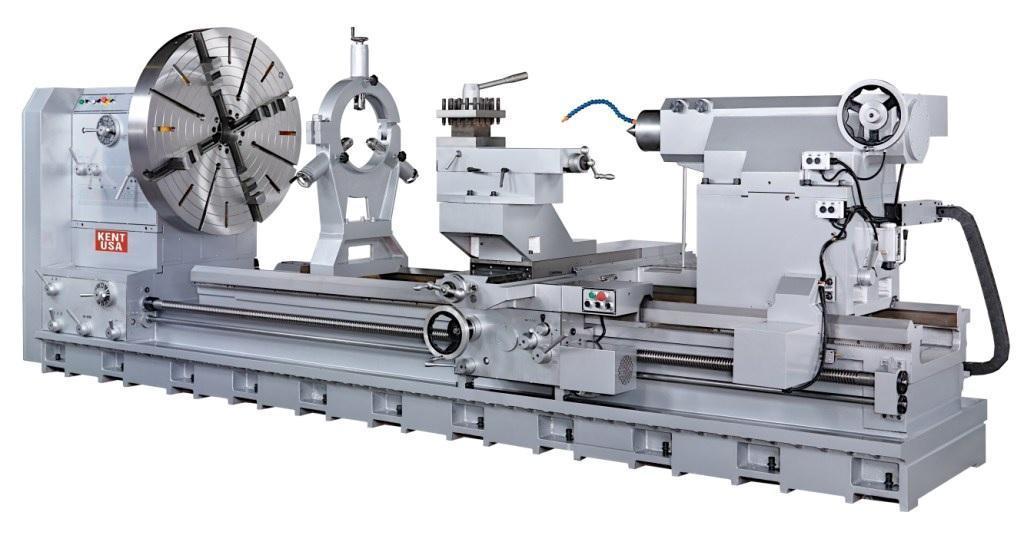

Capacity

Swing over bed ways

55” (1400mm)

Swing over cross slide

39” (990mm)

Swing over gap

66” (1680mm)

Gap length (w/ face plate)

14.57” (370mm)

Bed width

32” (810mm)

Distance between centers

120”/160”/200”/240” (3M/4M/5M/6M)

Headstock

Spindle hole

5.98” (152mm)

(Opt. 9” (230mm), 12” (305mm), 15” (380mm))

Spindle nose

ASA A2-11 (Opt. A2-15/A2-20)

Spindle to sleeve taper

Spindle speed

16 Steps, 4 – 420 RPM

(Opt. 12 Steps, 7~266 RPM, B9, B12)

Spindle speed ranges

N/A

Carriage

Top slide (compound) travel

15.75” (400mm)

Cross slide travel

27.56” (700mm)

Feed Box

Thread capacity (inches)

1/4 - 30 TPI

Thread capacity (metric)

1 - 120 MM

Modular threads range

0.25 - 30 M

Diametral pitch range

1 – 120 DP

Longitudinal feeds

0.00236 – 0.277 IPR

Cross feeds

0.00118 – 0.138 IPR

Tailstock

Quill diameter with tang

7.87” (200mm)

Quill travel

20.87” (530mm)

Quill taper

MT#6 (Opt. MT#7)

Power

Main motor

30 HP (40 HP, 50HP Option)

Coolant pump motor

1/8 HP

Control circuit voltage

115 V

Dimension

Shipping dimension (L)

240”/280”/320”/360”

Dimension

Shipping dimension (W)

89”

Dimension

Shipping dimension (H)

91”

Approximate Weight

Net weight (lbs.)

32,670/35,090/37,510/39,930

Gross weight (lbs.)

34,870/37,510/40,150/42,790
