NEW 6' X 1/4" GMC MODEL HBR-0625 PLATE ROLLING MACHINE
Year
Not provided
Stock #
19148
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 6' X 1/4" GMC MODEL HBR-0625 PLATE ROLLING MACHINE
- ISO 9001 certified
- Taiwan Machines

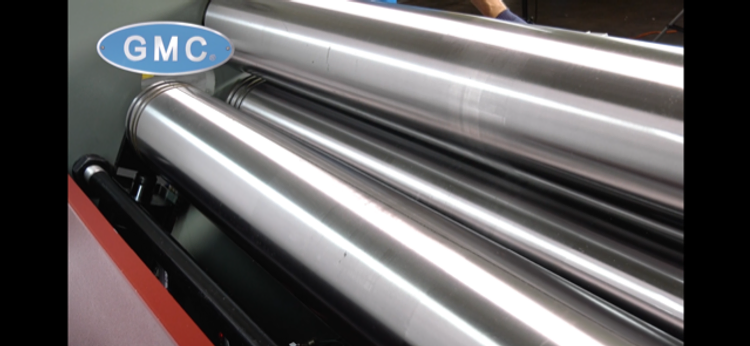

- All three rollers are driven
- All three rollers are hardened, up to 50-52 HRC

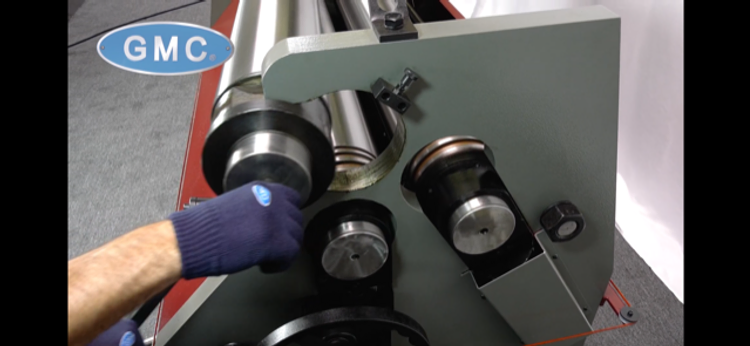

- Easy swing –out top roller
- Standard cone attachment installed
- 1 each LED indicator for bending roll position
- Safety line all around the machine for emergency stop
- Heavy Duty all steel welded machine construction
- German Hydraulic logic system centrally located and quiet
- Bending roll is hydraulic powered up/down & tilting adjustment
- Planetary reduction gear and pump
- All three rolls are made of high grade alloy steel
- All rolls run forward and reverse Safety type foot pedal control
- Overload protection and disconnect switch
- Power source 208V/220V, (Option 460 V , 3 phase)
- One year industrial warranty for parts
STANDARD EQUIPMENT
- LED indicator for bending roll position
- Safety line all around the machine for emergency stop
- Removable safety foot pedal and tool box
- Cone attachment (to make cone parts)
- (3) grooves 3/8”, ½”, 5/8” on roll for bending wire
OPTIONAL EQUIPMENT
Safety fence for enclosure of the back side of the machine - $1,150.00
|
Roll Capacity: Mild Steel |
6' x 1/4" |
| Stainless Steel | 6' x 3/16" |
| Min. Roll dia. | 8 1/2" |
| Rolls Length | 6' 8" |
| Rolls Dia. | 7 1/2" |
| Pre-bend | 0.18" |
| Rolls speed | 5 RPM |
| Rolls Opening | 3/4" |
| Oil Tank Cap. | 45L= 12 Gal |
| Main Motor | 5 1/2 HP |
| Weigth | 7,650 lbs. |
| Dimensions | 118" x 38" x 58" |
