Equipped With

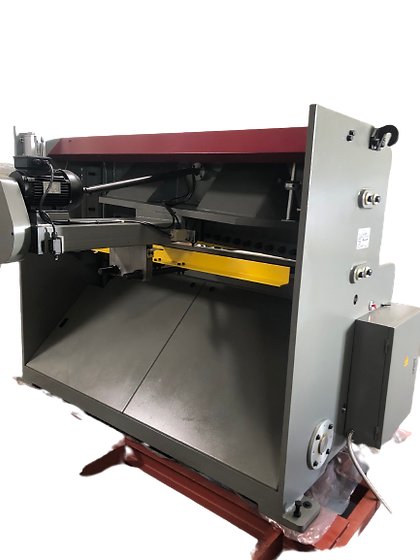

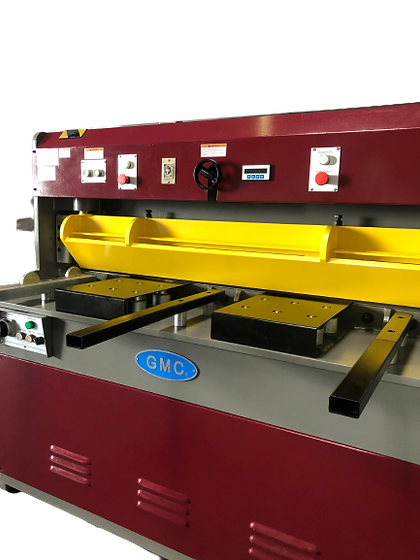

NEW 6' X 1/4" GMC MODEL HS-0625E HYDRAULIC SHEAR

• ISO 9001 certified
• Taiwan machines
• 24” German SIKO Front Operated power back gauge w/ micro adjustment 0.004” inch/mm digital display
• Quick Change Blade Gap Adjustment (BGA), with gap dial
• CE standard “OMERO” electric control system
• Meet OSHA safety standard code
• Shadow line for accurate straight cutting
• Adjustable cutting length and stroke
• Ball transfer plates on worktable for easy loading workpiece
• Dual voltage 220V/440V
• Well balanced and sturdy all steel machine frame
• German made Hydraulic logic system centrally located and quiet
• Hydraulic hold-downs with anti-mar neoprene
• Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
• Full length viewable safety finger guard to protect operator from cutting hazard
• Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
• Hydraulic, electrical overload protection
• Compact operator control panel
• All motors are overload protected & low voltage control system
• Jog or continuous auto cycle cutting operation modes
• One year industrial warranty for parts

• 24” German SIKO Front Operated Power Back Gauge with micro adjustment , accuracy 0.004” inch/metric digital display
• 1 each 60” squaring arm with inlaid inch/metric dual scale
• Quick change blade gap adjustment (BGA)
• Shadow line for accurate straight cutting
• Material support and drop back chuter
• Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
• 2 each 24” front support arms
• Hydraulic hold-downs with anti-mar neoprene
• Full length viewable finger guard
• Removable safety foot pedal
• Tool box

• Safety fence for enclosure of the back side of the machine -  $1,950.00
• Rotary Phase Converter with Smart Booster #PL-30 - $5,550.00

• The minimum material thickness this Shear can handle is 20 gauge.
