NEW 63" x 85" GMC MODEL FP-6385 WIDE BELT SANDING MACHINE
Year
Not provided
Stock #
19166
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 63" x 85" GMC MODEL FP-6385 WIDE BELT SANDING MACHINE
- Abrasive belt size: 63” x 85”
- 10” diameter heavy duty drum for perfect graining
- 3-1/8” wide opening
- Motorized Table Lift with LED display
- Variable Speed Conveyor
- Conveyor Forward & Reverse

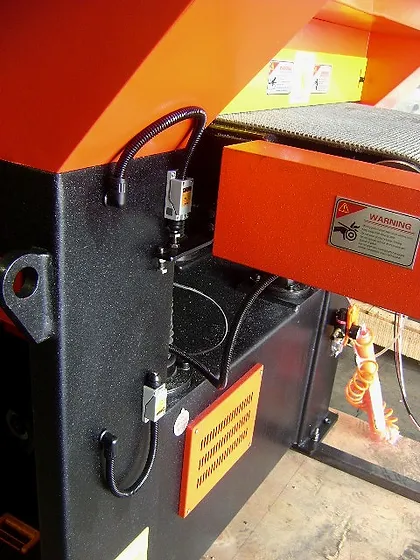

- Belt Safety Overtravel Switches

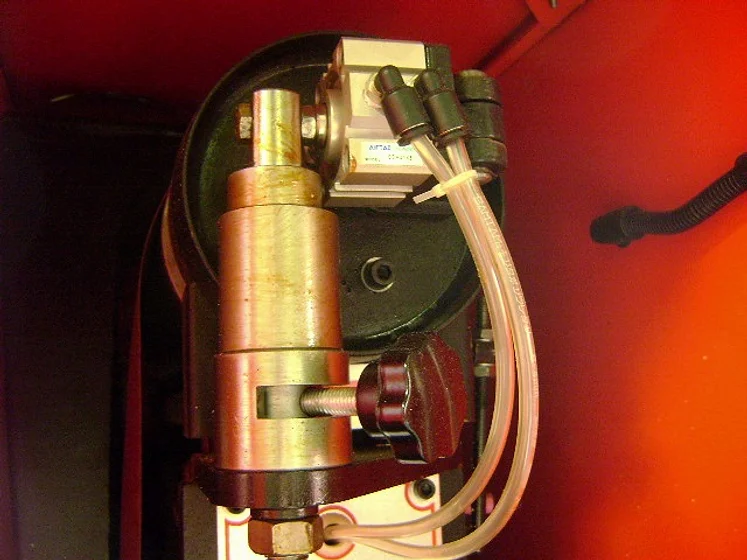

- Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to
-
Re-adjust the tracking system when running extremely out of parallel belts

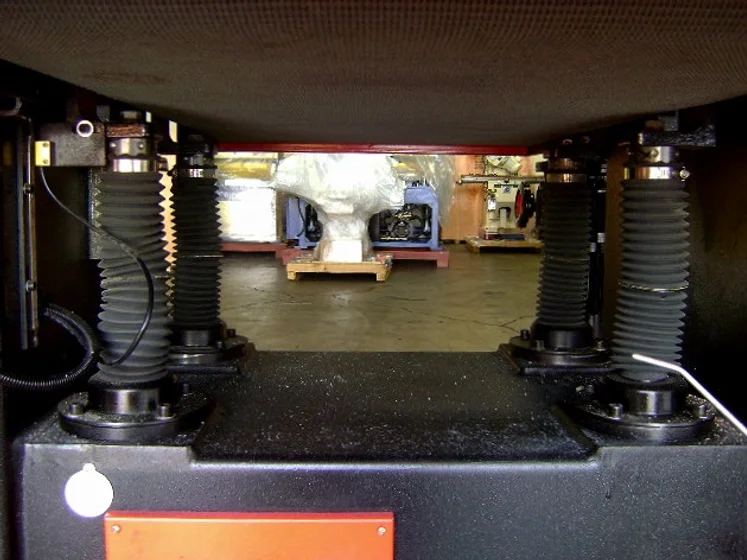

- 4-Jackscrew Table Support
- Double Infeed & Outfeed Pinch Rolls with protective guards
- Conveyor Belt Tracking System
- Safety System with Disc Brake. Air operated disc brakes to stop sanding head in
-
3-5 seconds in the even of loss of air pressure or activation of any emergency stop device

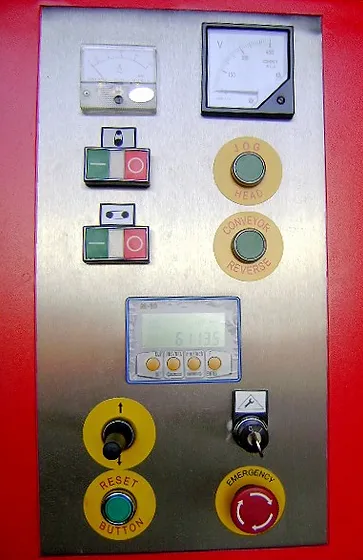

- Table Height Digital Readout
- Load Meter indicates percentage of full motor loads
- Belt change door electrically interlocked for safety purpose

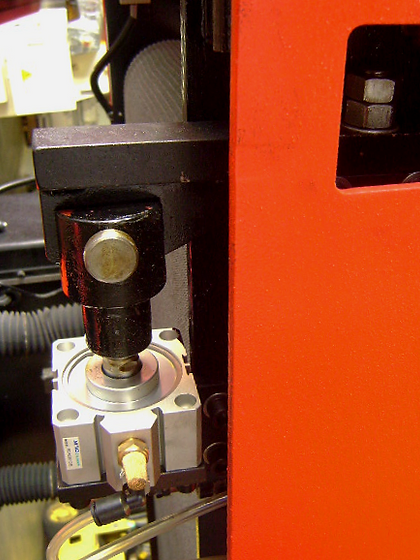

- Air tensioning of belt for accurate tensioning & compensation of belt stretch

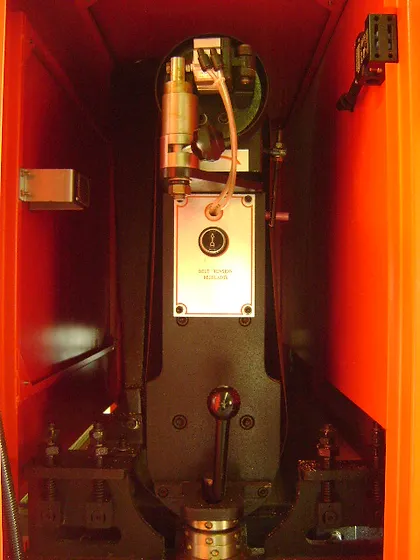

- Quick release sanding head support for fast belt change
- Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area
- Emergency stops from almost any point
- Noise level bellows 82 dba
- Operation manual, control tags, danger signs, and warning labels in English on machine
- 208/230V, 3-Phase ( 440/460V is available )
- One year Industrial Warranty for parts.
- Prices are for 208-230 VOLTS
- Total amps 150 @ 230/3/60
- COMPRESSED AIR REQUIRED: 2 CFM @ 90 PSI
CAUTION: If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used.
OPTIONAL EQUIPMENT
| Wet Dust Collector,#WDC-2100 - 2,100CFM | $8,900.00 |
| Heavy Duty Ducting Package # HDDP | $950.00 |
| Service Engineer for Start-Up and On-site Training for # ST (plus travel expenses) | CALL US |
| Shipping (approx) | FREE |
| Max. Part Width | 63" |
| Abrasive Belt Size | 63" x 85" |
| Contact Roller Size | 10" Dia. |
| Passline Height | 31" - 37" |
| Max. Thickness Capacity | 3-1/8" |
| Conveyor Drive Speeds | 8 - 40 FPM |
| Infeed Conveyor Length | 20" |
| Dust Colector Capacity | 3,800 CFM |
| Main Motor | 40 HP, 230V / 460V, 3PH |

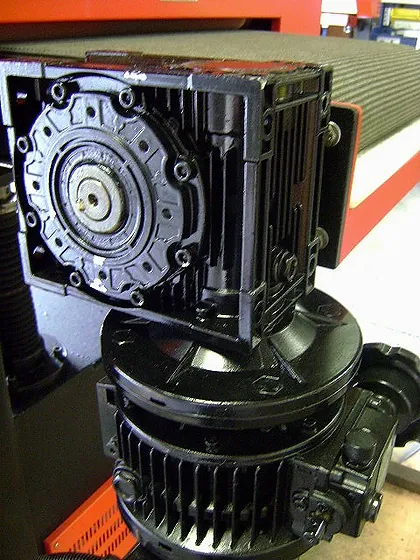

| Conveyor Motor | 3 HP, 230V / 460V, 3PH |
| Table Lifting Motor | 3 HP, 230V / 460V, 3PH |
| Net Weight, Approx. | 8,650 LBS |
| Machine Dimensions LxWxH | 79" x 95" x 83" |
