NEW 70 TON X 6' GMC MODEL HPB-7006CNC-3R HYDRAULIC 3-AXIS PRESS BRAKE

Manufacturer

GMC

Model

HPB-7006CNC-3R

Year

Not provided

Stock #

19109

Condition

New

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

NEW 70 TON X 6' GMC MODEL HPB-7006CNC-3R HYDRAULIC 3-AXIS PRESS BRAKE


  • ISO 9001 certified
  • Meet OSHA and CE safety standard

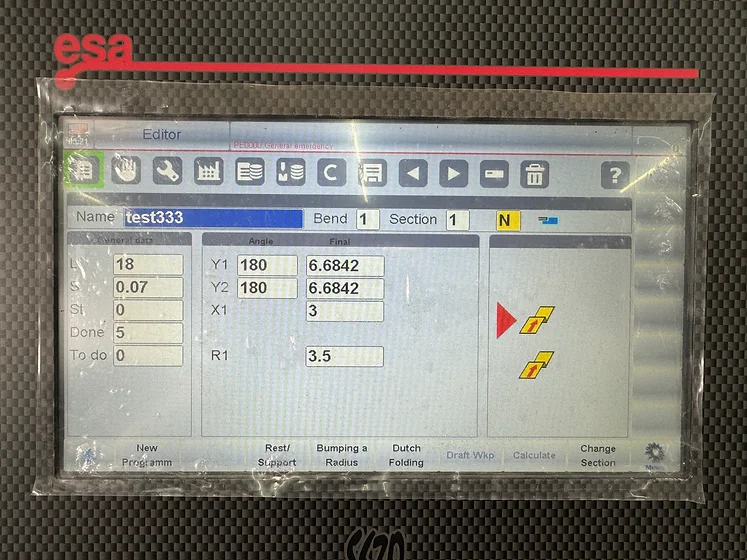

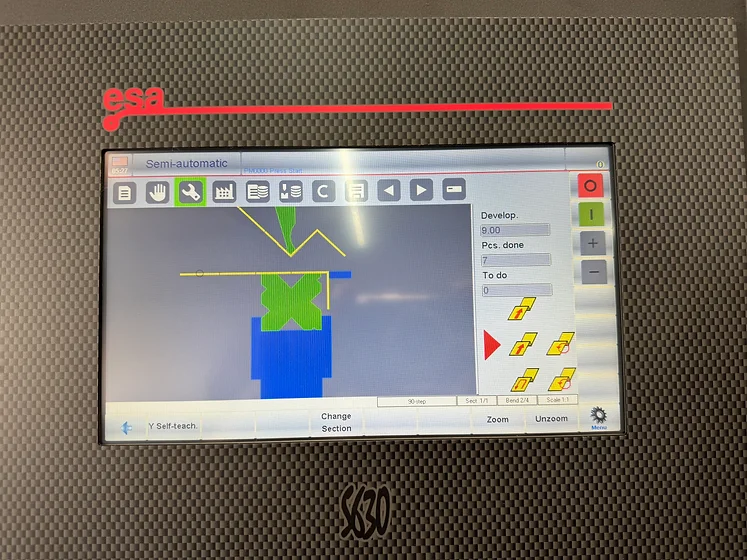

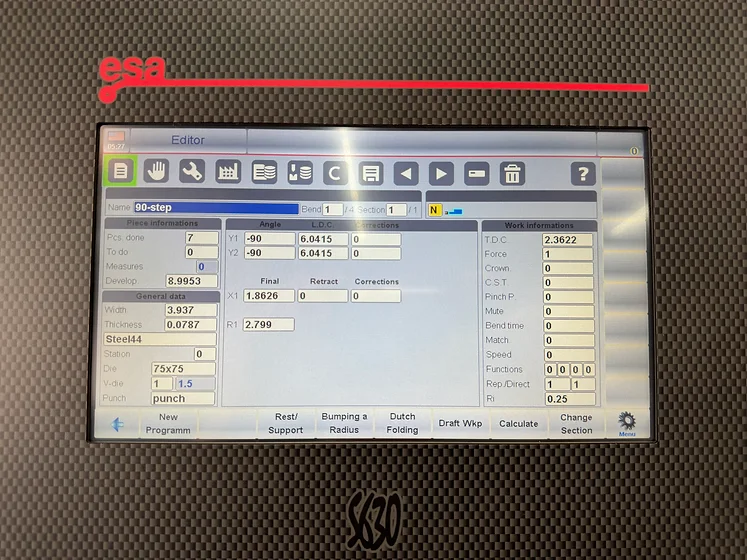

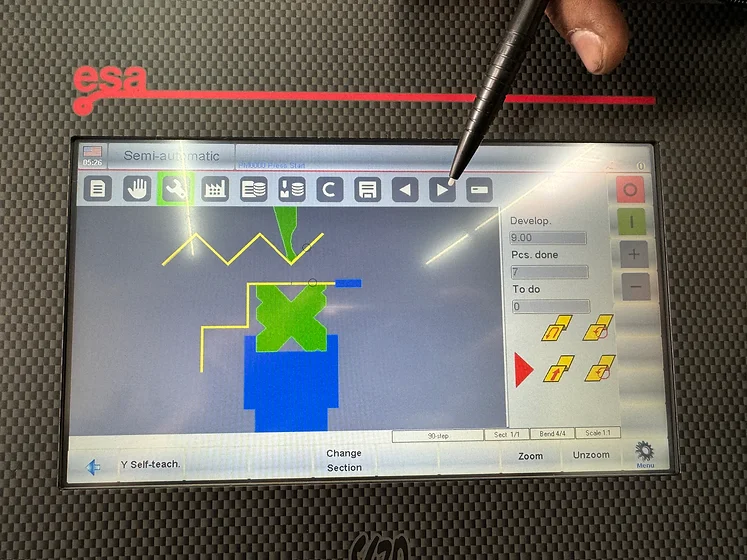

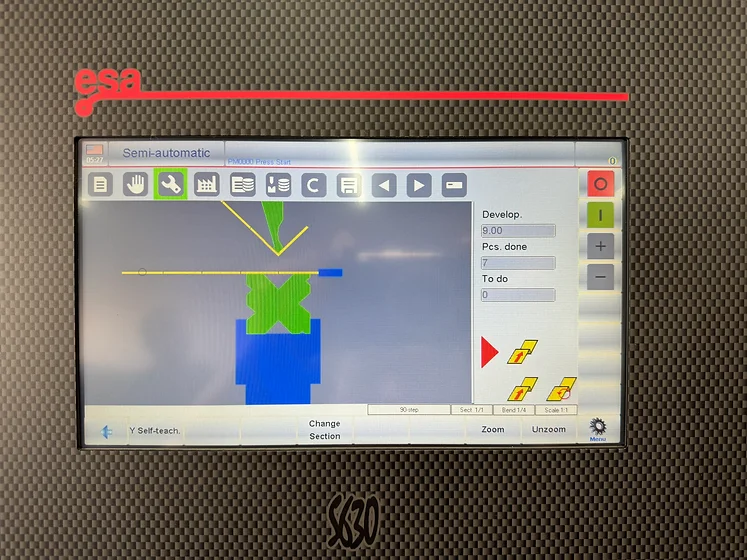

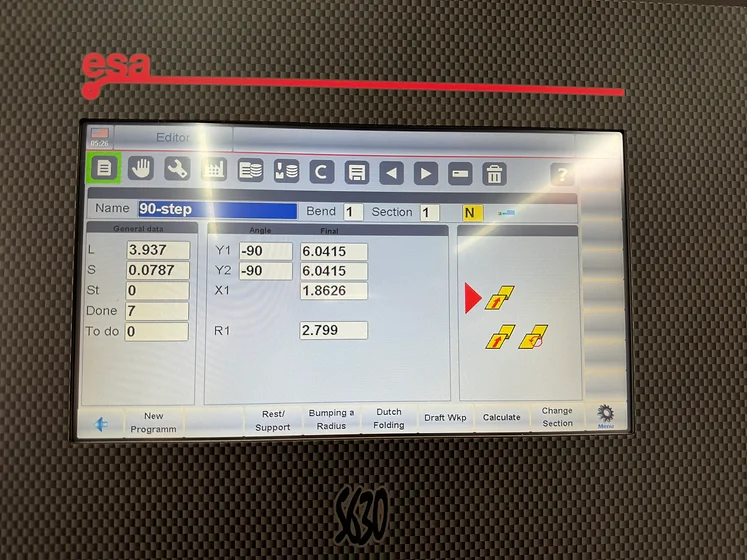

  • ESA (Italy) Model 630, 3 Axis CNC Controller
  • Die library, offline programming, stores thousands of programs
  • Programmable Angle/ Angle Correct
  • 10” Touch screen
  • 3 Axis CNC Graphic Controller
  • Y axis Ram with high precision linear encoder
  • X servo Back gauge
  • R programmable Back gauge height
  • Line by line coding
  • 2D Graphic Drawing Mode
  • Bend Sequence Optimization for collision detection
  • Spread Length Calculation
  • Germany Rexroth hydraulic system
  • Yaskawa Servo motor and Drives
  • Schneider electrical components
  • All steel construction for maximum rigidity
  • Hydraulic logic system centrally located and quiet
  • Safety type foot pedal with handle and E-stop switch
  • Safety 24V low voltage & overload protection
  • One year industrial warranty for parts


STANDARD EQUIPMENT

  • ESA (Italy) Model 630, 3 Axis CNC Controller
  • (2) 24” front support arms, Quick Release for easy positioning

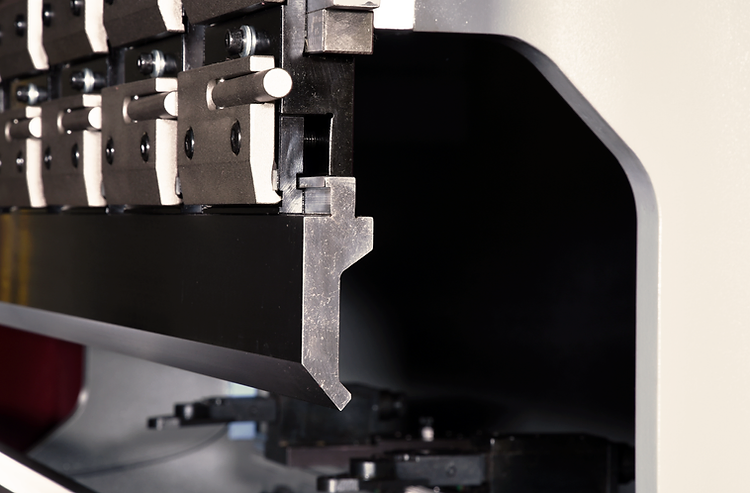

  • Quick release segmented (American Style Tooling) punch holder
  • Full Length Gooseneck Punch HRC 50 ( Punch is rated for 10 gauge and lighter .062” radius punch) Additional Tooling may be required for thicker materials and purchaser’s specific products/parts - Ask your dealer for custom tooling quotes)

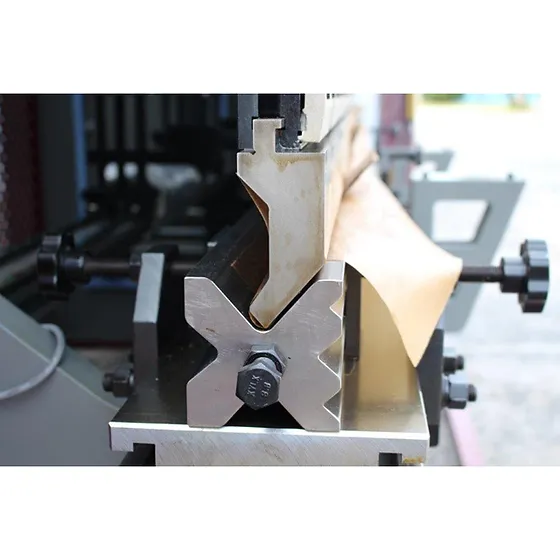

  • Full Length Vee Die with 6 assorted sizes HRC 50
  • Lntech Light Curtain System
  • Side and Back Safety Fence
  • Movable Foot Pedal with Estop meet OSHA safety standard

OPTIONAL EQUIPMENT
  1. For ¼” tooling: Need single V die holder $1,595.00
  2. 4’ of punch and 2.5” single V Die , Flame hardened with safety tang $2,550.00

  3. On-site training, one day…………………………….. $4995.00

Maximum Pressure 70 Tons
Bending Lenght Capacity 80" (6'8")
Distance Between Uprights (housing) 63"

Ram Stroke Travel

Cylinder Travel Adjustment (max)

6"

3 1/8"

Table Width 6"

Distance Between Table and Ram

Max Stacked Tooling Height

15 1/4"

8-1/2"

Throat Depth 10"
Back Gauge Distance 24"
Back Gauge Repeatability .0039"
Y-Axis Repeatability .0039"

Approach speed, inch / second

Working speed, inch / second

Return speed, inch / second

3.14”

0.35”

2.36”

Main motor:





Servo motor for back gauge:



Servo motor for bending angle

setting

7-1/2 HP, 3 Phase 30 AMP

Prewired: 220VAC (+/- 10%)



1 HP, 3 Phase

220VAC (+/- 10%)



1/2HP, 3 Phase

220VAC (+/- 10%)

Hydraulic oil tank capacity:

Recommended Oil:

52 Gal.

Hydraulic Oil Shell #68HD

Machine weight:

Machine size, L x W x H:

Shipping Dimensions:

8,650 LBS

103" x 63" x 87”

109"x66"x98"




Warranty for Rotary Phase Convertor Users : Electrical Parts Warranty is not available if A Rotary Phase Convertor is used. Mechanical parts warranty only


Note: the following models do not work with rotary phase converters:

All EPS models, HS-0825E,HS-0425E, HS-0625E,HS-1010E, HS-1025E, HBB-1010NC, GML-(ALL LATHES)

HPB-4504CNC, HPB-7006CNC, HPB-7006CNC-3R, and HPB-3305CNC

These models listed above cannot run on any phase converters, Warranty will be voided.

GMC will pre-wire the Phase converter to our machine and it is ready to use.
