NEW 72" X 10 GAUGE GMC MODEL HBB-0610 HYDRAULIC BOX AND PAN BRAKE

Manufacturer

GMC

Model

HBB-0610

Year

Not provided

Stock #

19141

Condition

New

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

NEW 72" X 10 GAUGE GMC MODEL HBB-0610 HYDRAULIC BOX AND PAN BRAKE

  • Taiwan Machines
  • ISO 9001 certified
  • Hydraulic adjustment for opening
  • Hydraulic power clamping for workpiece

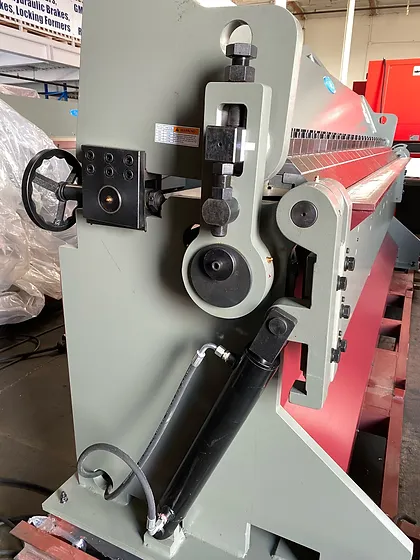

  • 26” manual back gauge with handwheel
  • 1” manual beam adjustment ( front and back )
  • Min. reverse bend is ¾” (20mm)
  • Heavy welded all steel construction for maximum rigidity
  • Germany Rexroth Hydraulic logic system centrally located and quiet

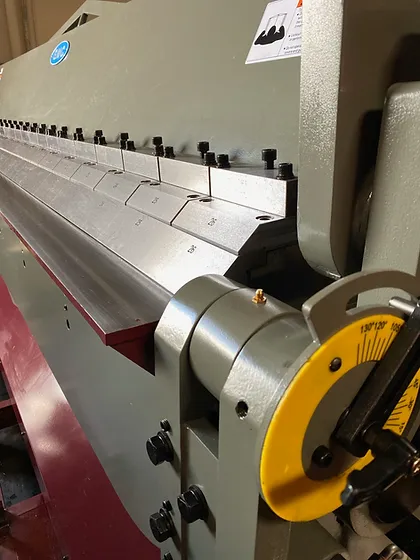

  • A wide guidebody ensures strong, stable, smooth & accurate movement
  • Total pieces fingers assortment:
    • 3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs

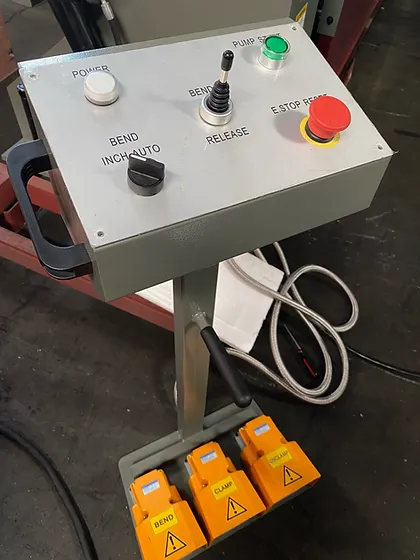

  • Central control panels on each side for convenient operation
  • Jog and auto operation modes
  • Overload protection and disconnect switch
  • One year warranty for parts


STANDARD EQUIPMENT
  • Assorted fingers
  • 26” manual back gauge with one side handwheel operation

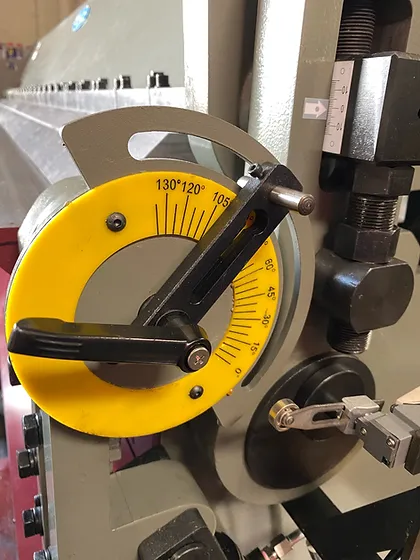

  • Angle set up dial
  • Hydraulic clamping system
  • Foot pedal control for hydraulic clamping & auto mode

OPTIONAL EQUIPMENT

  1. One-piece straight finger instead of assorted fingers , extra - $2,995.00
  2. Safety fence for enclosure of the front side of the machine - $1,150.00
  3. Safety light curtain - $5,950.00
  4. 3" replacement finger - $295.00
  5. 4" replacement finger - $295.00
  6. 5" replacement finger - $295.00
  7. 6" replacement finger - $395.00

Max Bending Length:

6’

Bending Capacity:

Mild Steel

Stainless Steel



10 Ga.

12 Ga.

Hemming max thickness:

24 Ga.

Bend Degree:

135

Max. Box Depth:

6"

Large Beam Opening:

3"

Manual Back Gauge:

26”

Oil Tank Gal.

12 Gal.

Hydraulic Oil:

Shell #68 or equivalent

Main Motor

5 HP 3 Phase

Prewired: 220VAC 10A

Optional: 440VAC 5A

Weight

5,000 lbs.

Shipping Weight:

5,050 lbs.

Overall Dimensions

91" x 46" x 67"

Shipping Dimensions:

105” x 40” x 66”

Attachments

There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
