NEW 8' X 10 GAUGE GMC MODEL HBB-0810 HYDRAULIC BOX AND PAN BRAKE
Year
Not provided
Stock #
19142
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 8' X 10 GAUGE GMC MODEL HBB-0810 HYDRAULIC BOX AND PAN BRAKE
- Taiwan Machines
- ISO 9001 certified
- Hydraulic adjustment for opening
- Hydraulic power clamping for workpiece

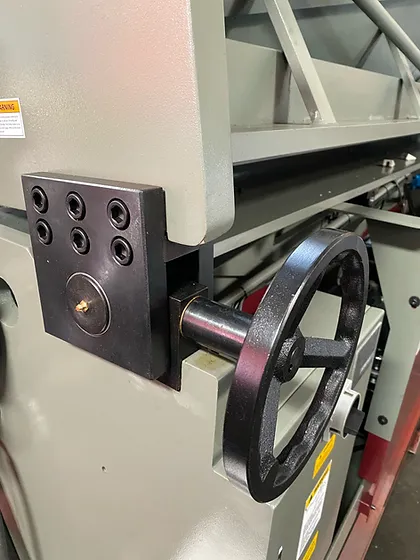

- 26” manual back gauge with handwheel
- 1” manual beam adjustment ( front and back )
- Min. reverse bend is ¾” (20mm)
- Heavy welded all steel construction for maximum rigidity
- Germany Rexroth Hydraulic logic system centrally located and quiet
- A wide guidebody ensures strong, stable, smooth & accurate movement
- Total pieces fingers assortment:
- HBB-0410 & 0412: 3”/ 3pcs, 4”/2pcs, 5”/5pcs and 6”/1pc
- HBB-0610 & 0612: 3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs
- HBB-0810 & 0812: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/2pcs
- HBB-1010 & 1014: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/6pcs
- HBB-10316: 4”/3pcs, 5”/5pcs, 6”/5pcs, 7”/3pcs, 8”/ 4pcs
- HBB-1214: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/10pcs

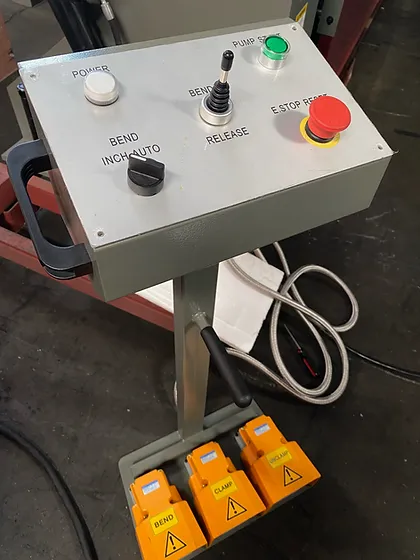

- Central control panels on each side for convenient operation
- Jog and auto operation modes
- Overload protection and disconnect switch
- One year warranty for parts
STANDARD EQUIPMENT

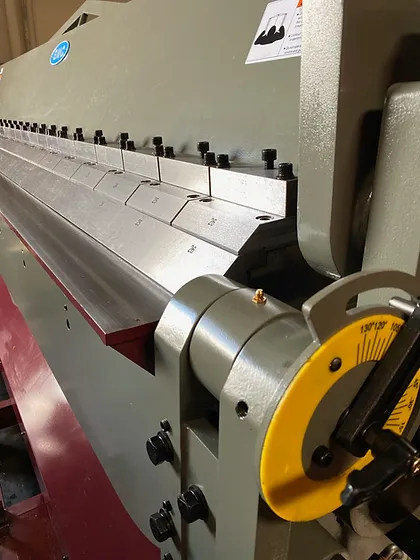

- Assorted fingers
- 26” manual back gauge with one side handwheel operation

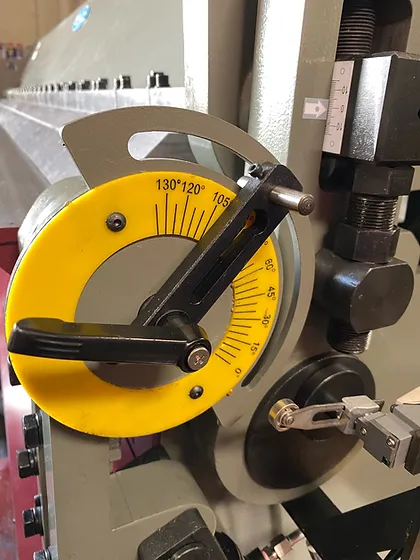

- Angle set up dial
- Hydraulic clamping system
- Foot pedal control for hydraulic clamping & auto mode
OPTIONAL EQUIPMENT
- One-piece straight finger instead of assorted fingers , extra - $2,995.00
- Safety fence for enclosure of the front side of the machine - $1,150.00
- Safety light curtain - $5,950.00
- 3" replacement finger - $295.00
- 4" replacement finger - $295.00
- 5" replacement finger - $295.00
- 6" replacement finger - $395.00
|
Max Bending Length: |
8’ |
|
Bending Capacity: Mild Steel Stainless Steel |
10 Ga. 12 Ga. |
|
Hemming max thickness: |
24 Ga. |
|
Bend Degree: |
135 |
|
Max. Box Depth: |
6" |
|
Large Beam Opening: |
3" |
|
Manual Back Gauge: |
26” |
|
Oil Tank Capacity: |
34 Gal. |
|
Hydraulic Oil: |
Shell #68 or equivalent |
|
Main Motor |
7.5 HP 3 Phase Prewired: 220VAC 20A Optional: 440VAC 10A |
|
Weight |
6,650 lbs. |
|
Shipping Weight: |
6,600 lbs. |
|
Overall Dimensions |
115" x 46" x 69" |
|
Shipping Dimensions: |
127” x 41” x 67” |
