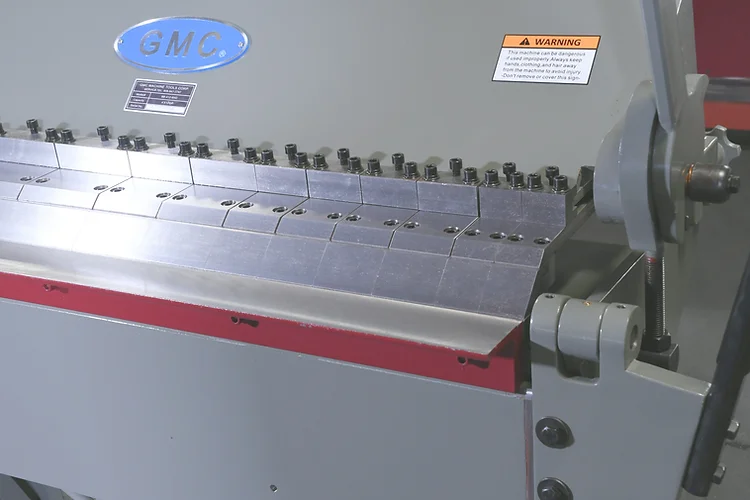

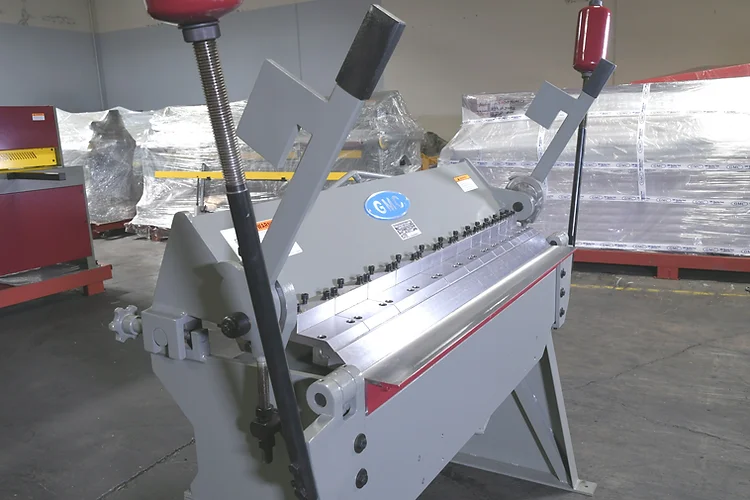

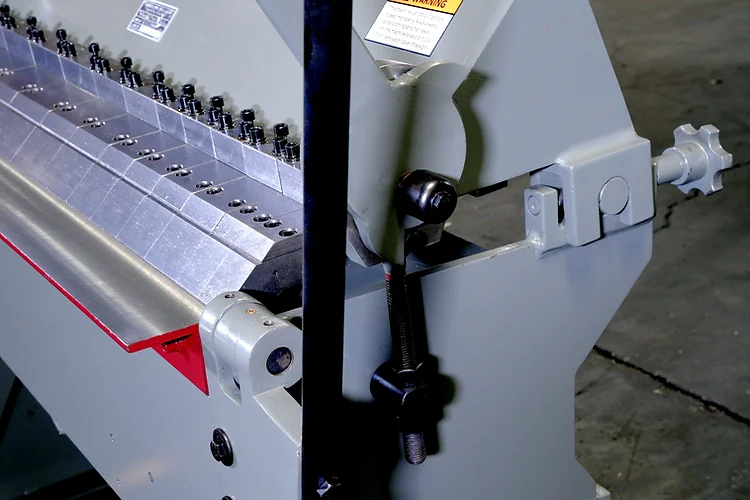

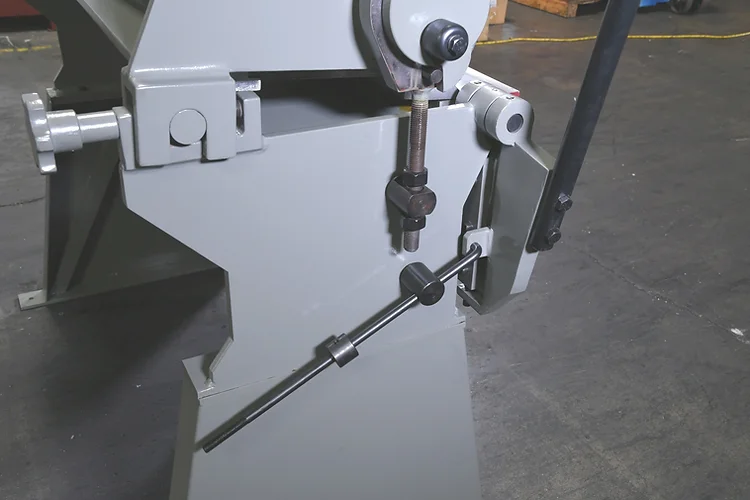

NEW 8' X 14GA GMC MODEL BB-812-6HD BOX AND PAN BRAKE

Manufacturer

GMC

Model

BB-812-6HD

Year

Not provided

Stock #

19296

Condition

New

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

NEW 10' X 14GA GMC MODEL BB-1014-6HD BOX AND PAN BRAKE


Pan & Box Brakes are hand operated machines with removable fingers and a large beam opening. With this Brake, you can fabricate pans, boxes, channels, angles, and other metal working shapes.



  • One Year Parts Only Warranty
  • ISO 9002 certified
  • 1-9/16” adjustable beam opening
  • 1” beam adjustment (front and back)
  • Capable of hemming light gauge material of 26 gauge or thinner
  • Capable of straight bending material fully across
  • Oilable bearings to maintain precision overtime
  • Adjustable stop gauge is included to allow the operator to perform repeat bends
  • 16 Total fingers assortment:
    • 2.5”/1pc, 3”/1pc, 3.5”/1pc, 2”/2pcs, 5”/3pcs, 6”/4pcs, 12”/4pcs
  • 2 - Adjustable counterweights to assist you at max capacity bends
  • All steel heavy body construction with extra heavy tie rod for minimum deflection
  • Some assembly is required



Bending capacity in Mild Steel:

12 Ga.

Bending capacity in Stainless Steel:

16 Ga.

Max. hemming thickness for mild steel:

26 Ga.

Max. box depth

6"

Bending length capacity

8’

Bending angle, degree

0-135

Beam adjustment, front and back

1"

Minimum reserve bend

1/2"

Manual clamping

Standard

Beam opening

1-9/16"

Net weight

2,850 lbs.

Shipping weight:

3,050 lbs.

Machine Dimensions:

139" x 32" x 77"

Shipping Dimensions:

118” x 30” x 40”





OPTIONAL EQUIPMENT


  • One piece straight finger to convert to straight brake - $1,995.00
  • 2" or 2.5" replacement finger - $115.00
  • 3" or 3.5" replacement finger - $115.00
  • 5" or 6" replacement finger - $175.00
  • 10" replacement finger - $175.00
  • 12" replacement finger - $235.00
