Equipped With

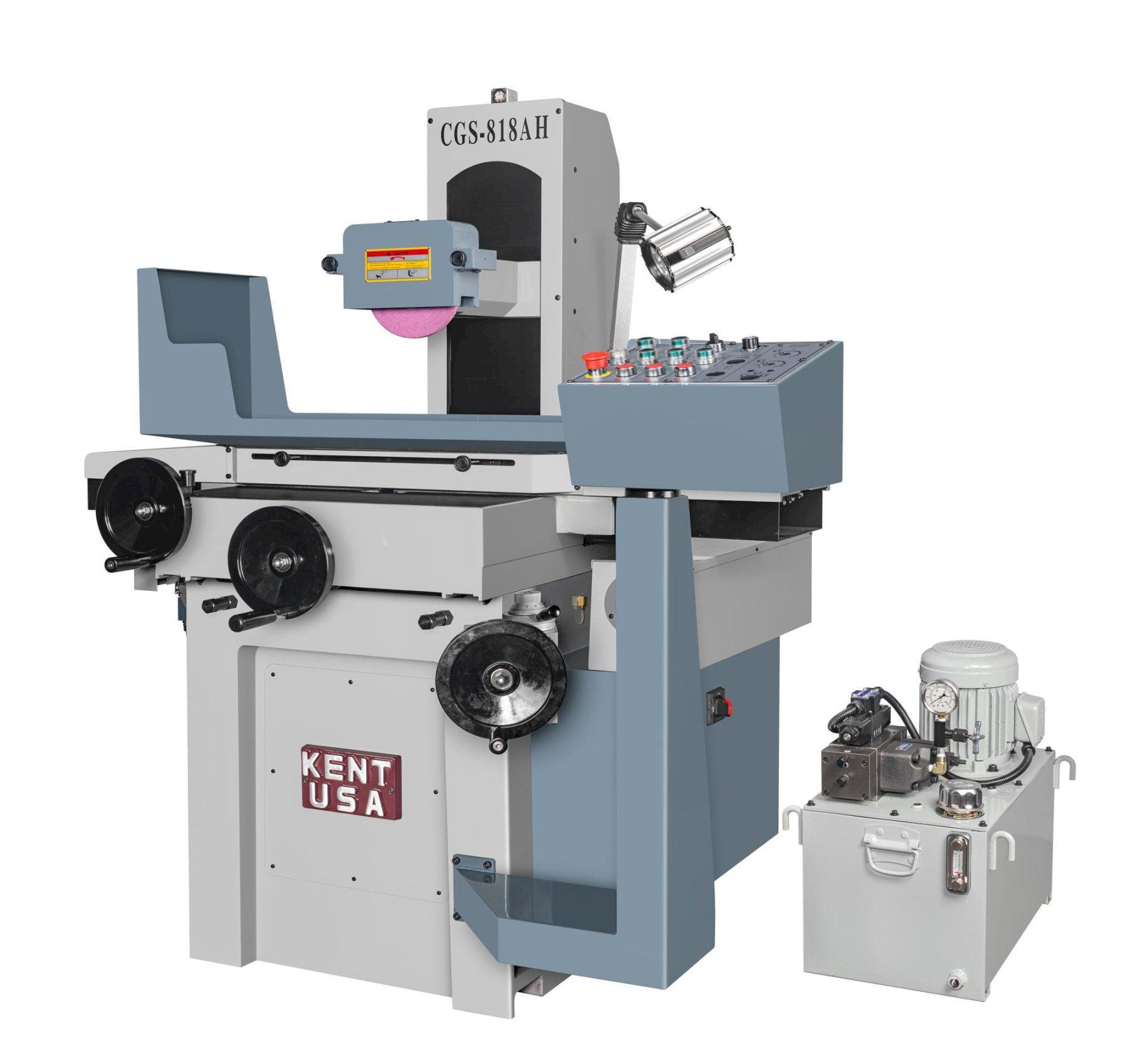

NEW 8" X 18" KENT USA MODEL CGS-818AH AUTOMATIC SURFACE GRINDER

FEATURES

• 8” x 18” working capacity

• 2-axis automatic movement with hydraulic table movement and electronic auto-crossfeed
• Precision hand scraped turcite table and saddle ways for smooth and long-lasting precision
• High column design with 18” spindle center to table for extra clearance under the wheel
• Cartridge type spindle design for easy serviceability
• Centralized automatic lubrication system provides lubrication to all points
• Micro feed (0.00005”) for Z axis
• Safety 24V control circuit power

SPECIFICATIONS

Working Capacity                              8" x 18"
Table Travel                                       19"
Saddle Travel                                     10.25"
T-Slot                                                 1-9/16"
Spindle Motor                                   3 HP
Spindle Speed                                   3450 RPM
Grinding Wheel                                 8" x 3/4" x 1-1/4"
Vertical Revolution                            0.0002" (0.00005" on Microfeed Dial)
Vertical Revolution                            0.050"
Spindle To Table                                18"
Net Weight                                        1700 Lbs
Gross Weight                                     1900 Lbs

Standard Accessories

• Grinding wheel & wheel flange
• Wheel balancing base & wheel balancing arbor
• Diamond table dresser base and tip
• Leveling bolts and pads
• LED Work light
• Toolbox with tools

Optional Accessories

• Digital Readout System (View Brochure)
• Fine pole electric chuck & control
• Permanent chuck
• Dust-suction coolant system
• Overhead parallel dresser
• Extra wheel flange
• Rustlick coolant (1 Gal, Mixes 1:30)
