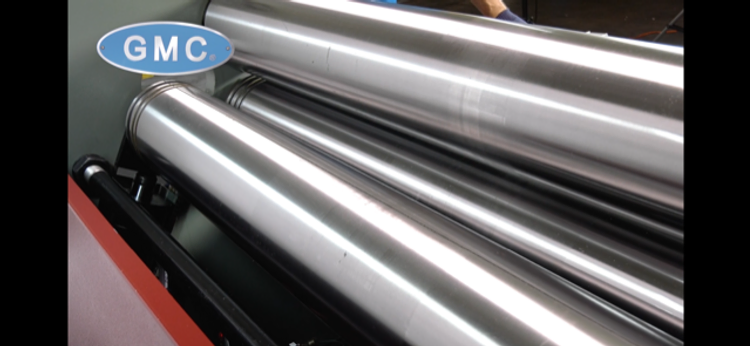

NEW 8' X 8 GAUGE GMC MODEL HBR-0808 PLATE ROLLING MACHINE

Manufacturer

GMC

Model

HBR-0808

Year

Not provided

Stock #

19147

Condition

New

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

NEW 8' X 8 GAUGE GMC MODEL HBR-0808 PLATE ROLLING MACHINE

  • ISO 9001 certified
  • Taiwan Machines
  • All three rollers are driven
  • All three rollers are hardened, up to 50-52 HRC

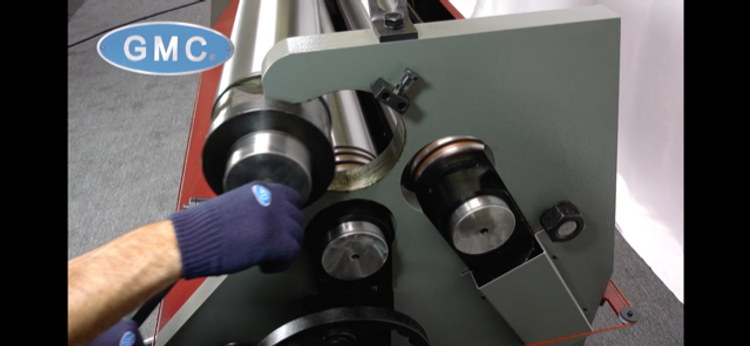

  • Easy swing –out top roller
  • Standard cone attachment installed
  • 1 each LED indicator for bending roll position
  • Safety line all around the machine for emergency stop
  • Heavy Duty all steel welded machine construction
  • German Hydraulic logic system centrally located and quiet
  • Bending roll is hydraulic powered up/down & tilting adjustment
  • Planetary reduction gear and pump
  • All three rolls are made of high grade alloy steel
  • All rolls run forward and reverse  Safety type foot pedal control
  • Overload protection and disconnect switch
  • Power source 208V/220V, (Option 460 V , 3 phase)
  • One year industrial warranty for parts


STANDARD EQUIPMENT
  • LED indicator for bending roll position
  • Safety line all around the machine for emergency stop
  • Removable safety foot pedal and tool box
  • Cone attachment (to make cone parts)
  • (3) grooves 3/8”, ½”, 5/8” on roll for bending wire


OPTIONAL EQUIPMENT
Safety fence for enclosure of the back side of the machine -  $1,150.00


Roll Capacity:

Mild Steel

8' x 8Ga.
Stainless Steel 8’ x 12Ga.
Min. Roll dia. 7 1/2"
Rolls Length 8' 4"
Rolls Dia.  6 1/2"
Pre-bend 0.12"
Rolls speed 3.5 RPM
Rolls Opening 2 1/32"
Oil Tank Cap. 245L = 12 Gal
Main Motor 7 1/2 HP
Weigth 8,150 lbs.
Dimensions 142" x 38" x 58"

Attachments

There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
