NEW 88 TON x 10' US INDUSTRIAL MODEL USHB88-10 CNC HYDRAULIC PRESS BRAKE

Manufacturer

U.S. INDUSTRIAL

Model

USHB88-10

Year

Not provided

Stock #

14307

Condition

New

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

NEW 88 TON x 10' US INDUSTRIAL MODEL USHB88-10 CNC HYDRAULIC PRESS BRAKE

Base Price POR


STANDARD EQUIPMENT

Ram Deflection Adjustment
Mechanical Ram Depth Control
Massive Torsion Bar For Parallelism
Forged Heavy Duty Cylinder & Cylinder Body
Three Speed Ram
Rapid Approach, Bending Cycle & Rapid Retreat
Bottom Time Delay
All Steel Constuction
Single, Continuous & Single Cycle
Ram Takes Standard American Tang Tooling (1/2" x 5/8")
Space Between Ram Tool Clamps Allow For Deep Box Bending
Bed Has Slot For Standard American Tang Tooling
Bed Also Holds Tooling With Capture Clamps
Free Goosenext Punch & Multi-Opening Die For Up To 90º Forming In 10 Gauge Mild Steel

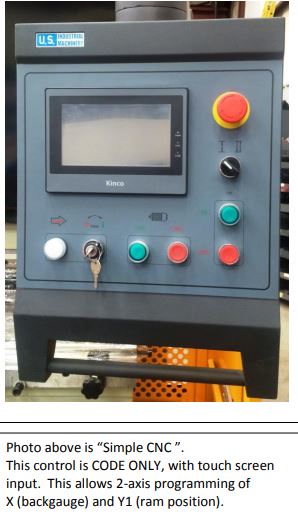

2-Axis Color Graphic CNC Back Gauge
Controls BOTH Bend Angle and Backgauge Position. Comes with 6” Color LCD touch screen. Code and Graphic programming included.
Graphic allows 10 bends per program/cross-section. Controls features a Tool library, Metric/Inch switchable, Auto bend sequence,
Auto retract of  backgauge, Spread length, Interference bend alert, Calculated bend allowance,
Programmable ram dwell and much more. Control stores thousands of programs with USB Port, Ethernet and RS232 for program backup.
Sick Model 4000 Light Curtain System


OPTIONAL EQUIPMENT


Fiessler Akas II Laser Guarding $7,995.00

Pilz PSENvip LED Safety Guarding $8,495.00

Third Axis (Back Gauge Height) $4,995.00

CNC Controlled Mechanical Auto Crown $9,995.00

High Speed Servo Back Gauge $4,995.00

Training At US Industrial Factory No Charge

On Site Training (Less Than 300 Miles From Memphis, TN) $2,995.00

On Site Training (More Than 300 Miles From Memphis, TN) $3,995.00

On Site Training (Outside Continental USA) POR




SPECIFICATIONS

Working Pressure  88 Tons
Overall Length Of Table 125.9"
Distance Between Housing 106.2"
Throat Depth 9.8"
Stroke Adjustment Of Ram 1.96"
Ram Travel 3.93"
Open Height 13.7"
Rapid Ram Travel Speed 2.4"/Sec
Rapid Ram Retreat Speed 2.0"/Sec
Pressing Speed Dependent On Tool Load
Backgauge Travel 24"
Motor Horsepower 10 HP
Hydraulic Oil Capacity 79 Gal
Approx. Overall Weight                                   14,332 Lbs
Approx. Dimensions 148" x 64" x 90"H

Warranty:  1 Year Parts & Labor


Special Note: The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose. There is NO warranty on these items.

Attachments

There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
