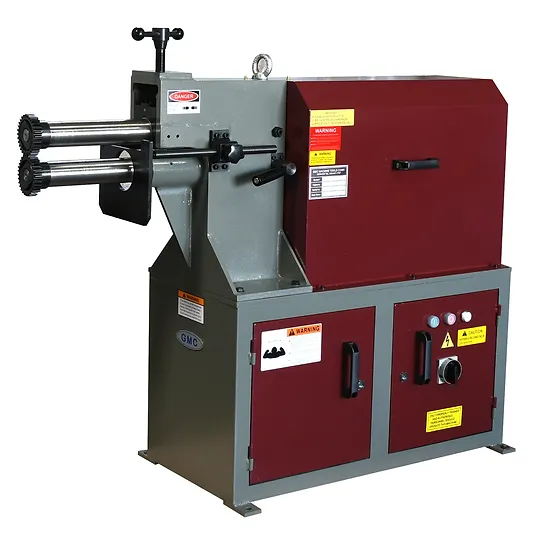

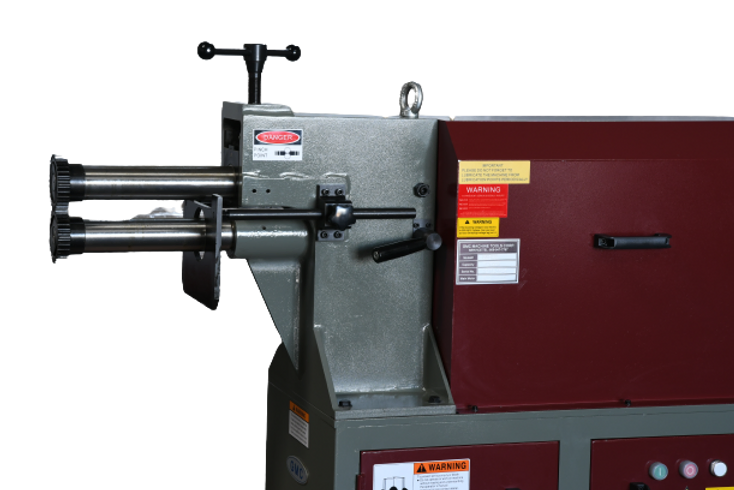

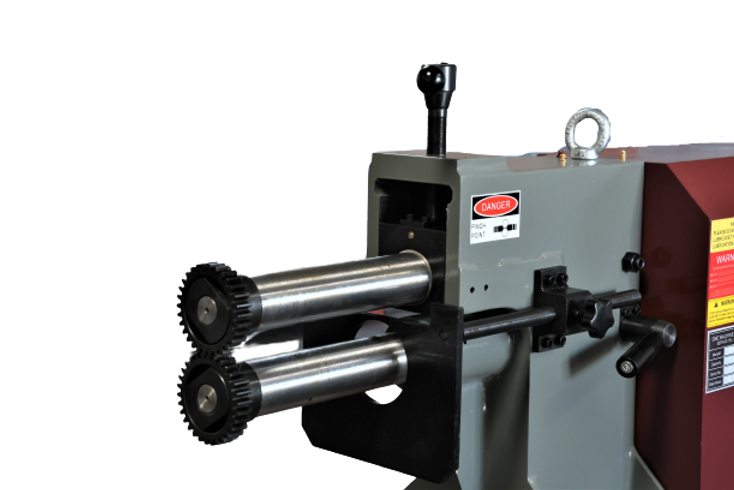

NEW GMC MODEL BBM-12E POWER BEAD ROLLER
Year
Not provided
Stock #
19101
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW GMC MODEL BBM-12E POWER BEAD ROLLER
- ISO 9001 certified
- Heavy Duty cast iron construction
- (4) sets of standard dies
- S1 - Shear die
- S2 - Crimp die (RD)
- S3 - Bead die (R0.25")
- S4 - Step die (10mm)
- Easy adjustment and operation
- Ideal to make Ogee Bead, Turning, Wiring, Crimping, Burring, Elbow Edging, Single Bead, flange, slitting, flattening, offset
OPTIONAL EQUIPMENT
| Optional die set (extra) | $475.00 |
| Custom profile die set | $575.00 |
SPECIFICATIONS
|
Max Capacity Mild Steel Stainless Steel |
12 Ga. 16 Ga. |
| Throat Depth | 11" |
| Cylinder Length | 8" |
| Cylinder Speed | 20 RPM |
| Main Motor |
2 HP 3 Phase Prewired: 220VAC Optional: 440VAC |
| Overall Dimensions (LxWxH) | 55" x 20" x 47" |
| Machine Weight | 530 lbs |
Attachments
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
