NEW GMC MODEL DFM-20 DIAMOND FORMING MACHINE
Year
Not provided
Stock #
19497
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW GMC MODEL DFM-20 DIAMOND FORMING MACHINE
MACHINE FEATURES
- ISO 9001 certified
- 1-Year parts only warranty
- Emboss up to 4 foot stainless steel sheet metal x 20 Ga.
- 18” throat depth
- Steel welded framework
- High grade ball bearings

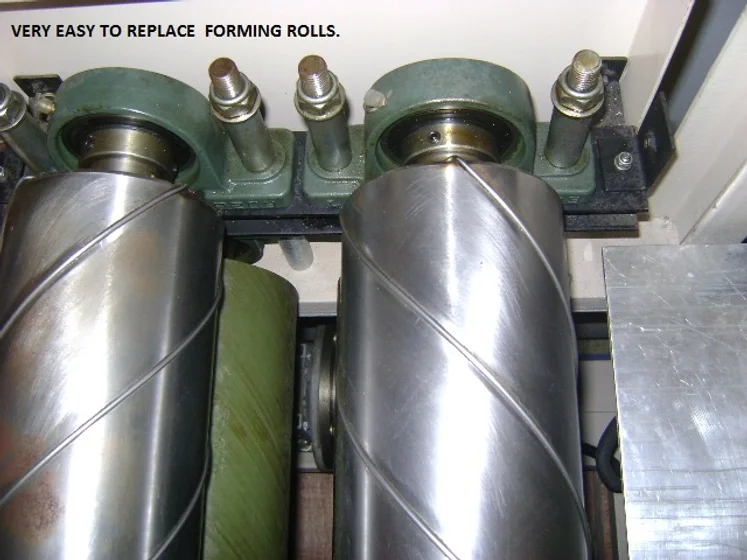

- 2 – Top forming steel rolls
- 2 – Bottom pressure rubber rolls

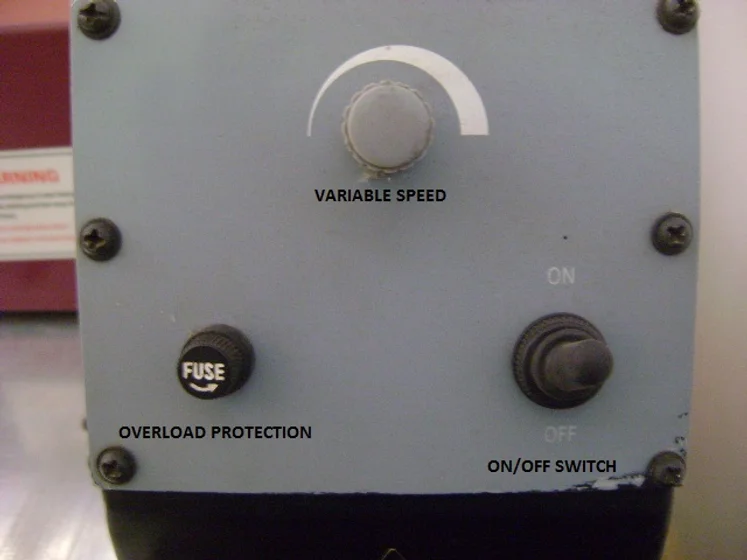

- Variable speed control
- Overload protection fuse
- Infeed table with side gauge
- Easy for one person operation
OPTIONAL DIAMOND EMBOSSED PATTERNS
- 2” x 2” Diamond Pattern ………….. Call for pricing
- 3” x 3” Diamond Pattern ………….. Call for pricing
| MODEL# | DFM-20 |
| Max. material capacity (width): | 4 foot sheets (50") |
| Diamond Size: | 3-7/8”x 3-7/8” |
| Max. material thickness: | 20 Ga. |
| Variable speeds: | 9-16 RPM |
| Motor: | 2 HP - 110V / 60 HZ |
| Net Weight: | 1,650 lbs. |
| Dimensions: | 63" x 53" x 43" |
Attachments
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
