Equipped With

NEW GMC MODEL PRB-75H ANGLE ROLL BENDER WITH 3" SQUARE DIES

• ISO 9001 certified
• Hydraulic top roller positioning with digital readout

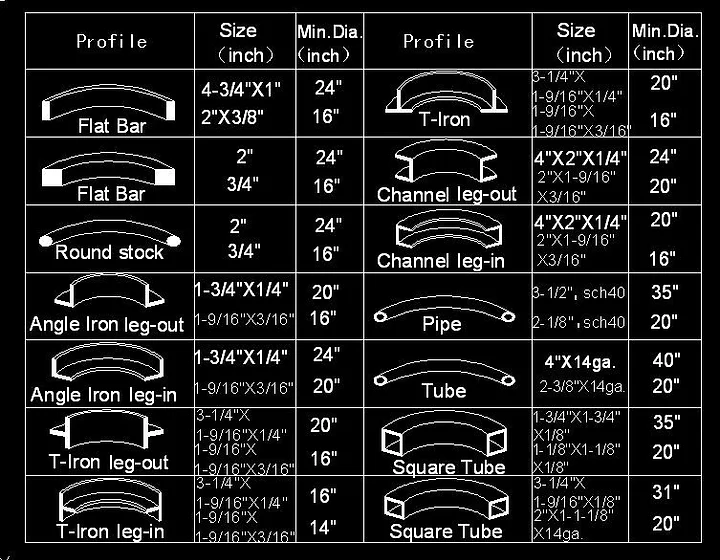

• Max capacity: 4” tube and 3-1/2” pipe
• Heavy Duty 5-1/2HP AC main motor
• Heavy welded all steel construction
• Quiet compact hydraulic system
• Custom-made rollers are available per request, such as steel, nylon, etc.
• One year industrial warranty for parts

• One set of universal combination rollers can do most works, except round tubes & pipes
• Foot pedal

1. Optional roller sets for pipe & round tubing, any size, one set (3-rolls) - $1,495.00

2. Optional anti-twisting attachment - $895.00




   Dia. of Roller	8 1/2"
   Dia. of Roller Shaft	3"
   Roller Speed	16 RPM
   Motor	5-1/2" HP, 220V/440V, 3 Phase
   Dimiensions	51" x 45" x 72"
   Weight (with top roller hydraulic positioning)	2,450 lbs.



   Oil Capacity

   28L =8 Gal
