S-20NG MANUAL MITER BAND SAW

Precision. Versatility. Value.

The HYDMECH S-20NG is a manual miter band saw engineered for accuracy, versatility, and ease of use in job shops, fabrication facilities, and production environments. A capable entry-level solution that delivers full professional-grade performance at a great price.

The S-20NG features HYDMECH’s exclusive 7" HMI touchscreen with digital angle display and a standard mist lubrication system offering unique advantages found on no competitor’s saw in this class.

Performance Highlights

•      Industry-exclusive 7" touch screen with digital angle display

•      Compact footprint at only 91" W × 33" L taking up less floor space

•      Mist lubrication system uses up to 90% less coolant than flood systems resulting in a cleaner shop, lower cost, and greener operation

•      Precision manual blade tension allows for simple, consistent tensioning for optimal blade life every time

•      VFD variable blade speed for cutting steel, aluminum, stainless, and more

Eco-Smart Mist Lubrication System

Every HYDMECH S-20NG ships standard with a precision air-mist lubrication system designed for clean, efficient cutting without the mess and cost of flood coolant. Unlike flood systems that pump gallons of fluid per hour, the mist system delivers a fine, targeted spray directly on the band saw blade.

•      Up to 90% less coolant consumption versus flood systems

•      Cleaner shop floor with no coolant puddles, no slip hazards

•      Reduced environmental footprint with less waste to dispose of

•      Lower operating costs with coolant supply that lasts significantly longer

•      Faster end-of-shift cleanup

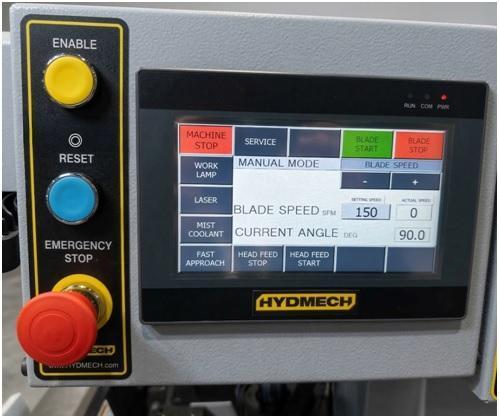

The HYDMECH S-20NG introduces an industry-exclusive 7" (178 mm) HMI touchscreen that displays the miter angle digitally in real time. No other band saw in this class offers this. Operators of any experience level can confidently dial in precise miter angles at the touch of a button, eliminating analog gauges, protractors, and costly setup errors.

The touchscreen puts full machine control at the operator's fingertips:

•      Real-time digital miter angle readout

•      Blade speed display and VFD control

•      Mist lubrication on/off activation

•      Machine status and operating diagnostics

Manual Blade Tension System

Proper blade tension is the single most important factor in cut quality and blade life. The HYDMECH S-20NG's manual tension system is designed for straightforward, repeatable tensioning. Operators can set correct tension quickly and confidently, without over- or under-tensioning.

•      Extends blade life as correctly tensioned blades run cooler and straighter

•      Improves cut quality by helping to eliminate blade deviation and deflection

Standard Features

• Easy swing, heavy-duty cast iron saw head (swings 90°–30°)
• 3 HP true direct blade drive — no belts or pulleys
• VFD variable blade speed — 45–375 SFM
• Manual full-stroke vise with brake cam lock
• Gravity-fed variable rate down-feed
• Manual blade tension
• Carbide blade guide inserts
• Manual positioned guide arm
• Cast iron band wheels
• Mist lubrication system (solenoid activation, 64 oz reservoir with low level detection — shop air required 60–100 PSI)
• 7" HMI touchscreen with digital angle display
• Laser light
• Work light
• Replaceable blade brush
• Robust steel base
• Safety door interlocks
• Blade breakage switch
• Built in material in-feed rollers and out-feed table

Optional Features

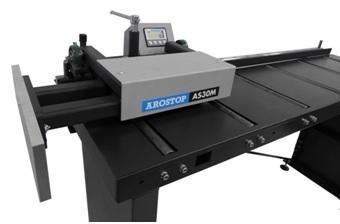

·         Material work stop

·         Power transformers

·         Idler conveyors
