S-20PNG SEMI-AUTOMATIC MITER BAND SAW

Precision. Versatility. Value.

The HYDMECH S-20PNG is a semi-automatic, mitering band saw engineered for production shops that demand faster cycle times and consistent, hands-free operation. Hydraulic vise clamp material automatically, the powered head lift reduces operator fatigue, and variable vise pressure safely handles everything from solid bar stock to thin-wall tubing.

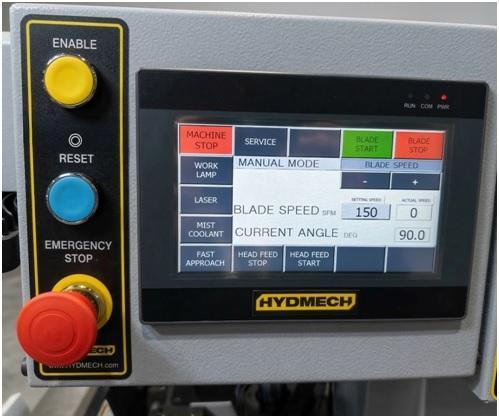

The S-20PNG features HYDMECH’s exclusive 7" HMI touchscreen with digital angle display and a standard mist lubrication system offering unique advantages found on no competitor’s saw in this class.

Performance Highlights

•      Hydraulic powered vise with variable pressure for hands-free automatic clamping and safe handling of all material types

•      Industry-exclusive 7" touch screen with digital angle display

•      Compact footprint at only 91" W × 33" L taking up less floor space

•      Mist lubrication system uses up to 90% less lubrication than flood systems resulting in a cleaner shop, lower cost, and greener operation

•      VFD variable blade speed for cutting steel, aluminum, stainless, and more

Eco-Smart Mist Lubrication System

Every HYDMECH S-20PNG ships standard with a precision air-mist lubrication system designed for clean, efficient cutting without the mess and cost of flood coolant. Unlike flood systems that pump gallons of fluid per hour, the mist system delivers a fine, targeted spray directly on the band saw blade.

•      Up to 90% less coolant consumption versus flood systems

•      Cleaner shop floor with no coolant puddles, no slip hazards

•      Reduced environmental footprint with less waste to dispose of

•      Lower operating costs with coolant supply that lasts significantly longer

•      Faster end-of-shift cleanup

Mist lubrication is controlled via solenoid activation from the HMI touchscreen. Reservoir: 64 oz (1893 mL) with low-level detection. Shop air required: 60–100 PSI. Requires shop air.
